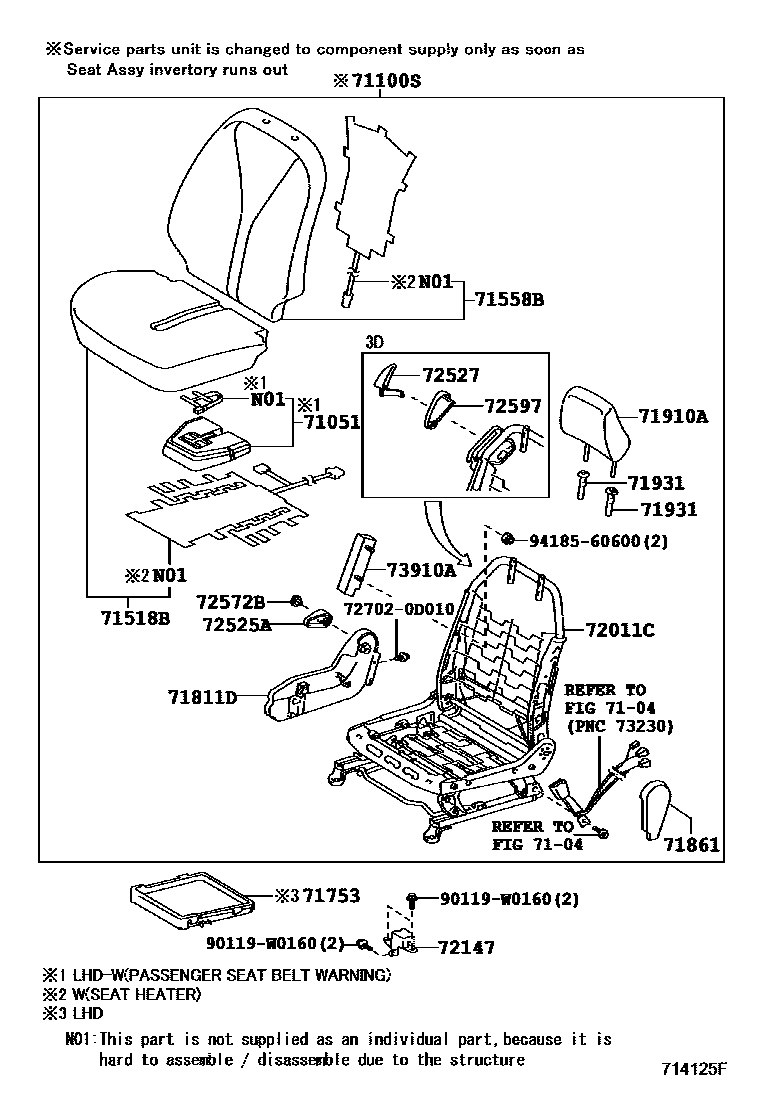

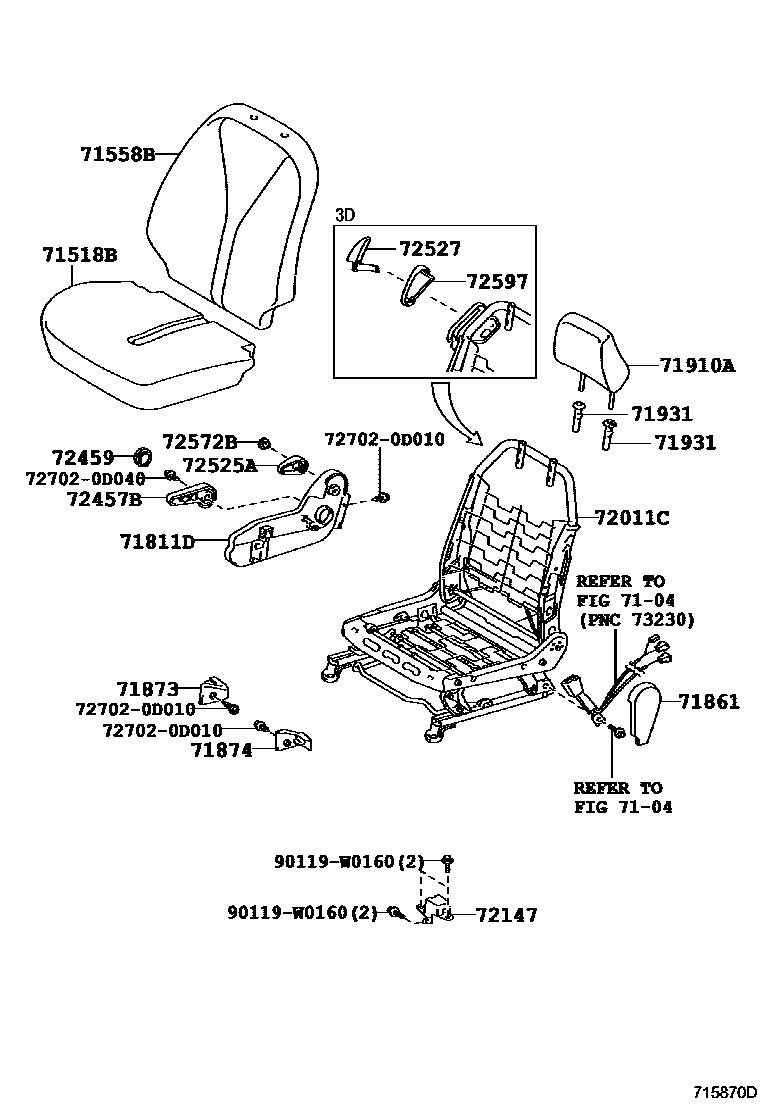

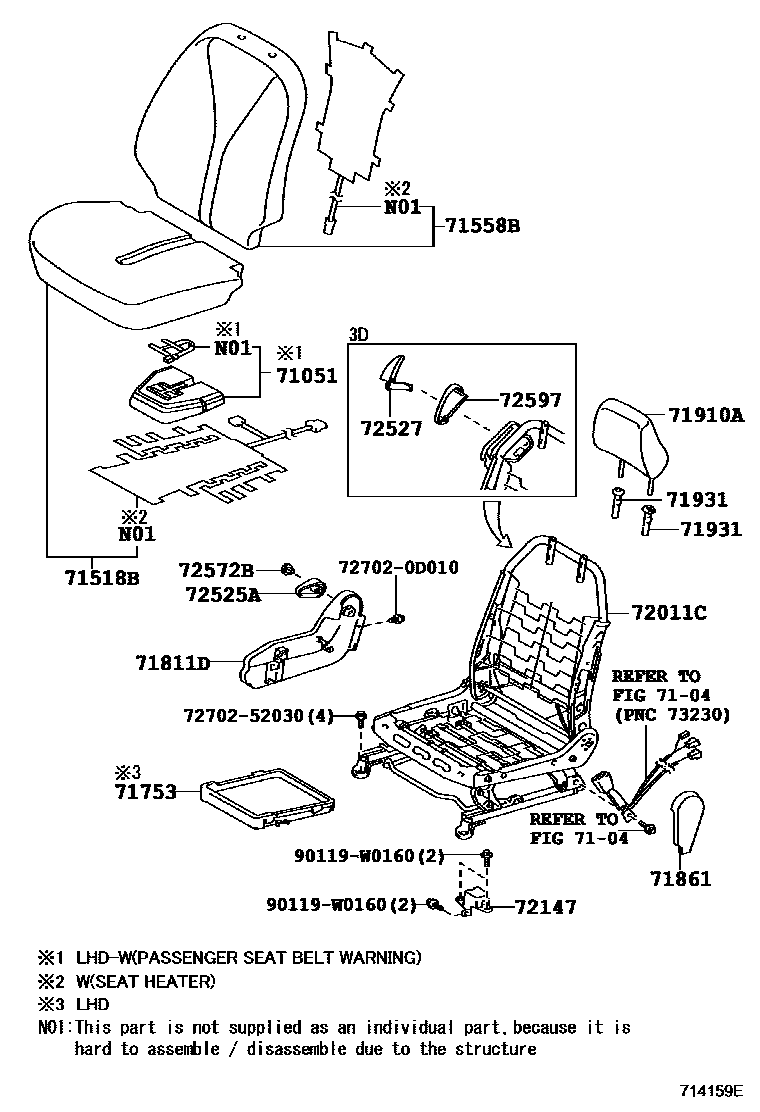

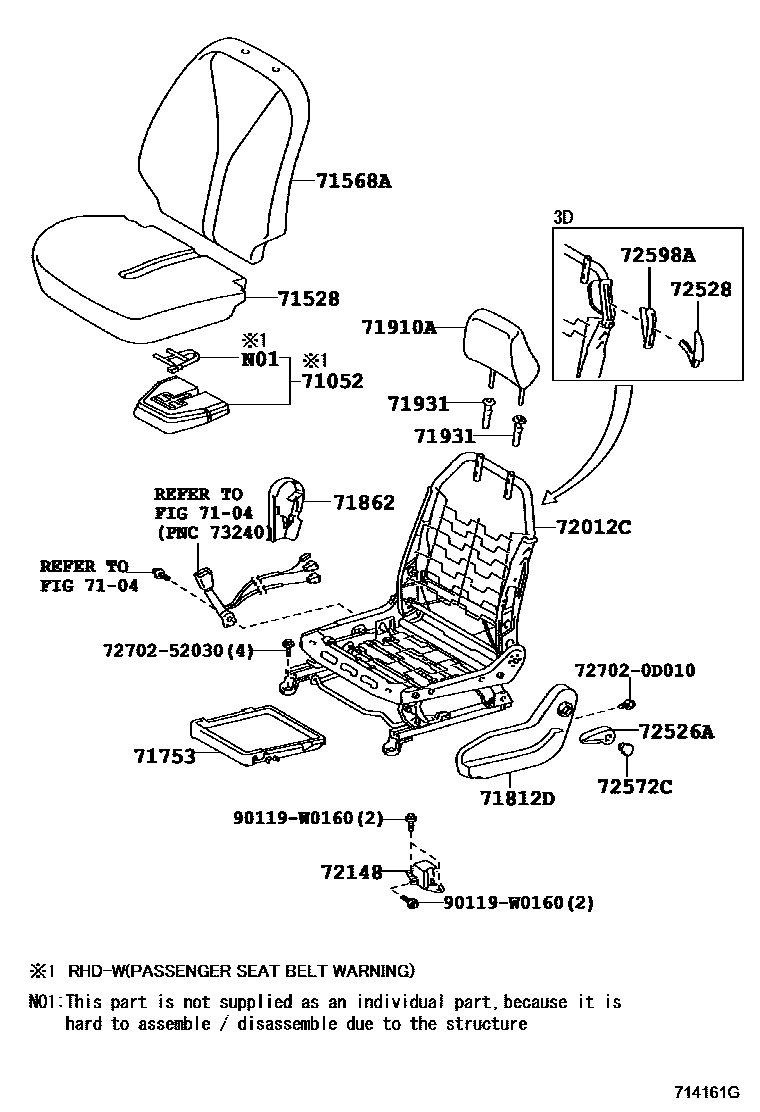

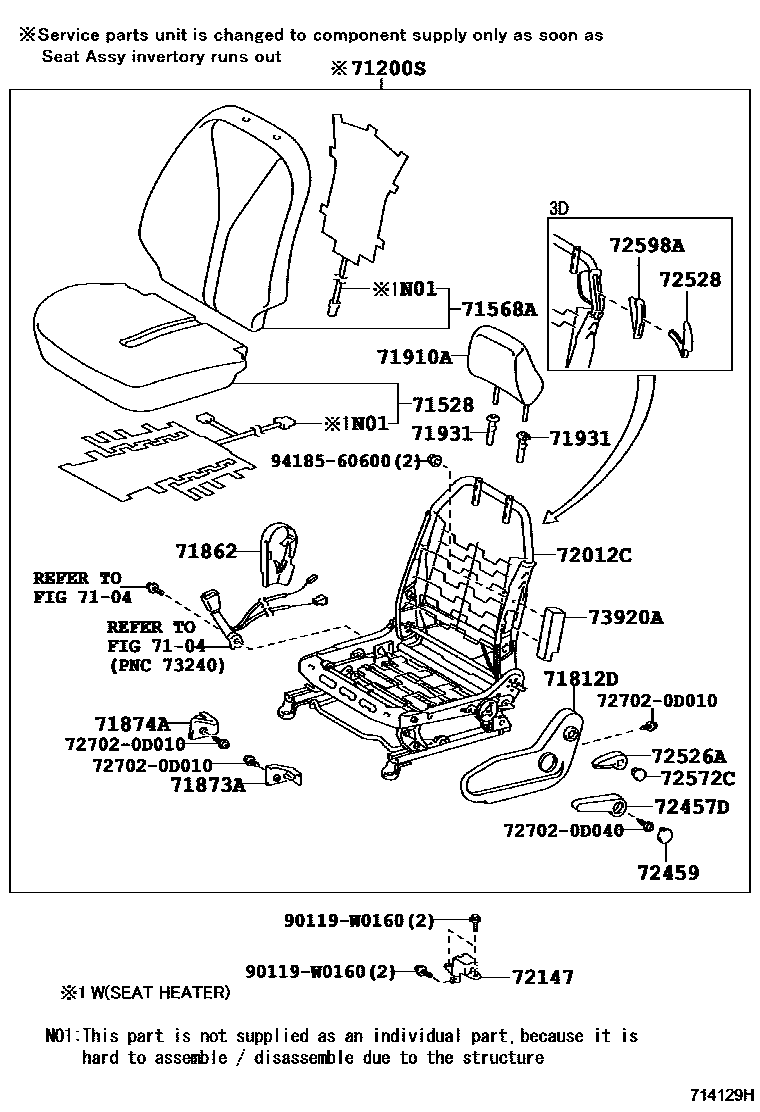

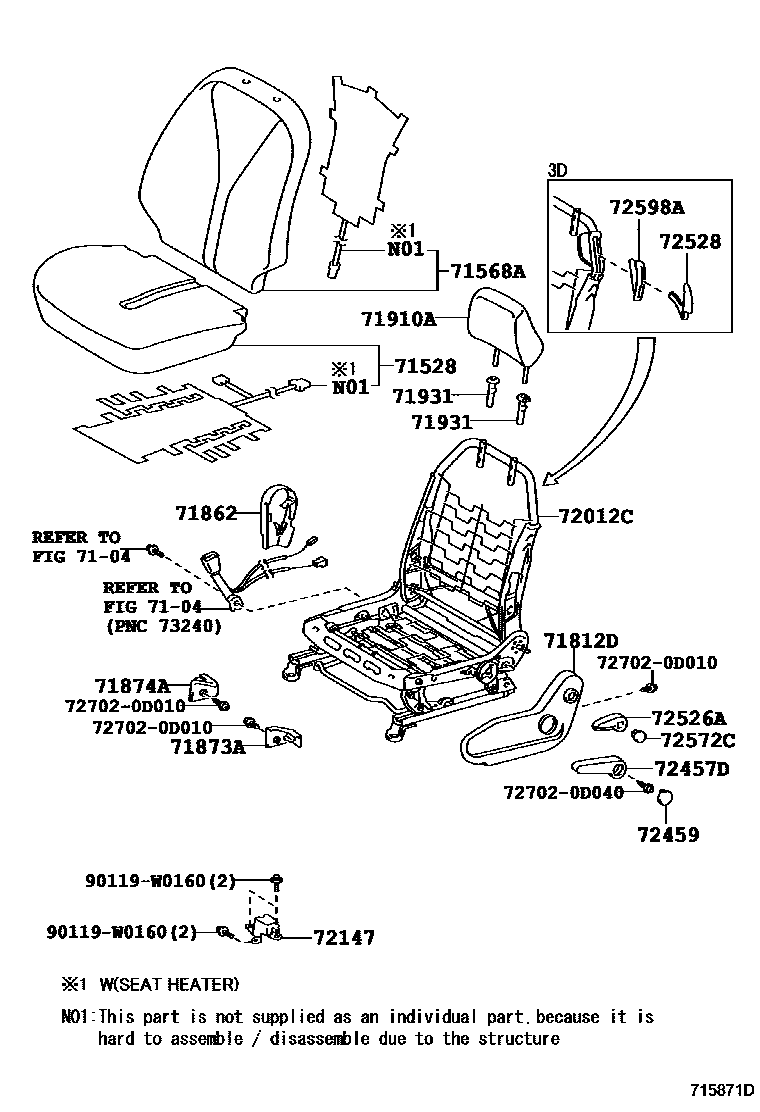

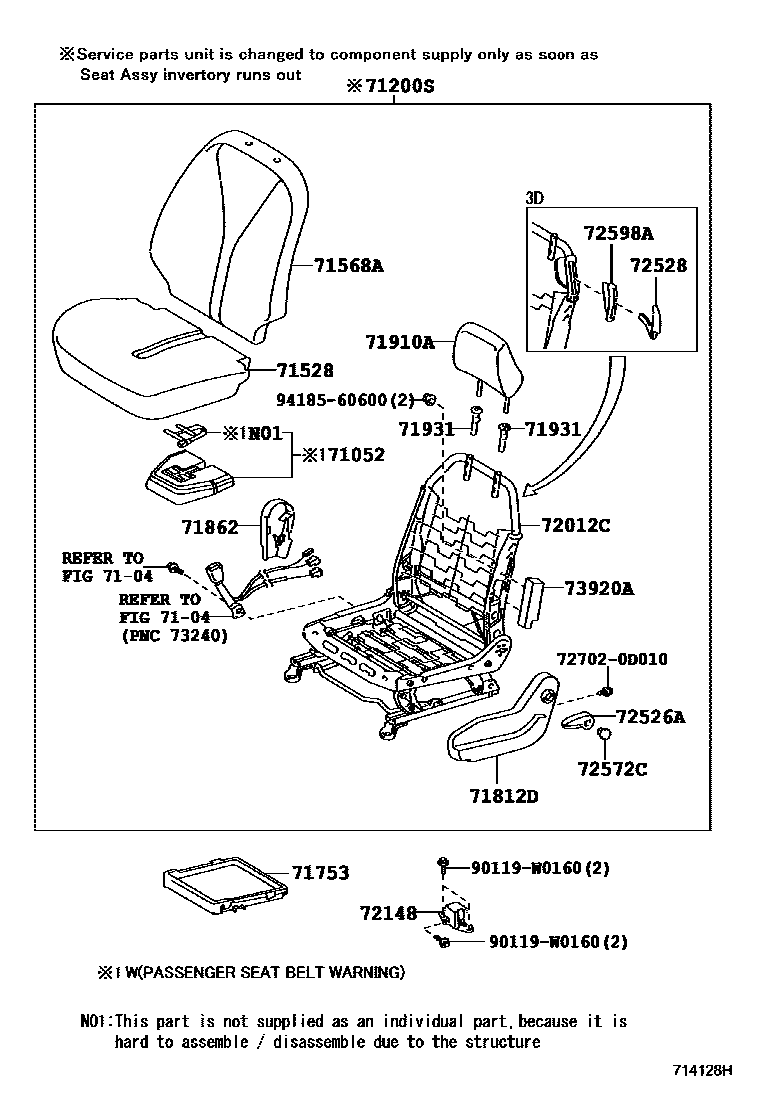

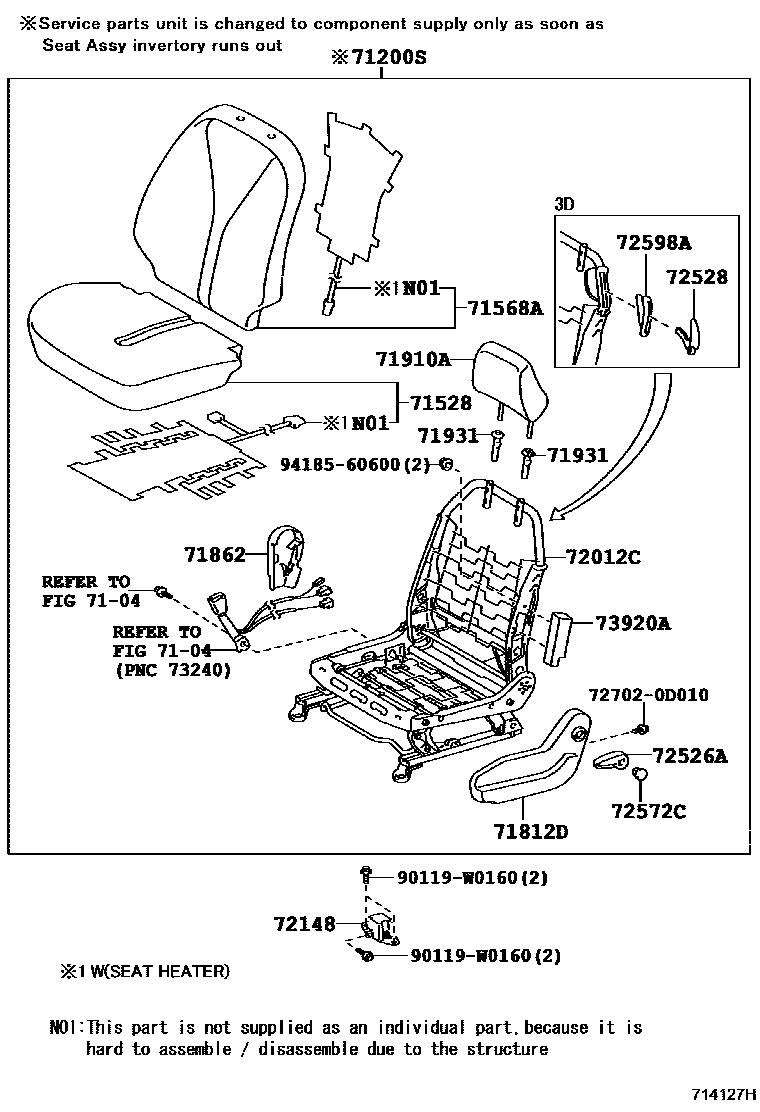

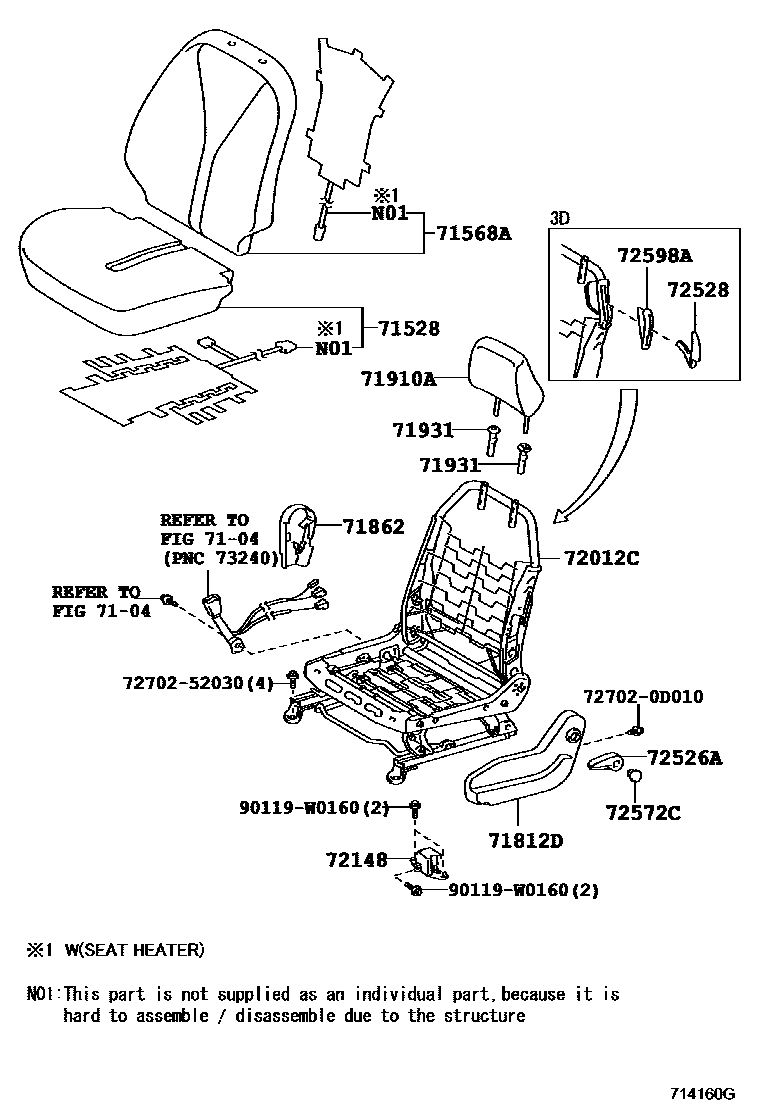

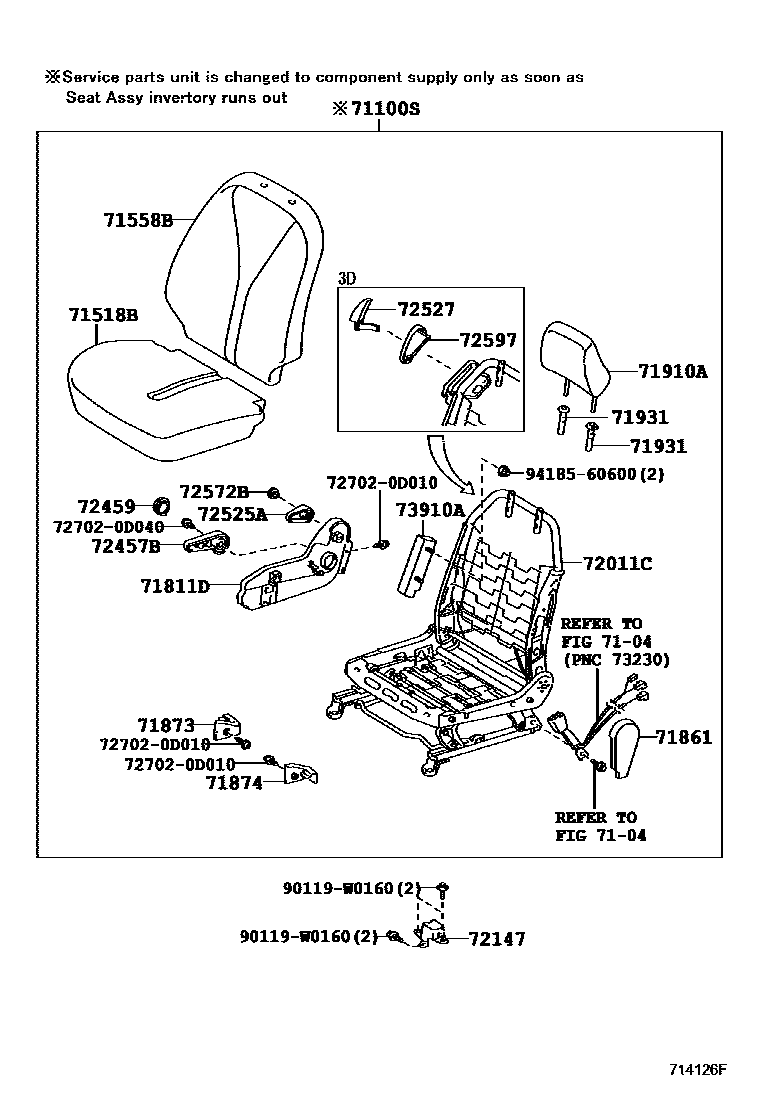

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 10 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71051 | Front right seat cushion sensor pad sub-assembly | 71051-0D010 |
| 71052 | Front left seat cushion sensor pad sub-assembly | 71051-0D010 |
| 71753 | Front seat bottom bracket | 71753-0D070 |
| 72011C | Front right seat adjuster sub-assembly | 72010-0D320 · 72010-0D330 · 72010-0D340 · 72010-0D350 · 72010-0D360 · 72010-0D370 |
| 72012C | Front left seat adjuster sub-assembly | 72020-0D320 · 72020-0D330 · 72020-0D340 · 72020-0D350 · 72020-0D360 · 72020-0D370 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52020 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52010 |
| 73910A | Front right seat airbag assembly | 73910-0D020 |
| 73920A | Front left seat airbag assembly | 73920-0D020 |
