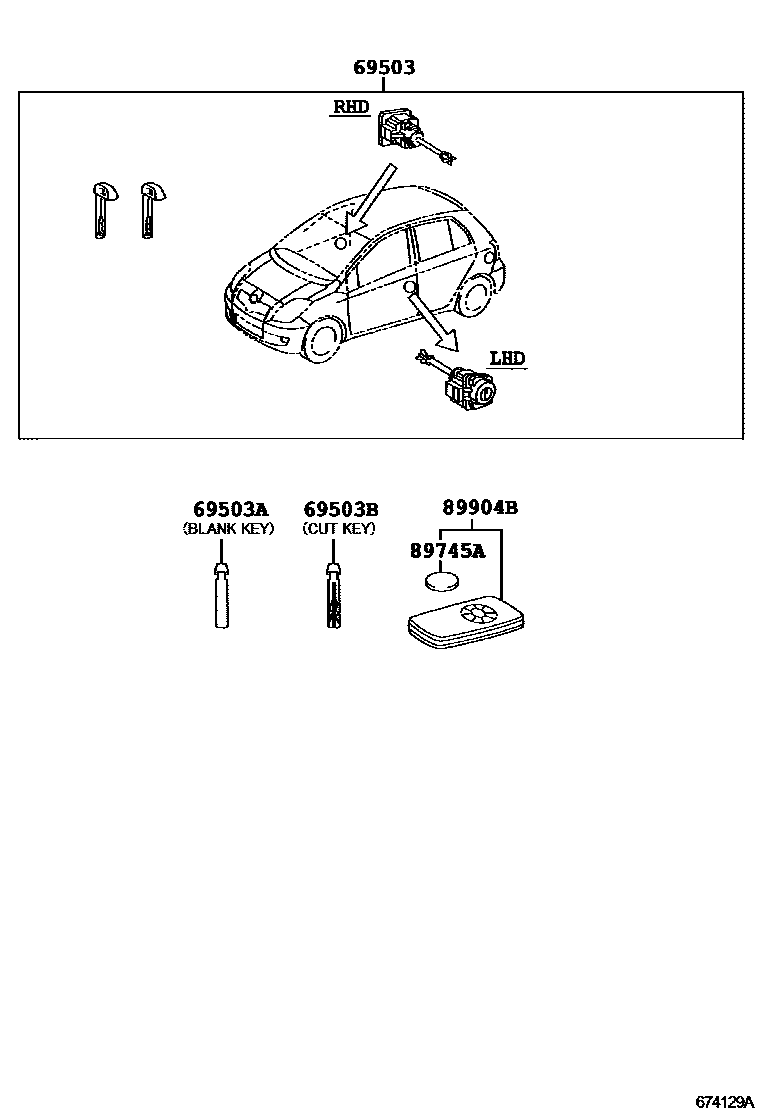

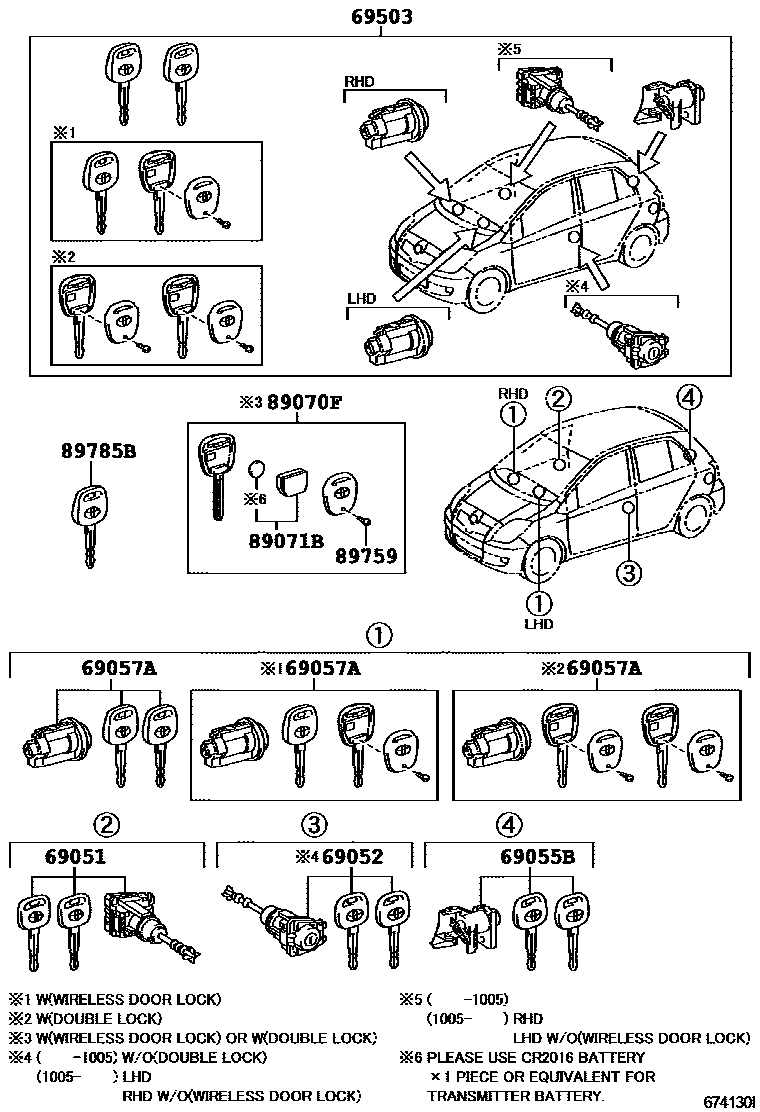

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D050 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D060 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0D050 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0D060 · 89073-0D090 · 89073-0D110 |
| 69503 | Door lock cylinder components | 69005-0D050 · 69005-0D080 · 69005-0D090 · 89073-0D100 · 89073-0D120 · 89073-0D121 · 89073-0D130 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0D090 |
| 89071B | Remote key sub-assembly module assembly | 89071-0D030 |
| 89072A | Remote key shell assembly | 89072-0D020 |
| 89745A | Transmitter battery | 89745-52030 |
| 89759 | Remote key screw | 89759-02010 |
| 89785B | transceiver key master transmitter | 89785-0D030 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D030 · 89904-0D031 · 89904-0D070 |
