Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 2 images and 35 PNC and OE references.

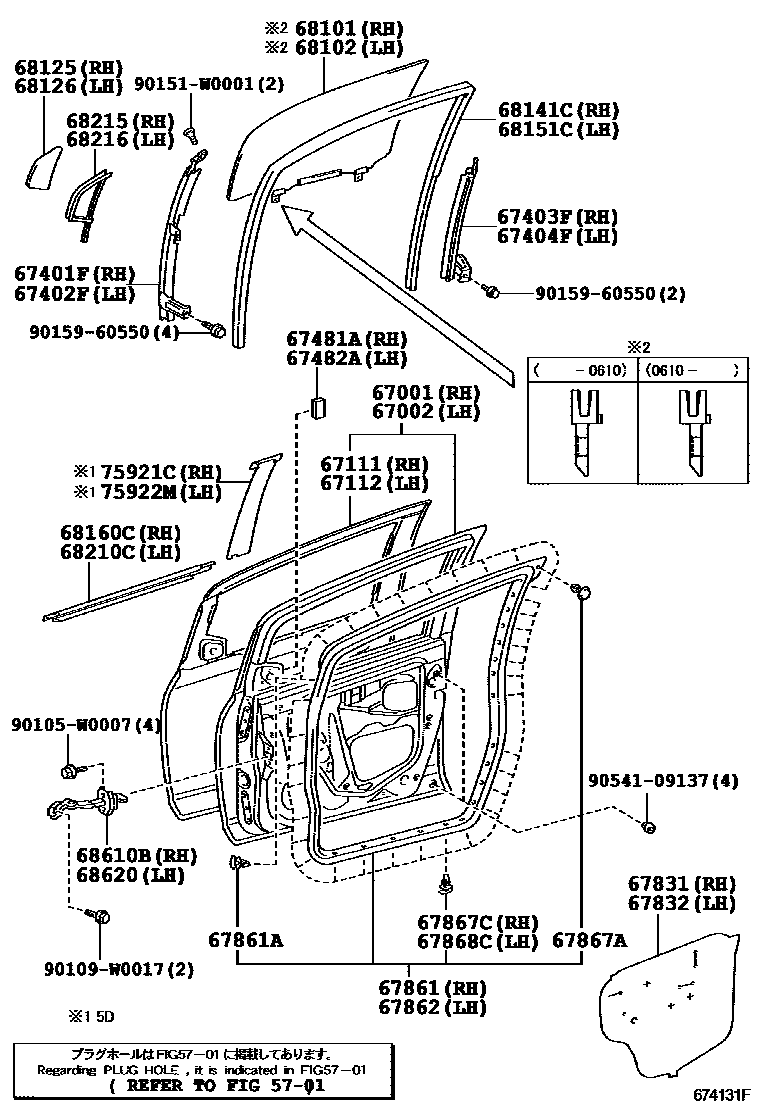

Toyota YARIS 前门板和前门玻璃 EPC diagram — 674131F
前门板和前门玻璃 — 674131F (200511 – 999999)

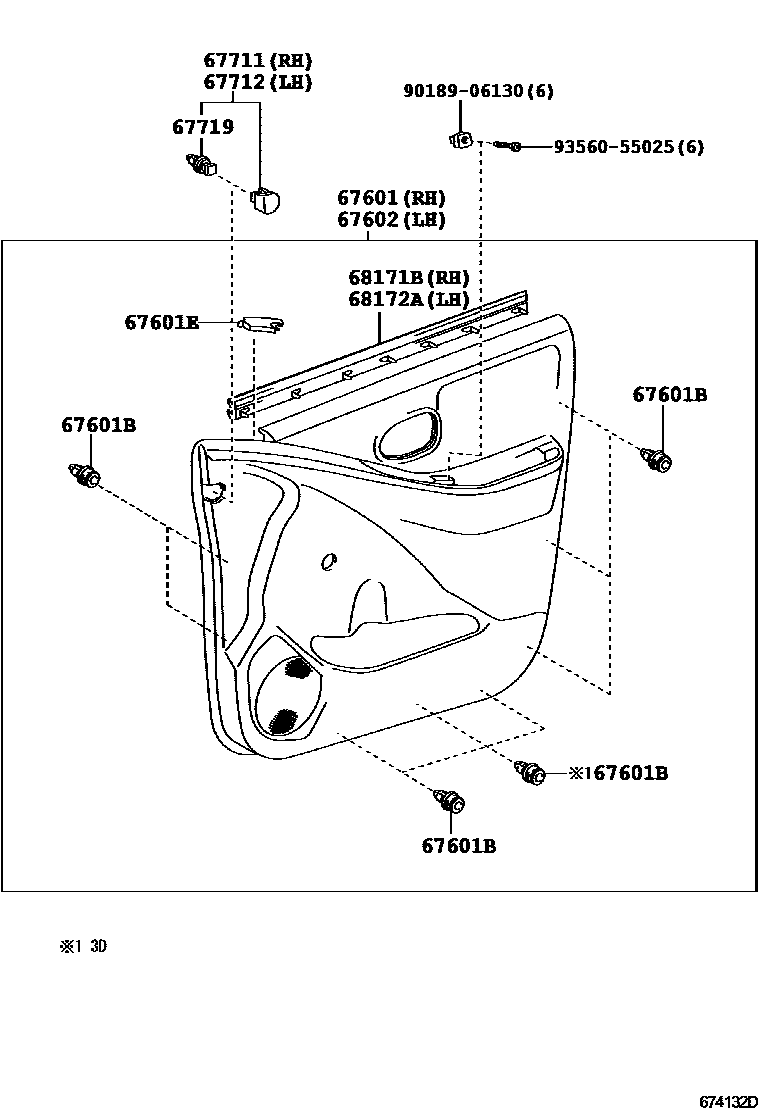

Toyota YARIS 前门板和前门玻璃 EPC diagram — 674132D
前门板和前门玻璃 — 674132D (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-0D170 · 67001-0D180
67002Left front door panel sub-assembly67002-0D170 · 67002-0D180
67111Outer right front door panel67111-52150 · 67111-52160
67112Outer left front door panel67112-52100 · 67112-52120
67401FRight front door front lower door frame sub-assembly67401-52090
67402FLeft front door front lower door frame sub-assembly67402-52060
67403FRight front door rear lower door frame sub-assembly67403-52160 · 67403-52161 · 67403-52170 · 67403-52171
67404FLeft front door rear lower door frame sub-assembly67404-52130 · 67404-52131 · 67404-52140 · 67404-52141
67481ARight front door front lower door frame seal67481-52010
67482ALeft front door front lower door frame seal67481-52010
67601BCatch (for front door trim panel)90467-09203
67719Front door decorative cover67719-52010
67831Right front door access hole cover67831-0D090 · 67831-0D100 · 67831-0D120
67832Left front door access hole cover67831-0D090 · 67831-0D100 · 67832-0D070
67861Right front door seal67861-0D050 · 67861-0D070
67861AFixing piece (for front door sealing strip)67867-52020 · 67867-52030
67862Left front door seal67862-0D050 · 67862-0D070
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68110-0D070 · 68110-0D071 · 68110-0D072 · 68110-0D080 · 68110-0D081 · 68110-0D082
68102Left front door glass sub-assembly68120-0D070 · 68120-0D071 · 68120-0D072 · 68120-0D080 · 68120-0D081 · 68120-0D082
68125Right front door fixed window glass68125-0D010
68126Left front door fixed window glass68126-0D010
68141CRight front door glass lift channel68141-0D090 · 68141-0D100
68151CLeft front door glass lift channel68151-0D090 · 68151-0D100
68160CRight front door glass outer sealing strip assembly68160-0D060 · 68160-0D070
68171BRight front door glass inner sealing strip68171-52150 · 68171-52160
68172ALeft front door glass inner sealing strip68172-52050 · 68172-52130
68210CLeft front door glass outer sealing strip assembly68210-0D060 · 68210-0D070
68215Right front door fixed window seal68215-0D010
68216Left front door fixed window seal68216-0D010
68610BRight front door opening limiter assembly68610-0D040 · 68610-0D041
68620Left front door opening limiter assembly68610-0D040 · 68610-0D041
75921CNo. 1 right side light-shielding film75921-0D010
75922MNo. 1 left shading film75922-0D010
