Toyota YARIS 中央扶手箱和支架 — Figure 5806

Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 2 images and 4 PNC and OE references.

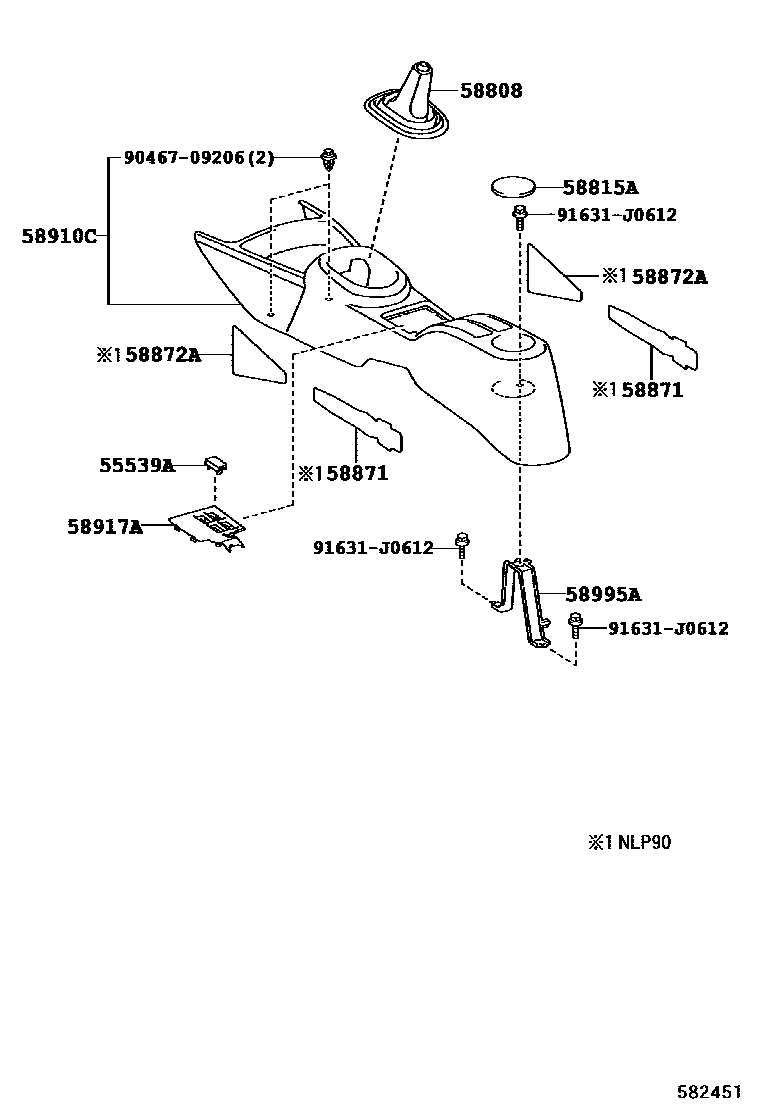

Toyota YARIS 中央扶手箱和支架 EPC diagram — 582451
中央扶手箱和支架 — 582451 (200511 – 200811)

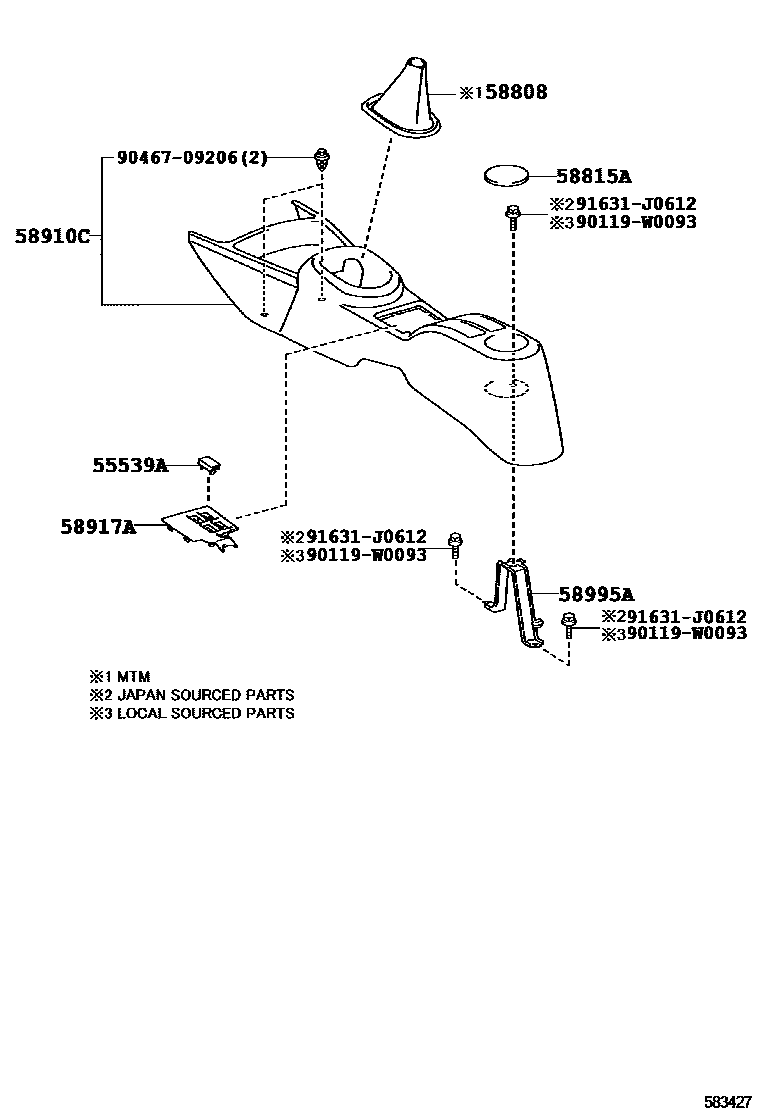

Toyota YARIS 中央扶手箱和支架 EPC diagram — 583427
中央扶手箱和支架 — 583427 (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
58815AArmrest box felt pad58815-0D050
58871Armrest box cushion58871-0D040
58872AArmrest Box No. 2 Cushion Pad58872-0D010
58995AArmrest box No. 1 mounting bracket58995-52010
