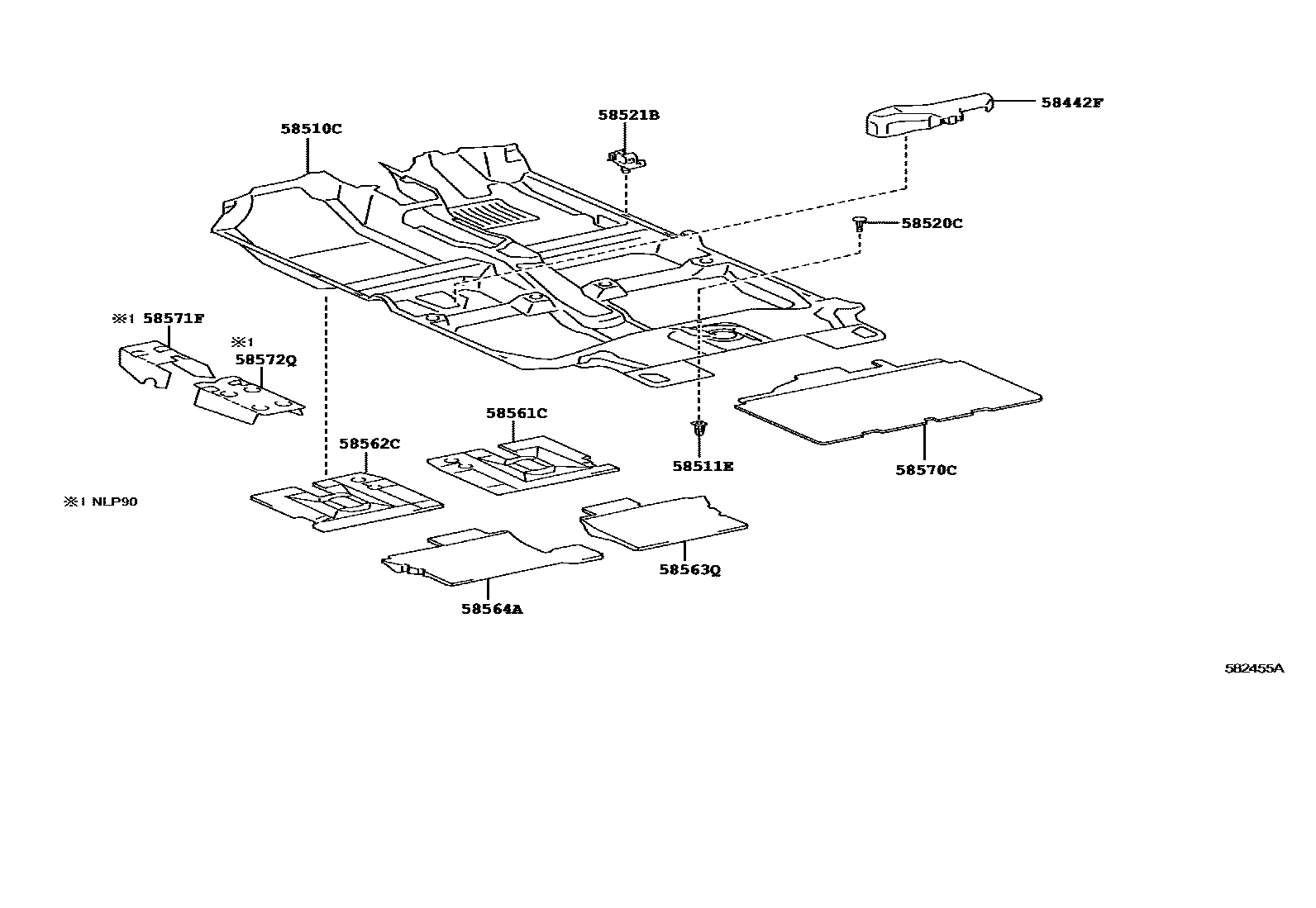

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58442F | jack cover | 58442-0D040 |
| 58511E | Clip (for front floor mat) | 90467-10023 |
| 58521B | carpet hook | 58521-0D060 |
| 58561C | Front floor silencer No. 1 | 58561-0D070 |
| 58562C | Front floor silencer No. 2 | 58562-0D070 |
| 58563Q | Front floor silencer No. 3 | 58563-0D060 |
| 58564A | Front floor silencer No. 4 | 58564-0D070 |
| 58571F | Front floor pad | 58571-0D010 |
| 58572Q | Front floor pad No. 2 | 58572-0D010 |
