Toyota YARIS 发动机盖和前翼子板 — Figure 5302

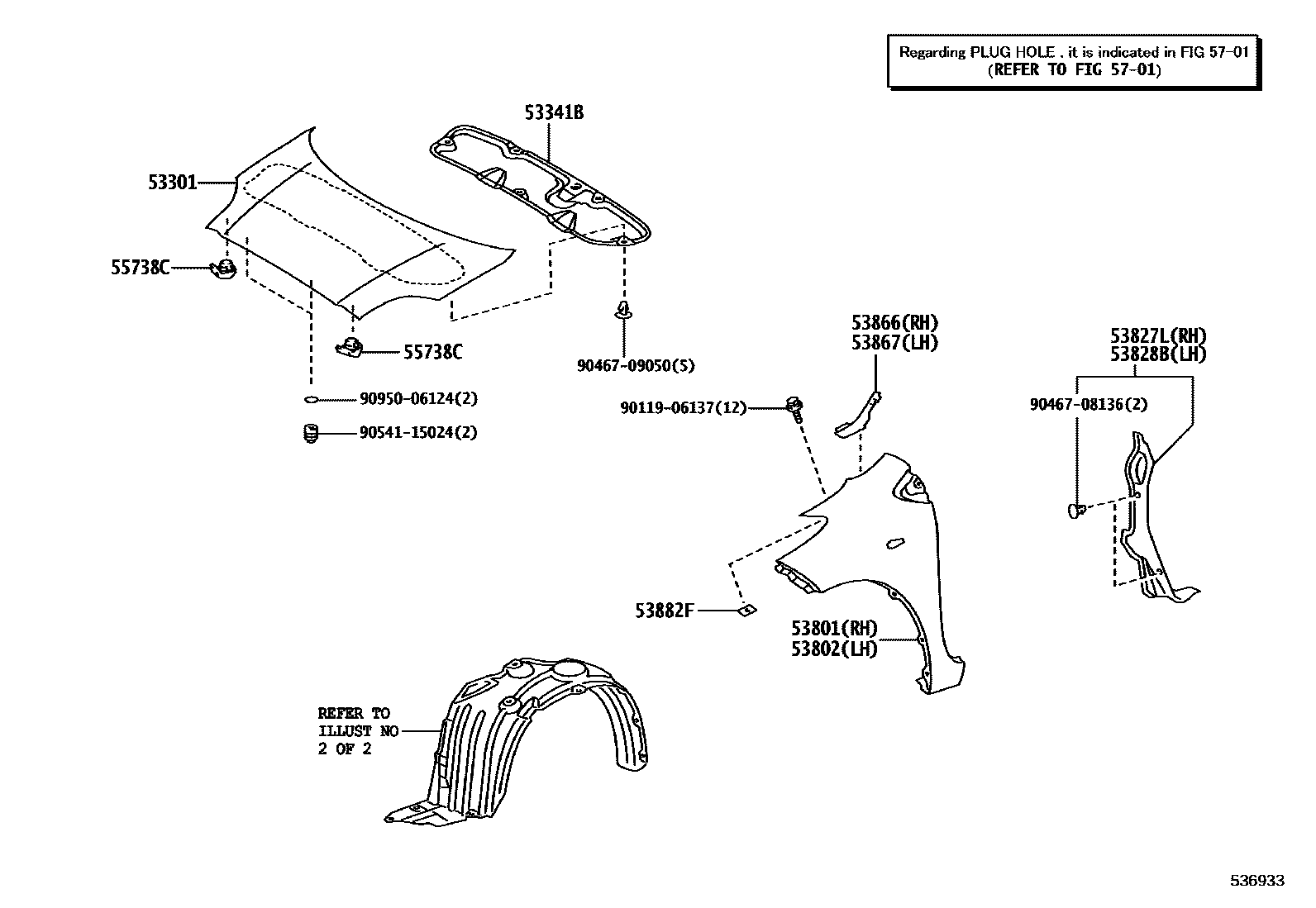

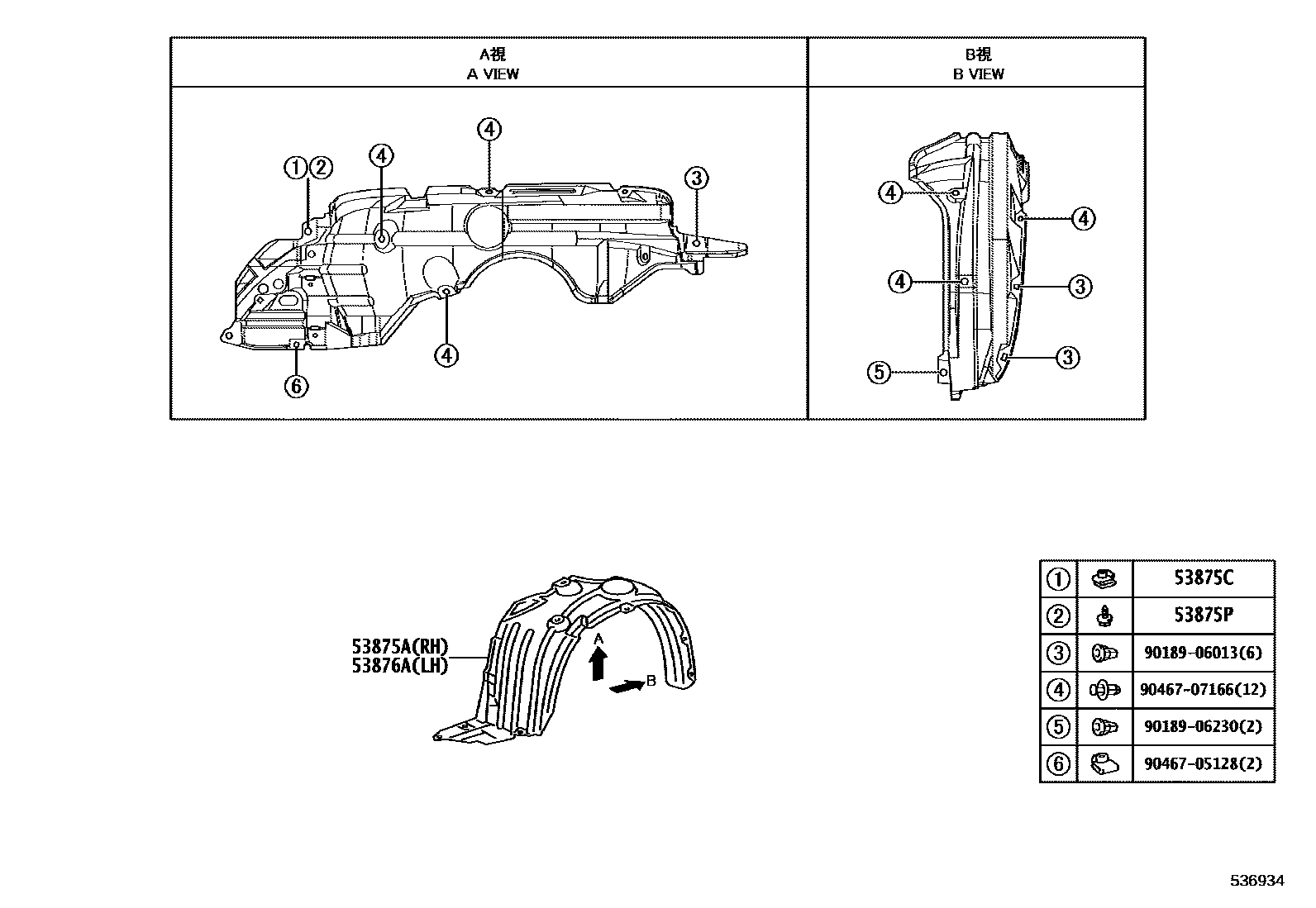

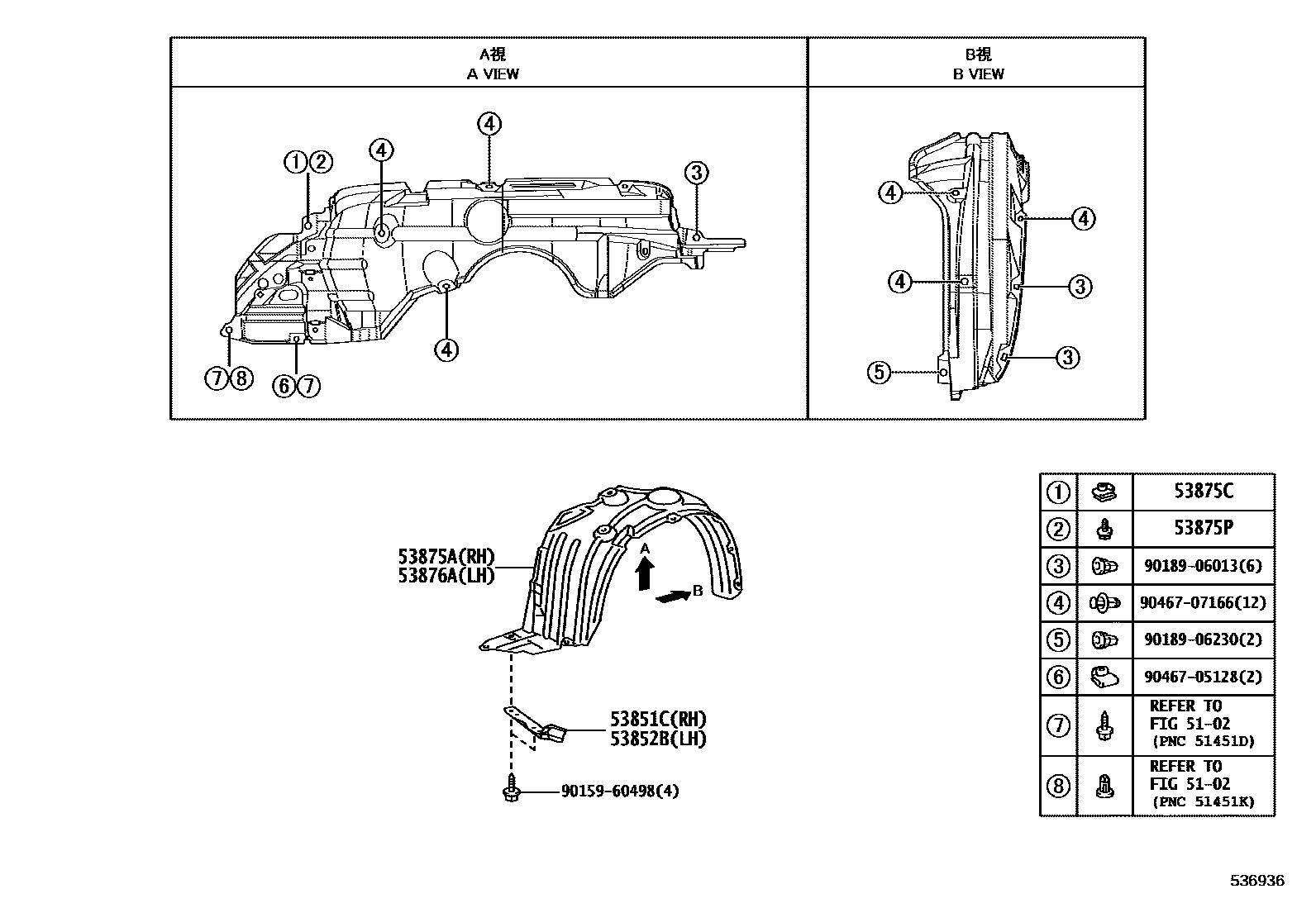

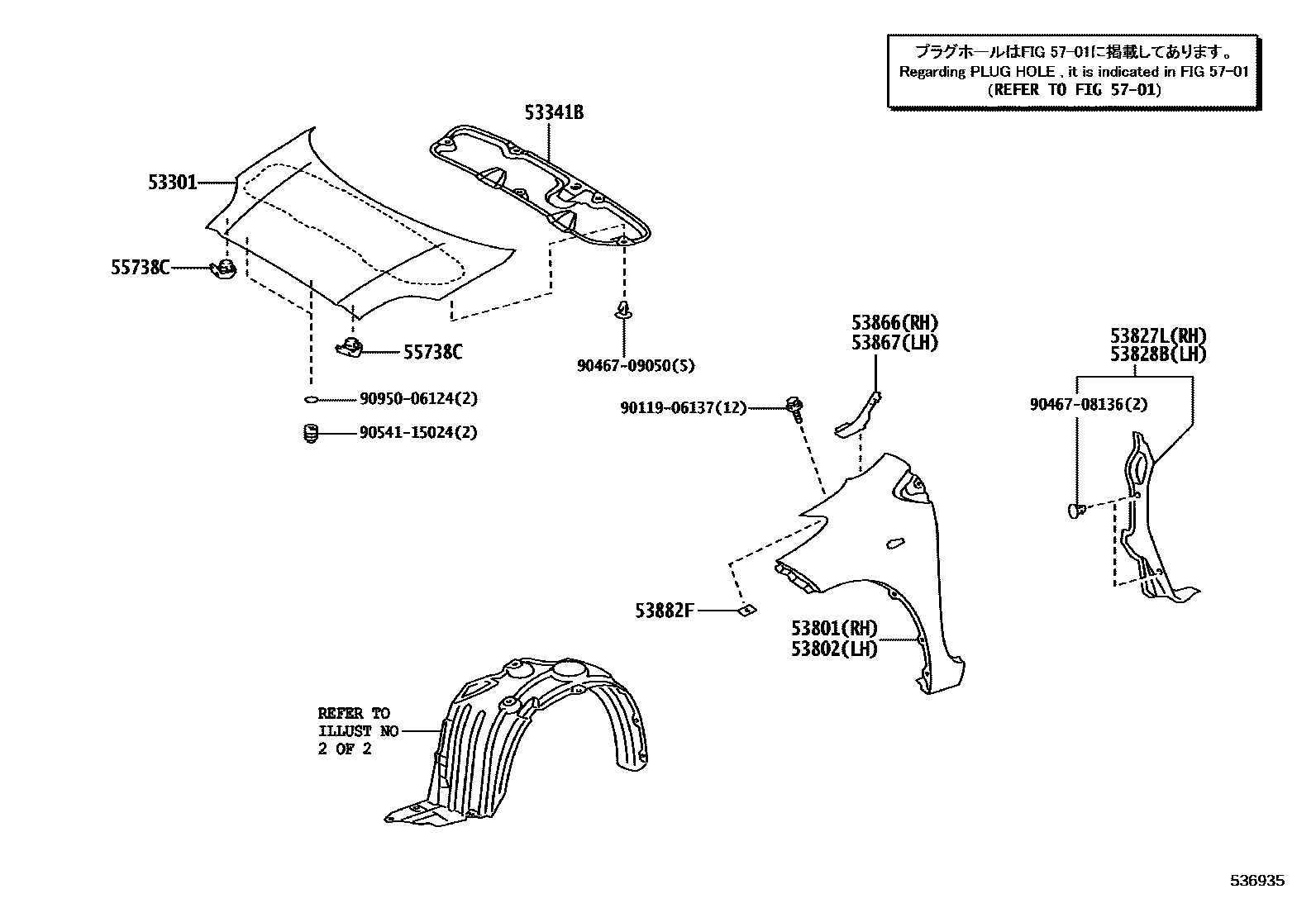

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0D080 |
| 53341B | engine cover gasket | 53341-0D030 |
| 53801 | Right front fender sub-assembly | 53811-52210 |
| 53802 | Left front fender sub-assembly | 53812-52210 |
| 53827L | Right front fender side panel protector | 53827-52100 |
| 53828B | Left front fender side panel protector | 53828-52120 |
| 53851C | No. 1 front fender outer panel pad | 53851-0D060 |
| 53852B | Left front fender exterior panel pad | 53852-0D020 |
| 53866 | Right front fender to cowl side seal | 53866-0D030 |
| 53867 | Left front fender to cowl side seal | 53867-0D030 |
| 53875A | Right front fender lining | 53875-0D040 · 53875-0D060 · 53875-0D120 · 53875-0D130 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | VIS, NO.1 | 90159-60590 |
| 53876A | Left front fender lining | 53876-0D040 · 53876-0D060 · 53876-0D120 · 53876-0D130 |
| 53882F | front fender seal | 53882-16030 |
| 55738C | Engine cover right block | 55738-52050 |
