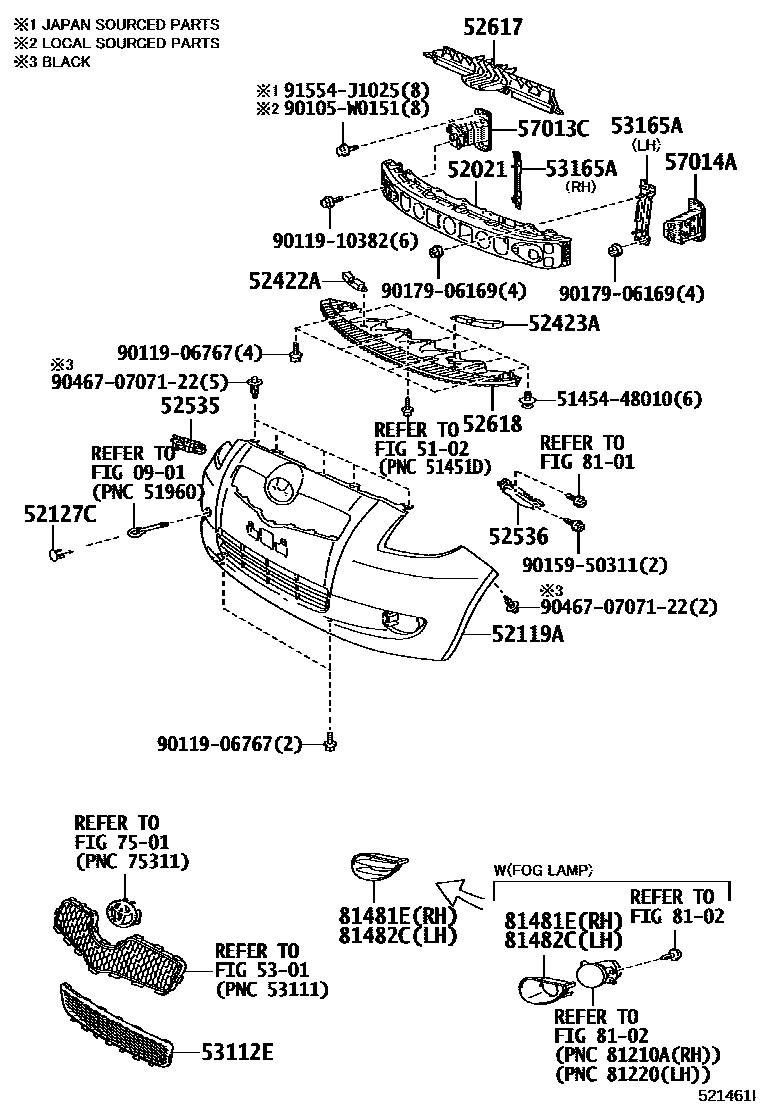

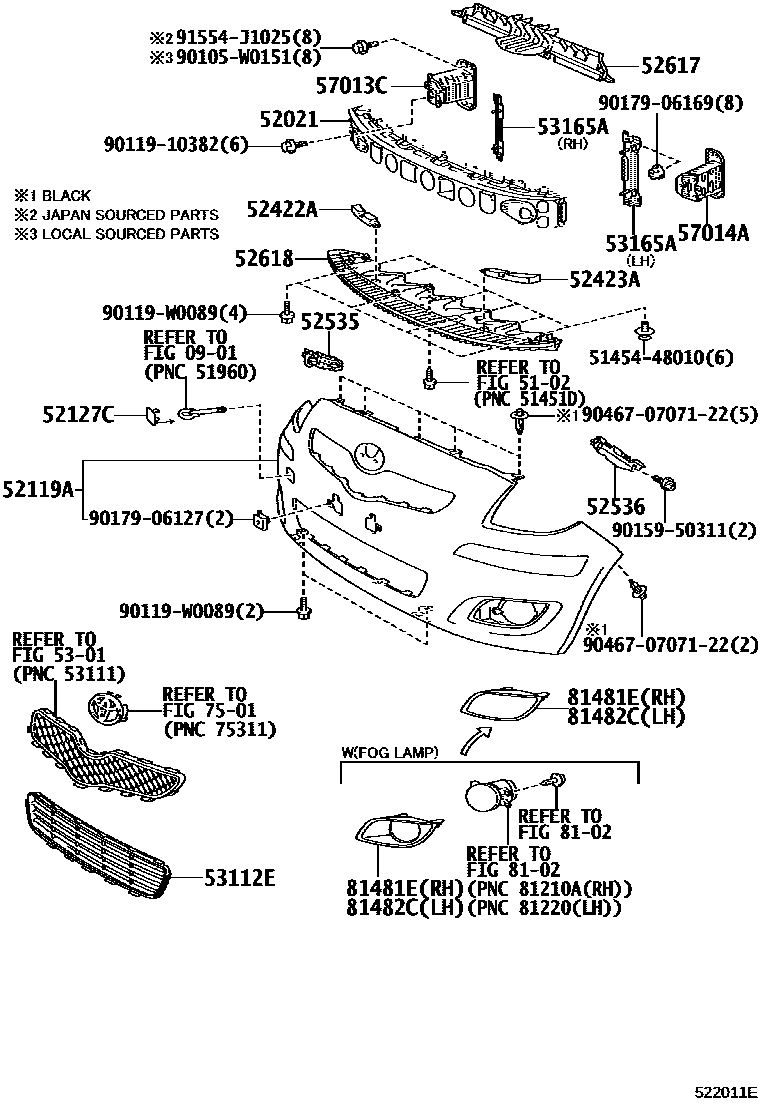

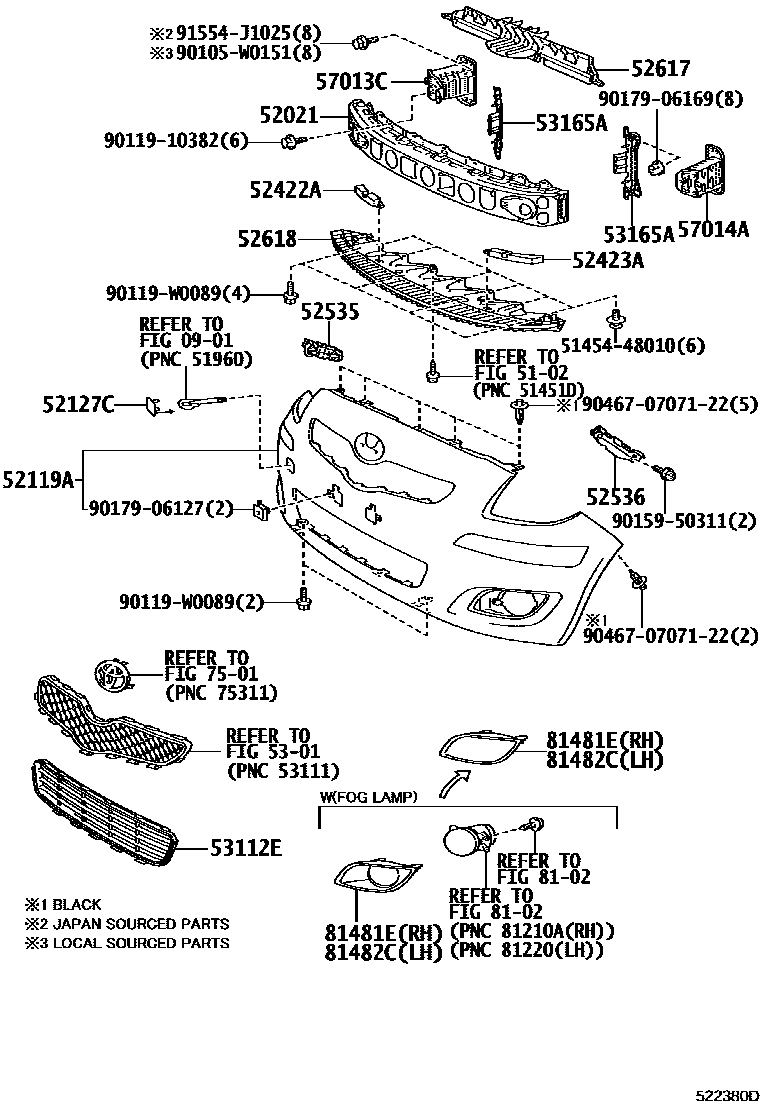

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D060 |
| 52119A | front bumper cover | 52119-0D908 · 52119-0D977 |
| 52127C | Front bumper hole cover | 52127-52907 · 52127-52915 · 52127-52925 |
| 52422A | Front bumper right side lining | 52422-0D010 · 52422-52010 |
| 52423A | Front bumper left lining | 52423-0D010 · 52423-52010 |
| 52535 | Front bumper right side fixing bracket | 52535-0D030 |
| 52536 | Front bumper left fixed bracket | 52536-0D030 |
| 52617 | Radiator upper bracket shock absorber | 52617-52020 |
| 52618 | Front bumper lower shock absorber | 52618-0D010 · 52618-0D020 |
| 53112E | No. 1 radiator lower grille | 53112-0D050 · 53112-0D140 · 53112-0D160 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52010 · 53164-52060 · 53165-52020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0D010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0D010 |
| 81481E | Right fog light cover | 81481-0D010 · 81481-0D020 · 81481-0D090 · 81481-0D100 |
| 81482C | Left fog light cover | 81482-0D020 · 81482-0D030 · 81482-0D100 · 81482-0D110 |
