Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102

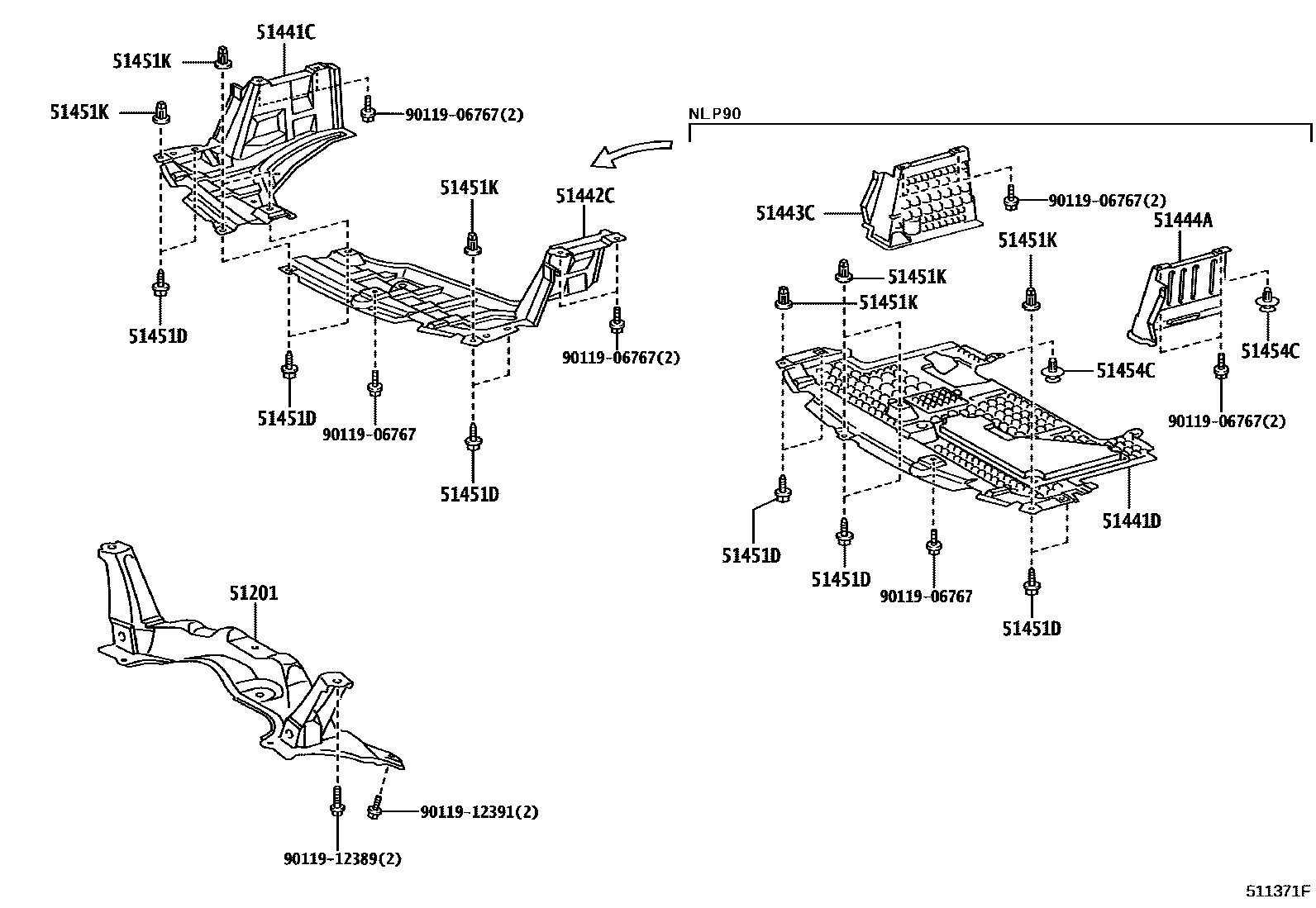

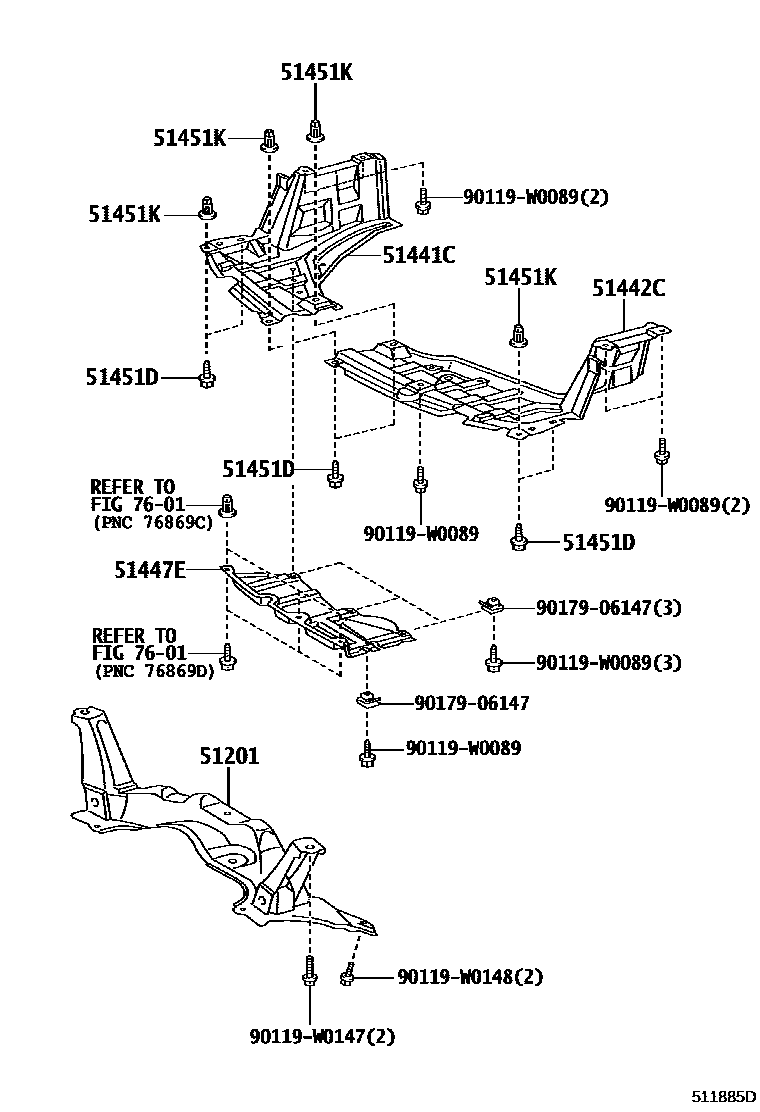

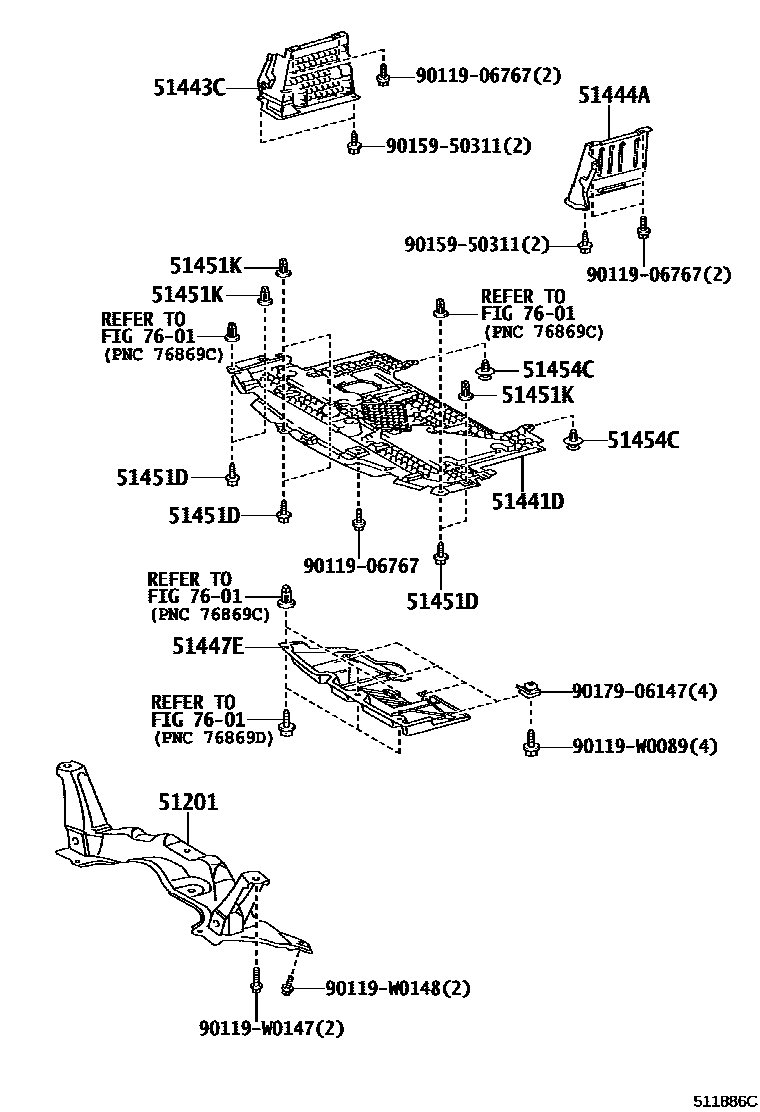

Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0D090 · 51201-0D093 · 51201-0D100 · 51201-0D103 |
| 51441C | Engine right bottom cover | 51441-0D100 · 51441-0D190 · 51441-0D210 |
| 51441D | engine cover | 51441-0D130 · 51441-0D200 |
| 51442C | Engine left bottom cover | 51442-0D050 · 51442-0D130 |
| 51443C | Engine right rear bottom cover | 51443-0D010 · 51443-0D020 |
| 51444A | Engine left rear bottom cover | 51444-0D010 · 51444-0D020 |
| 51447E | Engine undercover reinforcement | 51447-0D010 · 51447-0D020 |
| 51451D | VIS, NO.1 | 90159-60383 |
| 51451K | RONDELLE, VIS, NO.1 | 90189-06076 |
| 51454C | Engine rear bottom cover silencer panel | 51454-48010 |
