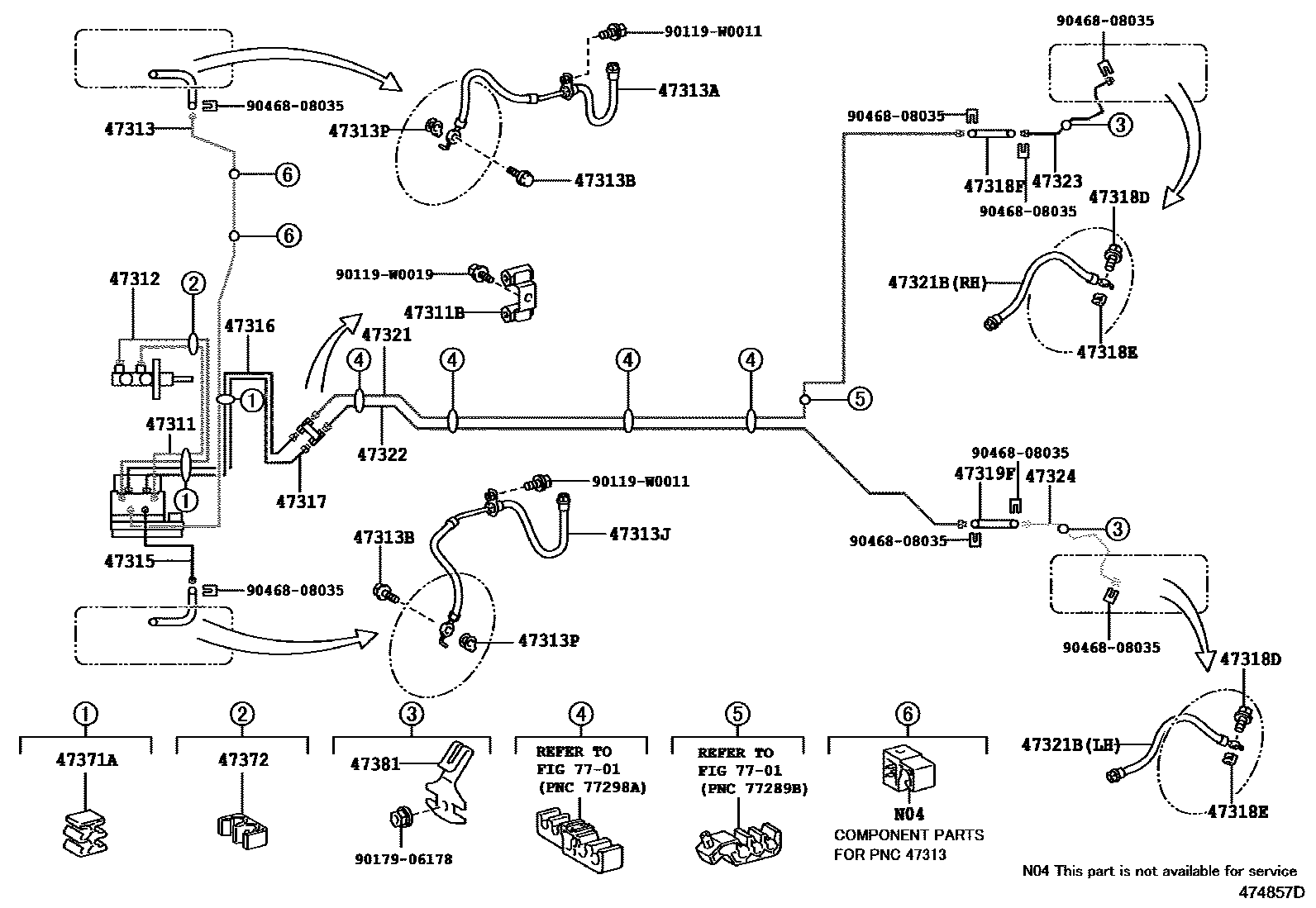

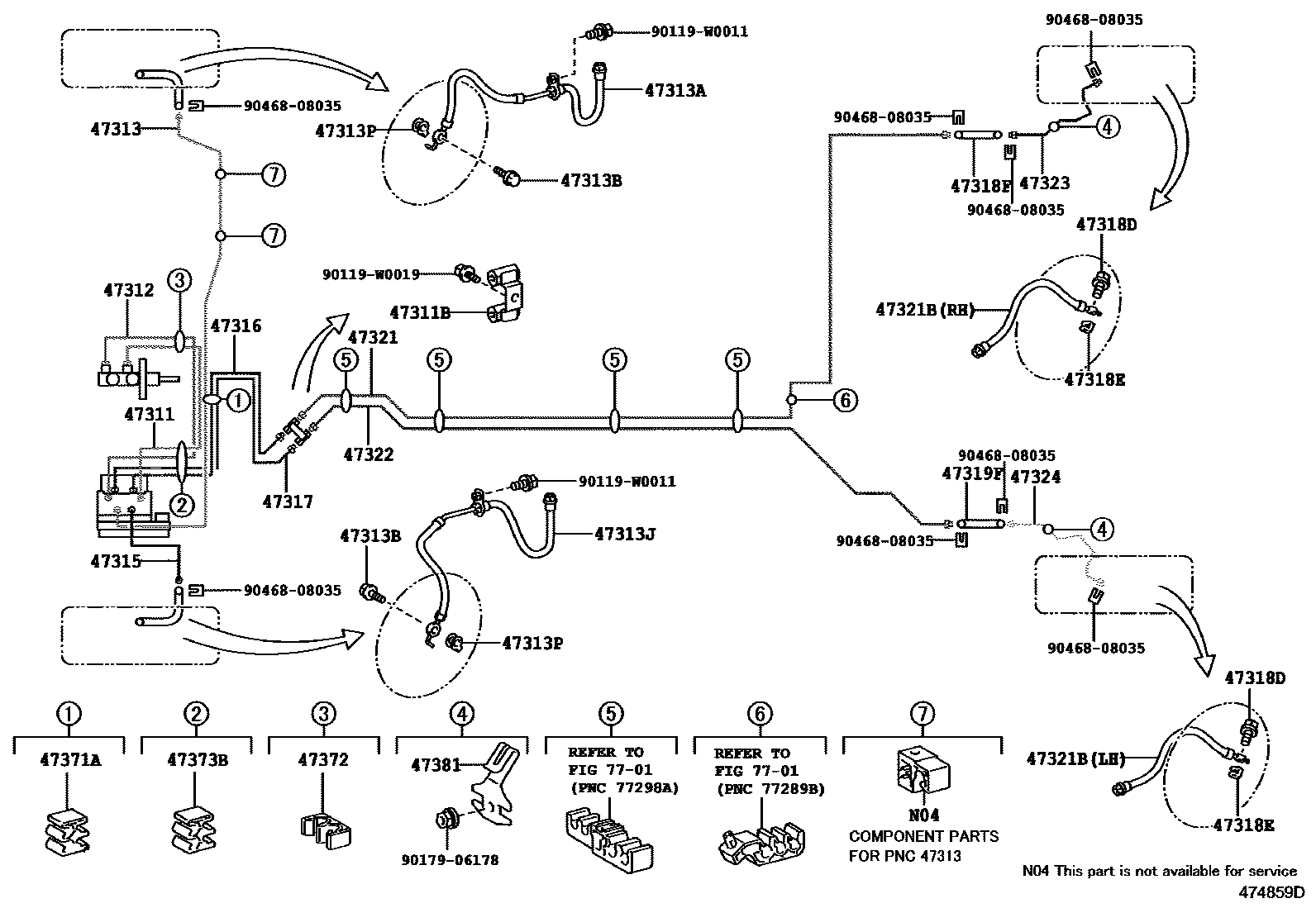

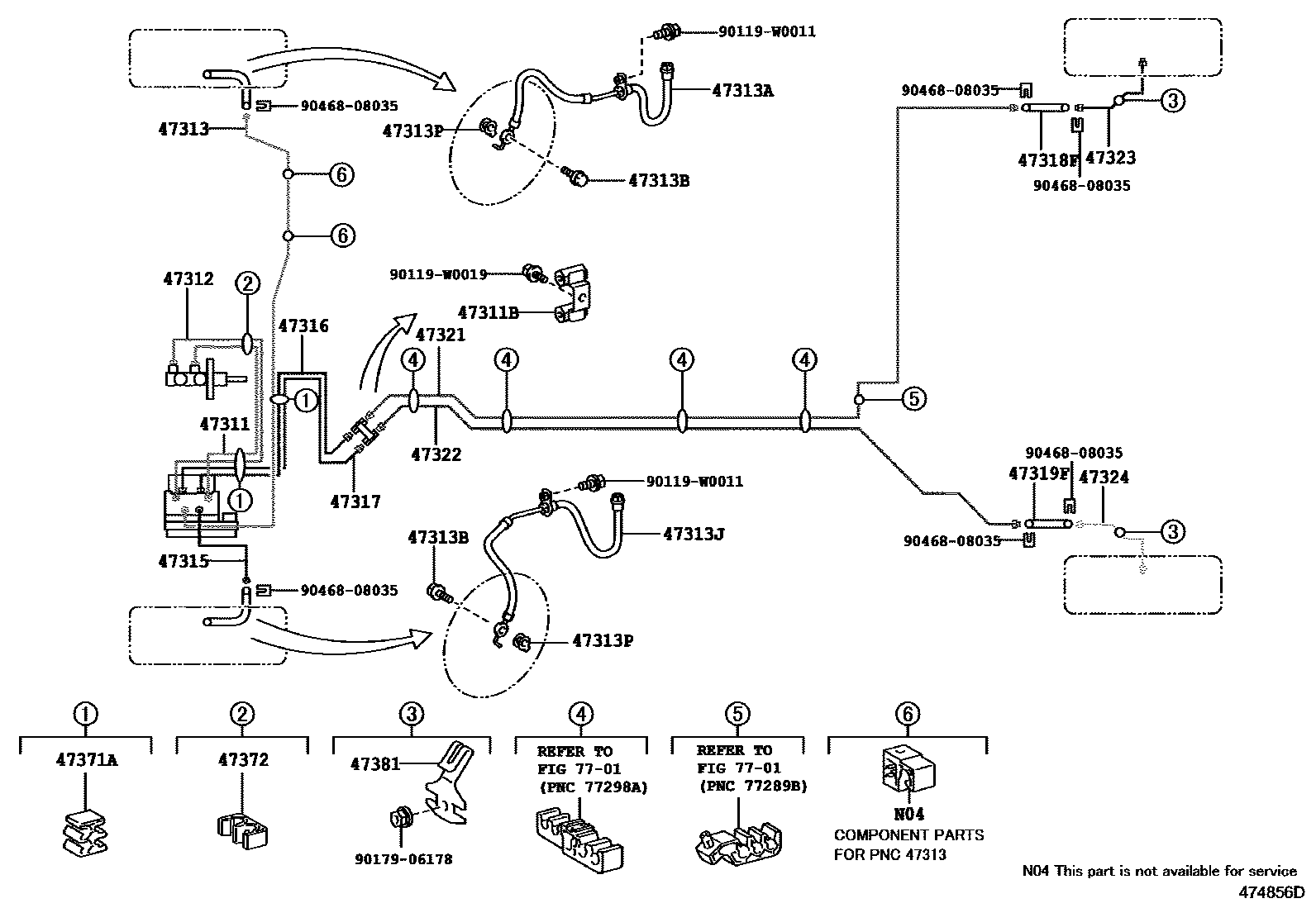

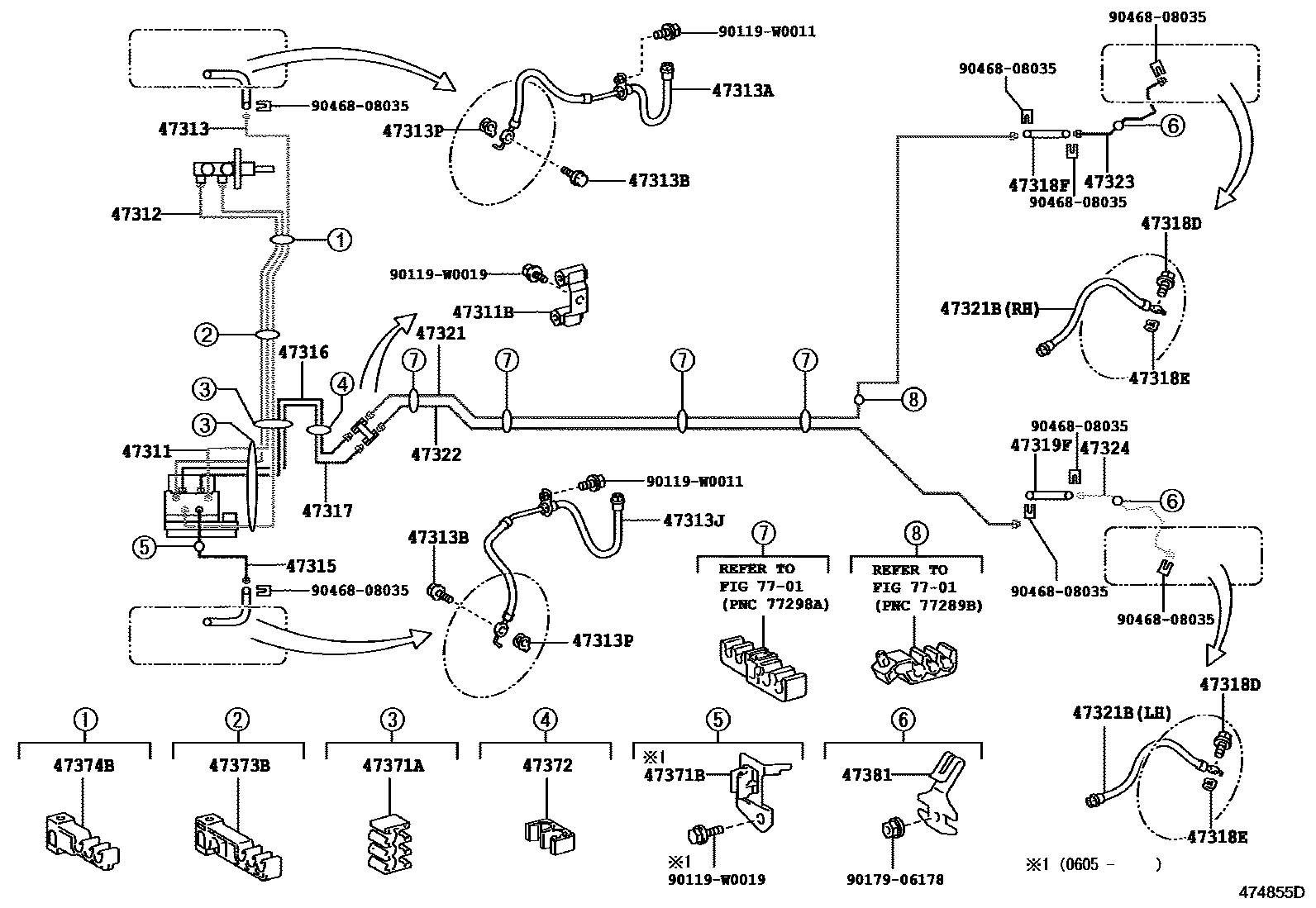

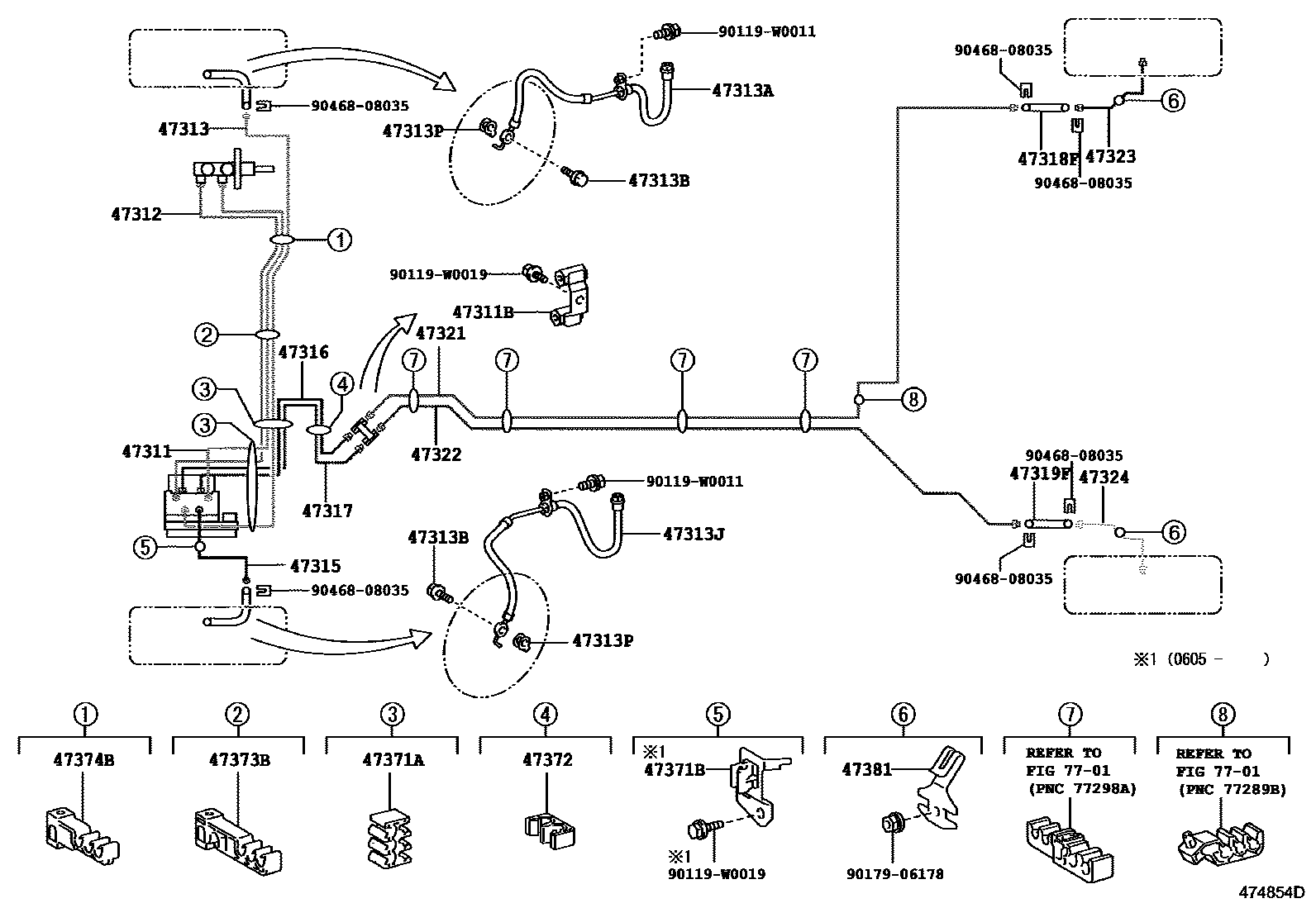

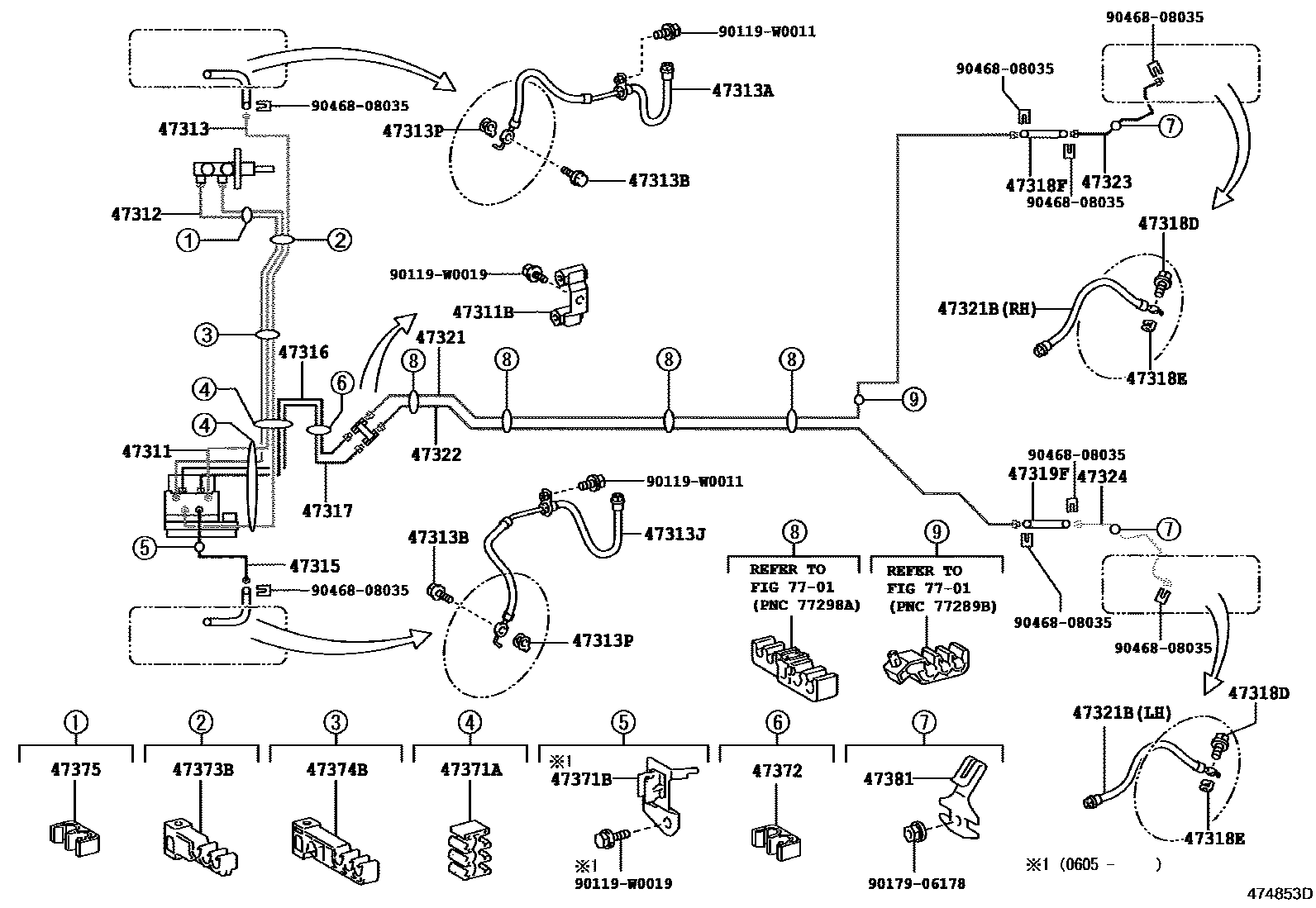

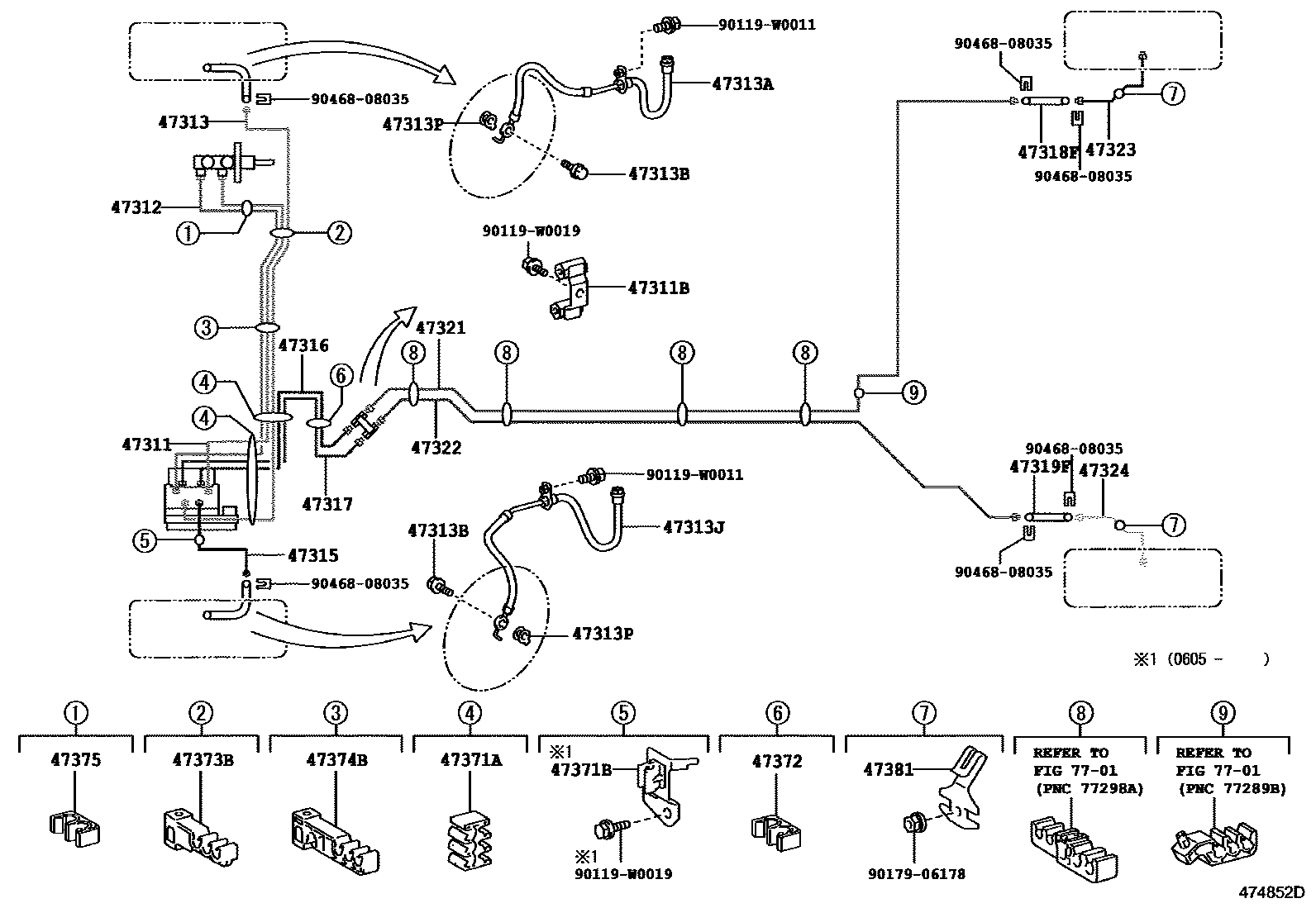

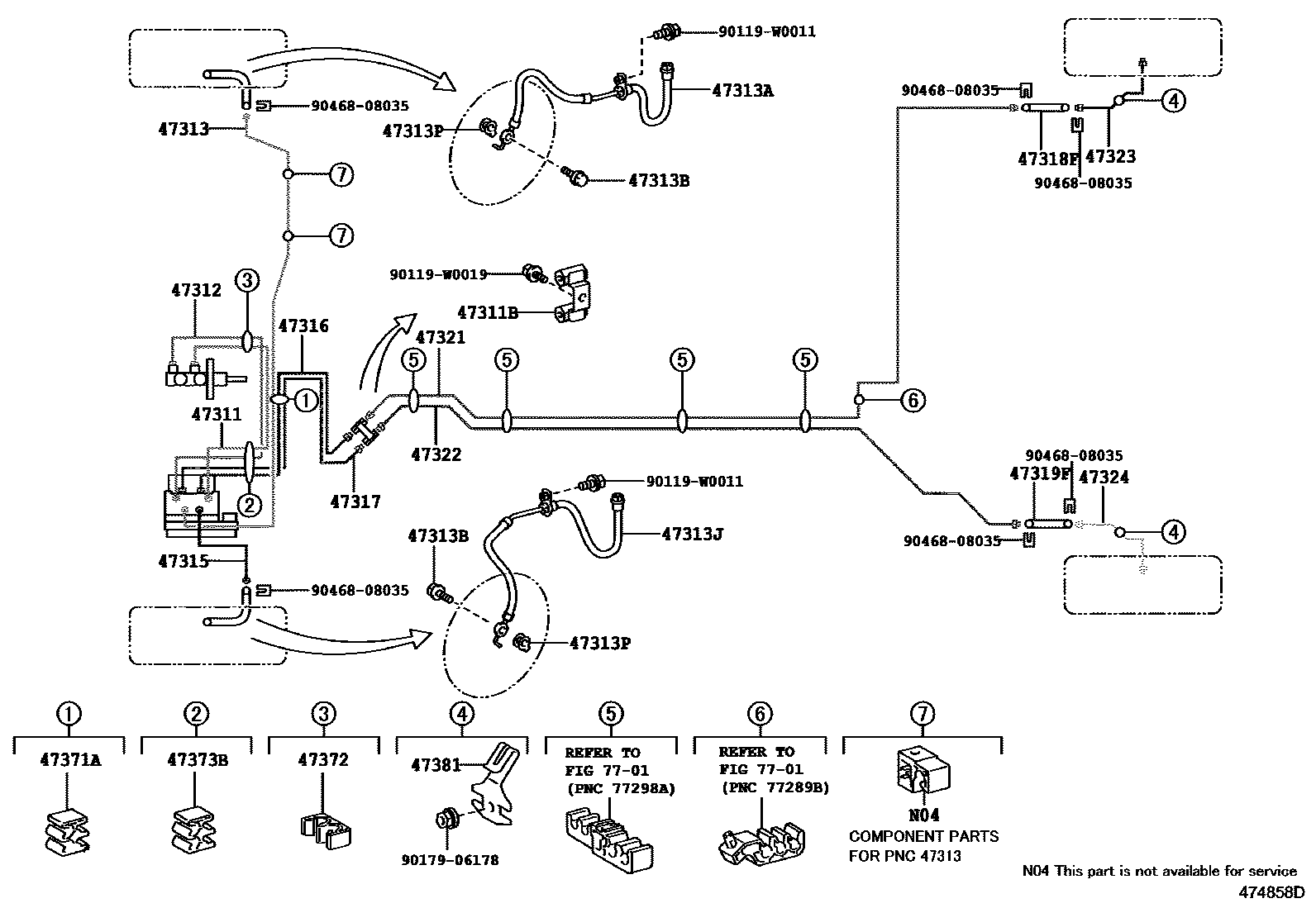

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 10 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

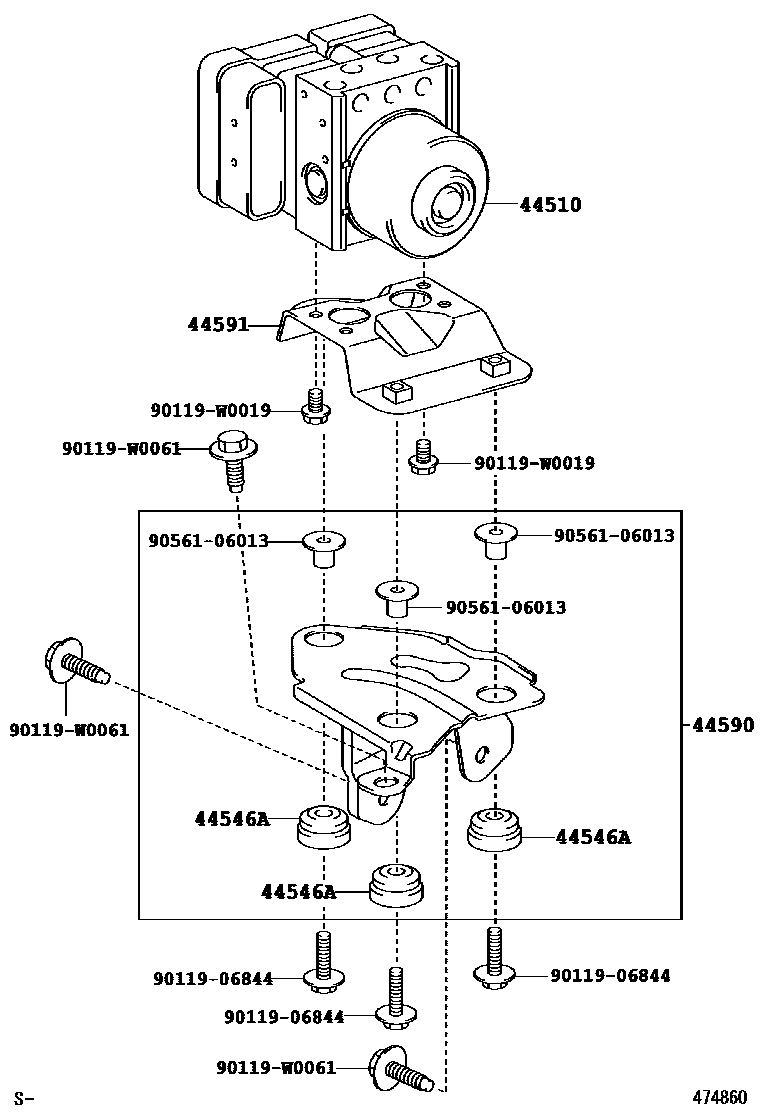

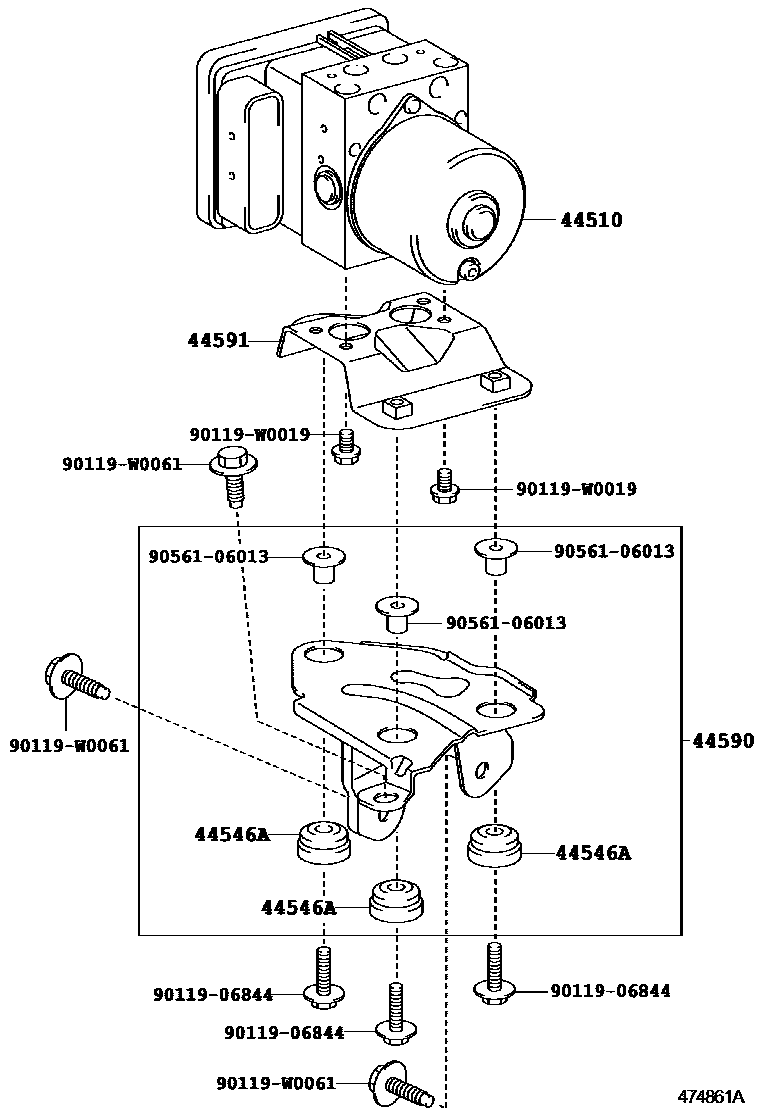

| 44510 | brake actuator assembly | 44050-0D030 · 44050-0D031 · 44050-0D040 · 44050-0D041 · 44050-0D050 · 44050-0D060 · 44050-0D200 |
| 44546A | Brake actuator bolt cushion | 44547-0D030 |
| 44590 | Brake actuator bracket assembly | 44590-0D030 |
| 44591 | No. 1 brake actuator bracket | 44591-0D030 |
| 47311 | No. 1 front brake pipe | 47311-0D170 · 47311-0D180 · 47311-0D190 · 47311-0D200 · 47311-0D320 · 47311-0D330 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10255 |
| 47312 | No. 2 front brake pipe | 47312-0D140 · 47312-0D150 · 47312-0D160 · 47312-0D170 · 47312-0D280 · 47312-0D290 |
| 47313 | No. 3 front brake pipe | 47313-0D060 · 47313-0D070 · 47313-0D080 · 47313-0D090 · 47313-0D190 · 47313-0D200 · 47313-0D220 · 47313-0D230 |
| 47313A | No. 1 front flexible hose | 90947-W2007 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-W2008 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-0D120 · 47315-0D121 · 47315-0D130 · 47315-0D131 · 47315-0D140 · 47315-0D150 |
| 47316 | No. 6 front brake pipe | 47316-0D070 · 47316-0D080 · 47316-0D090 · 47316-0D100 |
| 47317 | No. 7 front brake pipe | 47317-0D070 · 47317-0D080 · 47317-0D090 · 47317-0D100 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-W2009 |
| 47319F | Left rear flexible hose | 90947-W2010 |
| 47321 | No. 1 rear brake pipe | 47321-0D130 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-W2011 |
| 47322 | No. 2 rear brake pipe | 47322-0D130 |
| 47323 | No. 3 rear brake pipe | 47323-0D010 · 47323-0D030 |
| 47324 | No. 4 rear brake pipe | 47324-0D010 · 47324-0D060 |
| 47371A | No. 1 brake pipe clamp | 90464-00883 · 90464-00885 · 90949-01969 |
| 47371B | No. 6 brake pipe clamp | 47371-0D010 |
| 47372 | No. 2 brake pipe clamp | 90464-00884 · 90949-01972 |
| 47373B | No. 3 brake pipe clamp | 90464-00886 · 90949-01D02 · 90949-01D23 |
| 47374B | No. 4 brake pipe clamp | 90949-01D22 · 90949-01D27 |
| 47375 | No. 5 brake pipe clamp | 90464-00904 · 90949-01972 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
