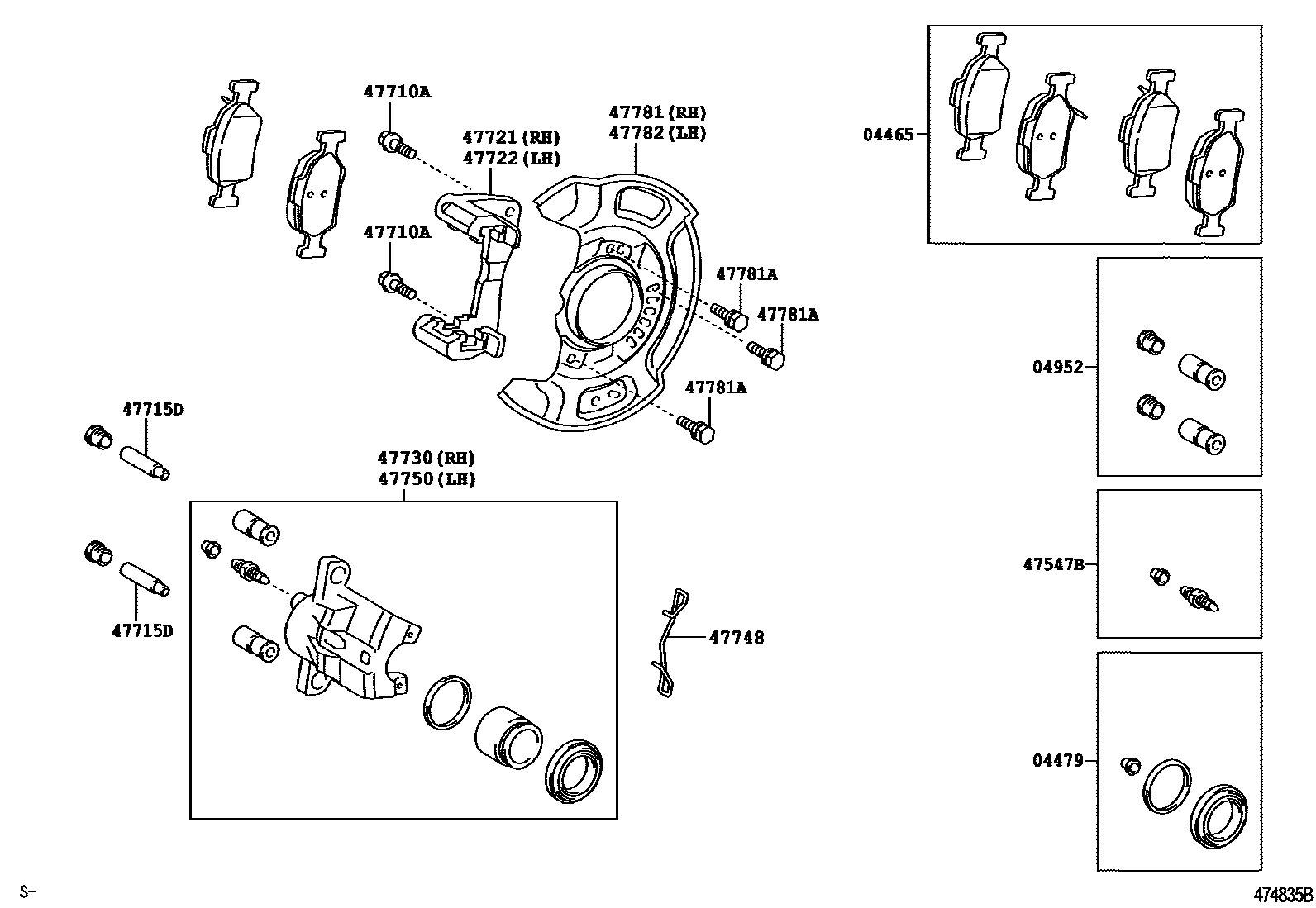

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-0D050 |
| 04479 | Front disc brake cylinder assembly | 04478-0D050 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04951-05010 |
| 47547B | Bleed plug (for front disc brake) | 47547-09050 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-W0121 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-05010 |
| 47721 | Right front disc brake cylinder retainer | 47721-0D070 |
| 47722 | Left front disc brake cylinder retainer | 47721-0D070 |
| 47730 | Right front disc brake cylinder assembly | 47730-0D070 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-0D070 |
| 47750 | Left disc brake cylinder assembly | 47750-0D070 |
| 47781 | Right front disc brake dust cover | 47781-0D050 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90080-11525 |
| 47782 | Left front disc brake dust cover | 47782-0D050 |
