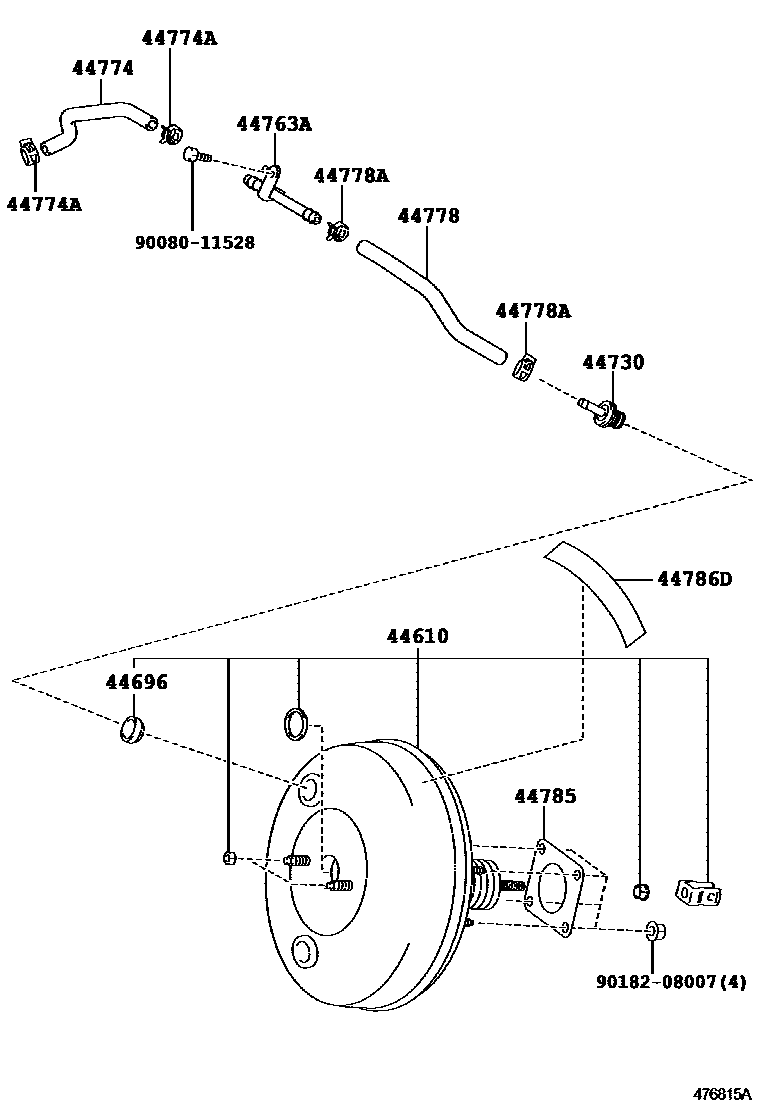

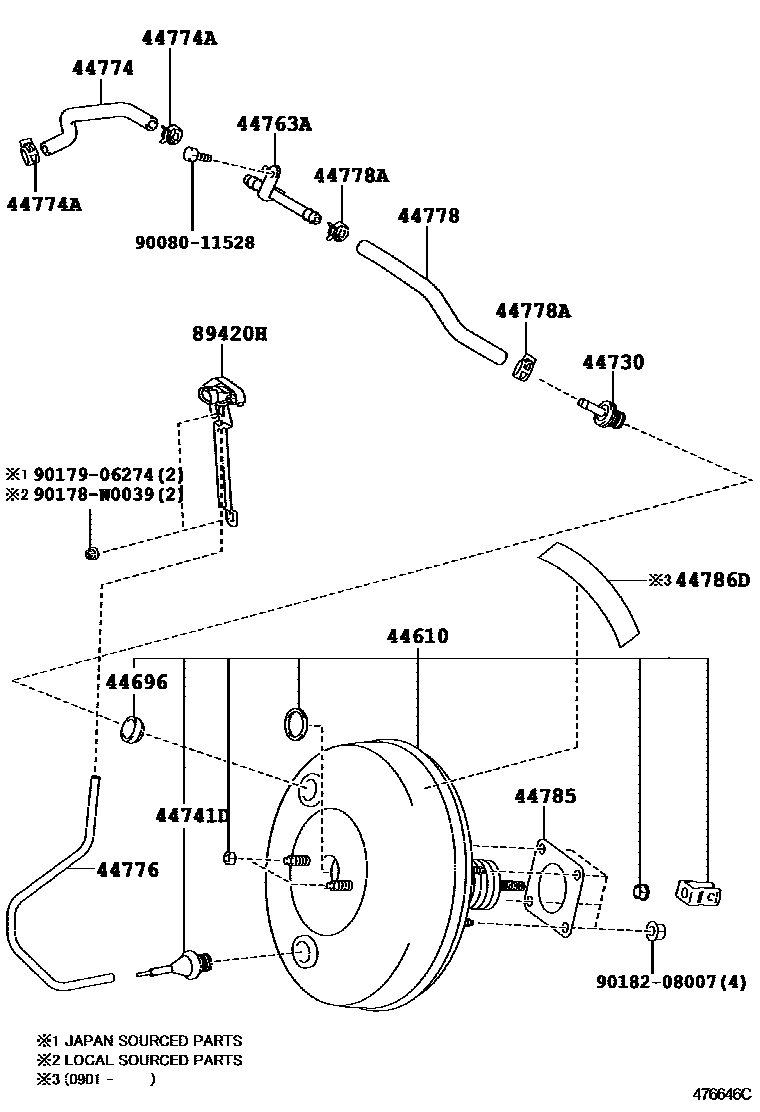

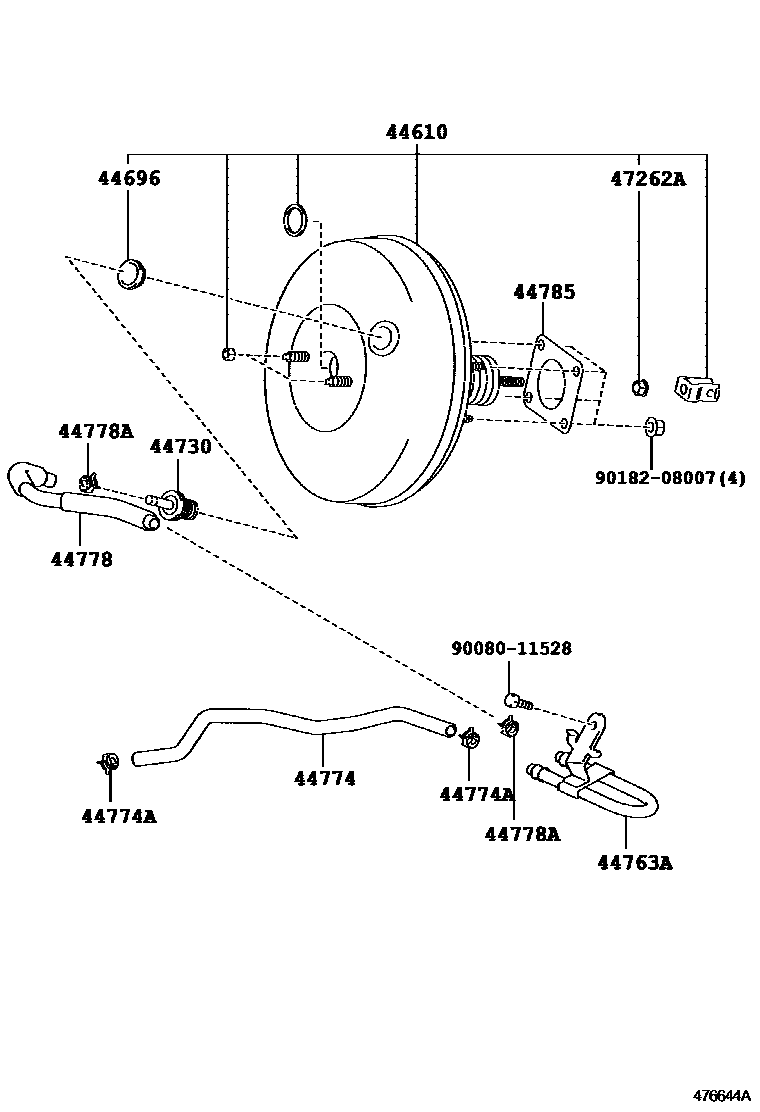

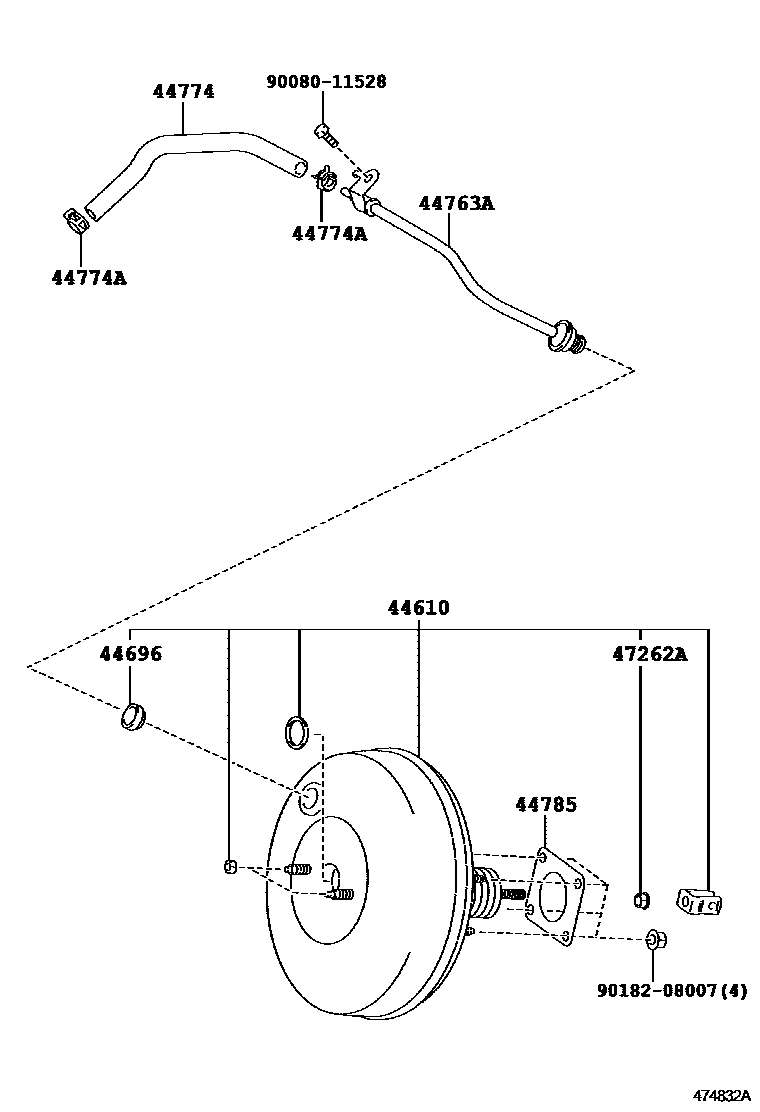

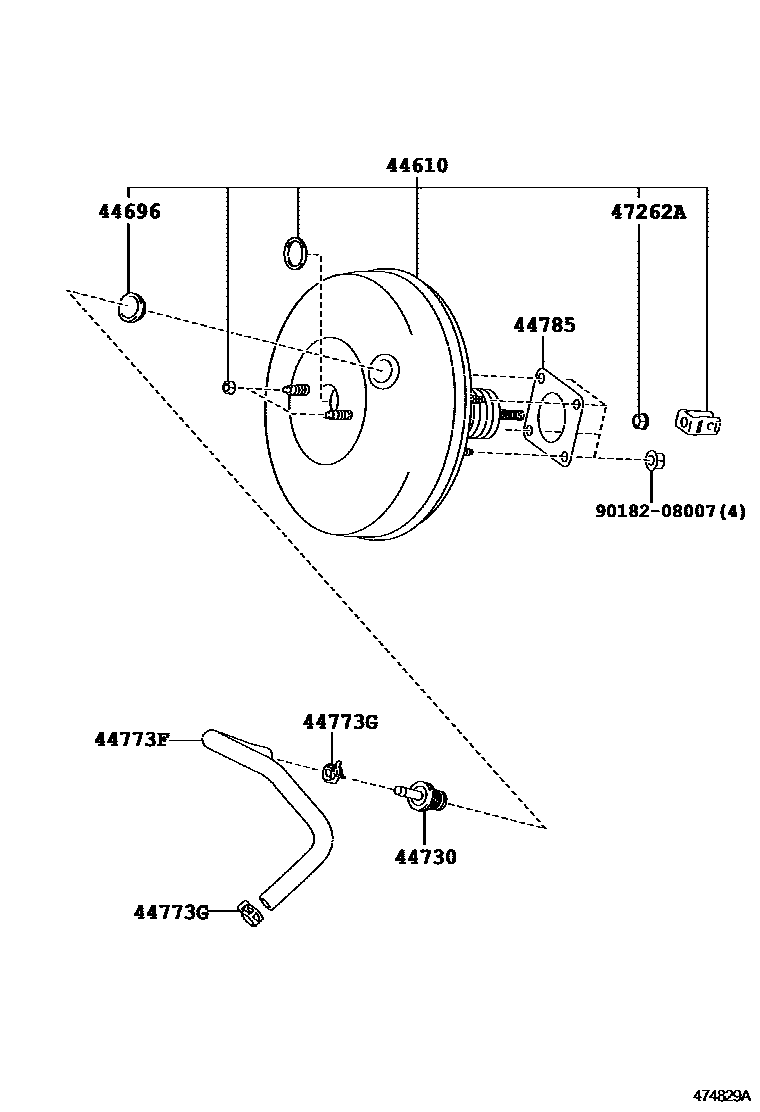

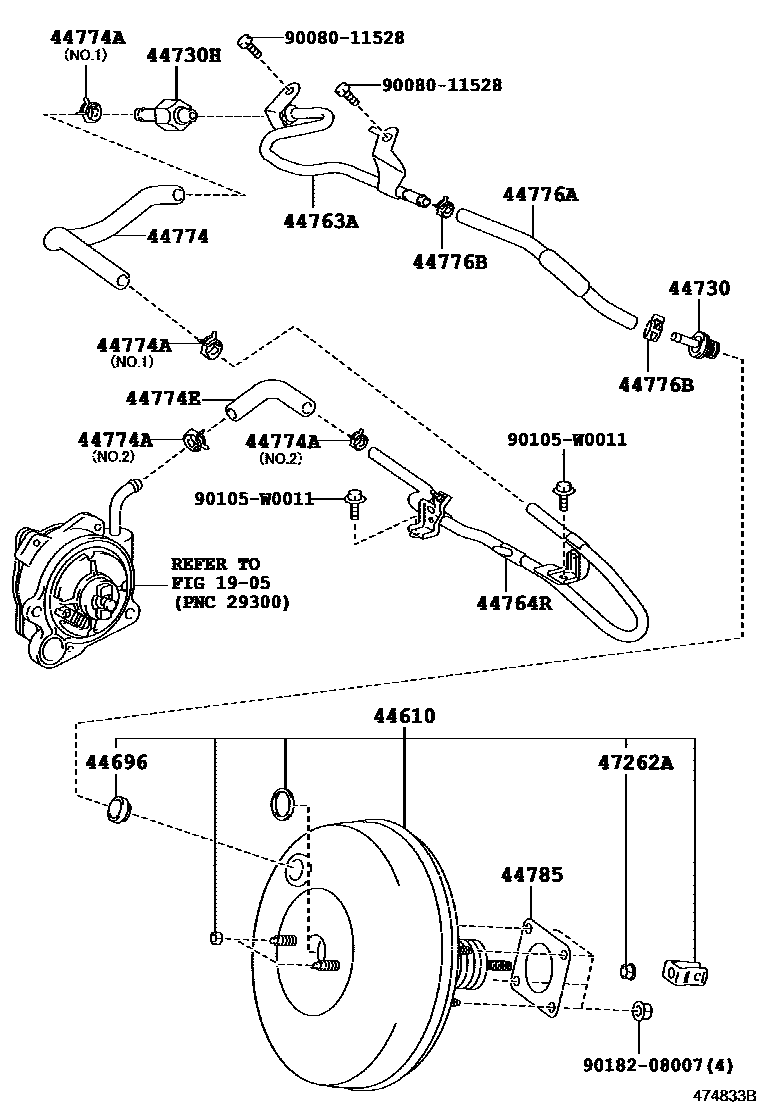

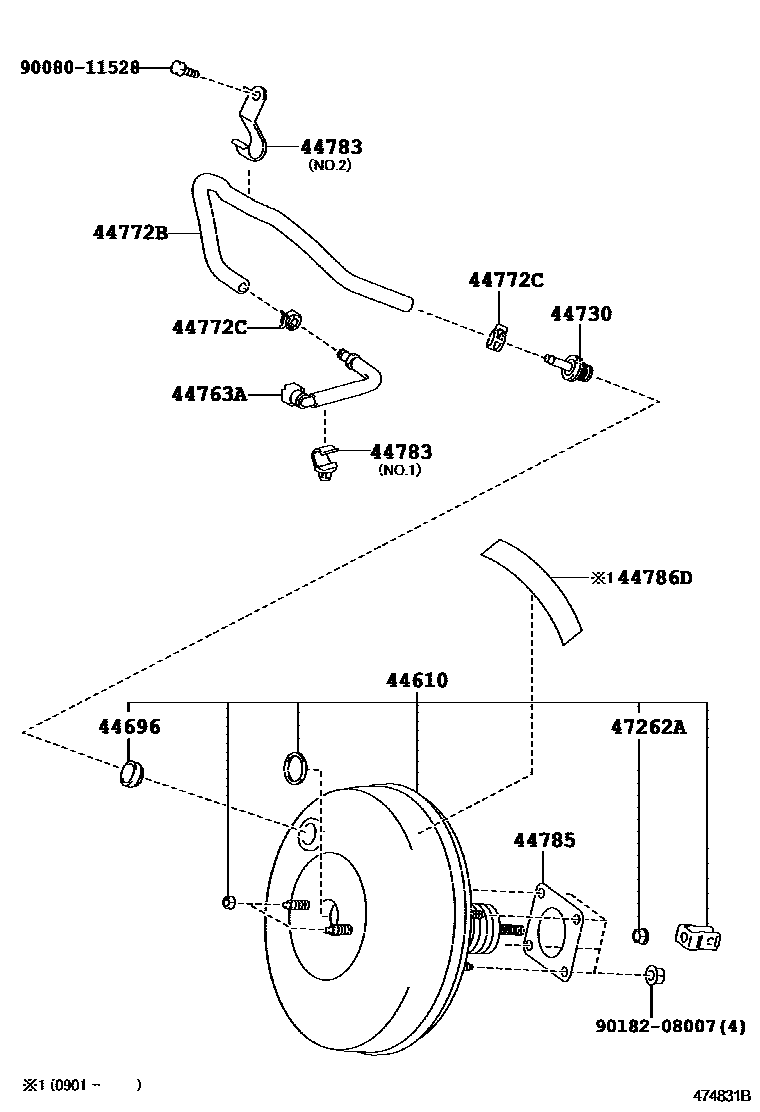

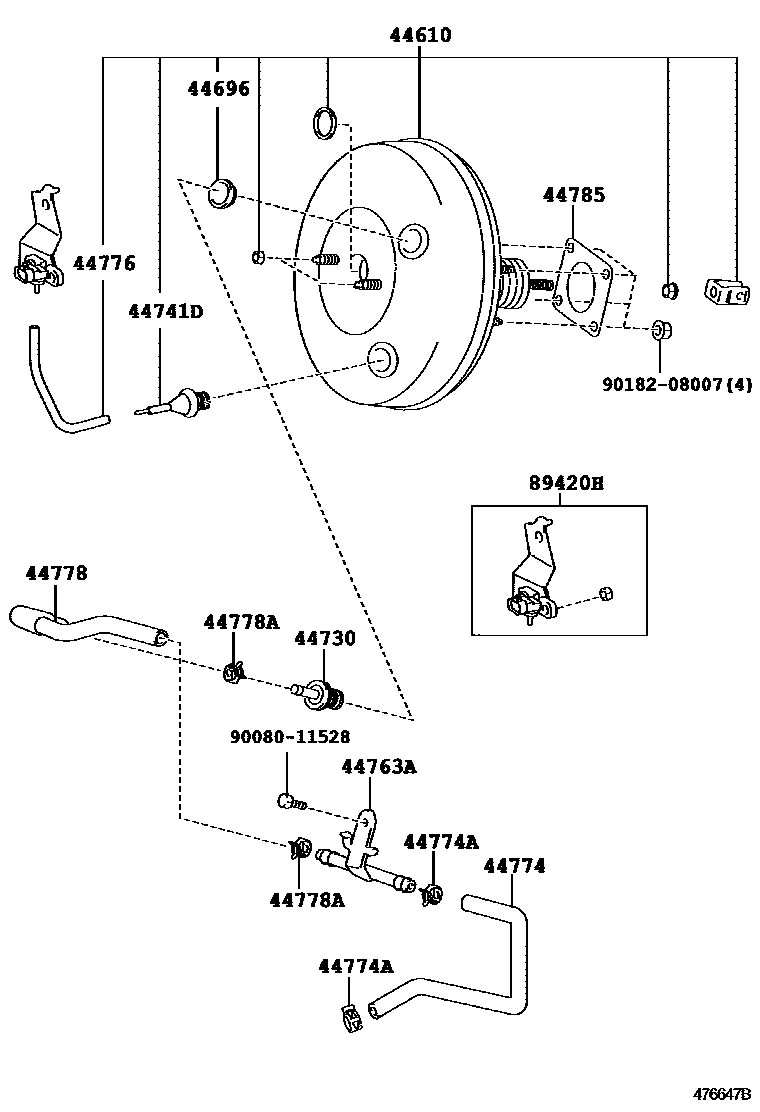

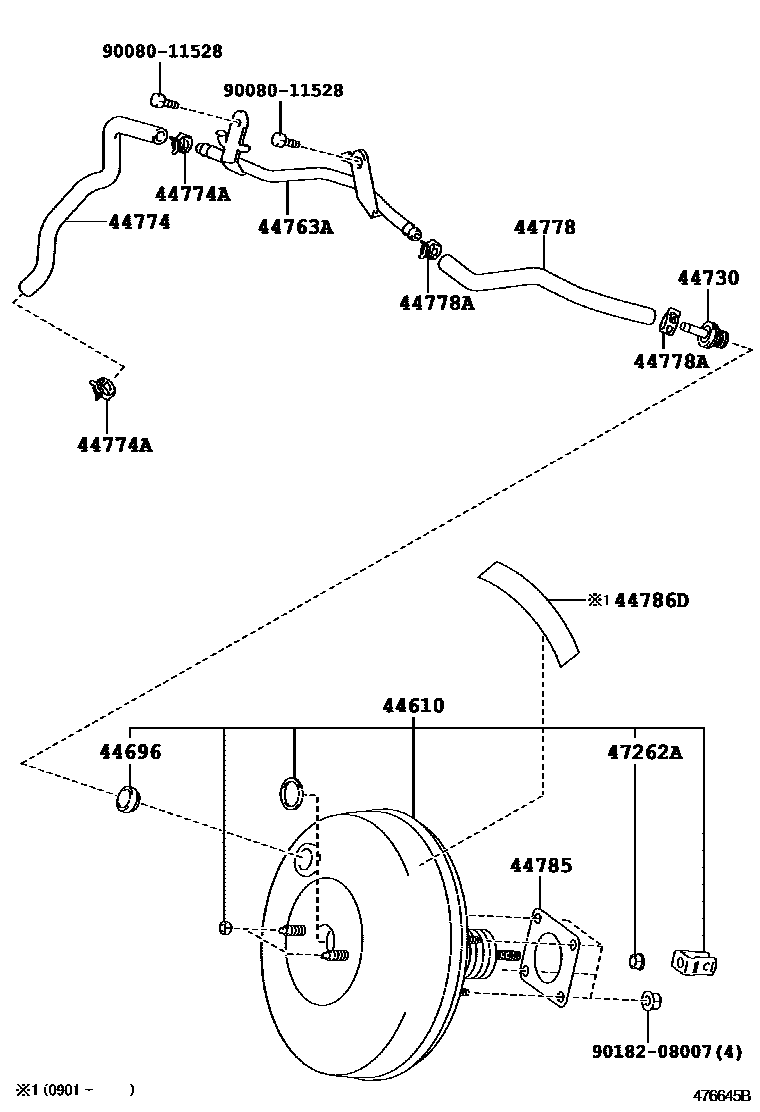

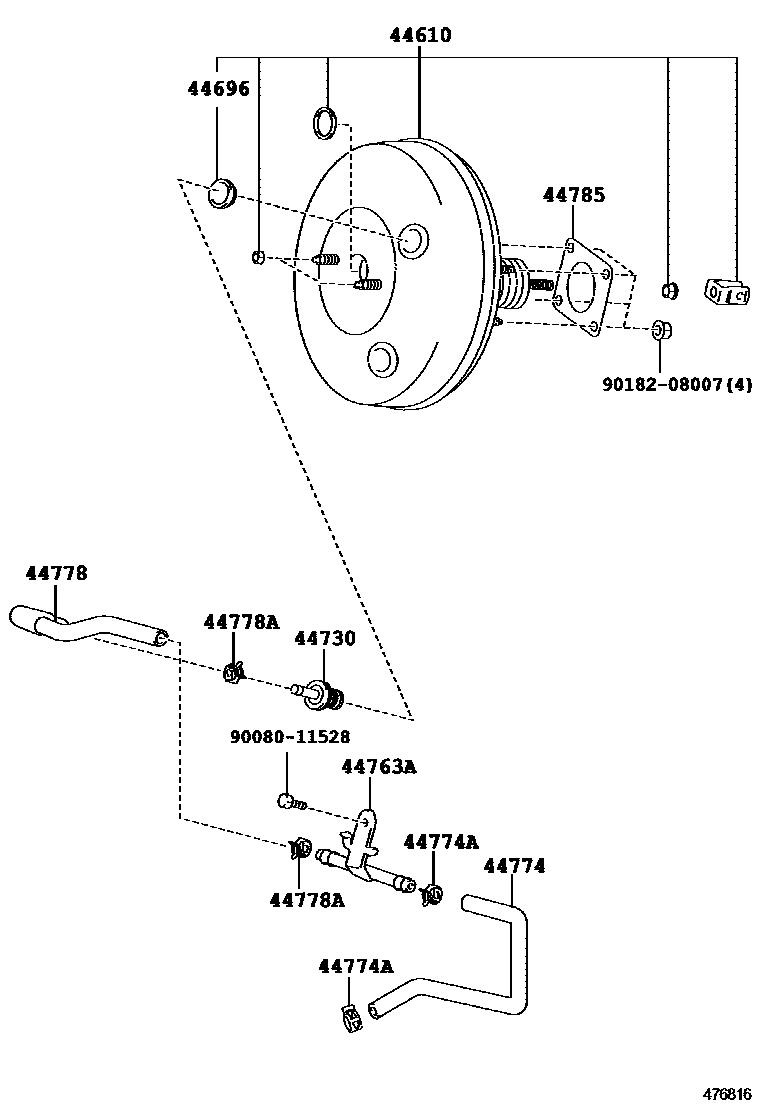

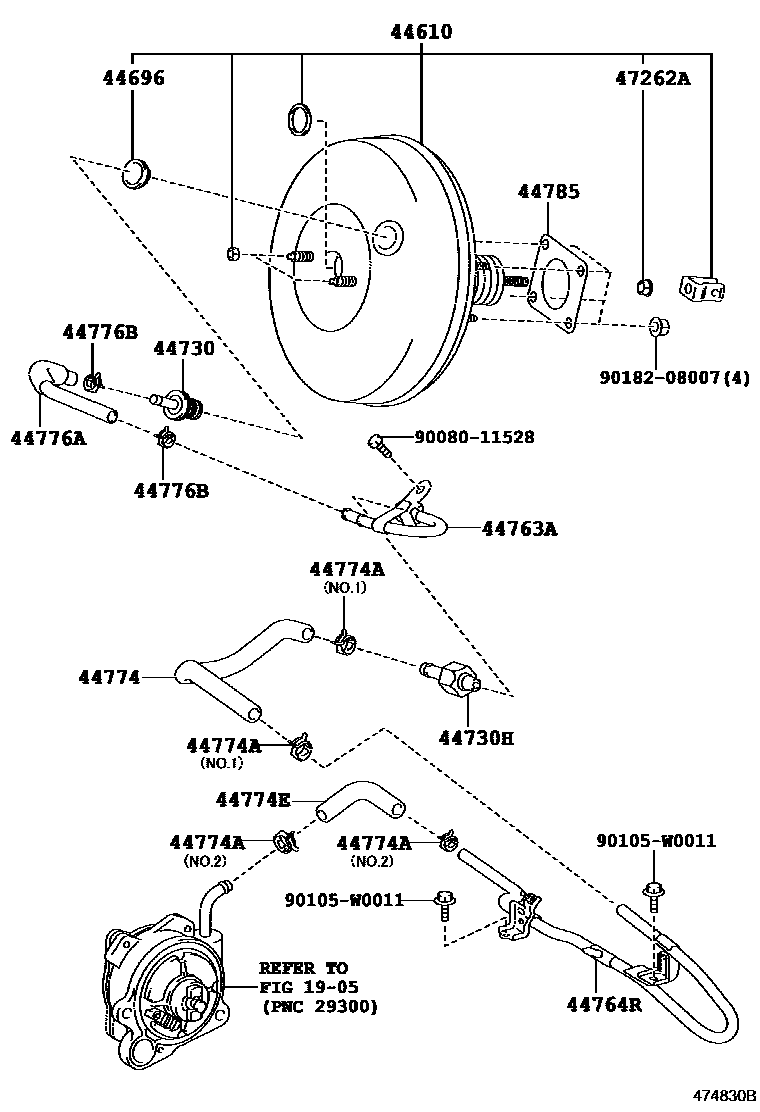

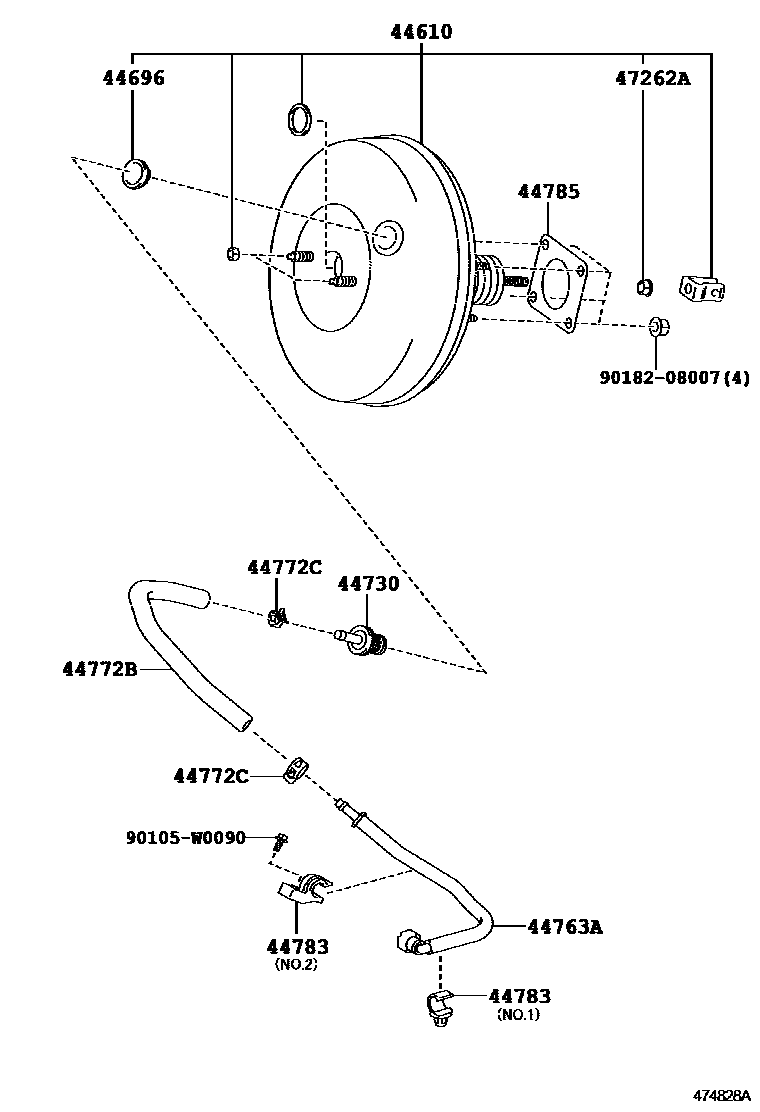

Toyota YARIS 制动助力器和真空管 — Figure 4703
Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 12 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09220 · 44610-09230 · 44610-09240 · 44610-09250 · 44610-09260 · 44610-09270 · 44610-09540 · 44610-09550 · 44610-09560 · 44610-09570 |
| 44696 | One-way valve seal | 44692-0D020 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-0D010 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 |
| 44741D | Vacuum one-way valve body | 44741-0D030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-0D050 · 44763-0D060 · 44763-0D070 · 44763-52060 · 44763-52070 · 44763-52090 · 44763-52100 · 44763-52110 · 44763-52120 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-12010 |
| 44772B | Hoses (check valve to brake booster) | 44772-0D010 · 44772-0D020 |
| 44772C | Clip (for check valve to brake booster hose) | 90466-W0008 |
| 44773F | Hoses (connector to check valve) | 44773-52190 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-52080 · 44774-52090 · 44774-52100 · 44774-52110 · 44774-52120 · 44774-52130 · 44774-52140 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-W0008 · 90467-16014 · 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-52021 |
| 44776 | brake booster hose | 44776-52120 · 44776-52130 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-52080 · 44776-52090 |
| 44776B | Clamp (for vacuum reservoir to brake booster) | 90467-16014 |
| 44778 | Hoses (connector to check valve) | 44778-52090 · 44778-52100 · 44778-52110 · 44778-52120 |
| 44778A | Clip (for connector to check valve hose) | 90467-16014 |
| 44783 | Vacuum hose clamp | 44783-52040 · 44783-70010 · 44783-70020 |
| 44785 | brake booster pad | 44785-16020 |
| 44786D | Brake booster protection device | 44786-0D010 |
| 47262A | Master cylinder push rod U-shaped clamp lock nut | 47262-05010 |
| 89420H | Vacuum sensor assembly | 89420-09010 · 89420-52060 |
