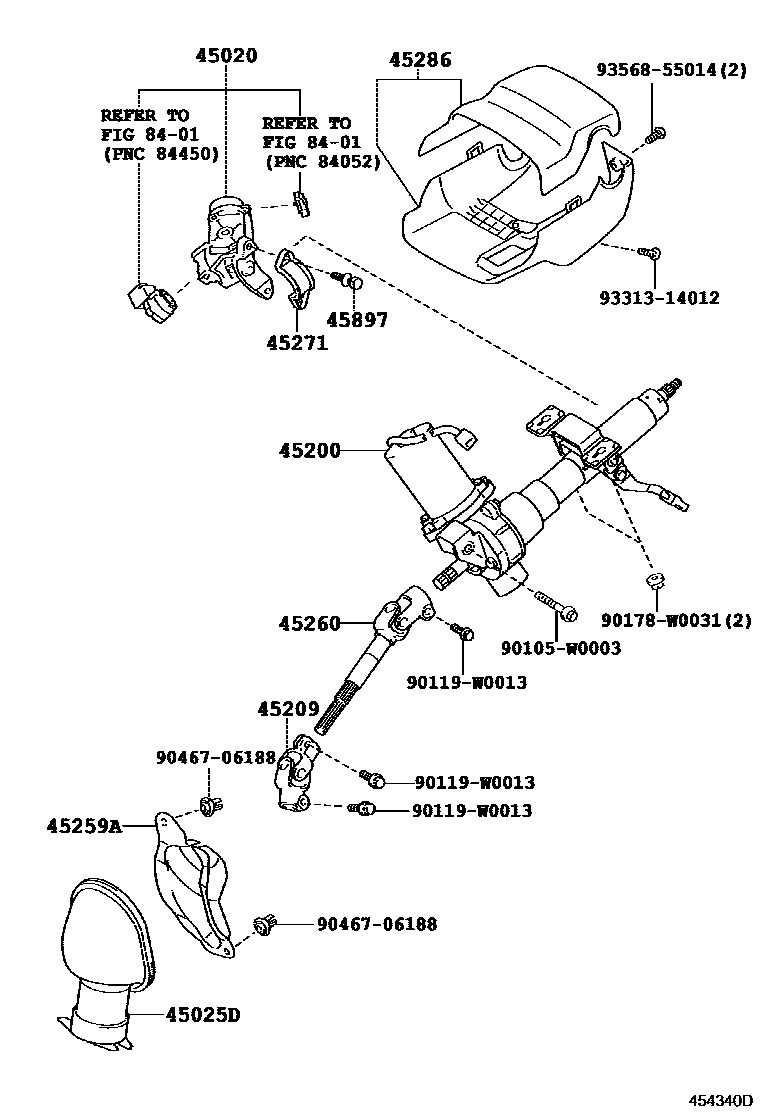

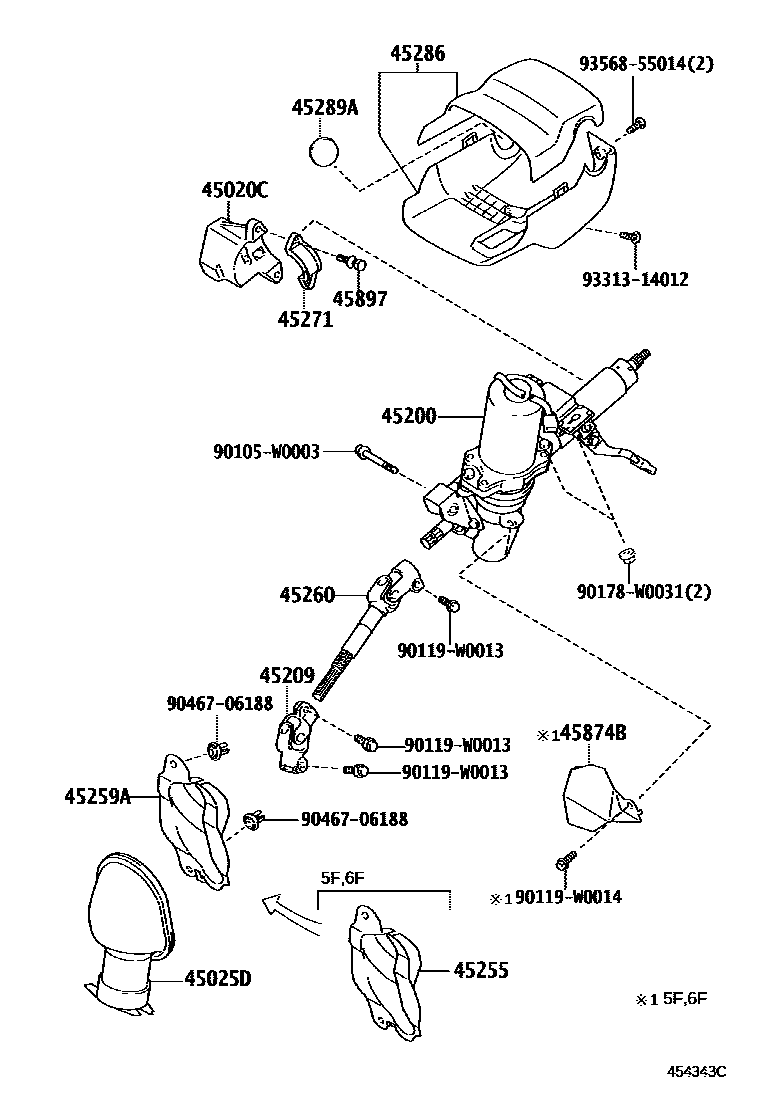

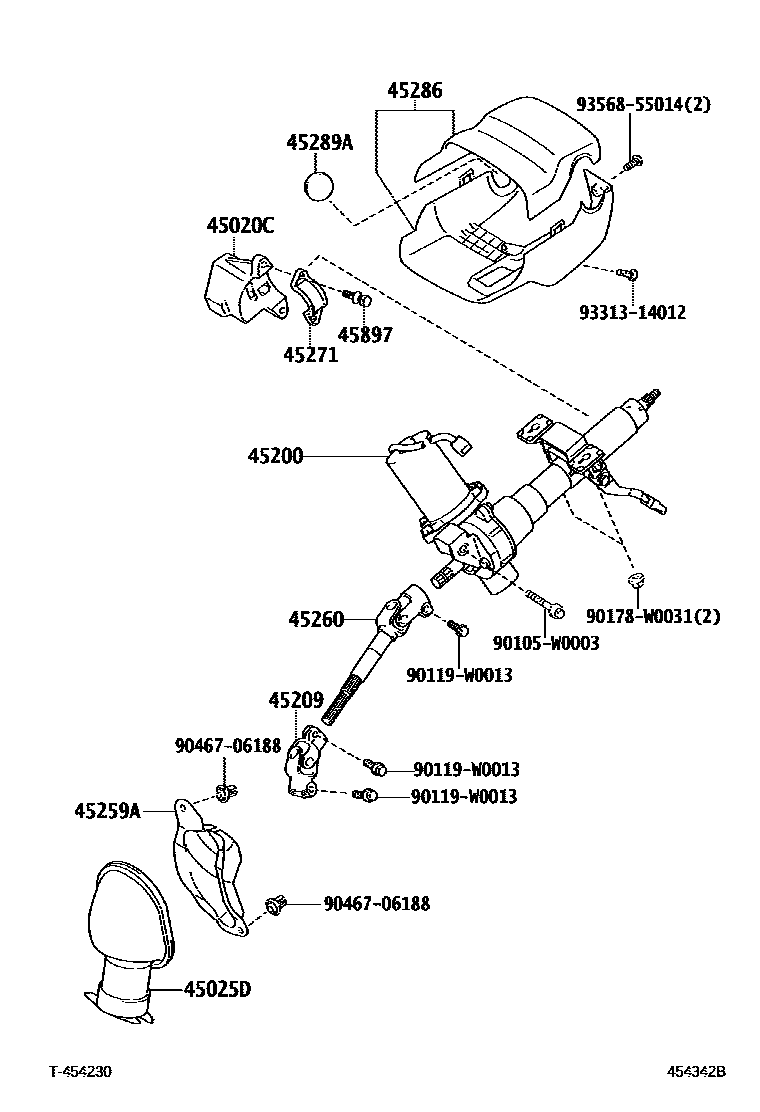

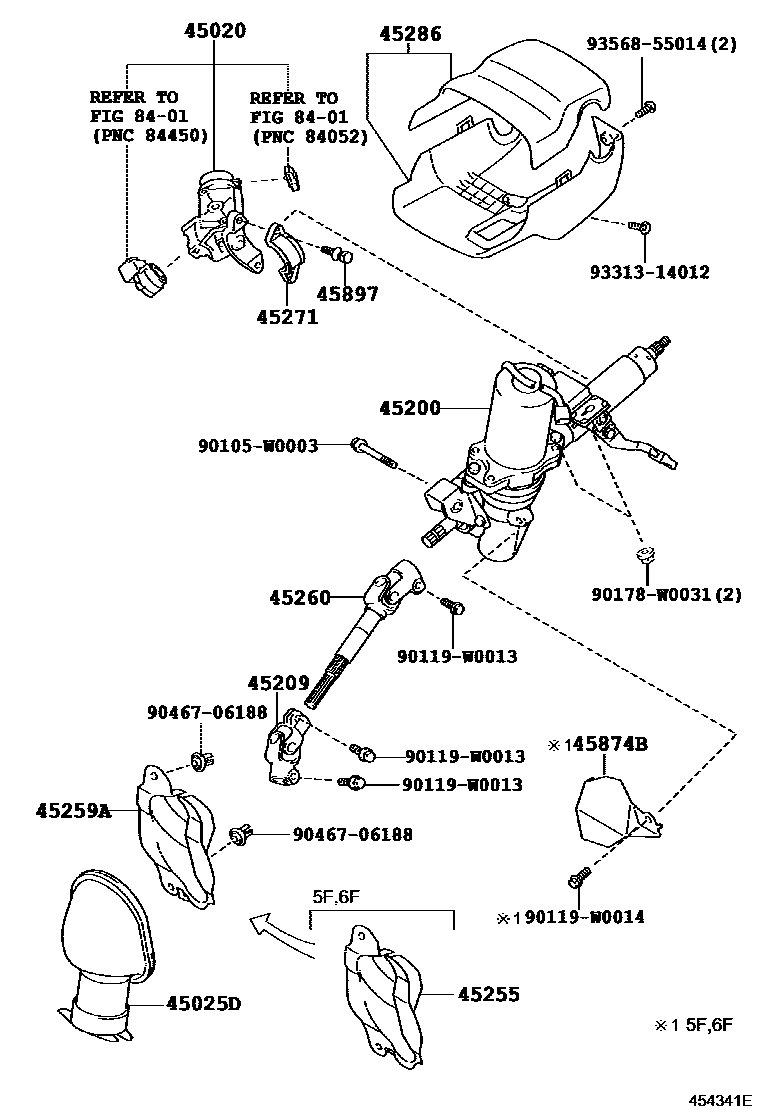

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-0D030 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-0D040 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0D061 · 45025-0D062 |
| 45200 | Steering column assembly | 45200-0D150 · 45200-0D151 · 45200-0D152 · 45200-0D160 · 45200-0D161 · 45200-0D162 · 45200-0D163 · 45200-0D164 · 45200-0D165 · 45200-0D170 · 45200-0D171 · 45200-0D172 · 45200-0D173 · 45200-0D174 · 45200-0D175 · 45200-0D180 · 45200-0D181 · 45200-0D182 · 45200-0D190 · 45200-0D191 · 45200-0D192 · 45200-0D193 · 45200-0D194 · 45200-0D195 · 45200-0D200 · 45200-0D201 · 45200-0D202 · 45200-0D203 · 45200-0D204 · 45200-0D205 |
| 45209 | Steering slip fork sub-assembly | 45209-0D030 |
| 45255 | Steering column hole cover | 45255-0D040 · 45255-0D060 |
| 45259A | Steering column hole cover silencer plate | 45259-0D010 · 45259-0D020 · 45259-0D040 · 45259-0D050 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-0D080 · 45260-0D090 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45874B | No. 1 steering column guard | 45874-52020 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
