Toyota YARIS Front Drive Shaft — Figure 4302

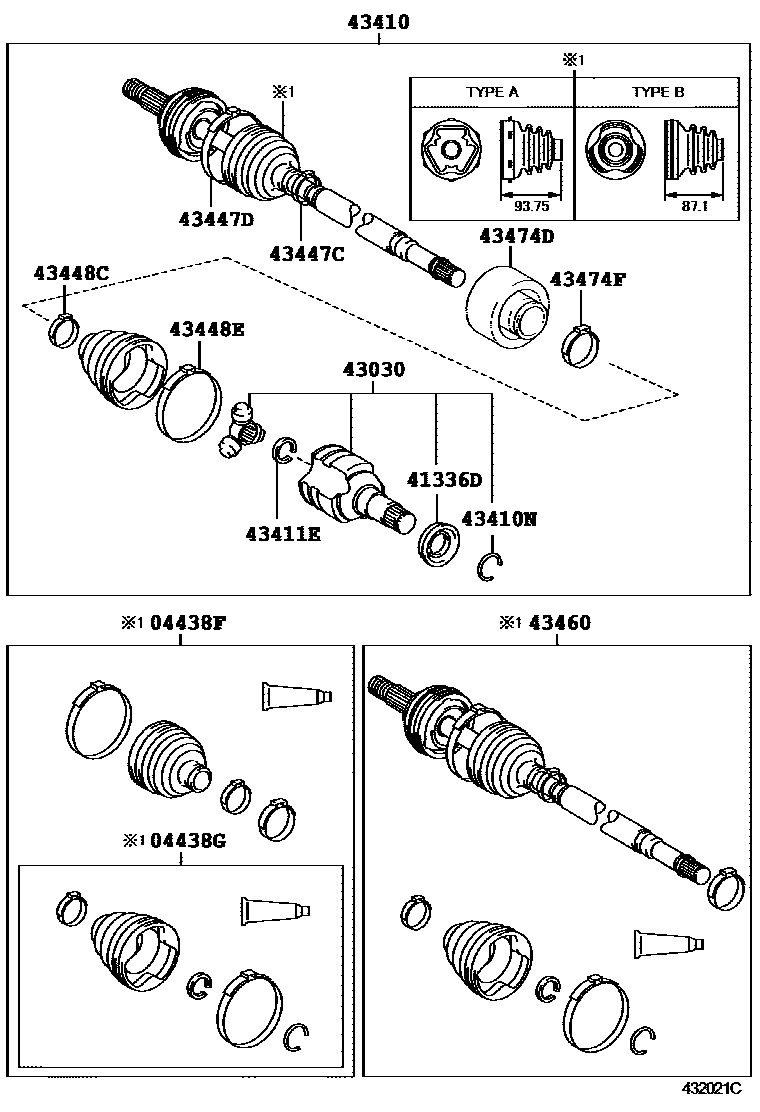

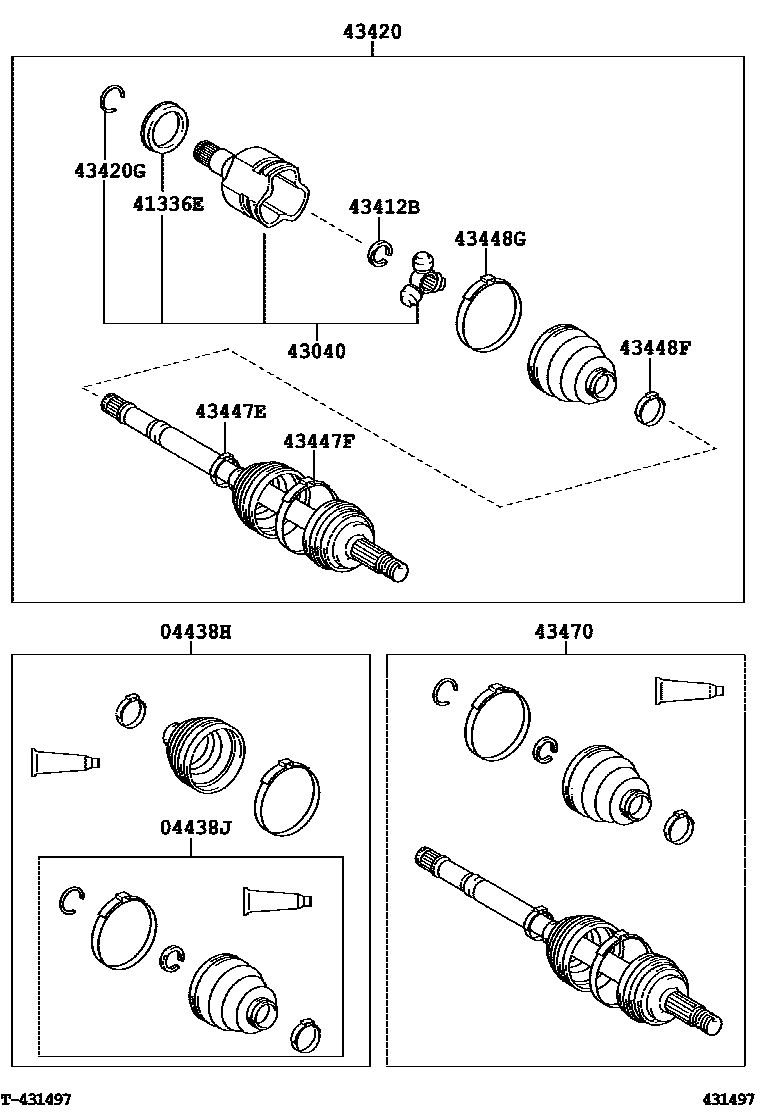

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D030 · 04427-0D040 · 04427-0D050 · 04427-0D220 · 04427-0D300 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D030 · 04437-0D040 · 04437-0D050 · 04437-0D220 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-0D300 · 04428-0D030 · 04428-0D040 · 04428-0D050 · 04428-0D210 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-0D030 · 04437-0D040 · 04437-0D050 · 04437-0D220 |
| 41336D | Right front driveshaft dust cover | 41336-05140 · 41336-0D050 · 41336-0H010 |
| 41336E | Left front driveshaft dust cover | 41336-05140 · 41336-0D050 · 41336-0H010 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-0D010 · 43040-0D020 · 43403-0D051 · 43403-0D061 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0D010 · 43040-0D020 · 43403-0D051 · 43403-0D061 |
| 43410 | Right front driveshaft assembly | 43410-0D160 · 43410-0D170 · 43410-0D180 · 43410-0D320 · 43410-0D331 · 43410-0D390 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52055 · 90080-52056 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02010 · 43425-0D070 · 43425-0D090 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02010 · 43425-0D070 · 43425-0D090 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-0D160 · 43420-0D170 · 43420-0D180 · 43420-0D240 · 43420-0D331 · 43420-0D380 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52055 · 90080-52056 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0D180 · 42345-0D230 · 42345-0D260 · 42345-0H060 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0D170 · 42345-0D220 · 42345-0D250 · 42345-0H050 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0D180 · 42345-0D230 · 42345-0D260 · 42345-0H060 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0D170 · 42345-0D220 · 42345-0D250 · 42345-0H050 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02240 · 42345-0D160 · 42345-0D210 · 42345-0D280 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0D150 · 42345-0D200 · 42345-0D270 · 42345-0D850 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02240 · 42345-0D160 · 42345-0D210 · 42345-0D280 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0D150 · 42345-0D200 · 42345-0D270 · 42345-0D850 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09M50 · 43460-09M60 · 43460-09M70 · 43460-09T90 · 43460-09U50 · 43460-09V00 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09L20 · 43470-09L30 · 43470-09L40 · 43470-09X20 · 43470-8Z006 · 43470-8Z012 |
| 43474D | Right front driveshaft shock absorber | 43474-0D040 · 43474-0D050 · 43474-0D060 · 43474-0D160 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-0D190 · 42345-0D240 · 42345-0D290 · 42345-0D770 |
