Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

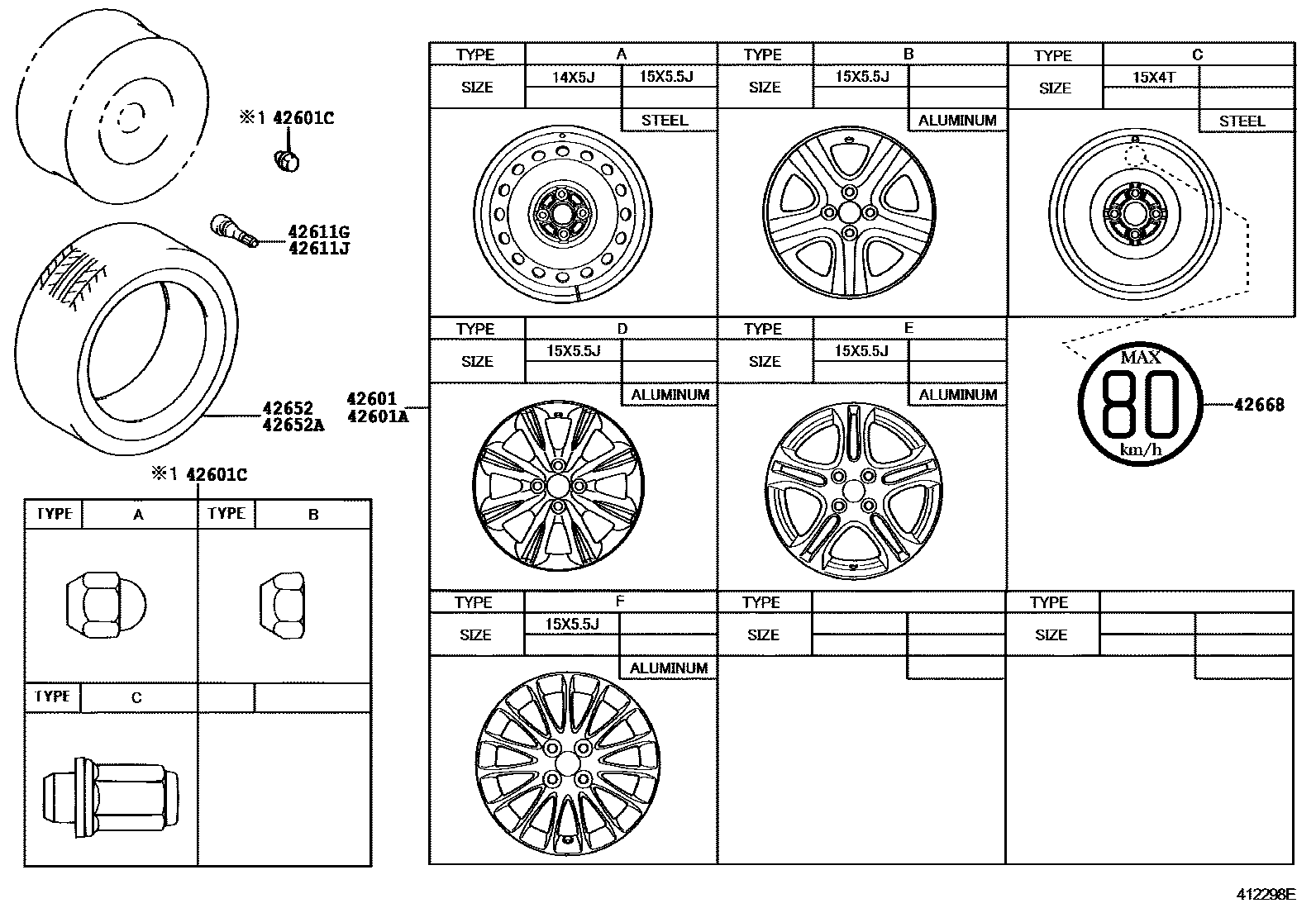

| 42601 | spoke wheel | 42611-0D200 · 42611-0D210 · 42611-0D220 · 42611-0D240 · 42611-YY160 · 42611-YY280 · 42611-YY300 |
| 42601A | Spoke wheel (for spare tire) | 42611-0D200 · 42611-0D210 · 42611-0D220 · 42611-0D230 · 42611-0D240 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

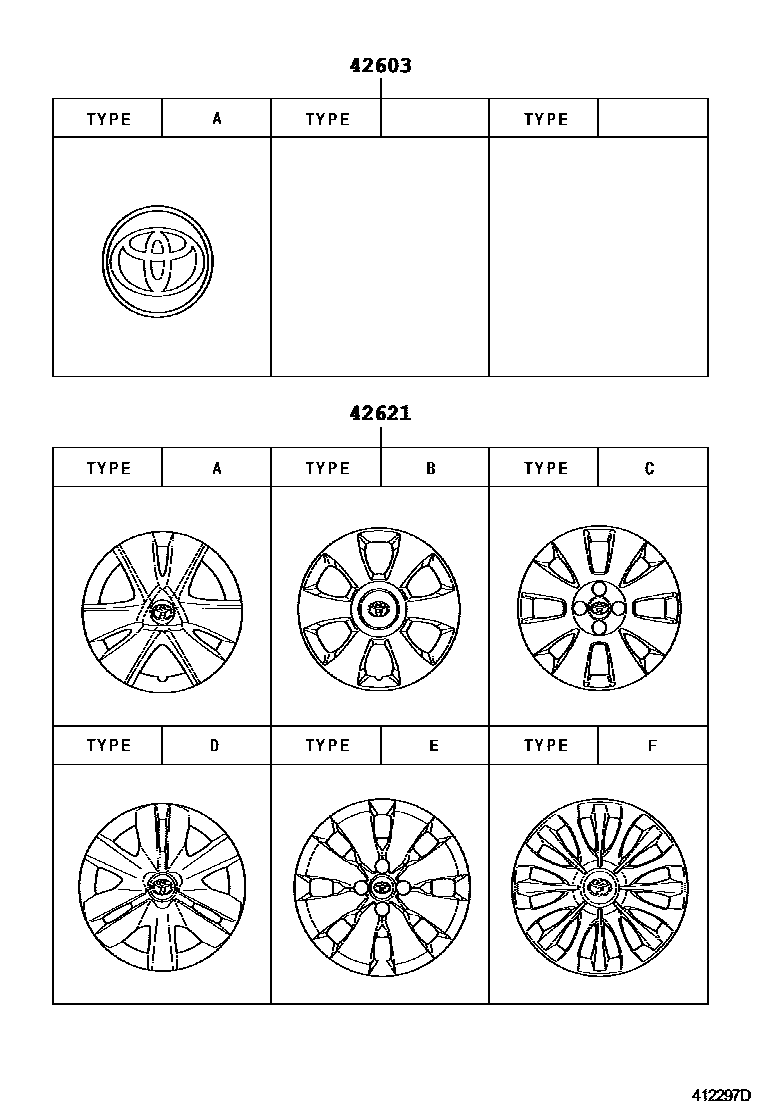

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D060 · 42603-52130 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-0D050 · 42602-0D080 · 42602-0D100 · 42602-0D140 · 42602-0D160 · 42602-52310 · 42602-YY080 |
| 42652 | tires | 42652-0D400 · 42652-0D430 · 42652-0D780 · 42652-0D790 · 42652-0D810 · 42652-0D820 |
| 42652A | Tire (for Spare Wheel) | 42652-0D610 · 42652-32520 |
| 42668 | Small spare tire warning label | 42668-0D010 |
