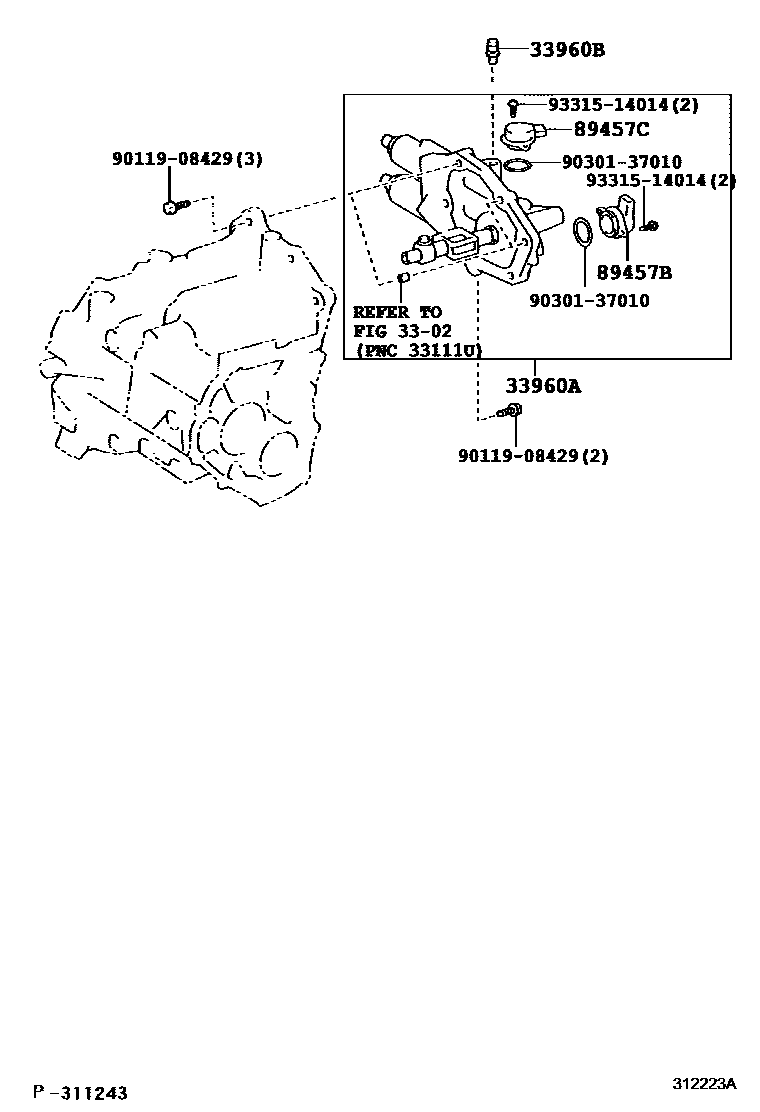

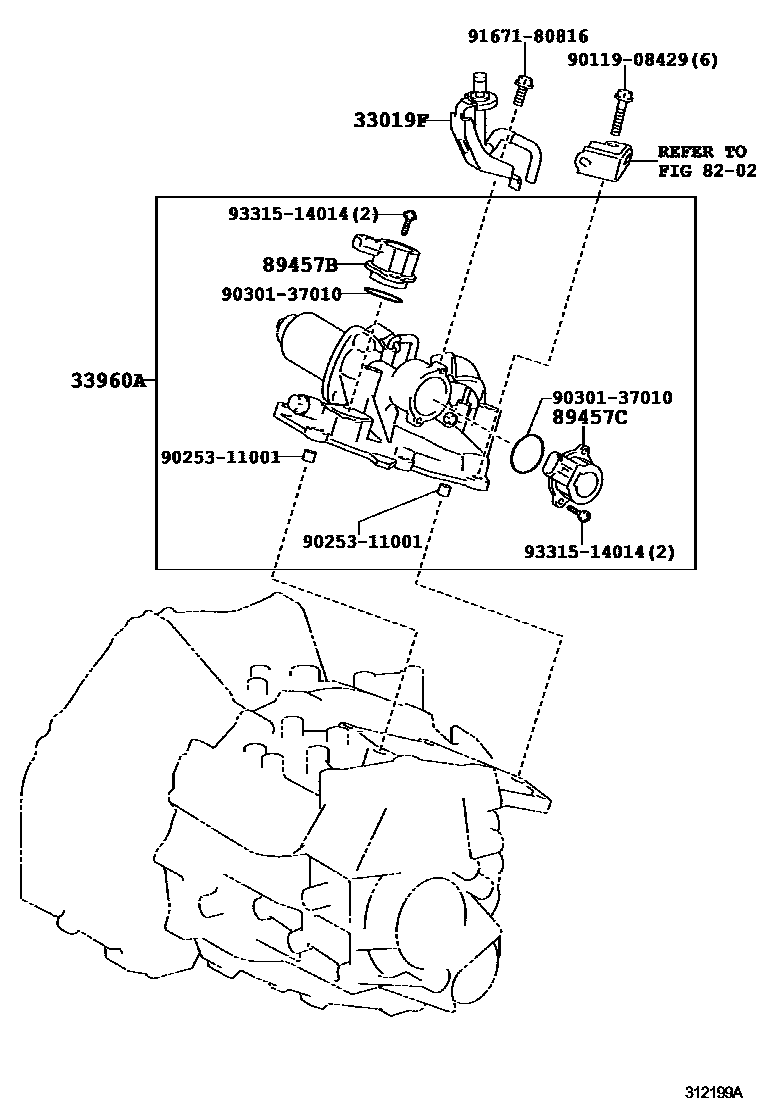

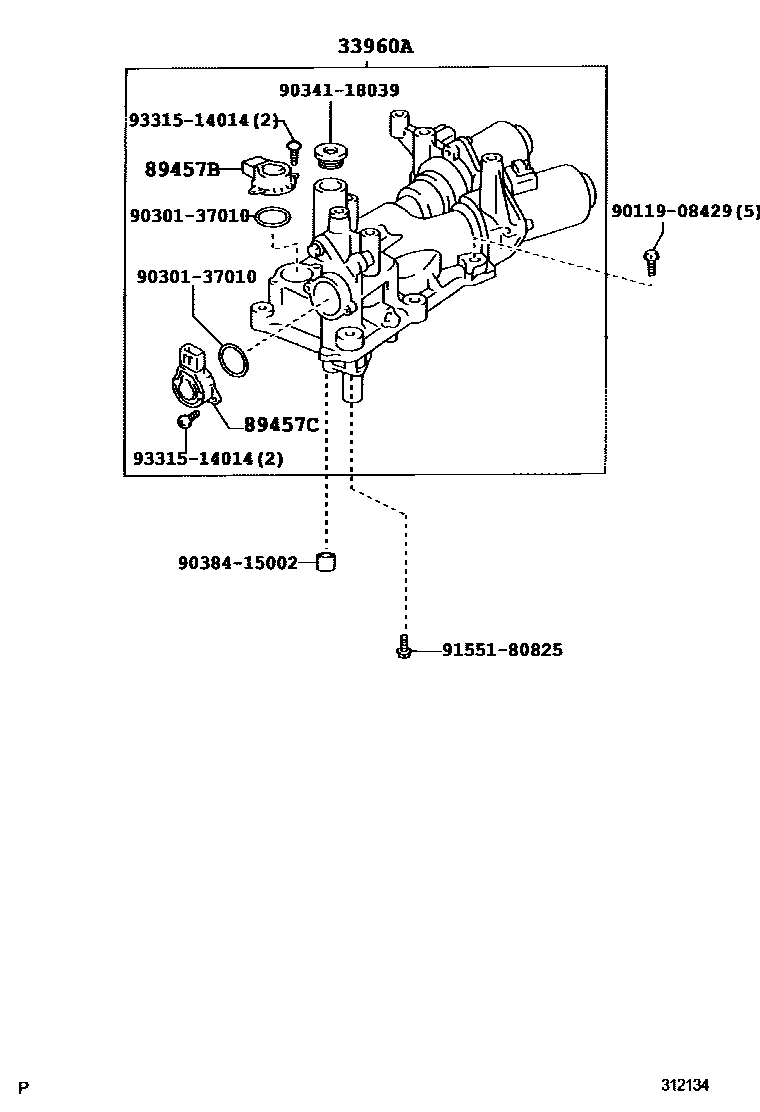

Toyota YARIS 泵和执行器、顺序变速器或多模式手动传动桥 — Figure 3107
Toyota YARIS EPC diagram 3107, 泵和执行器、顺序变速器或多模式手动传动桥, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33019F | Transmission breather sub-assembly | 33019-52012 |
| 33960A | Shift lever actuator assembly | 33960-52020 · 33960-52021 · 33960-52032 · 33960-70011 |
| 33960B | Shift lever actuator breather plug | 90930-03133 |
| 89457B | gear shift sensor | 89457-52010 · 89457-52020 |
| 89457C | gear selector travel sensor | 89457-52010 · 89457-52020 |
