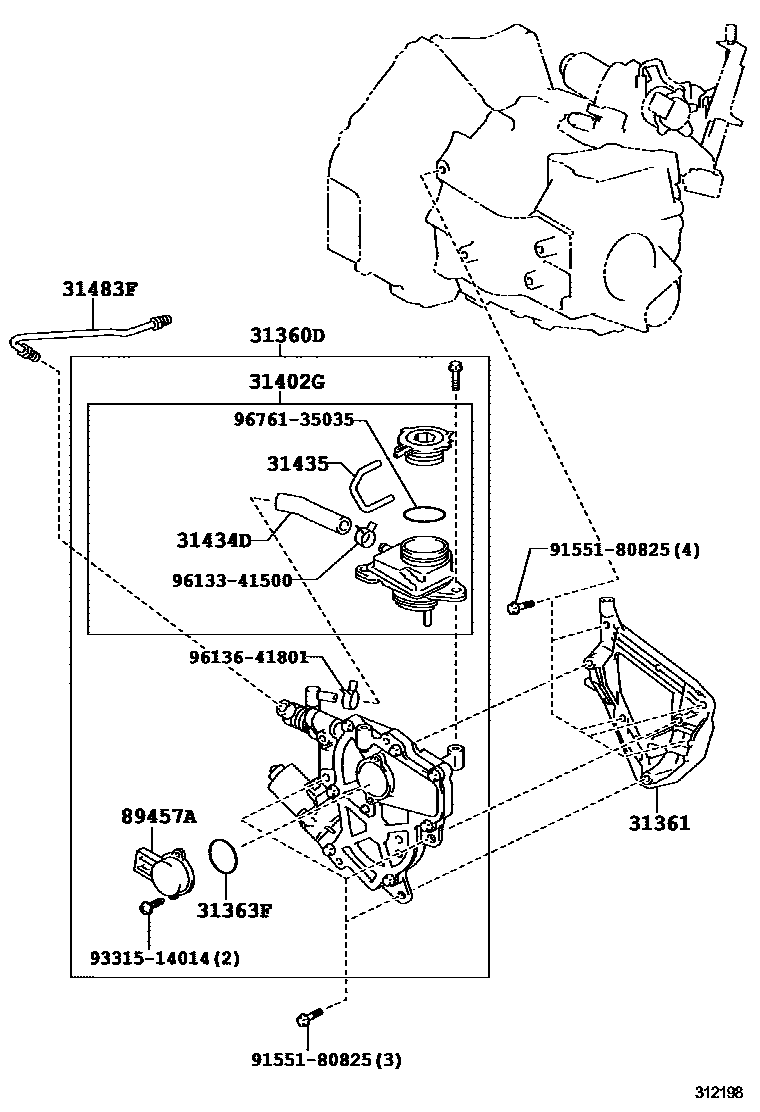

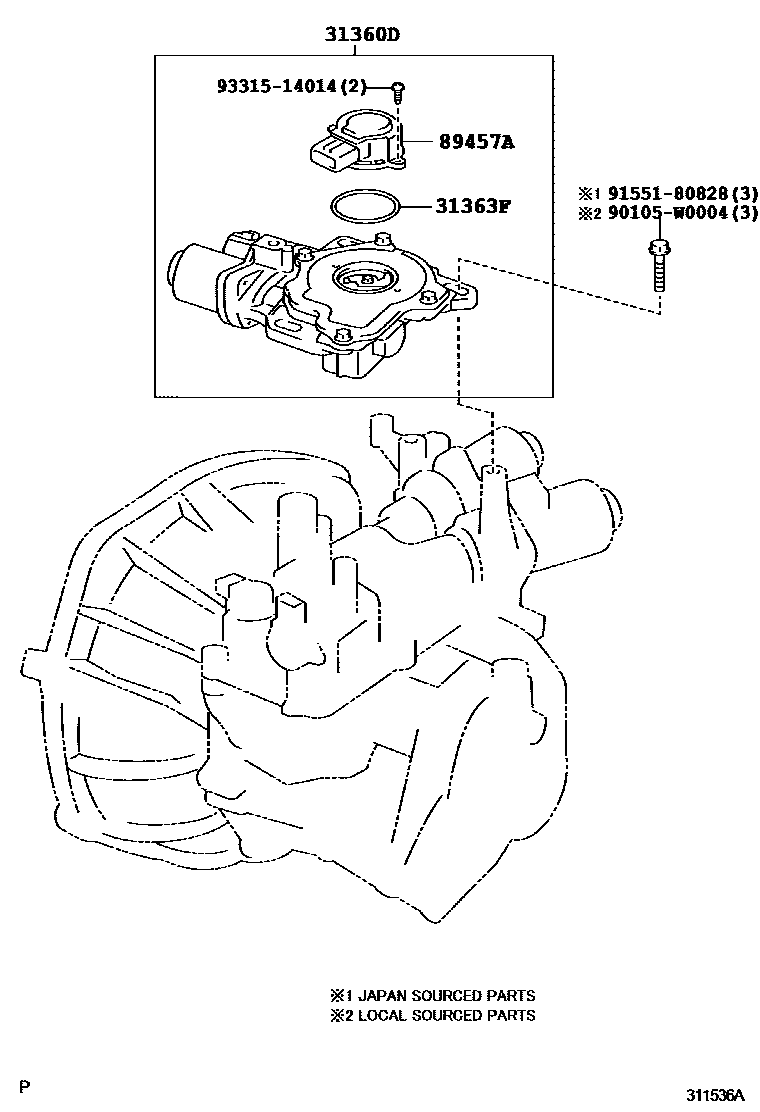

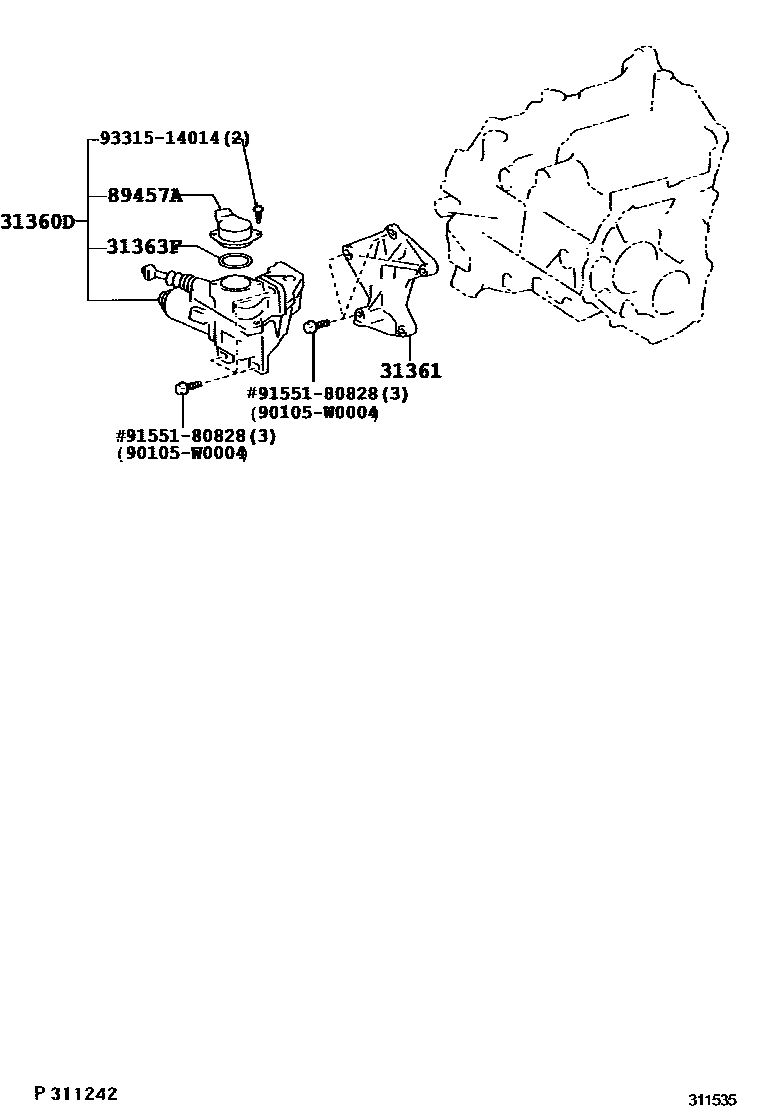

Toyota YARIS FREE TRONIC系统 — Figure 3106
Toyota YARIS EPC diagram 3106, FREE TRONIC系统, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31360D | Clutch actuator assembly | 31360-12010 · 31360-52030 · 31360-52041 · 31360-52042 · 31360-52043 · 31360-52051 · 31360-52052 · 31360-52053 · 31360-64011 · 31370-70020 |
| 31361 | No. 1 clutch actuator bracket | 31361-52020 · 31361-52030 · 31361-64010 |
| 31363F | O-ring (for clutch actuator pressure accumulator) | 90301-37010 |
| 31402G | Master pump reservoir assembly | 31402-52011 |
| 31434D | Clutch reservoir connecting pipe | 31434-52120 |
| 31435 | Clutch reservoir tank No. 2 pipe | 31435-52010 |
| 31483F | Clutch release bleeder pipe | 31483-52021 · 31483-52062 |
| 89457A | clutch travel sensor | 89457-52010 · 89457-52020 |
