Toyota YARIS 离合器总泵 — Figure 3103

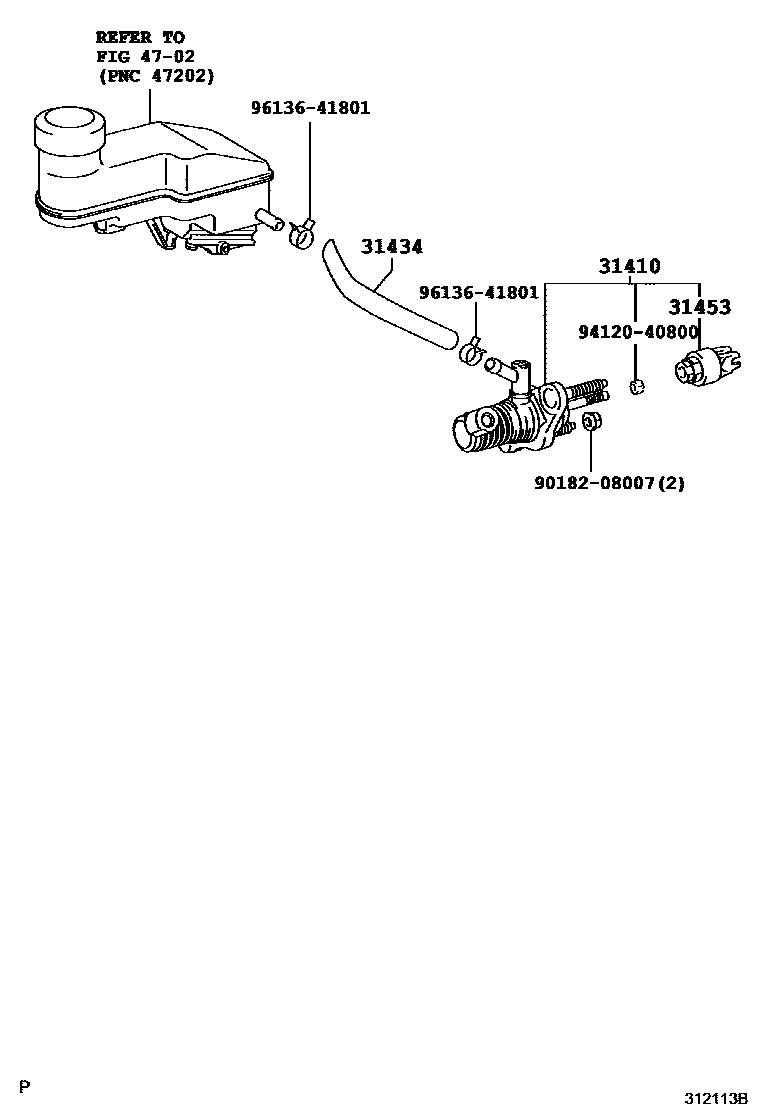

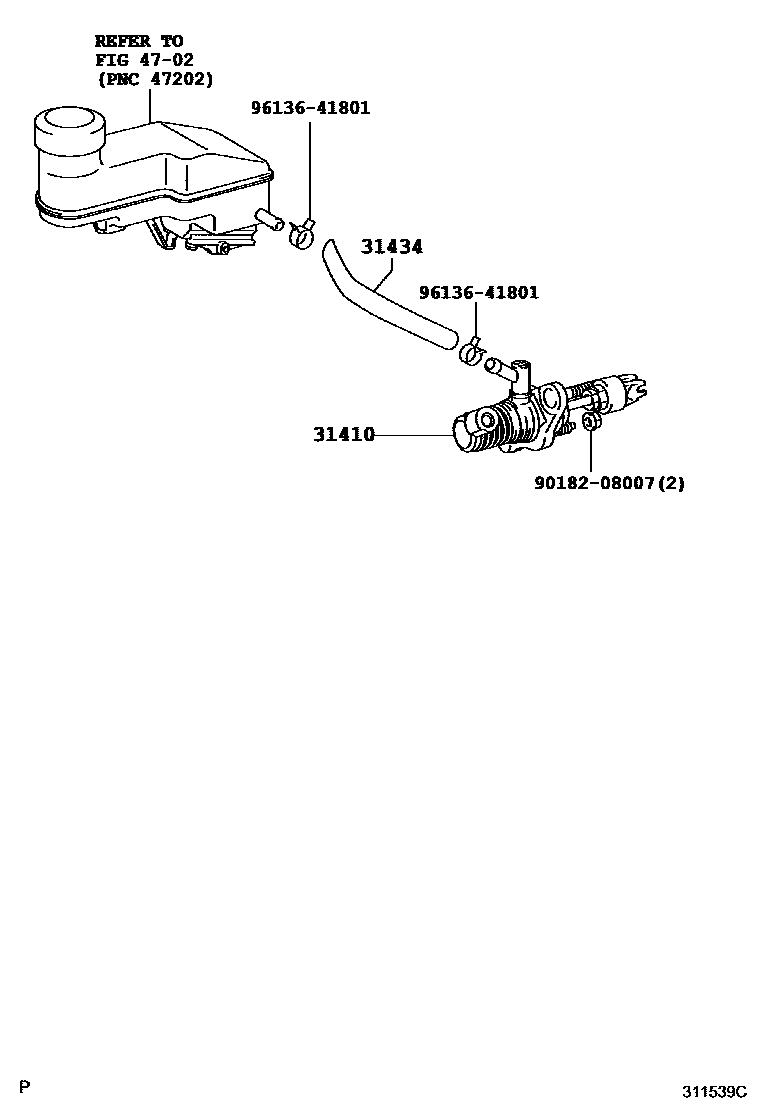

Toyota YARIS EPC diagram 3103, 离合器总泵, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-0D070 · 31420-0D080 · 31420-0D081 · 31420-0D090 · 31420-0D100 · 31420-0D110 · 31420-0D111 · 31420-0D120 · 31420-0D121 · 31420-52050 |
| 31434 | Clutch reservoir connecting pipe | 31434-52170 · 31434-52180 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31453-52010 |
