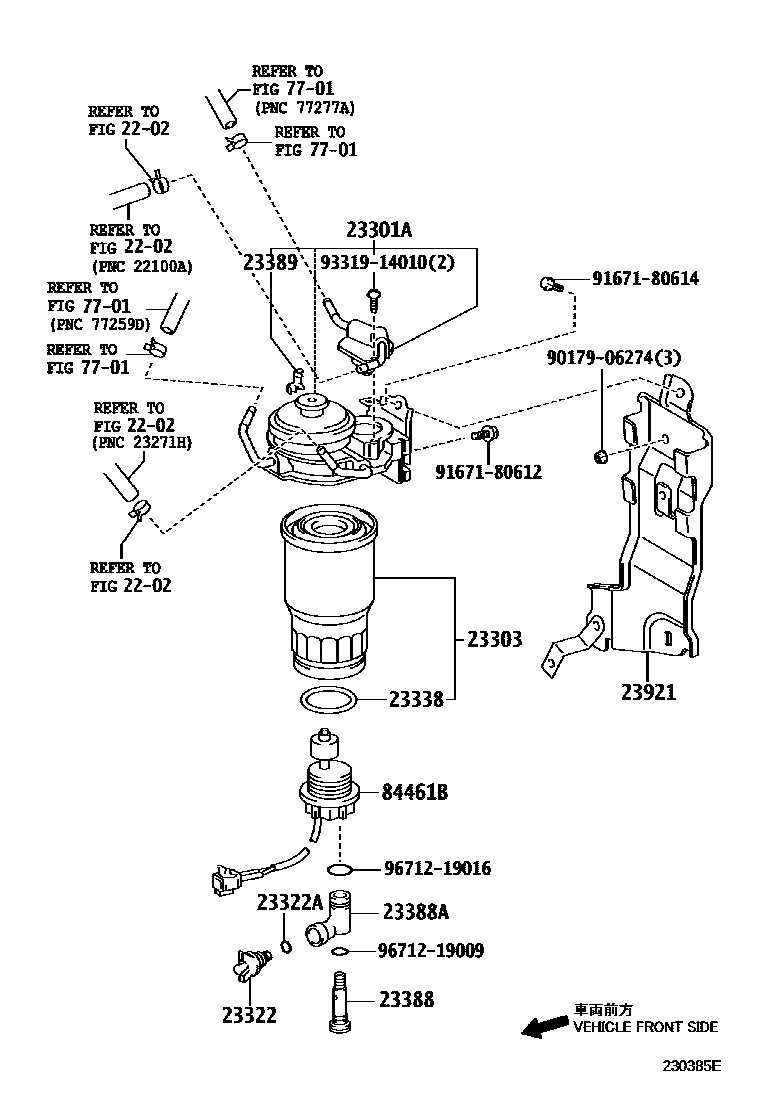

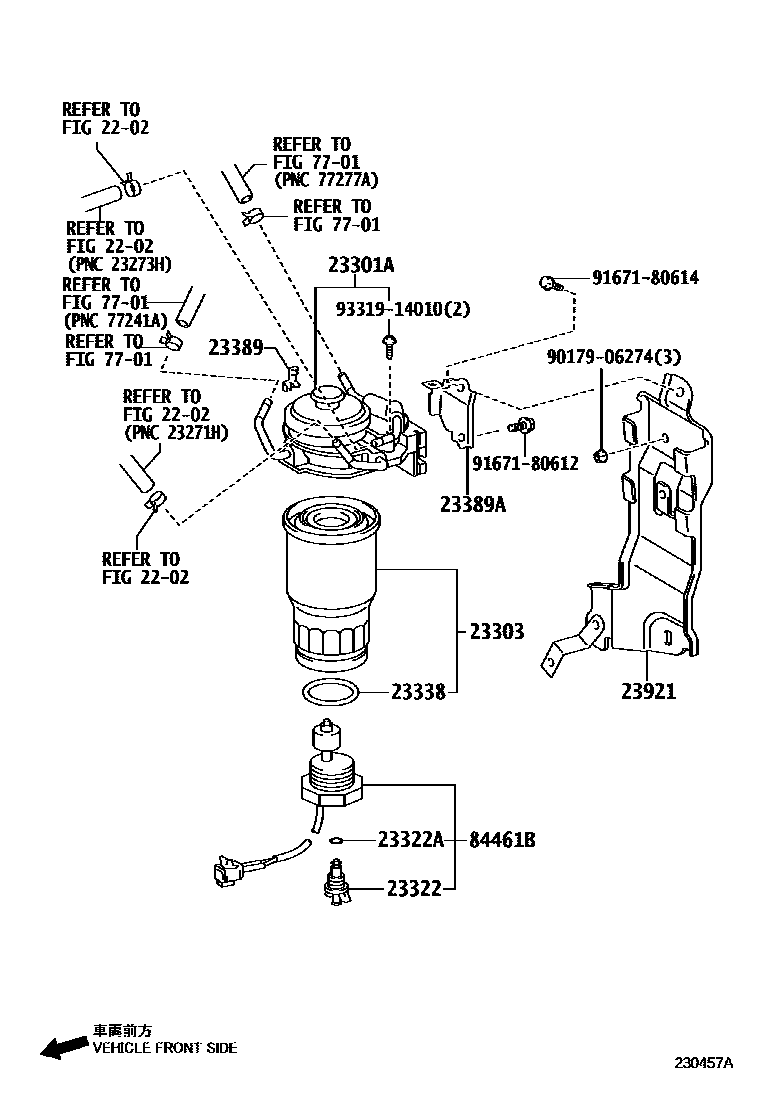

Toyota YARIS fuel filter — Figure 2302
Toyota YARIS EPC diagram 2302, fuel filter, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23301A | Fuel filter cover assembly | 23380-0N050 · 23380-0N051 · 23380-0N060 · 23380-0N062 |
| 23303 | Fuel filter element sub-assembly | 23390-33020 · 23390-33060 |
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23388 | Fuel filter drain plug | 23388-30160 |
| 23388A | Fuel filter drain plug | 23388-30170 |
| 23389 | fuel filter clip | 23389-0N010 |
| 23389A | fuel filter clip | 23389-0N060 |
| 23921 | Fuel filter support | 23921-0N010 · 23921-0N020 |
| 84461B | Liquid level warning switch | 84461-52010 · 84461-60080 |
