Toyota YARIS Alternator — Figure 1903

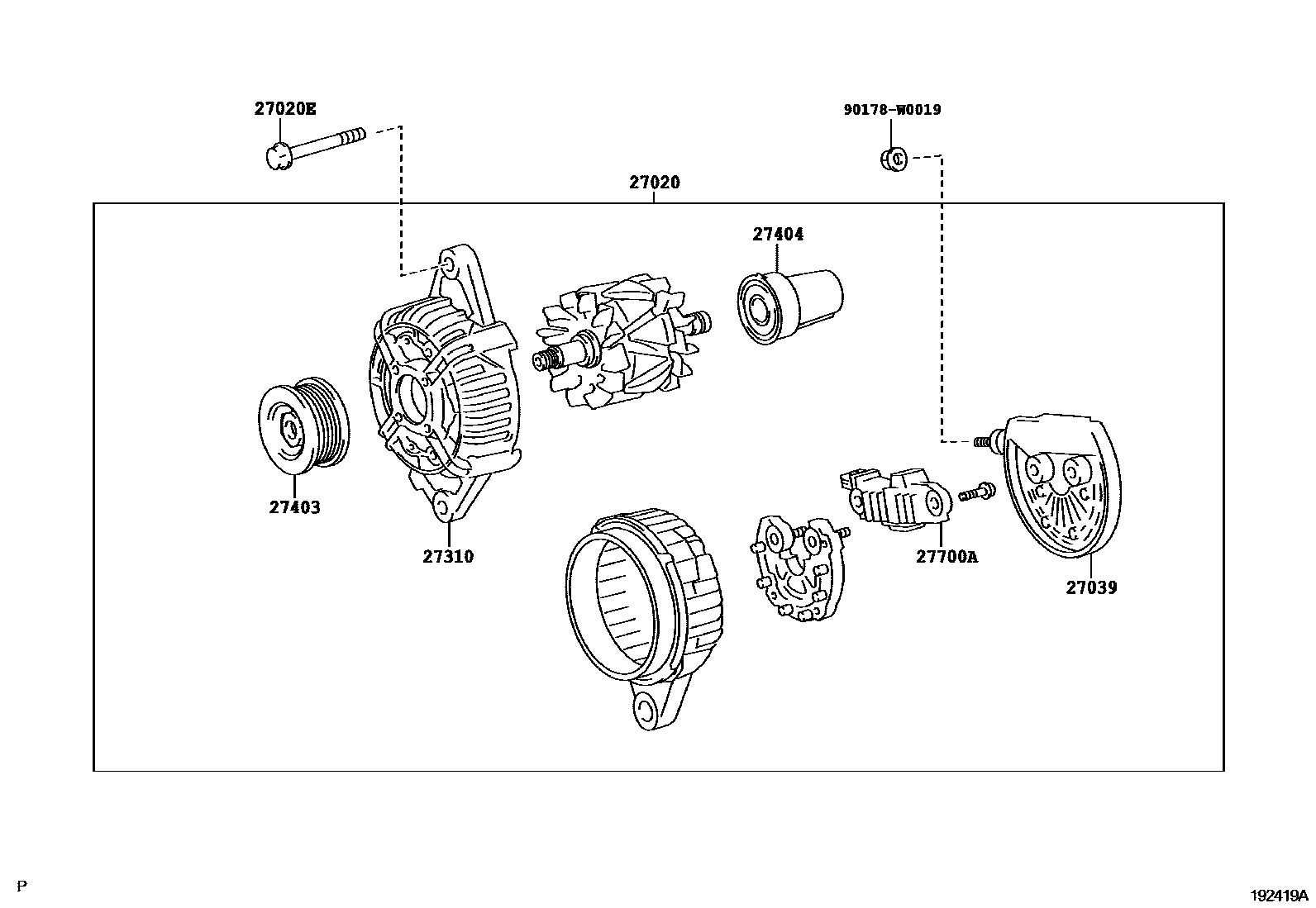

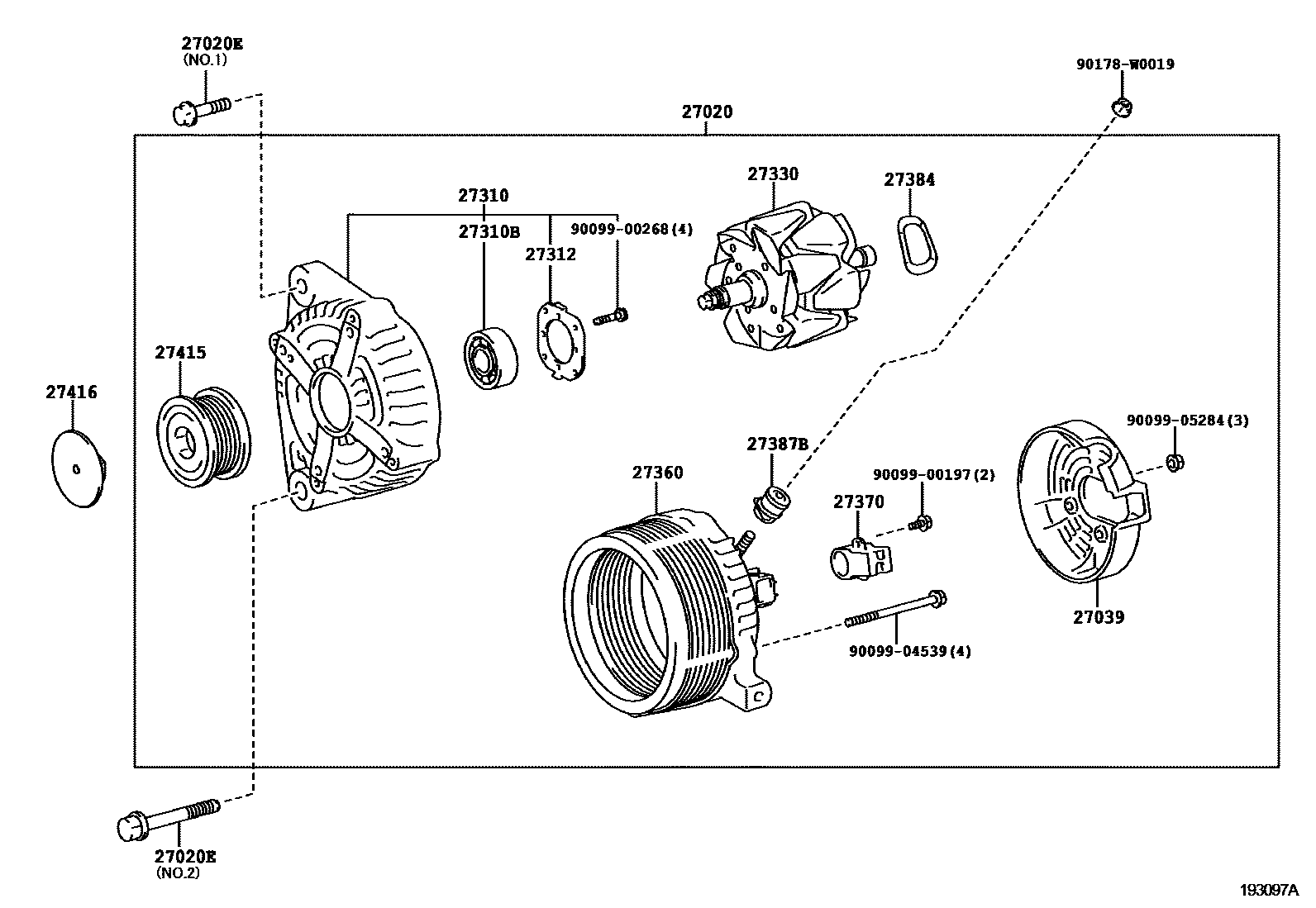

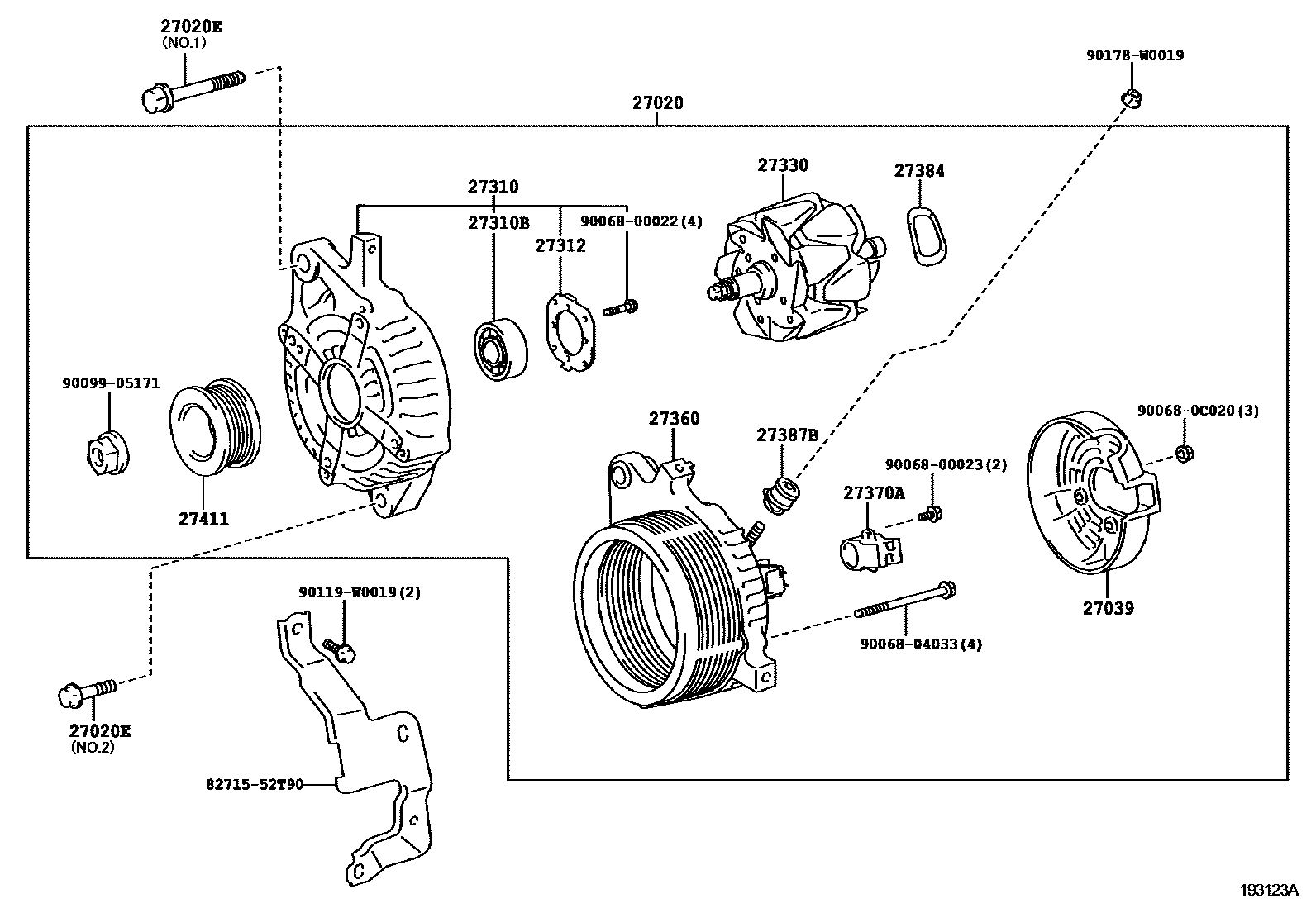

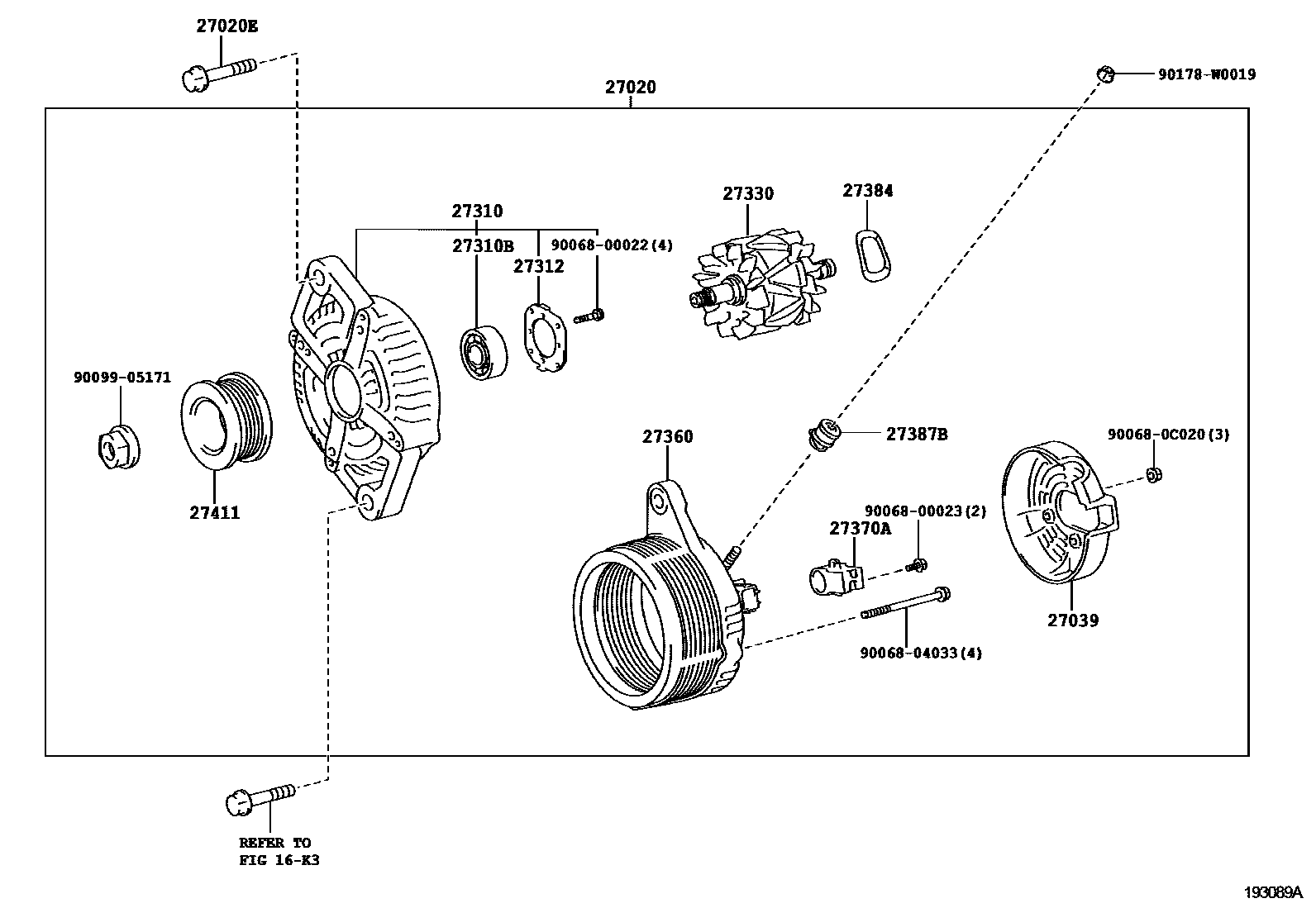

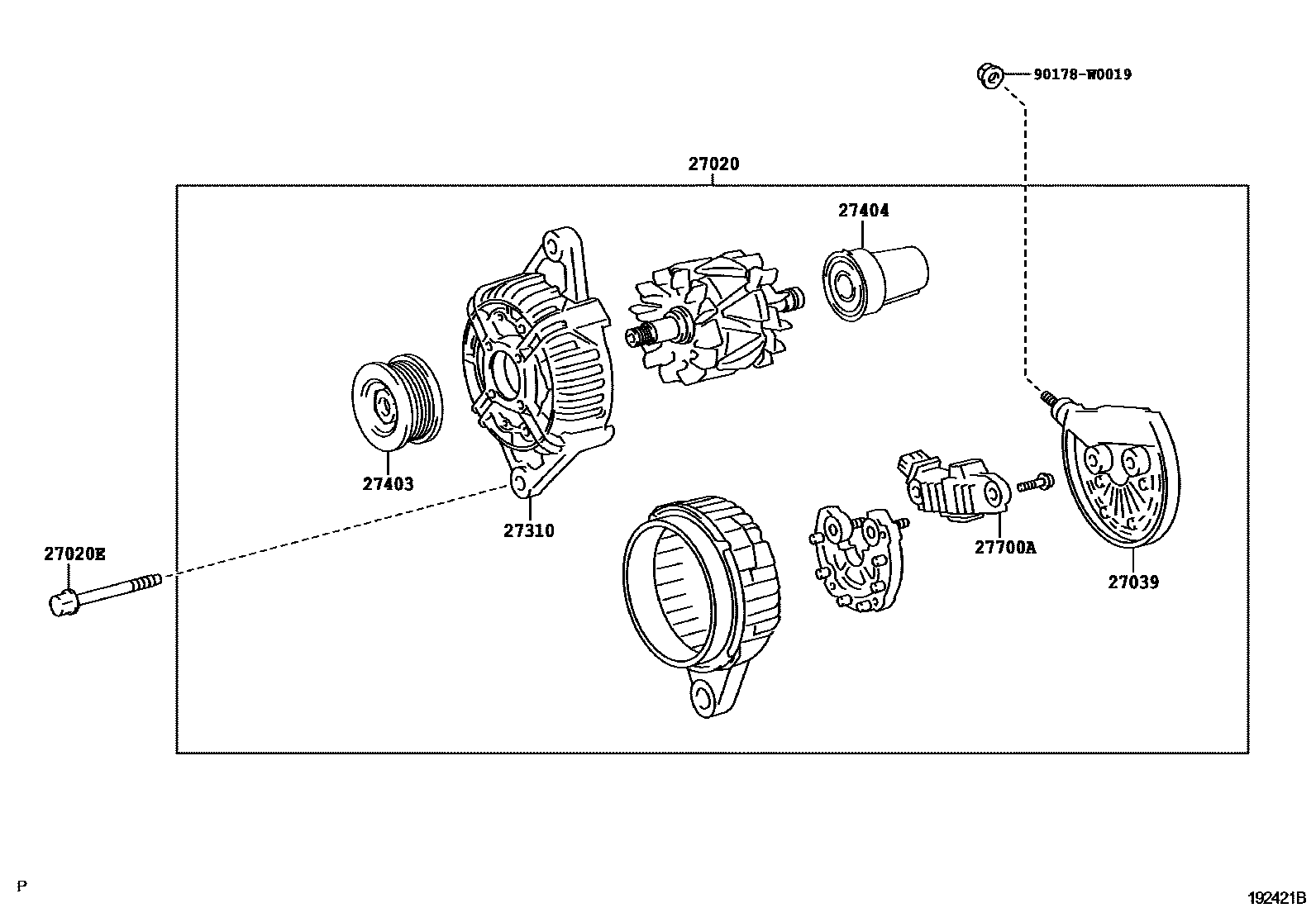

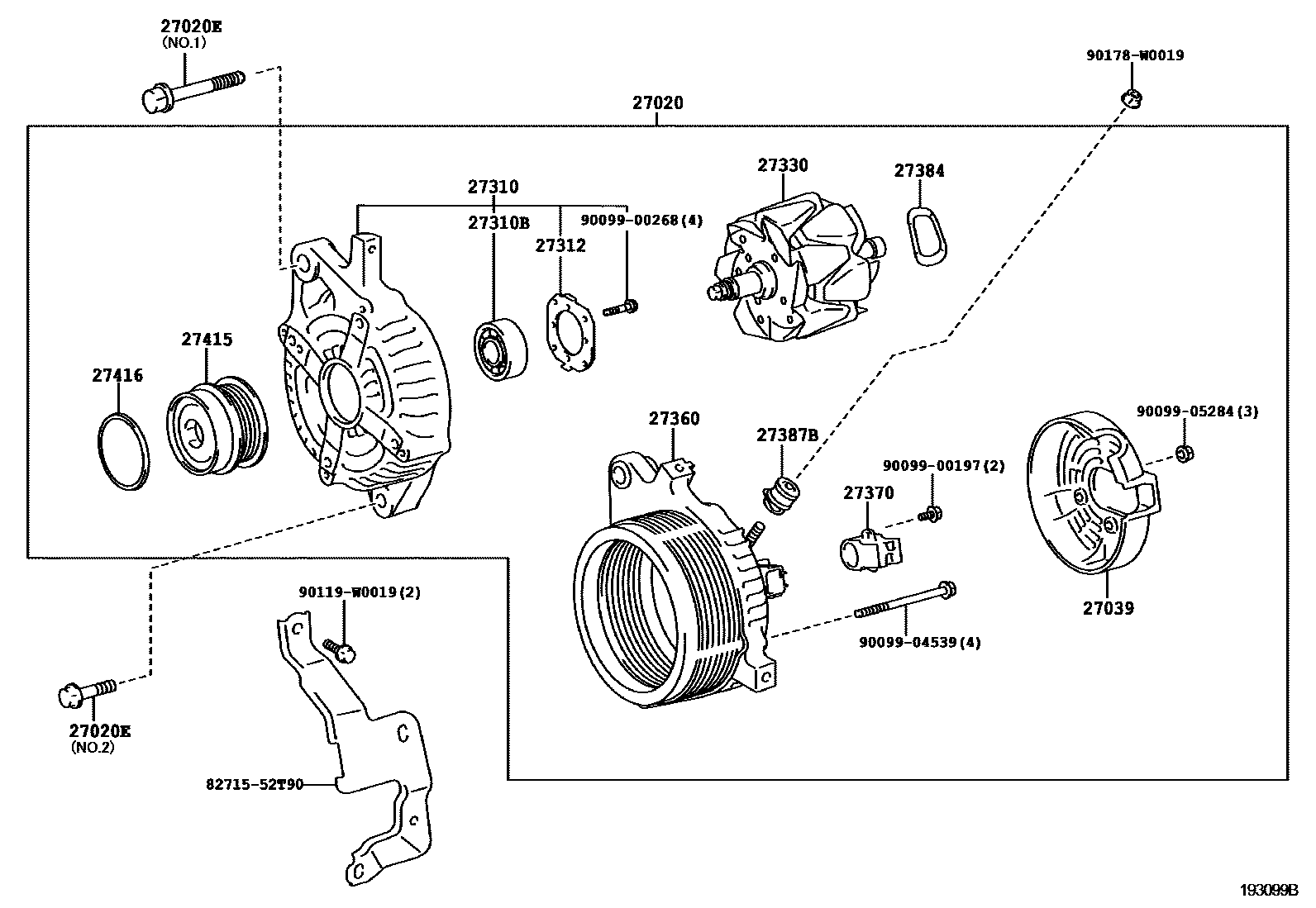

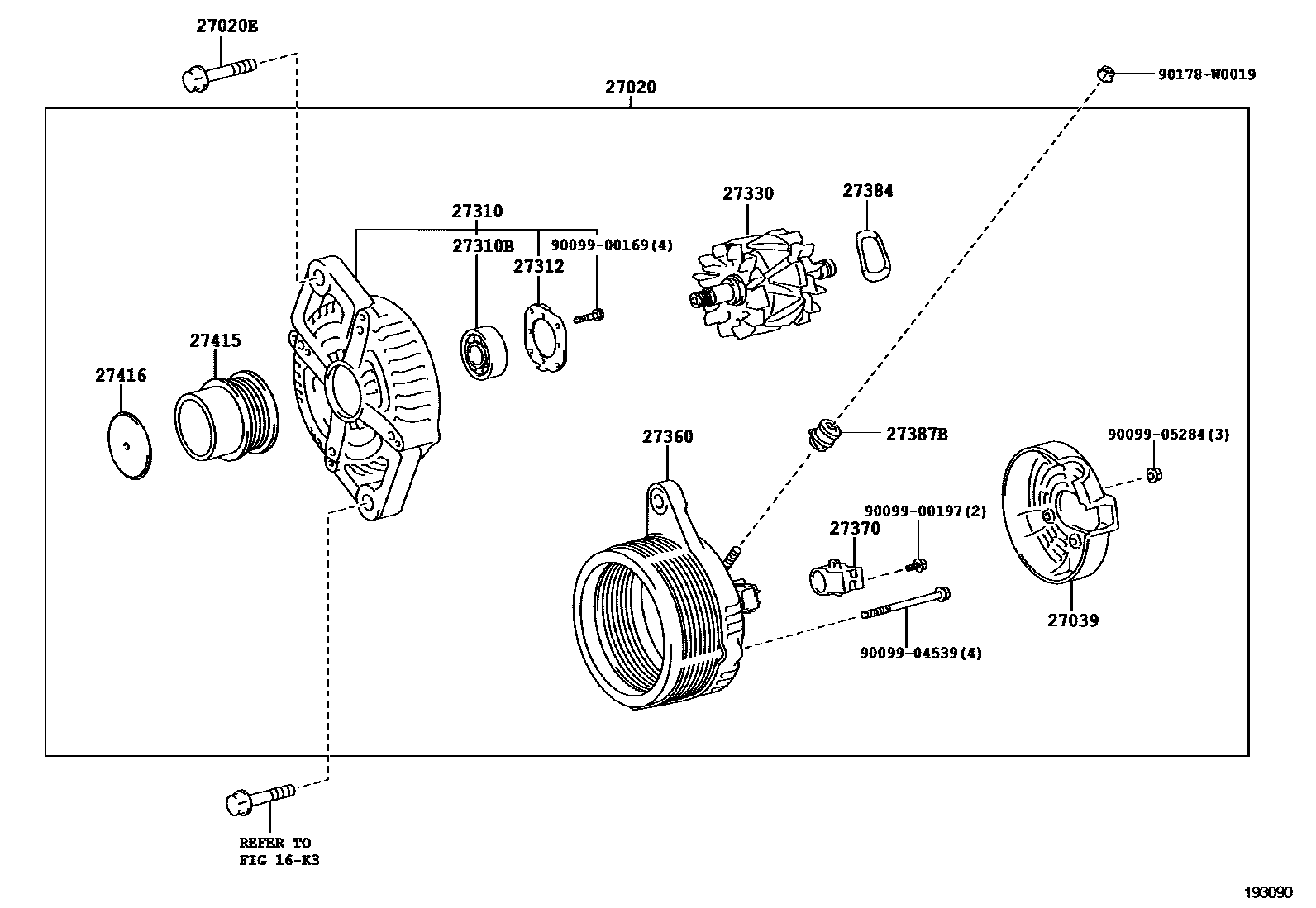

Toyota YARIS EPC diagram 1903, Alternator, with 8 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0J051 · 27060-0J061 · 27060-0N011 · 27060-0N040 · 27060-0Q030 · 27060-0Q040 · 27060-0Q060 · 27060-0Q070 · 27060-0Y010 · 27060-0Y020 · 27060-0Y030 · 27060-0Y040 · 27060-0Y041 · 27060-0Y050 · 27060-0Y060 |
| 27020E | Bolts (for generator) | 90105-10075 · 90105-10111 · 90105-10548 · 90105-W0113 · 90105-W0119 · 90119-W0165 · 91552-81075 · 91671-80845 |
| 27039 | Alternator Rear End Cover | 27039-0C020 · 27039-0J050 · 27039-0Q030 · 27039-26170 · 27039-31390 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0J050 · 27310-0N010 · 27310-0N030 · 27310-0Q030 · 27310-0Q060 · 27310-0Y010 · 27310-40100 · 27310-47140 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 · 90099-10223 · 90099-10231 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0M040 · 27330-23130 · 27330-30070 |
| 27360 | Alternator Stator Coil Assembly | 27360-0N030 · 27360-0Q060 · 27360-0Y010 · 27360-0Y020 · 27360-0Y030 · 27360-0Y080 · 27360-28190 · 27360-40110 · 27360-47140 · 27360-47150 · 27360-47160 |
| 27370 | Alternator Brush Holder Assembly | 27370-31220 |
| 27370A | Alternator Brush Holder Assembly | 27370-0M040 |
| 27384 | Washer | 27384-0C020 · 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-20130 |
| 27403 | Generator pulley assembly | 27403-0J050 · 27403-0Q030 |
| 27404 | Generator bearing components | 27404-0D020 · 27404-0J050 |
| 27411 | Alternator Pulley | 27411-0D200 · 27411-0Q060 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W031 · 27415-0Y020 · 27415-33060 · 27415-33070 |
| 27416 | Generator pulley cover | 27416-0W020 · 27416-0W050 · 27416-27010 · 27416-33010 |
| 27700A | Generator voltage regulator assembly | 27702-0N010 · 27702-0Q030 |
