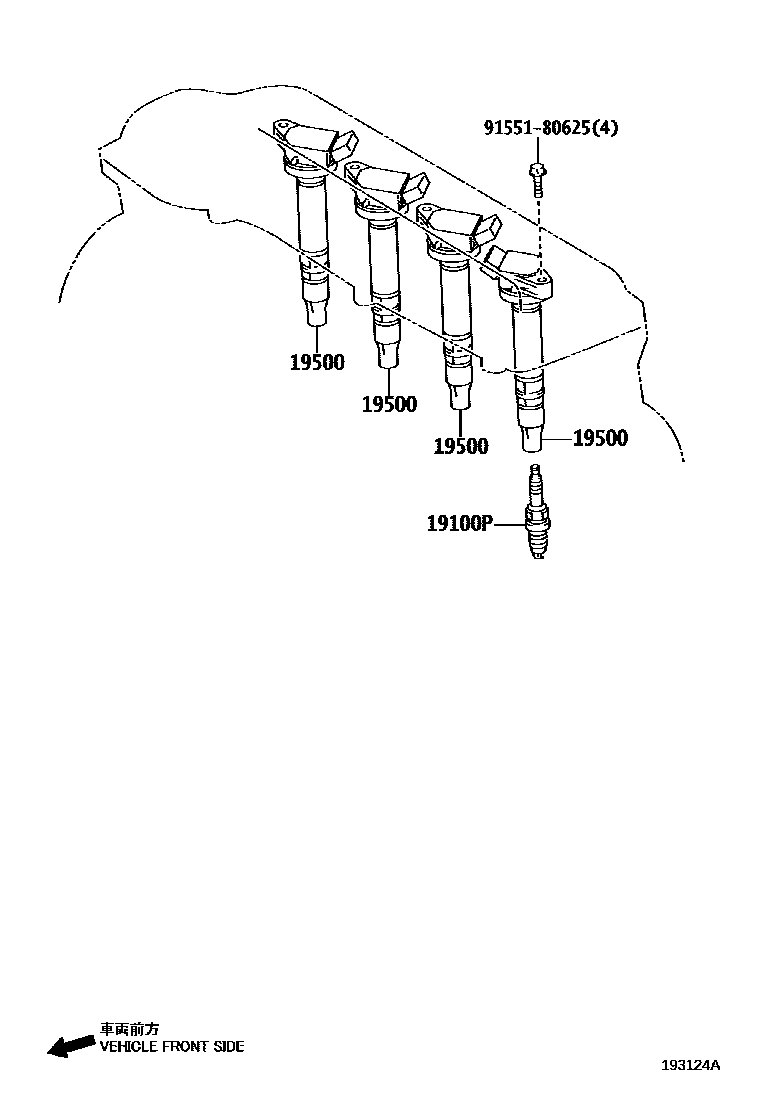

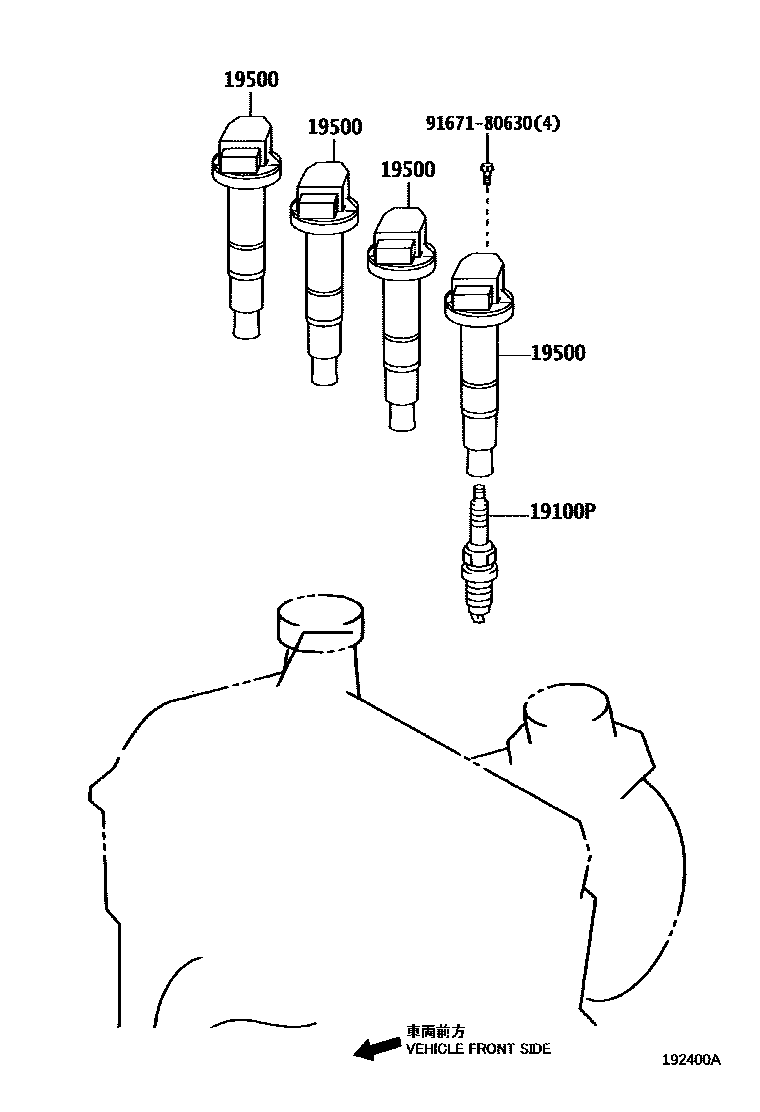

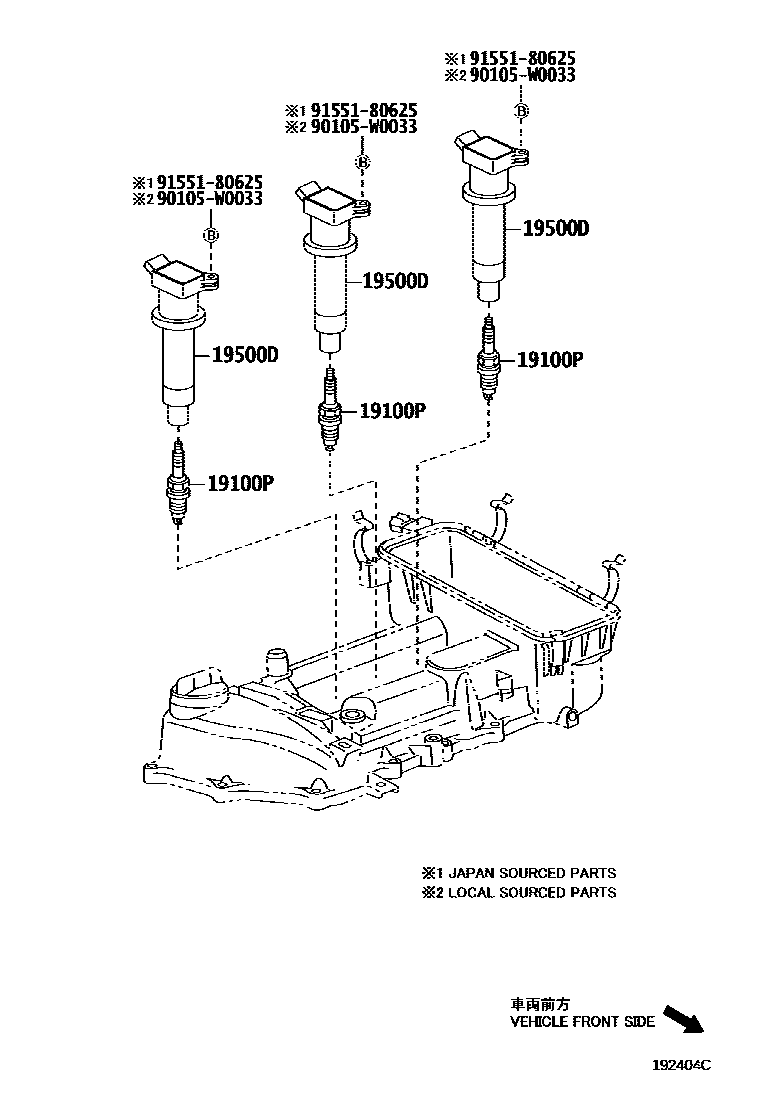

Toyota YARIS 点火线圈和火花塞 — Figure 1901
Toyota YARIS EPC diagram 1901, 点火线圈和火花塞, with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90080-91229 · 90919-01176 · 90919-01233 · 90919-01253 · 90919-W1001 · 90919-W1002 · 90919-W1003 |
| 19500 | Ignition coil assembly | 90080-19021 · 90919-02240 · 90919-02257 |
| 19500D | No. 1 ignition coil | 90080-19019 · 90919-02239 · 90919-02262 · 90919-T2002 · 90919-W2001 |
| 19850 | Glow plug assembly | 19850-0W010 · 19850-33020 · 19850-33030 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-33010 · 19871-33020 |
