Toyota YARIS Air Cleaner — Figure 1703

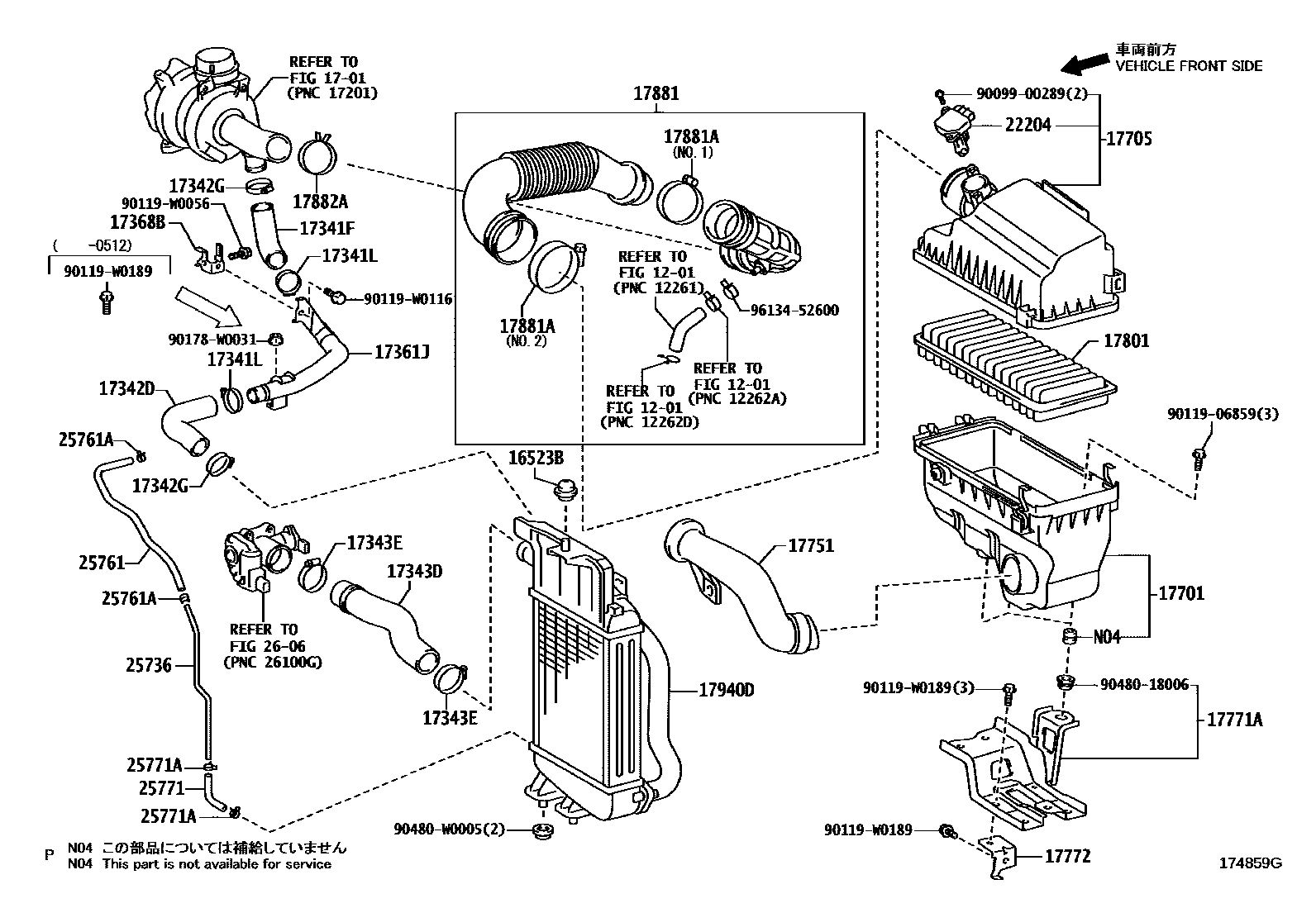

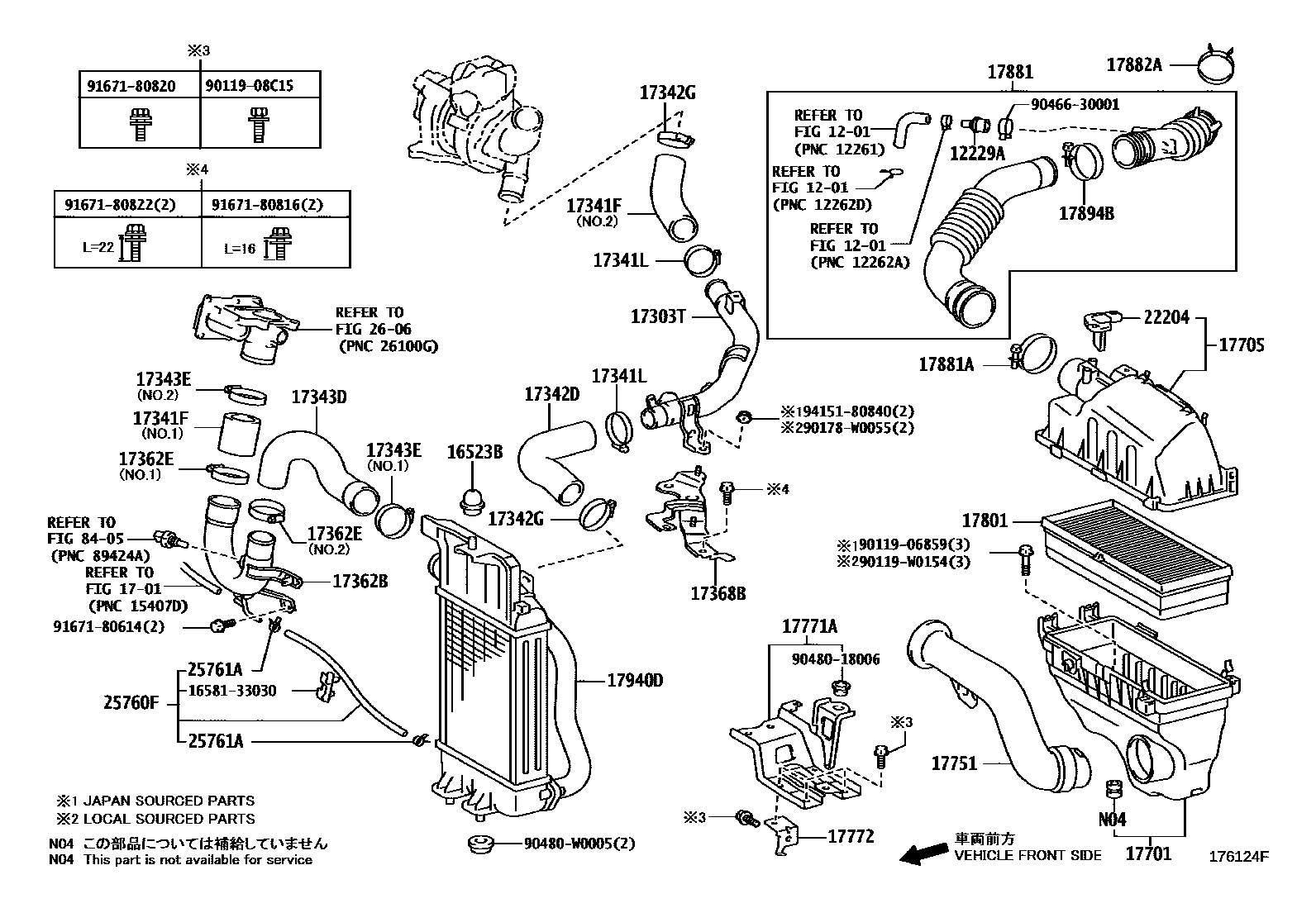

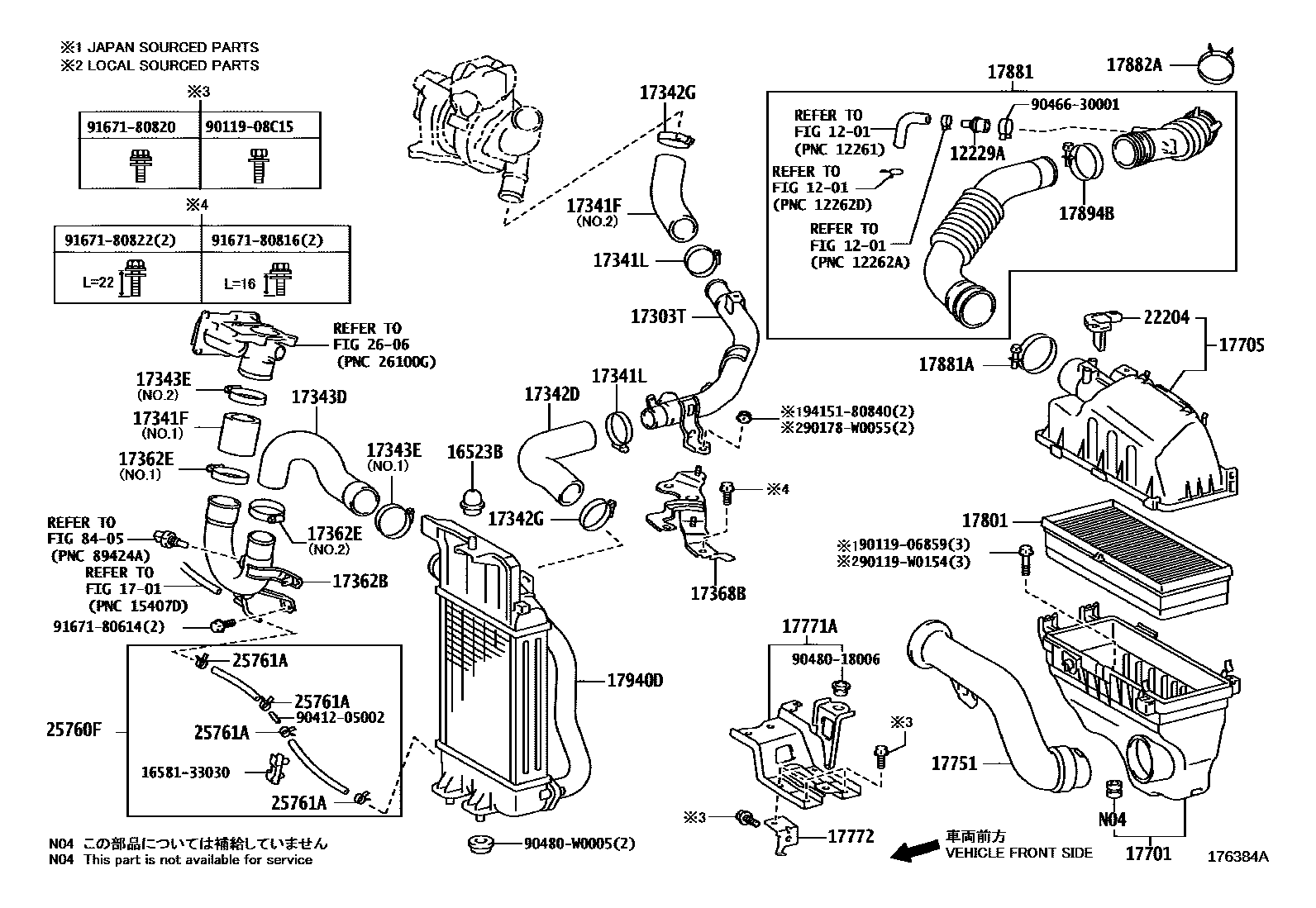

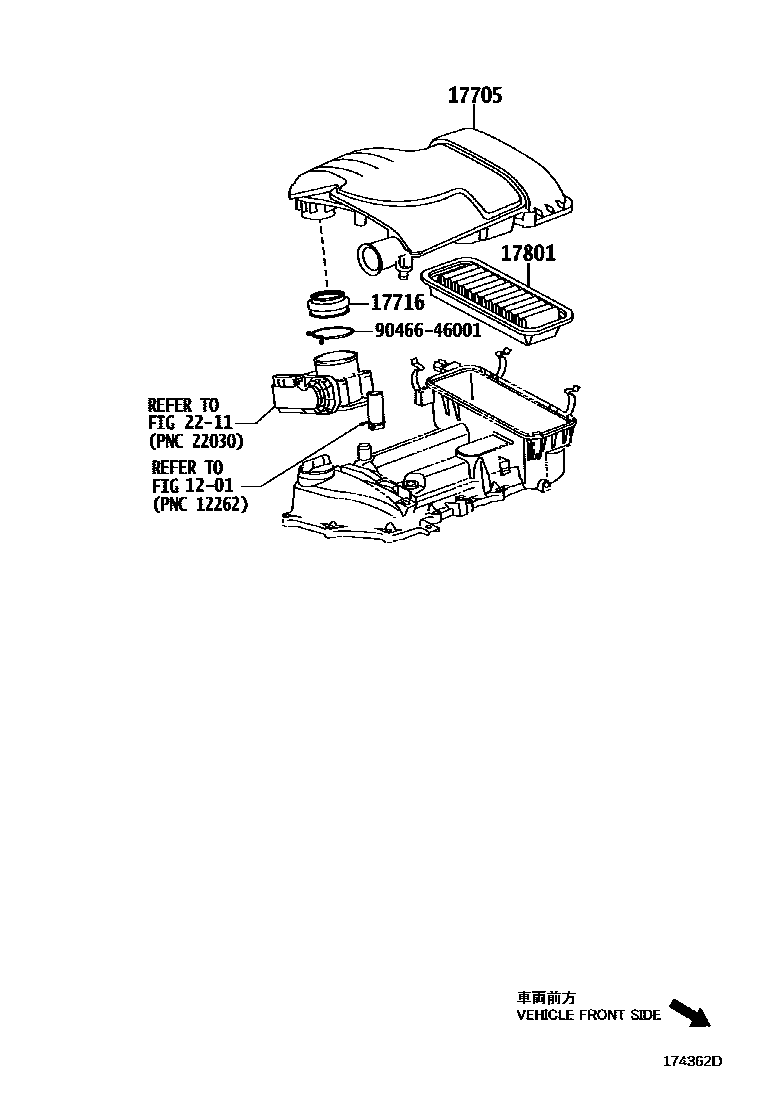

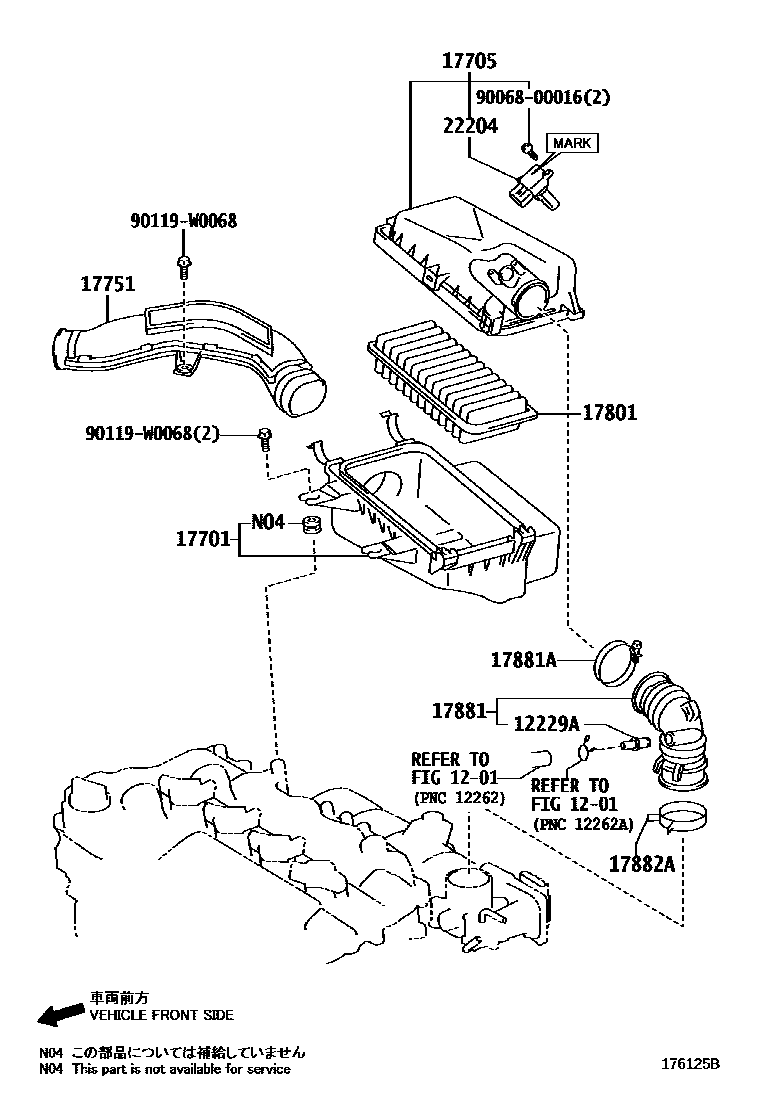

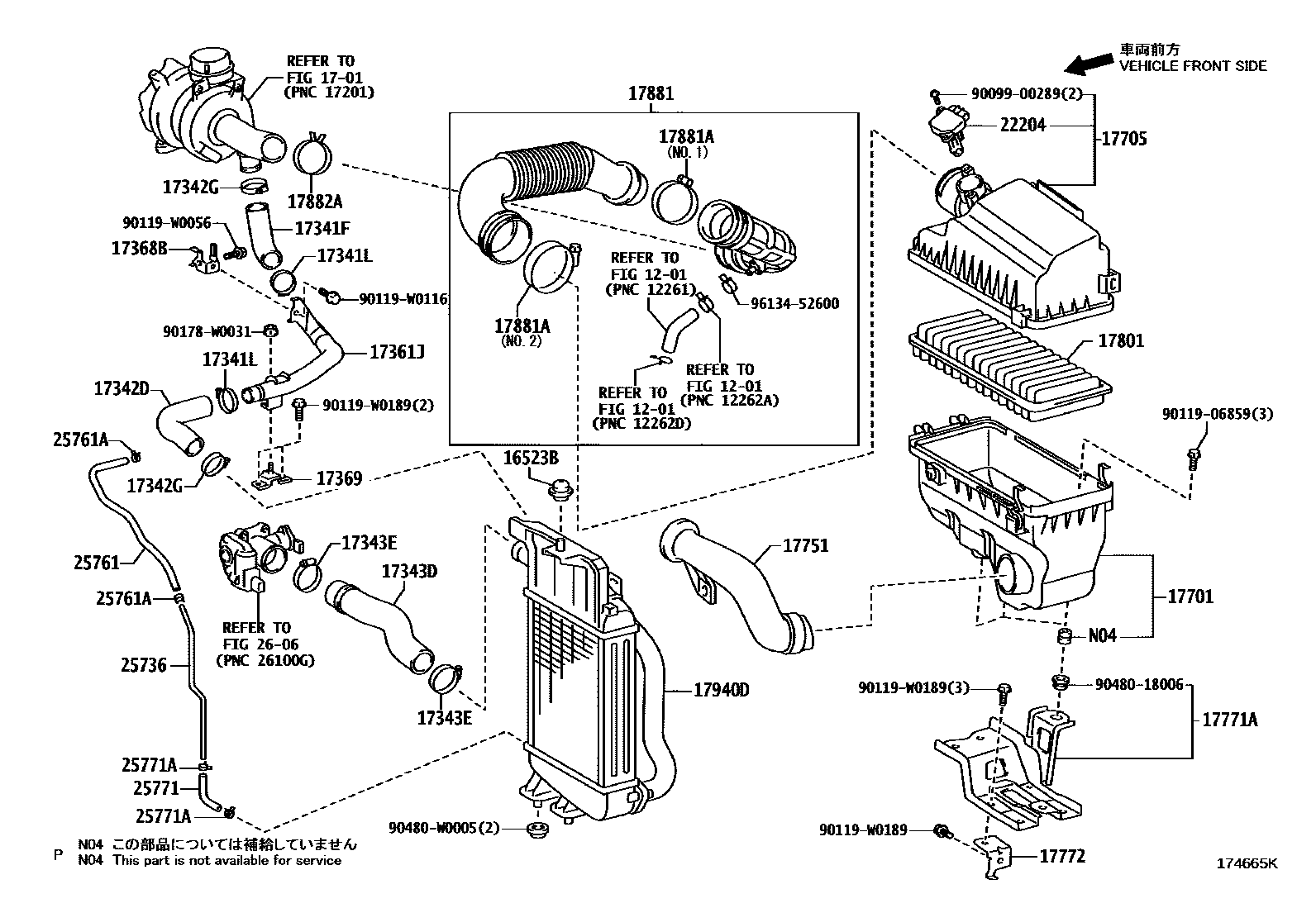

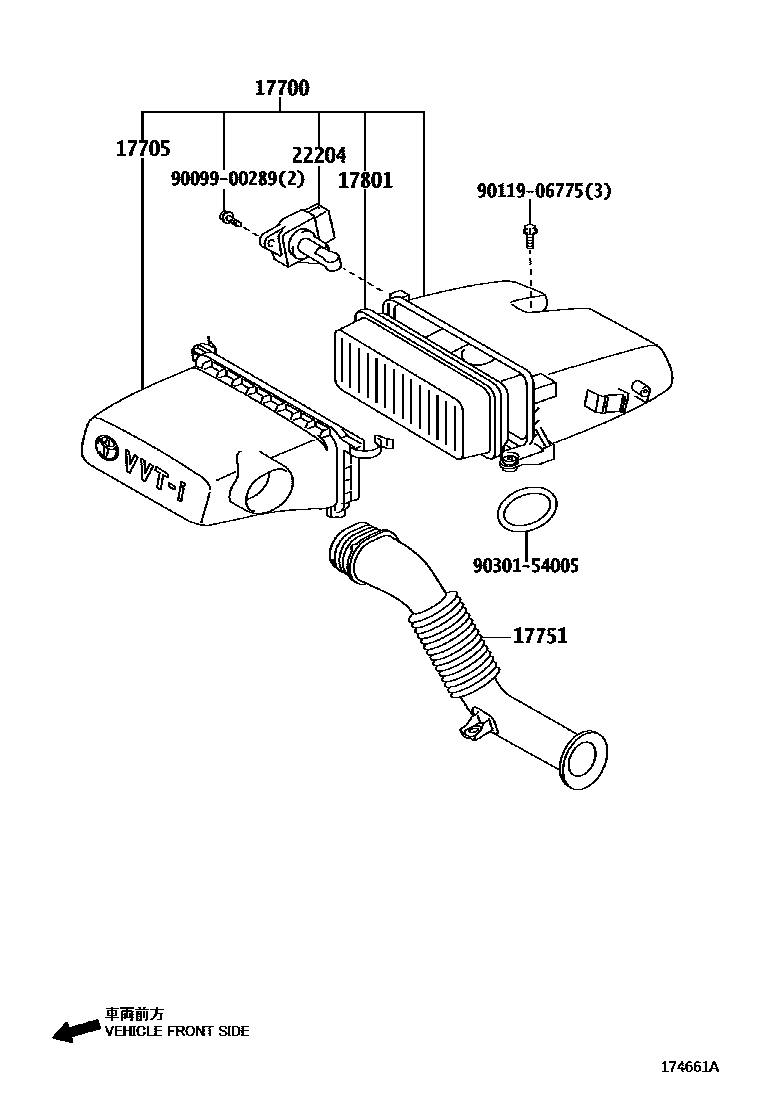

Toyota YARIS EPC diagram 1703, Air Cleaner, with 7 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 · 12229-33010 |
| 16523B | Radiator bracket cushion | 16523-0Q020 |
| 17303T | Air pipe subassembly | 17303-0N010 |
| 17341F | Air hose No. 1 | 17341-33040 · 17341-33070 · 17341-33080 |
| 17341L | hose clamp | 90460-50005 |
| 17342D | Air hose No. 2 | 17342-33030 · 17342-33060 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-50005 |
| 17343D | No. 3 air hose | 17343-33020 · 17343-33050 · 17343-33080 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-60006 · 90460-63011 |
| 17361J | Air tube No. 1 | 17361-0N010 |
| 17362B | No. 2 air pipe | 17362-33030 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-60006 · 90460-63011 |
| 17368B | Air tube support | 17368-0N010 · 17368-33070 |
| 17369 | Air tube bracket | 17369-0N021 |
| 17700 | air filter assembly | 17700-0J012 · 17700-0J013 |
| 17701 | Air filter housing sub-assembly | 17701-0N020 · 17701-0N030 · 17701-0N031 · 17701-0N032 · 17701-0Y010 |
| 17705 | Air filter cover sub-assembly | 17705-0J010 · 17705-0N020 · 17705-0N050 · 17705-0Q020 · 17705-0Y010 · 17705-0Y011 · 17705-40110 |
| 17716 | Air filter cover bracket | 17716-0Q020 · 17716-40030 |
| 17751 | No. 1 air filter air inlet | 17751-0J030 · 17751-0N020 · 17751-0N021 · 17751-0N030 · 17751-0N031 · 17751-0N032 · 17751-0Y010 |
| 17771A | air filter bracket | 17771-0N010 · 17771-33050 |
| 17772 | No. 2 intake connecting pipe bracket | 17772-0N010 |
| 17801 | Air filter element sub-assembly | 17801-0J020 · 17801-0N020 · 17801-0N040 · 17801-0Y010 · 17801-23030 |
| 17881 | No. 1 air cleaner hose | 17880-0N030 · 17880-0N031 · 17880-0Y010 · 17880-33070 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-62003 · 90460-80006 · 96111-10690 · 96111-10750 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-54002 · 90466-62002 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10630 |
| 17940D | Intercooler assembly | 17900-0N010 · 17900-0N030 |
| 22204 | Intake air flow meter assembly | 22204-0J010 · 22204-0V010 · 22204-0V020 · 22204-26010 · 22204-28010 · 22204-33010 · 22204-37010 |
| 25736 | No. 1 vacuum transfer tube | 25736-33020 |
| 25760F | Vacuum transfer hose assembly | 25760-33100 · 25760-33150 |
| 25761 | No. 1 Vacuum Transfer Hose | 25761-33010 |
| 25761A | Clamp (No. 1 vacuum transfer hose) | 90466-07002 · 90467-07094 |
| 25771 | No. 2 vacuum transfer hose | 25771-33030 |
| 25771A | Clamp (for No. 2 vacuum transfer hose) | 90467-07094 |
