Toyota YARIS Exhaust Pipe — Figure 1702

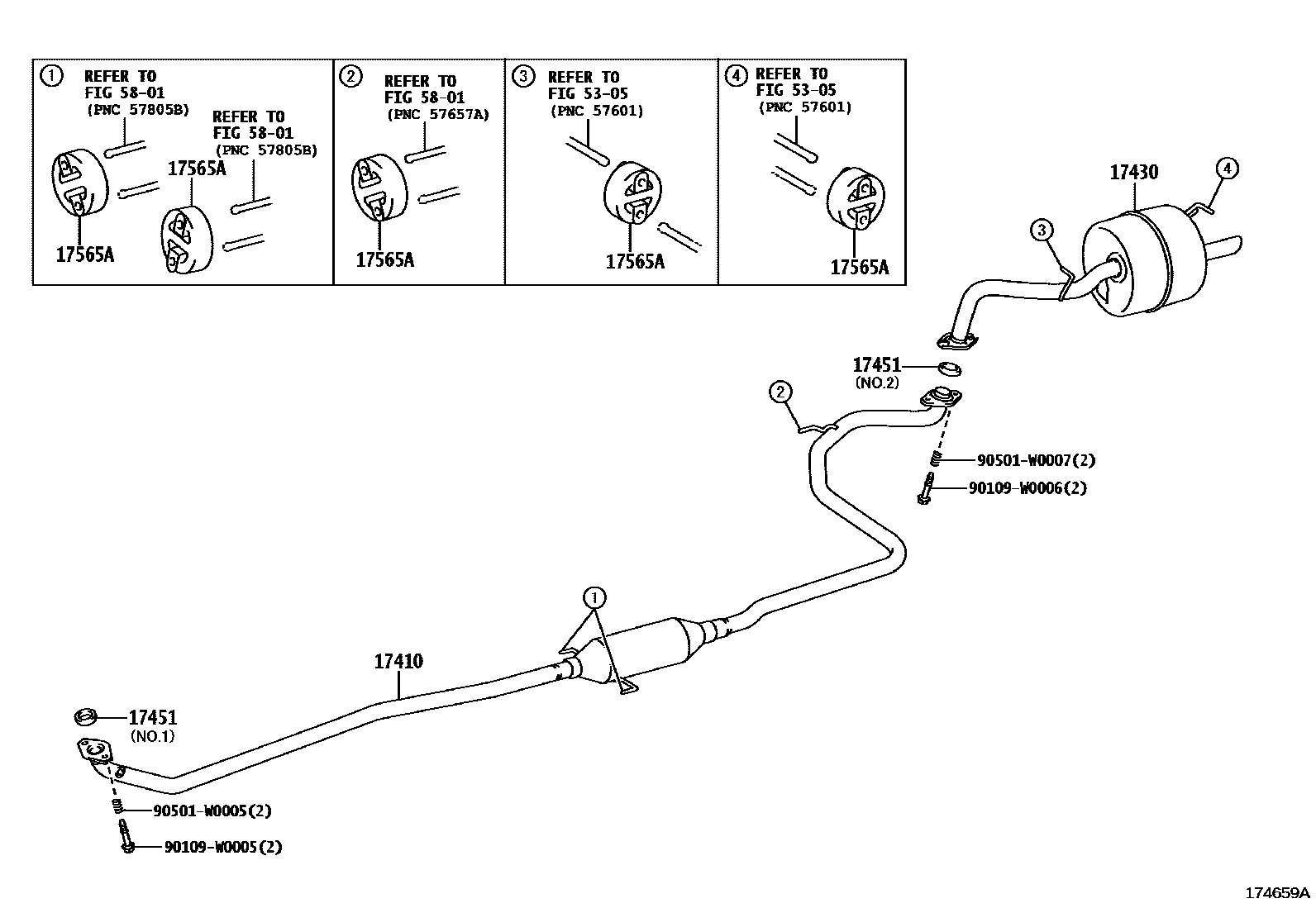

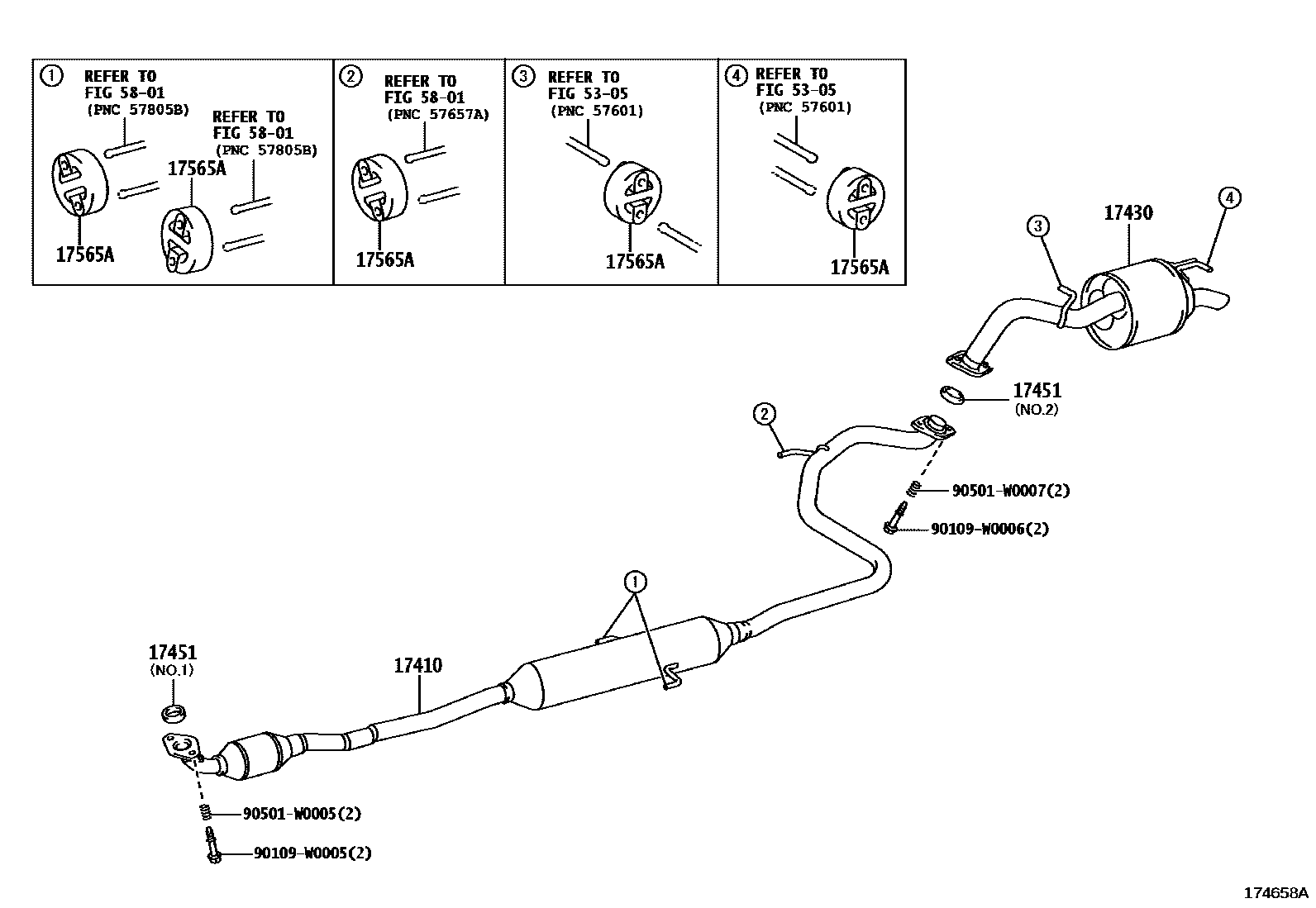

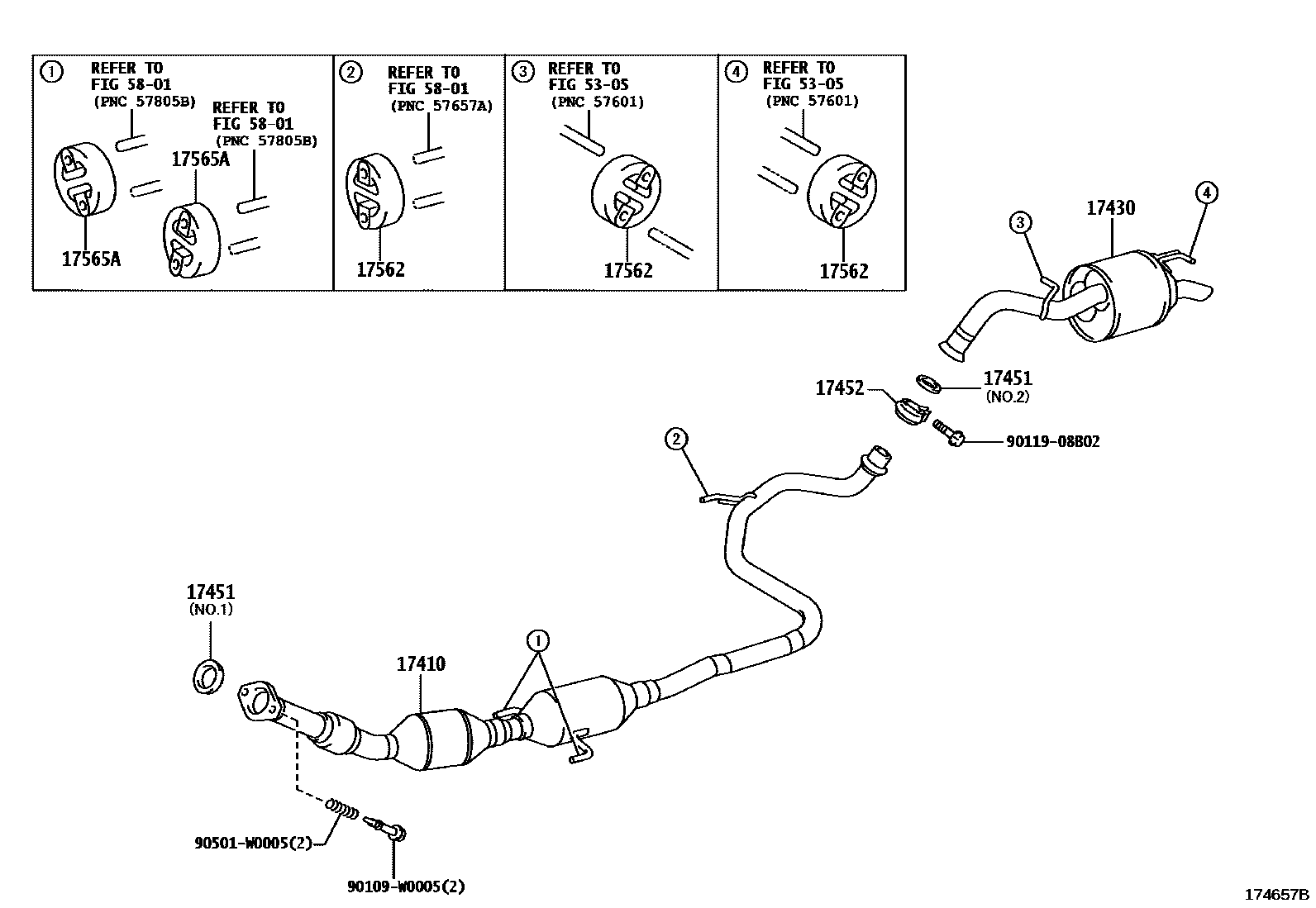

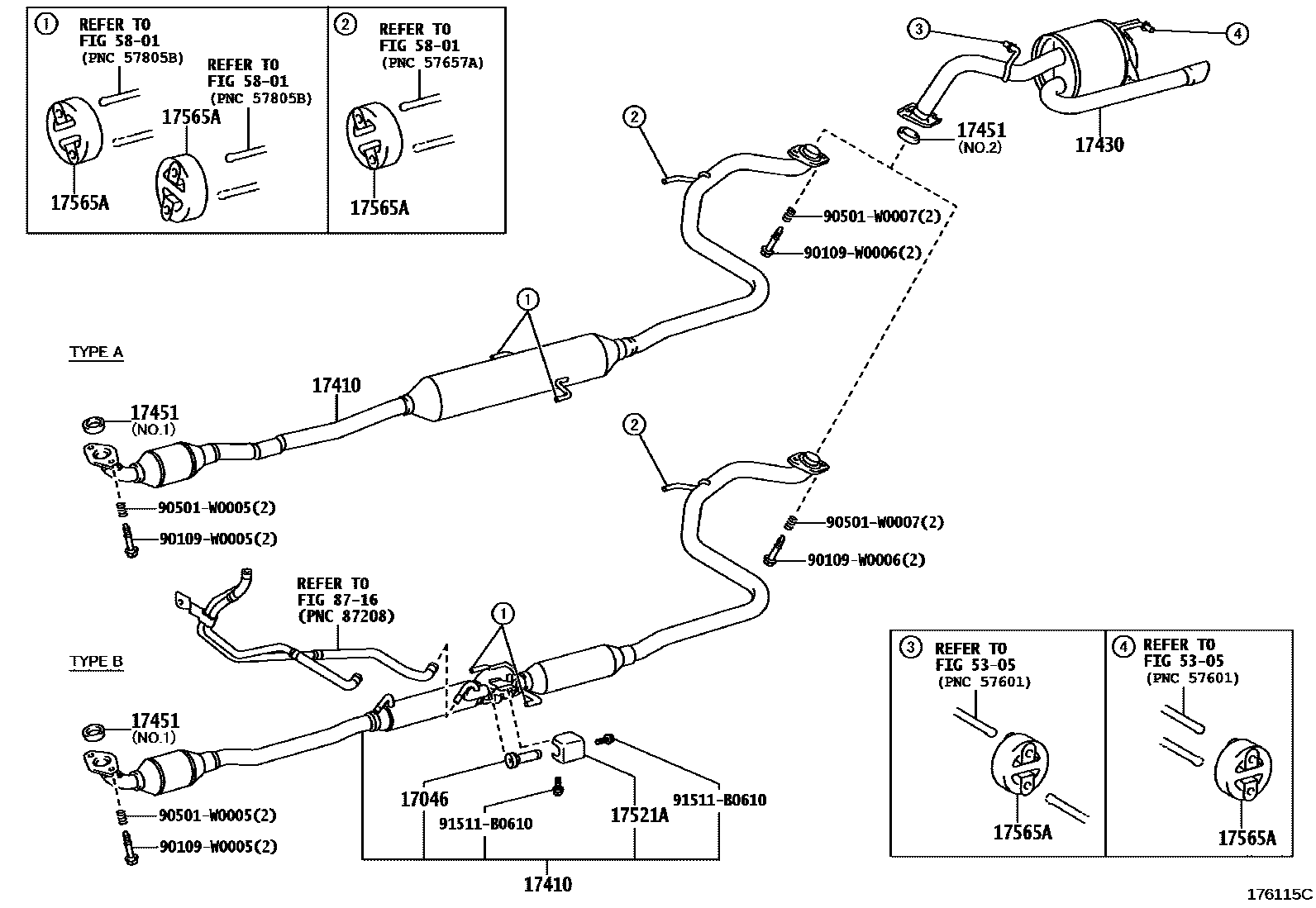

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17046 | Exhaust pipe exhaust control actuator sub-assembly | 17046-47020 |
| 17410 | Front exhaust pipe assembly | 17410-0J050 · 17410-0N040 · 17410-0N041 · 17410-0N070 · 17410-0Q020 · 17410-0Q021 · 17410-0Q022 · 17410-0Q030 · 17410-0Y010 · 17410-0Y020 · 17410-0Y130 · 17410-0Y140 |
| 17430 | Exhaust tailpipe assembly | 17430-0J030 · 17430-0N031 · 17430-0N032 · 17430-0N060 · 17430-0Q020 · 17430-0Y010 |
| 17451 | Exhaust pipe gasket | 17451-0J020 · 17451-0J021 · 17451-0J022 · 17451-0J030 · 17451-0Q010 · 17451-0Q020 · 17451-0Q021 · 17451-0Q022 · 17451-0R010 · 17451-40031 · 90917-06082 |
| 17452 | Exhaust pipe clamp | 90461-15013 |
| 17521A | No. 1 upper exhaust pipe protection device | 17521-47010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0N010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0Q010 |
