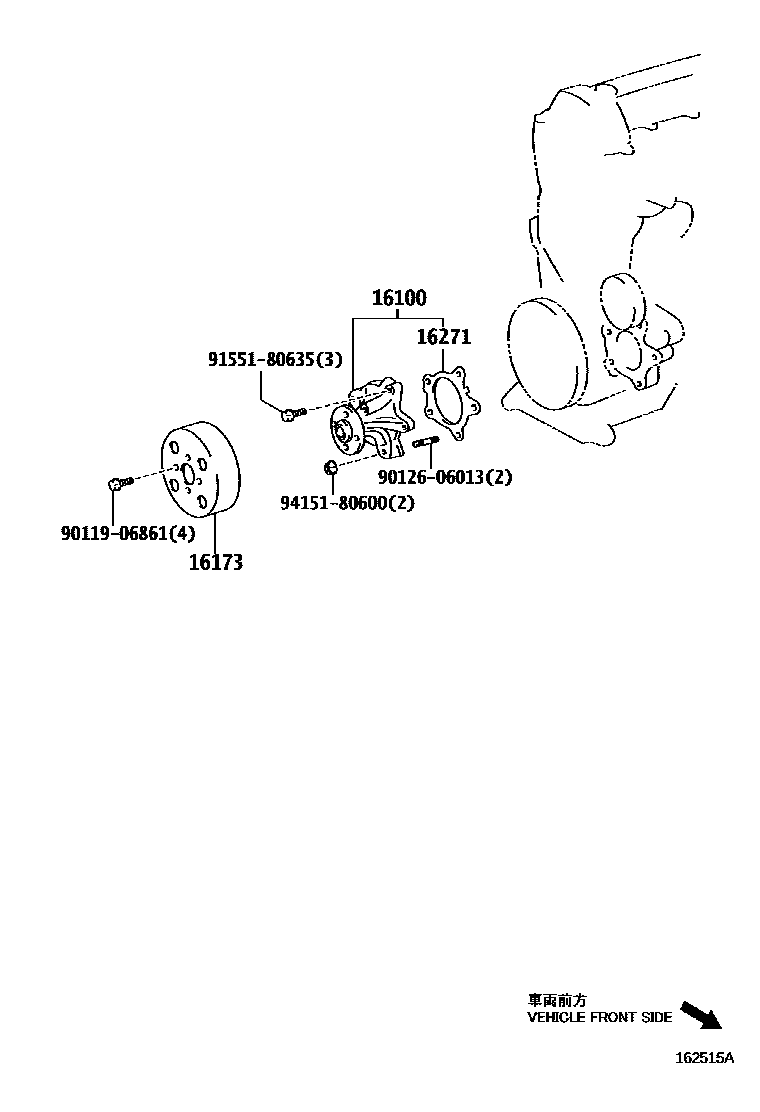

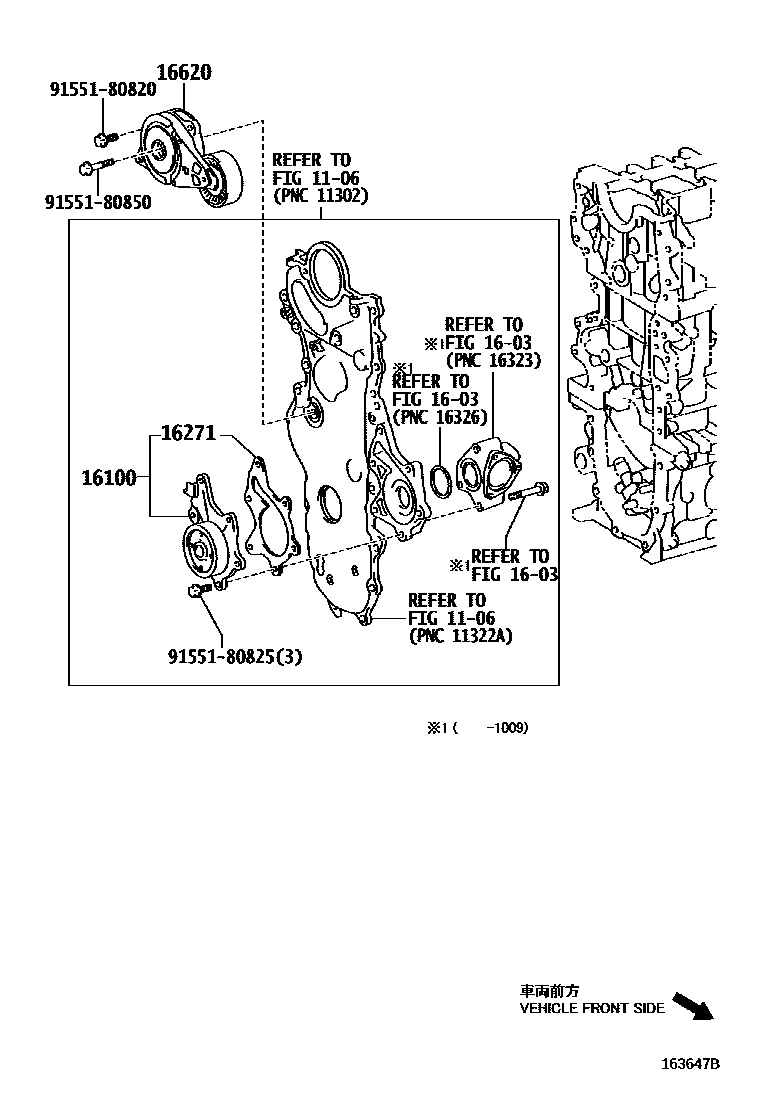

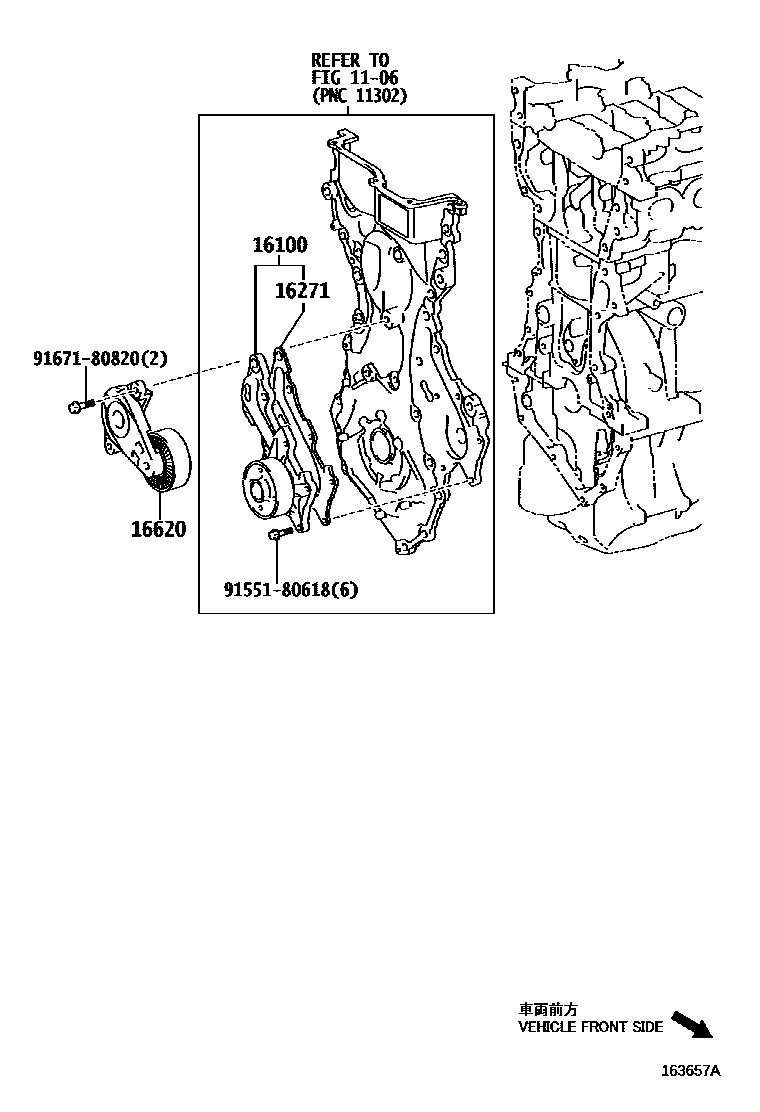

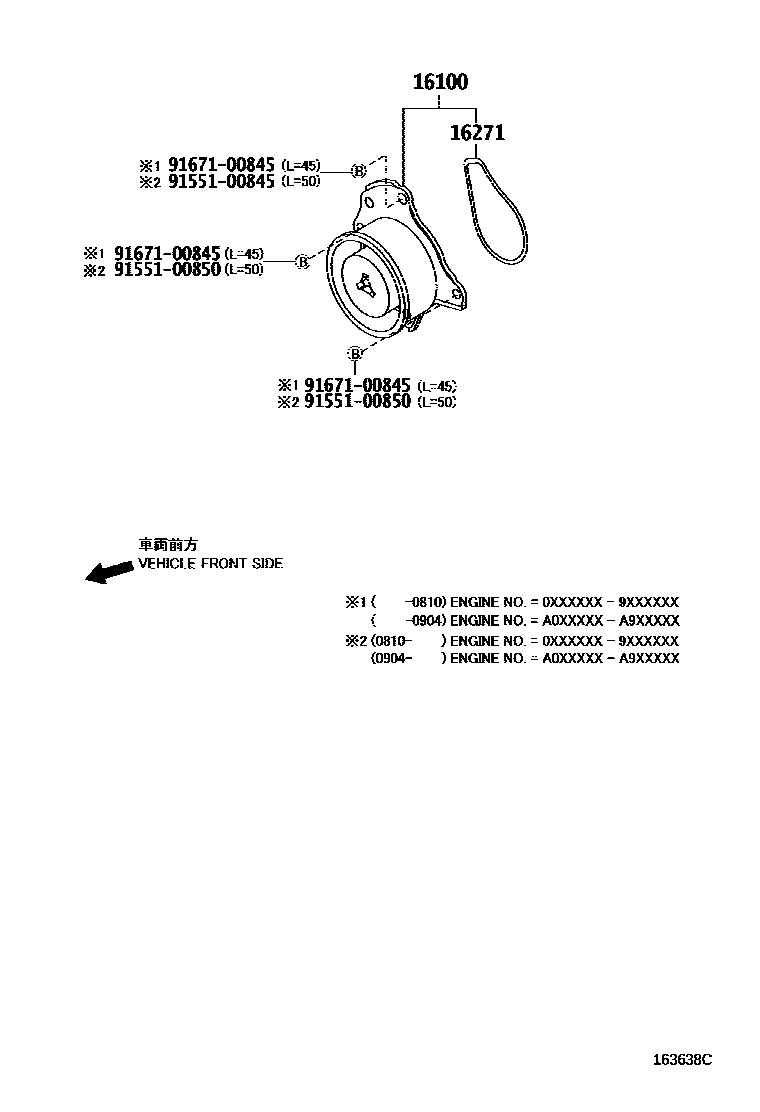

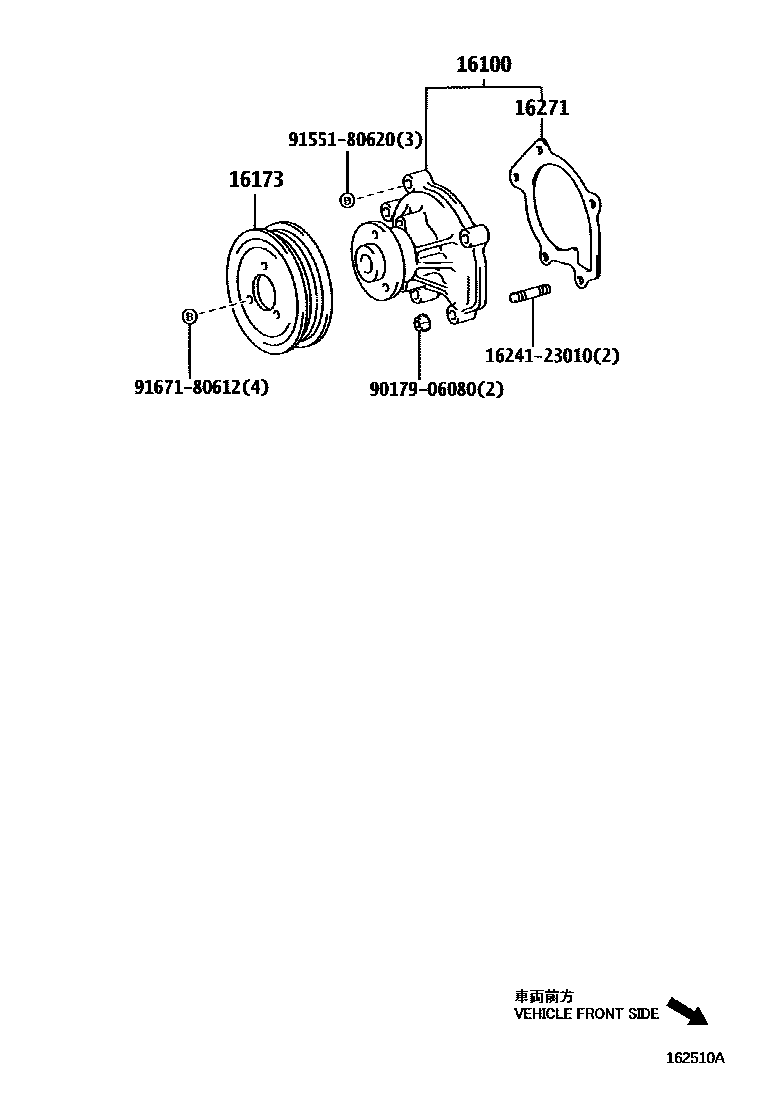

Toyota YARIS Water Pump — Figure 1601
Toyota YARIS EPC diagram 1601, Water Pump, with 5 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09141 · 16100-09450 · 16100-09530 · 16100-39395 · 16100-39525 · 16100-80004 · 16100-80007 |
| 16173 | water pump pulley | 16173-0J010 · 16173-23030 · 16173-33030 |
| 16271 | water pump gasket | 16271-0Q010 · 16271-23020 · 16271-33020 · 16271-33030 · 16271-40020 · 16271-47031 |
| 16620 | Poly V-belt tensioner assembly | 16620-33020 · 16620-47010 |
