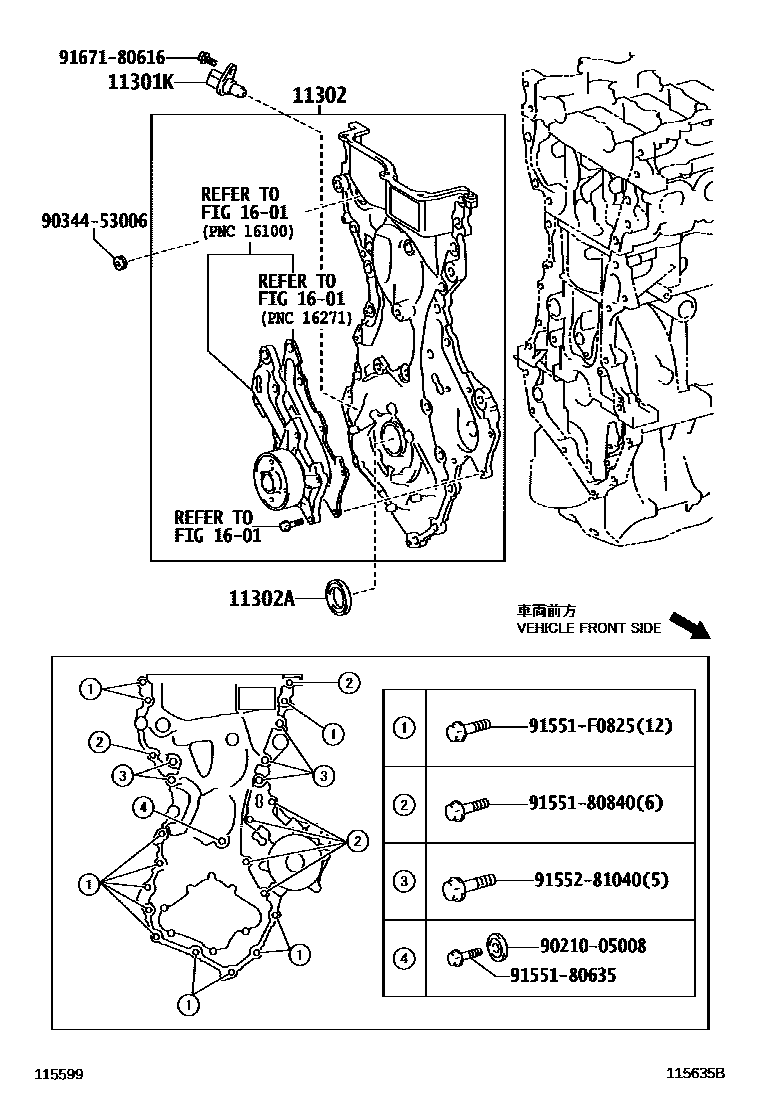

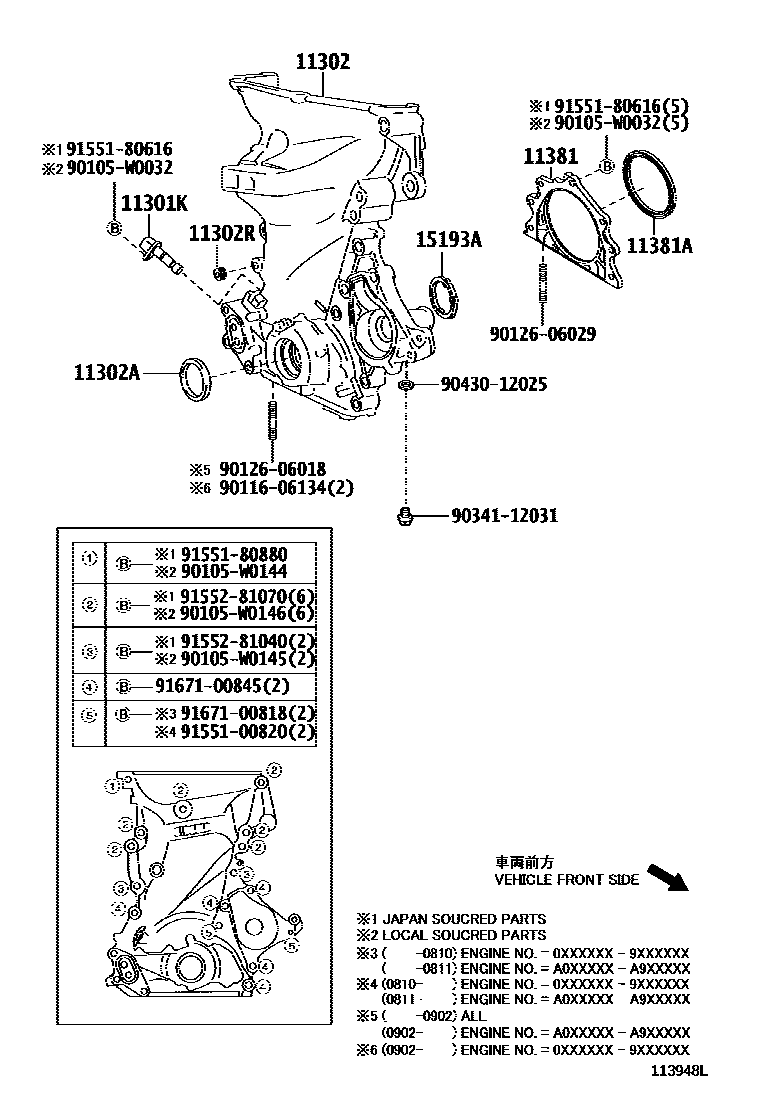

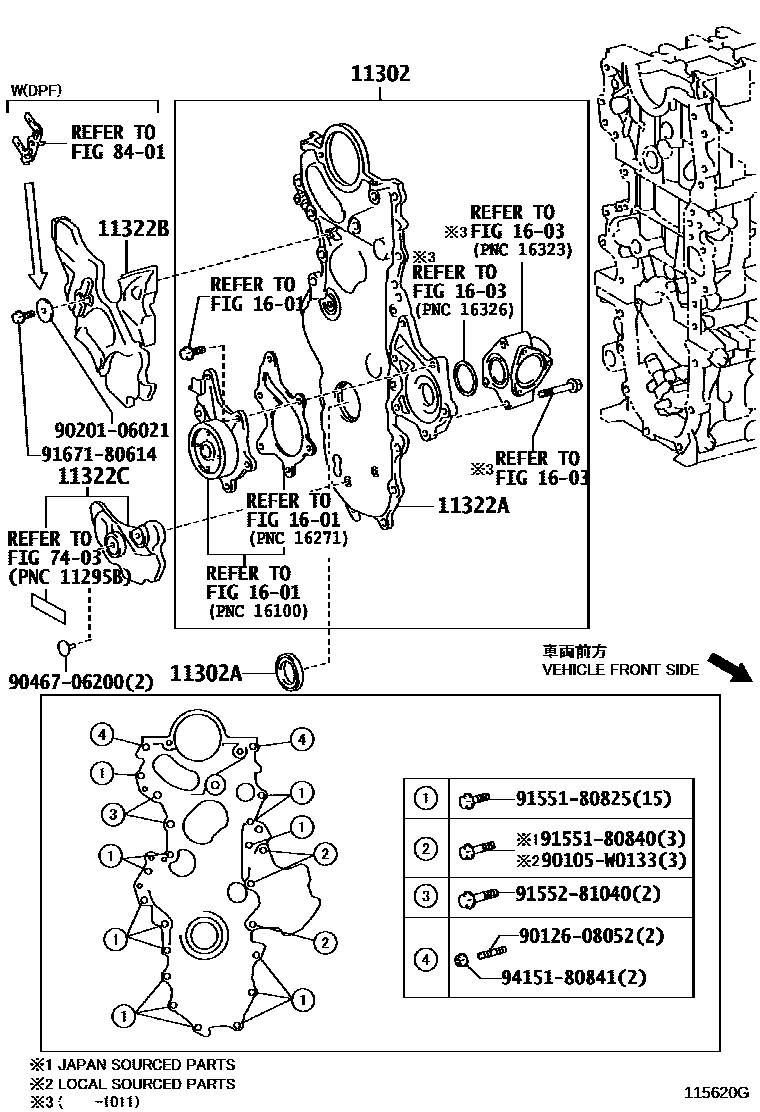

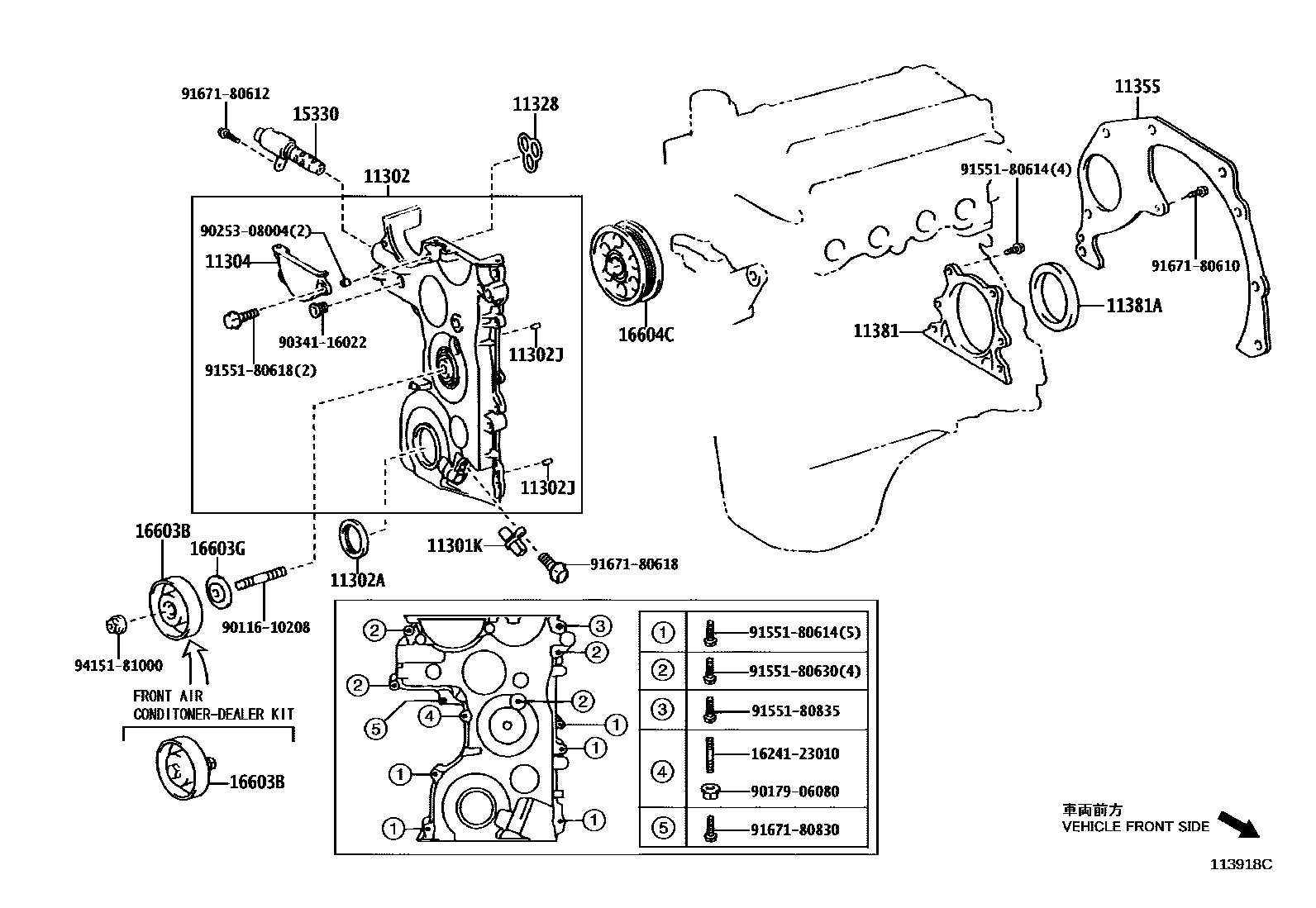

Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106
Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301K | crankshaft position sensor | 90919-05043 · 90919-05062 · 90919-05073 · 90919-W5002 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-0J020 · 11310-0J021 · 11310-0Q020 · 11310-0Q021 · 11310-33010 · 11310-33011 · 11310-40040 · 11310-40041 · 11310-47010 · 11310-47011 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90080-31066 · 90311-25021 · 90311-25031 · 90311-38091 · 90311-38092 · 90311-40033 · 90311-W0008 · 90311-W0013 |
| 11302J | Direct sales (for timing chain cover) | 90250-06030 |
| 11302R | No. 1 sealing plug (for timing gear cover) | 90344-53006 |
| 11304 | No. 2 timing chain or timing belt cover | 11322-0J010 |
| 11322A | No. 1 timing belt cover | 11321-33020 |
| 11322B | No. 2 timing belt cover | 11322-33020 |
| 11322C | No. 3 timing belt cover | 11323-33010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-23020 |
| 11355 | rear end plate | 11355-0J010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0Q010 · 11381-23011 · 11381-40010 |
| 11381A | SEAL, ENGINE REAR OIL | 90080-31067 · 90311-73002 · 90311-73004 · 90311-W0014 |
| 15193A | oil pump gasket | 15193-40010 |
| 15330 | Camshaft timing oil control valve assembly | 15330-0J010 |
| 16603B | Idler gear sub-assembly | 88440-52010 · 88441-0D010 |
| 16603G | Idler gear collar | 88443-0D010 |
| 16604C | No. 2 idler pulley sub-assembly | 88440-0D010 |
