Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

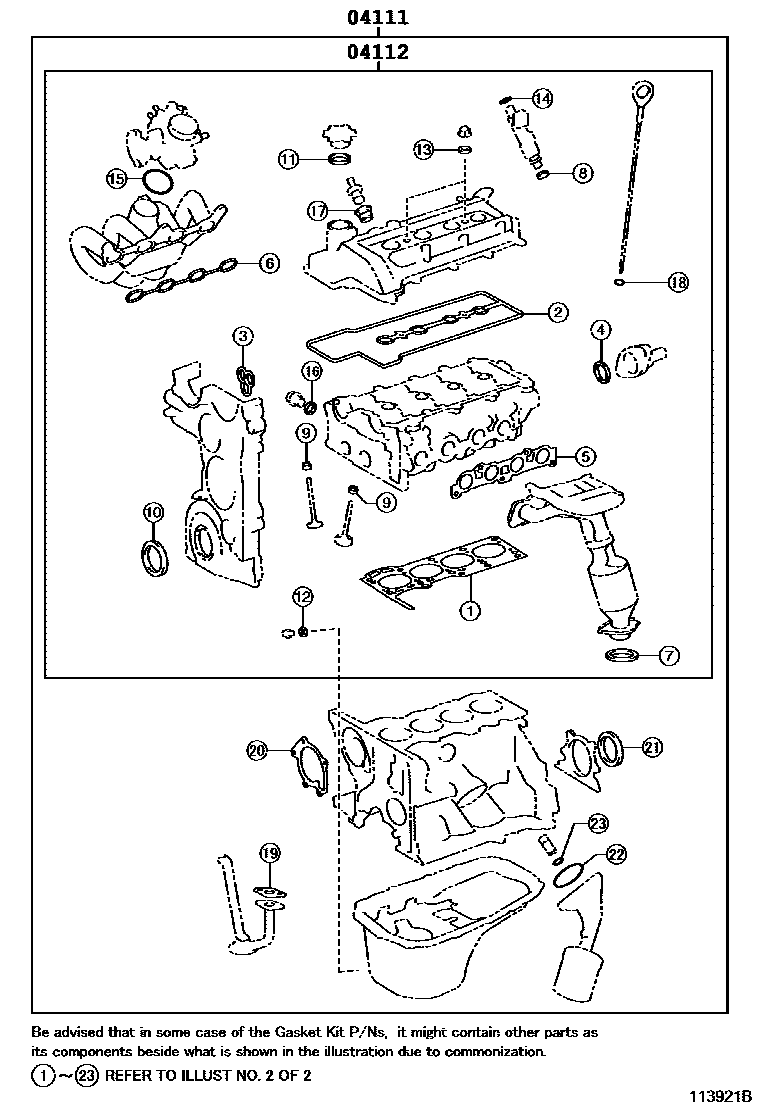

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 113921B
Engine Overhaul Gasket Kit — 113921B (200511 – 999999)

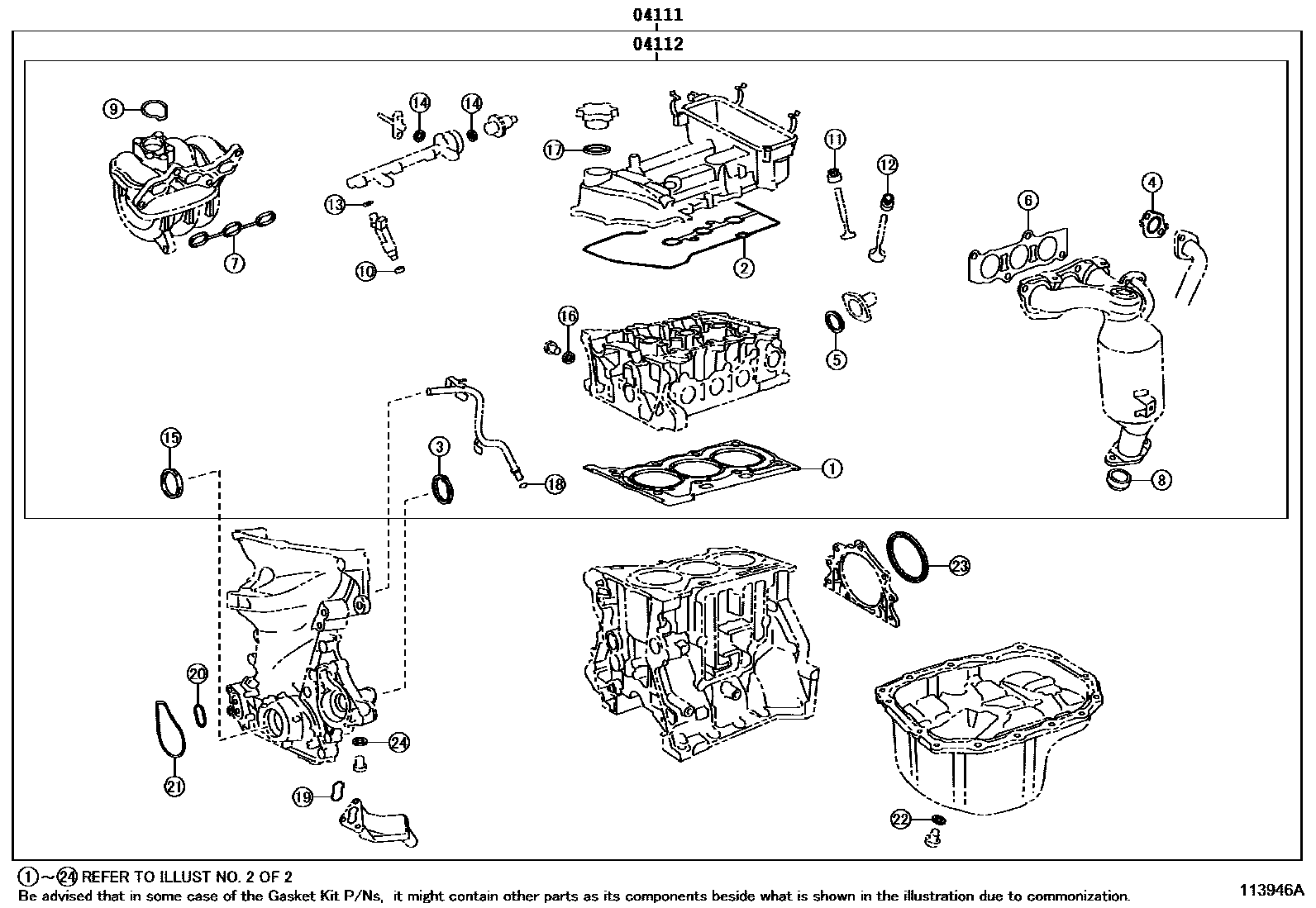

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 113946A
Engine Overhaul Gasket Kit — 113946A (200511 – 200811)

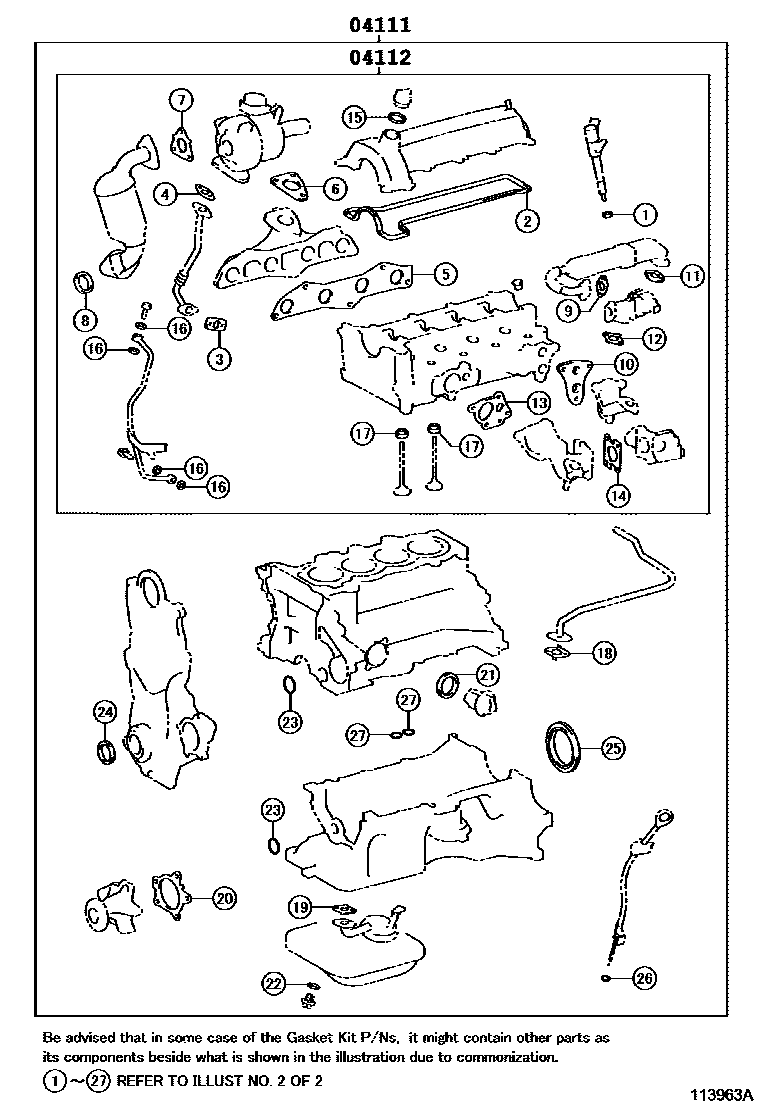

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 113963A
Engine Overhaul Gasket Kit — 113963A (200511 – 200811)

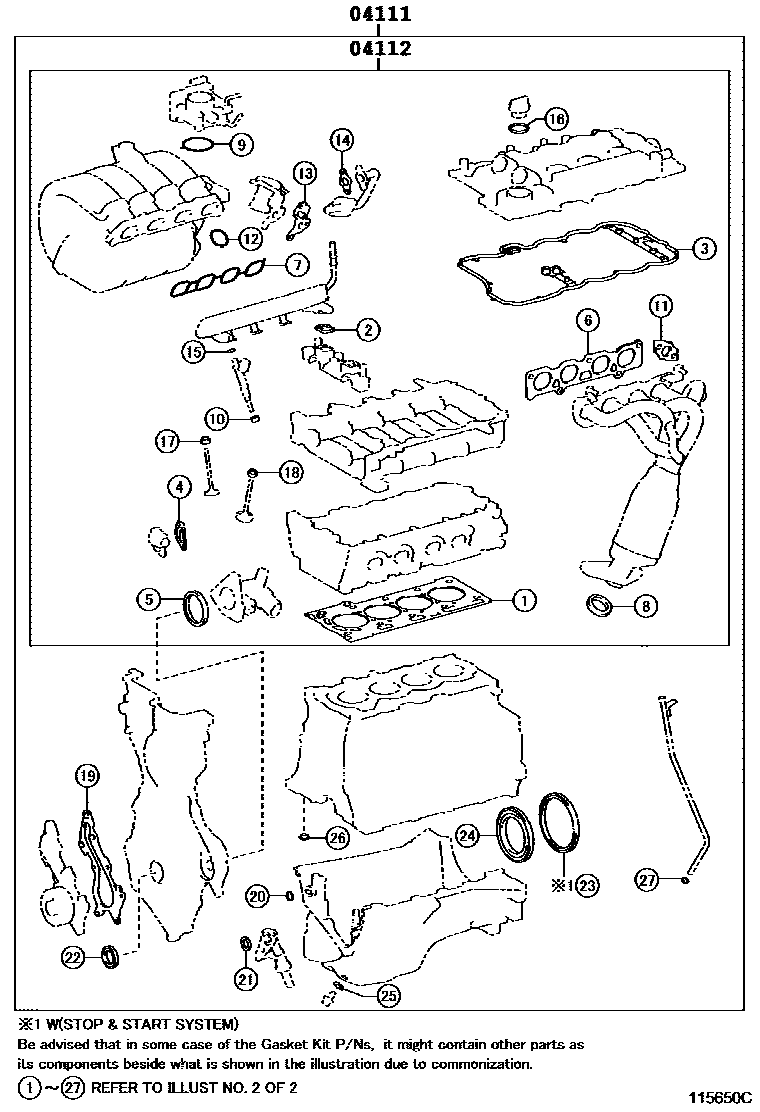

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 115650C
Engine Overhaul Gasket Kit — 115650C (200811 – 999999)

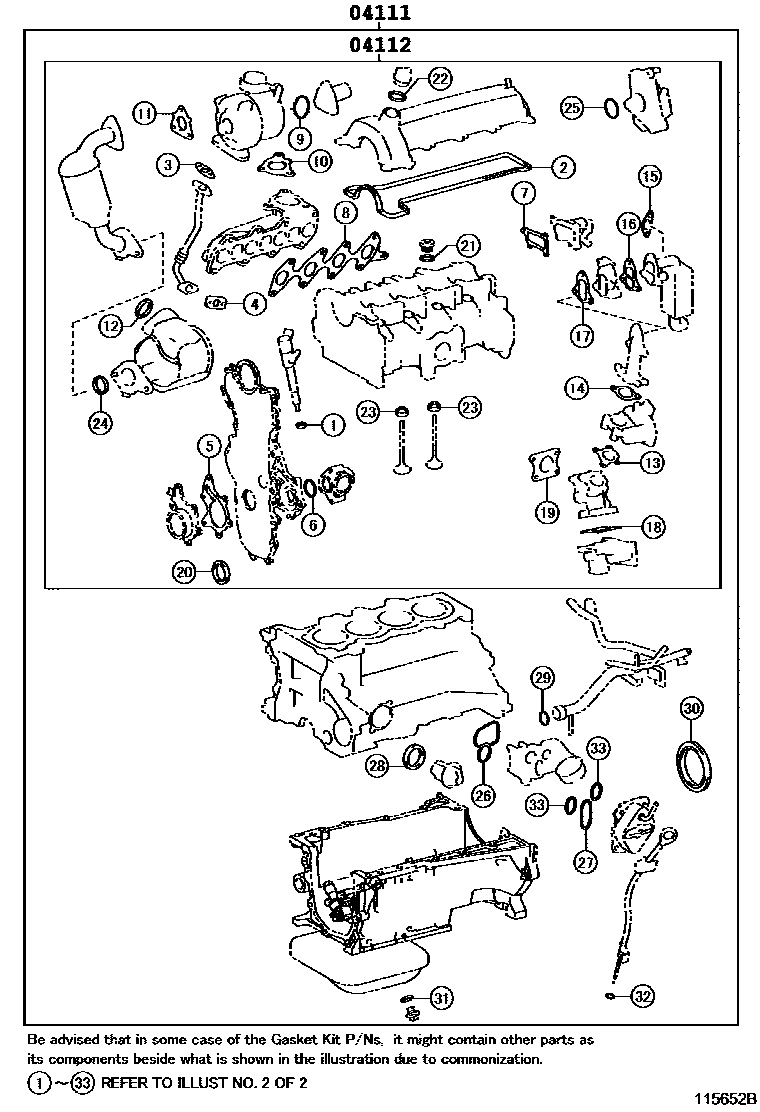

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 115652B
Engine Overhaul Gasket Kit — 115652B (200811 – 999999)

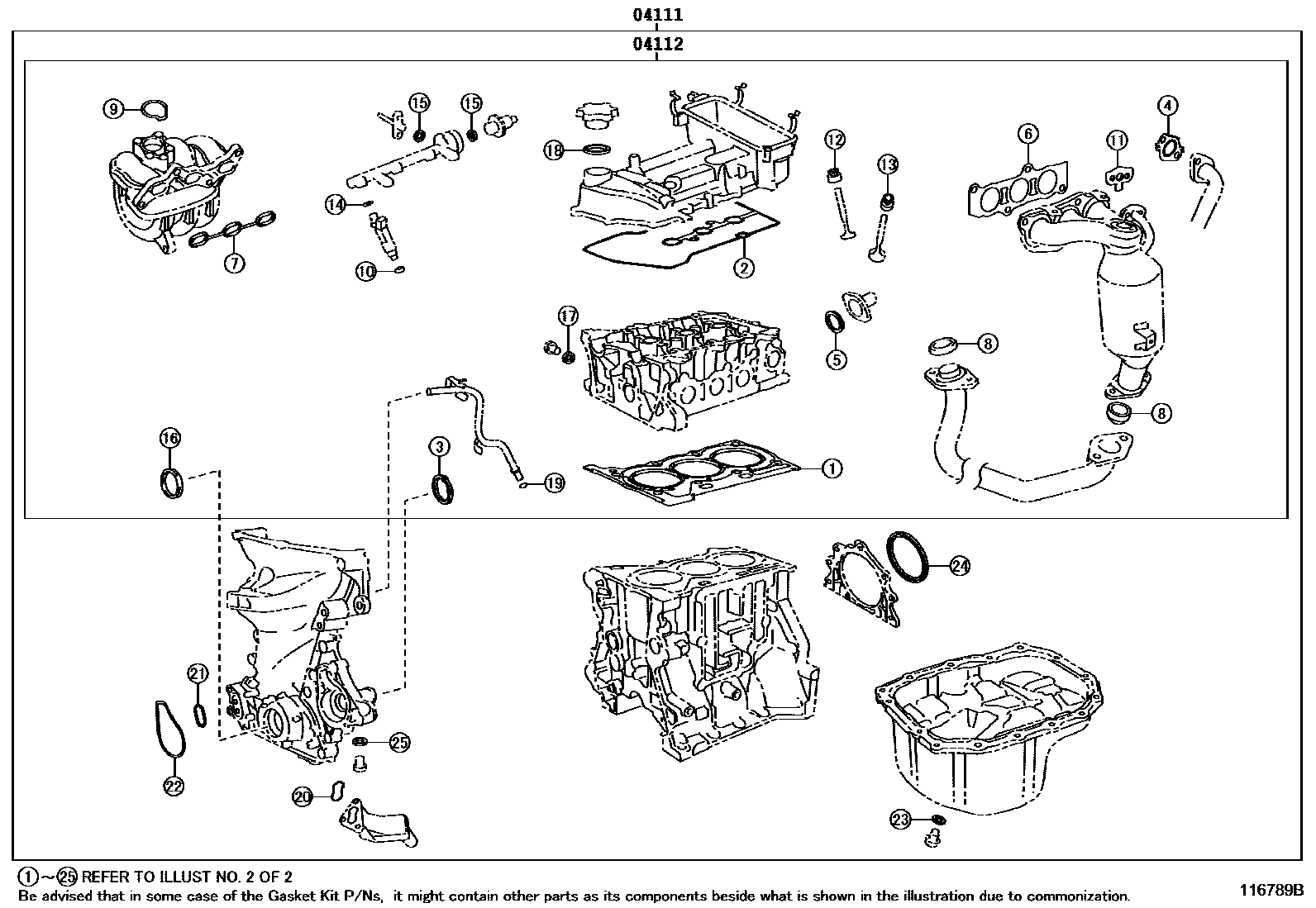

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 116789B
Engine Overhaul Gasket Kit — 116789B (200811 – 999999)

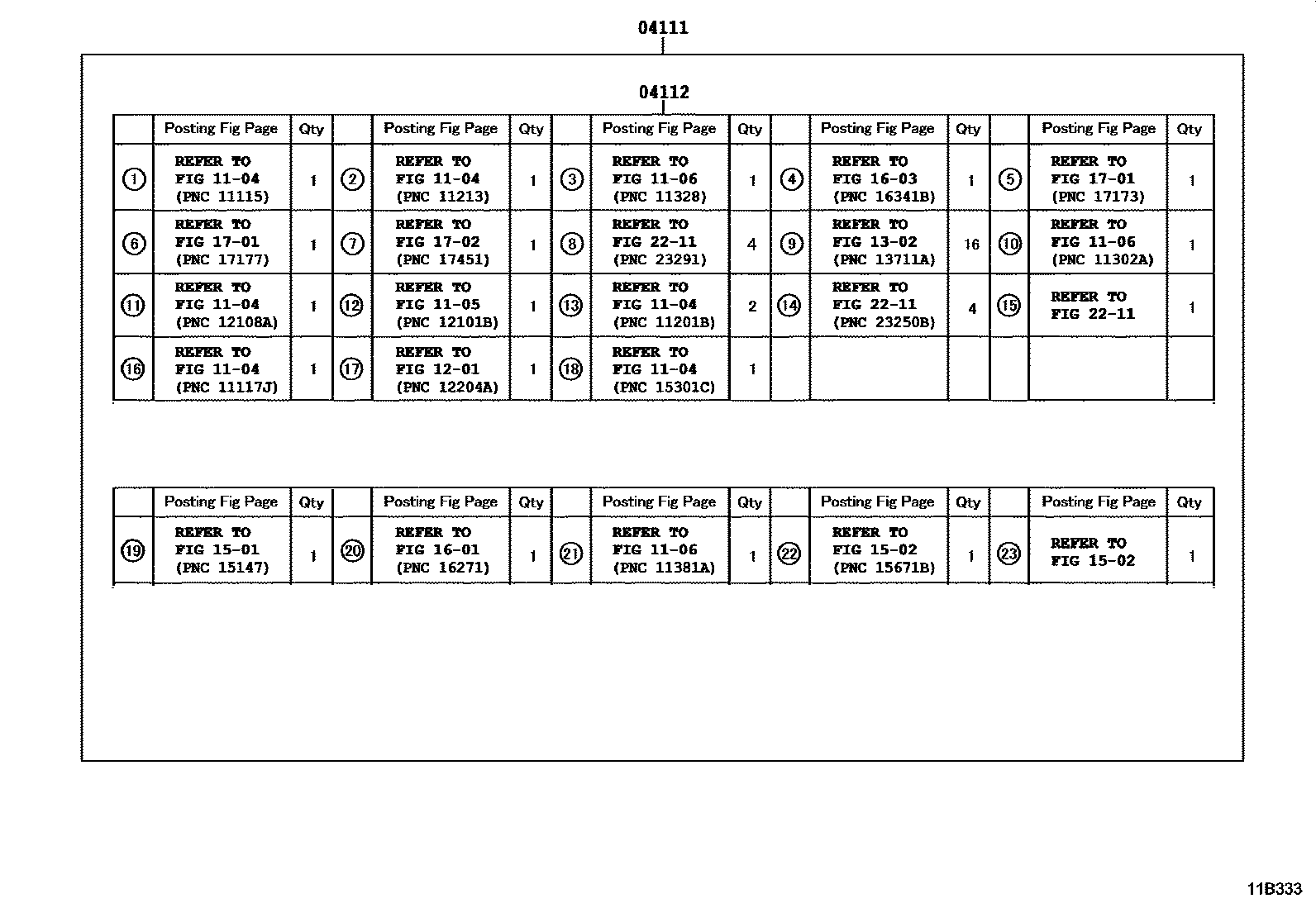

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B333
Engine Overhaul Gasket Kit — 11B333 (200511 – 999999)

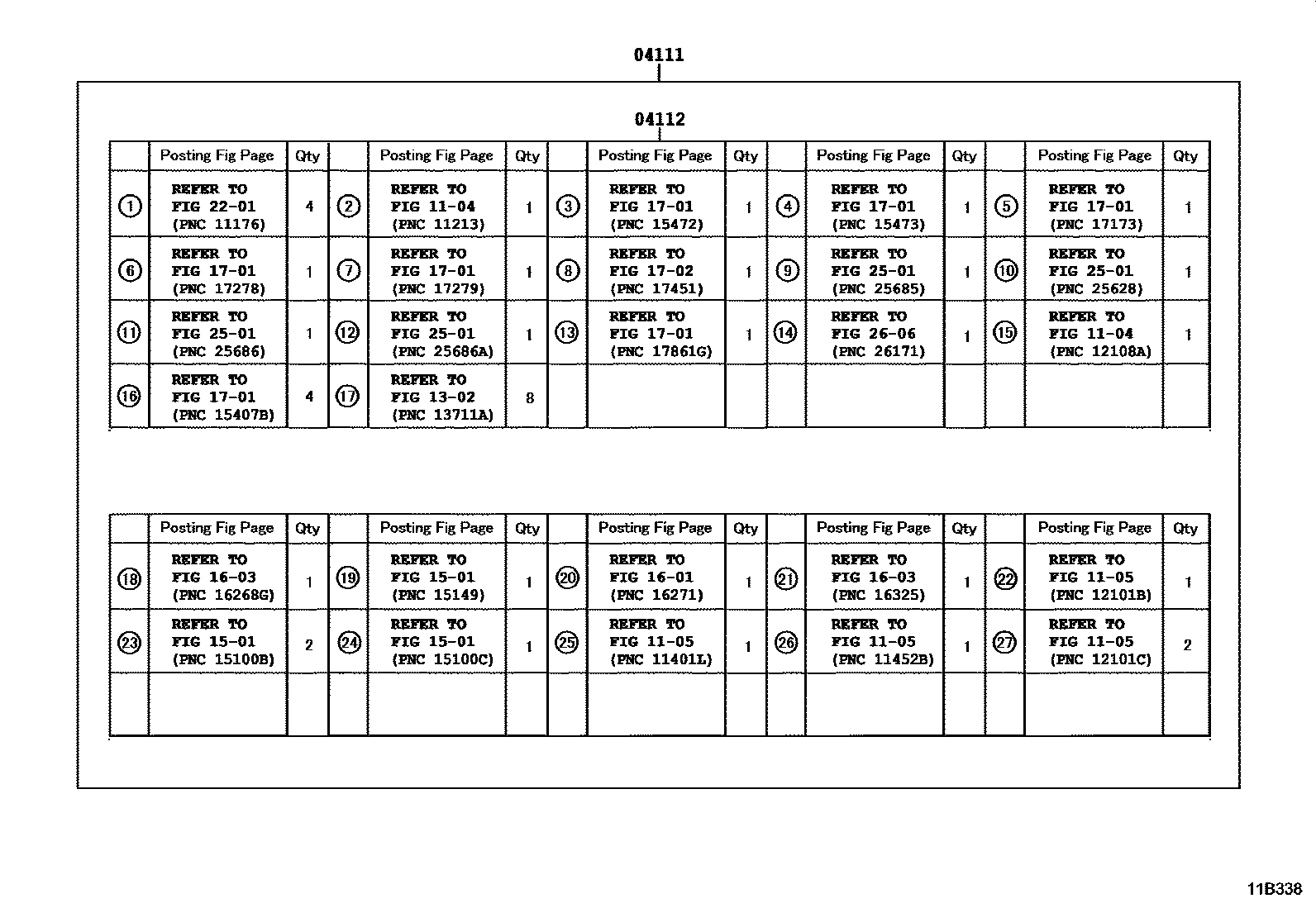

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B338
Engine Overhaul Gasket Kit — 11B338 (200511 – 200811)

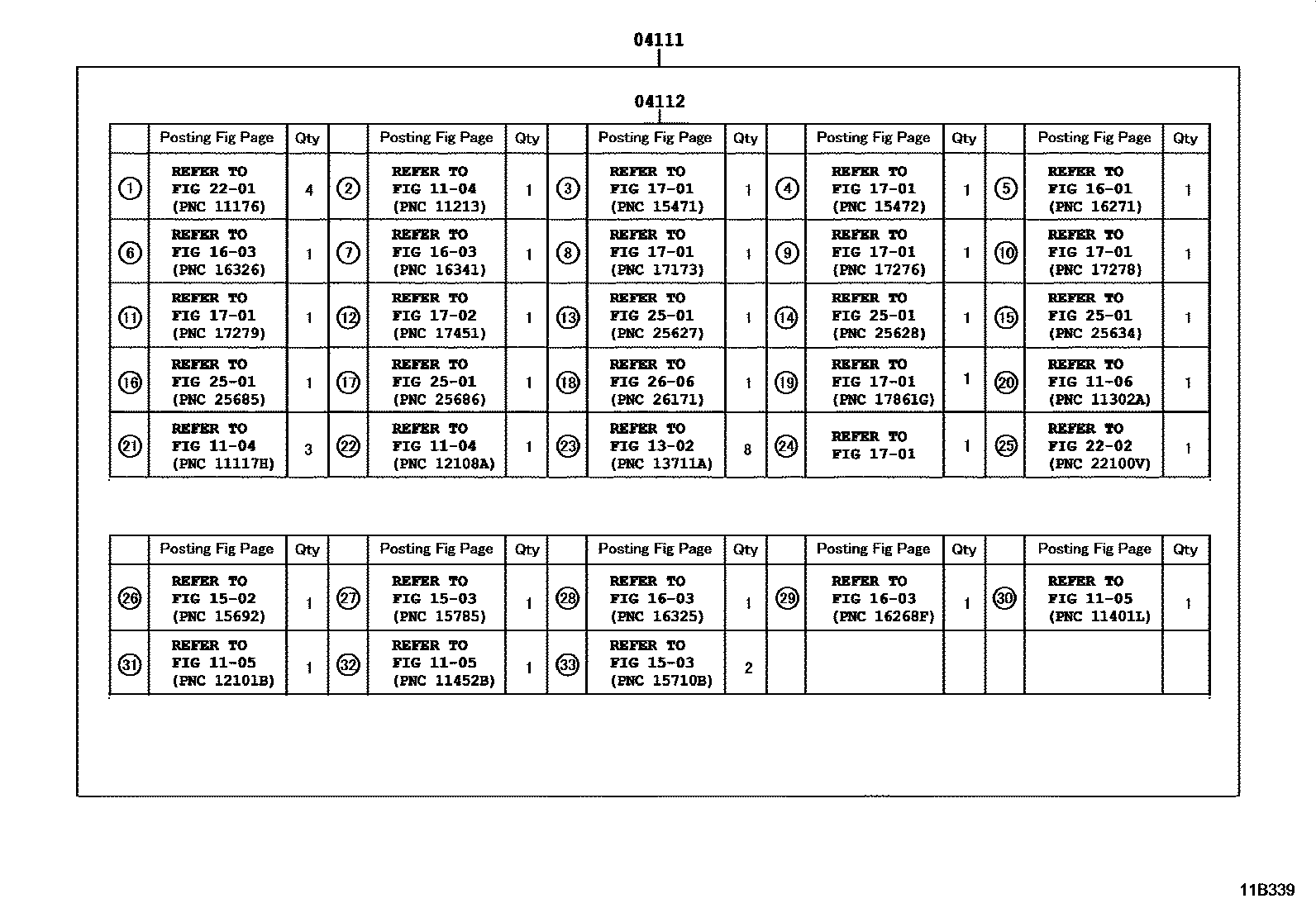

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B339
Engine Overhaul Gasket Kit — 11B339 (200811 – 999999)

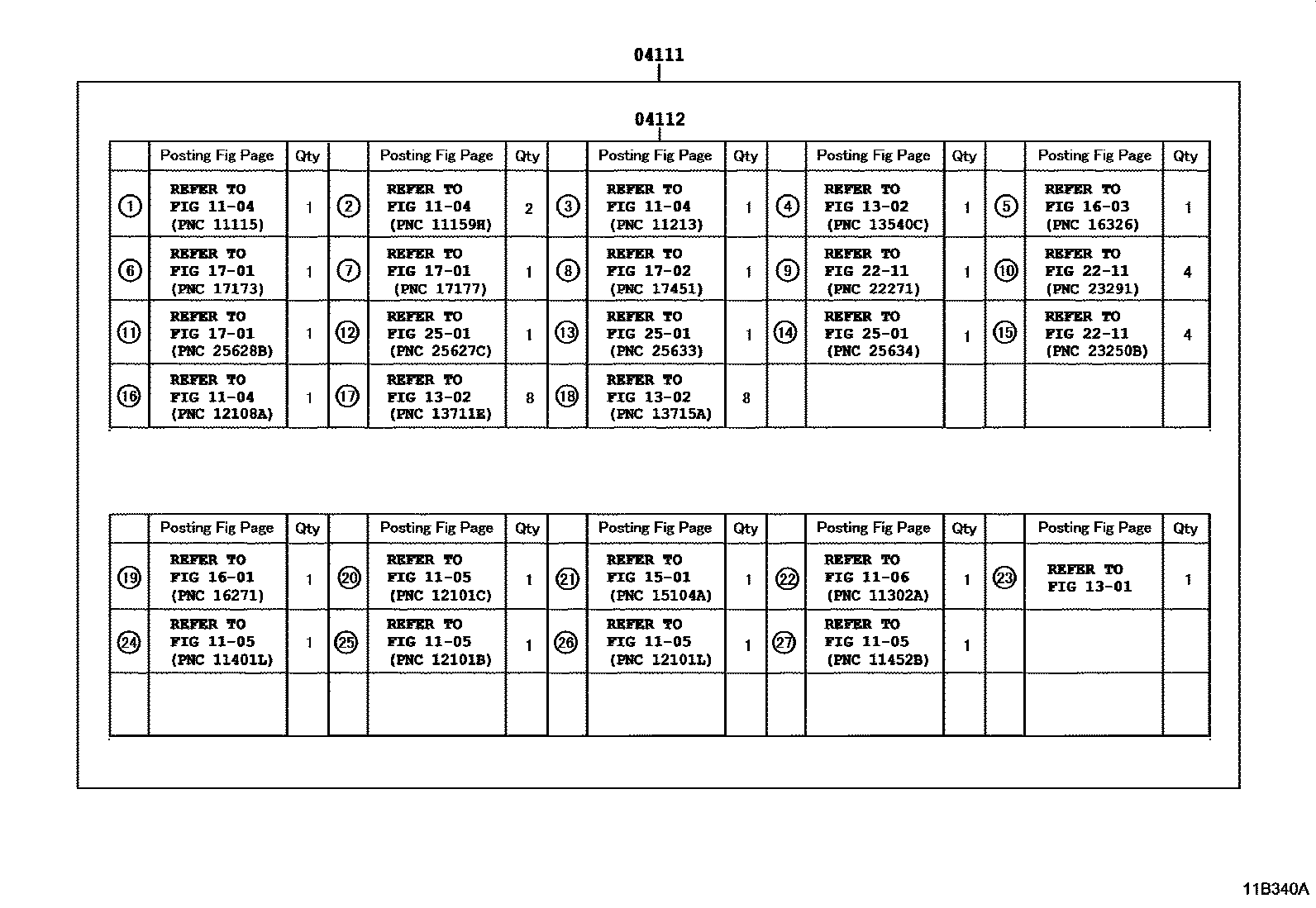

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B340A
Engine Overhaul Gasket Kit — 11B340A (200811 – 999999)

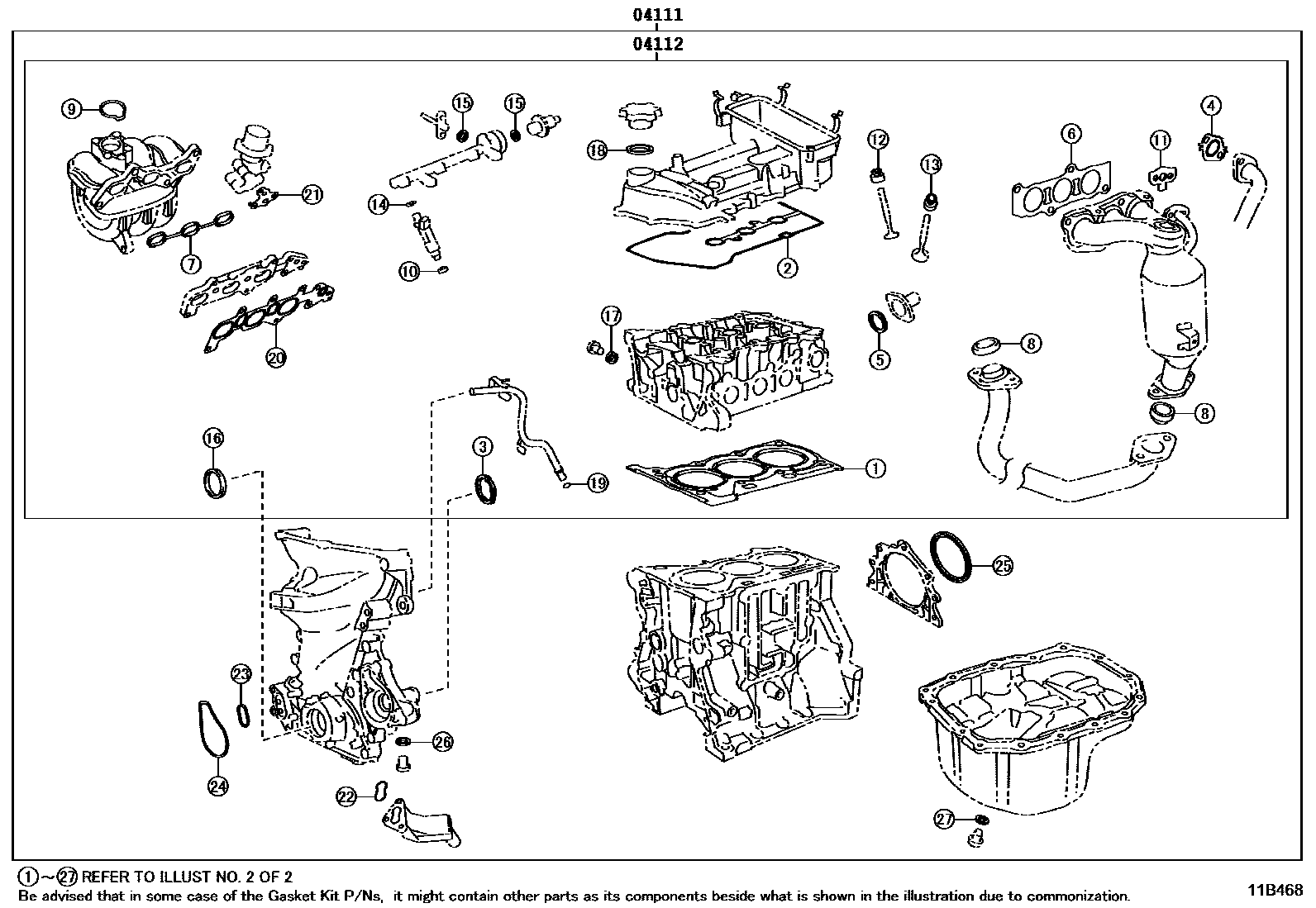

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B468
Engine Overhaul Gasket Kit — 11B468 (200811 – 999999)

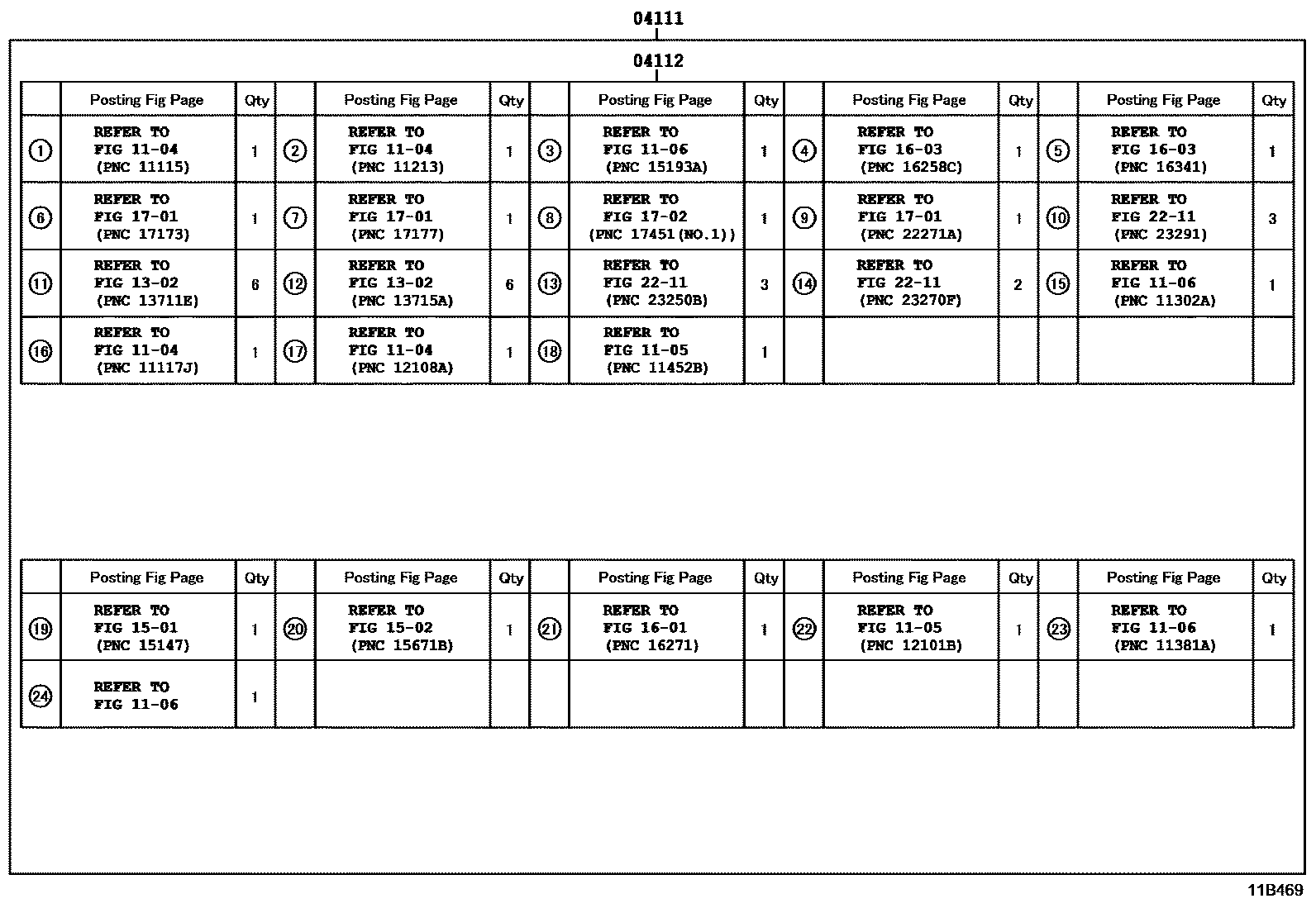

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B469
Engine Overhaul Gasket Kit — 11B469 (200511 – 200811)

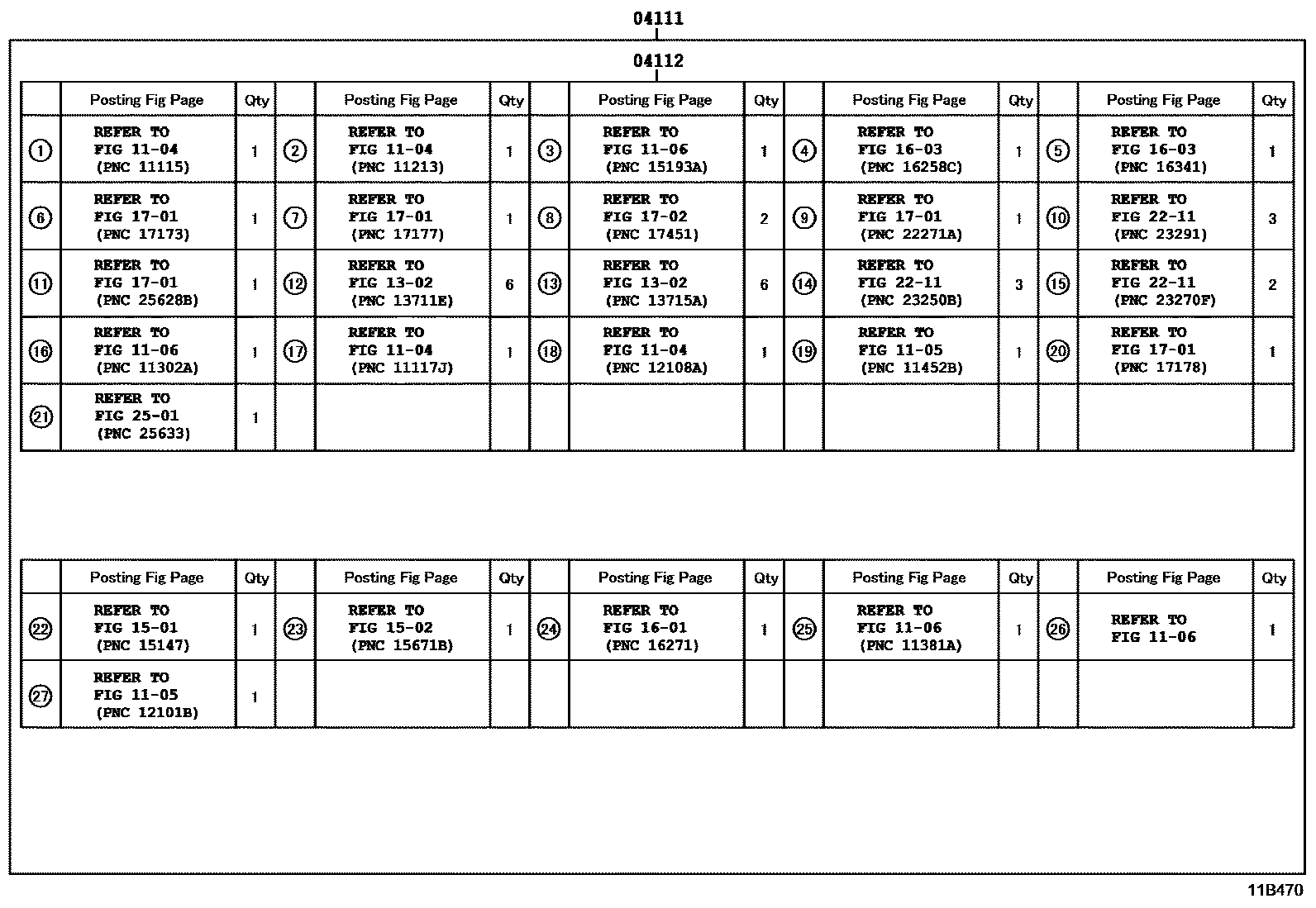

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B470
Engine Overhaul Gasket Kit — 11B470 (200811 – 999999)

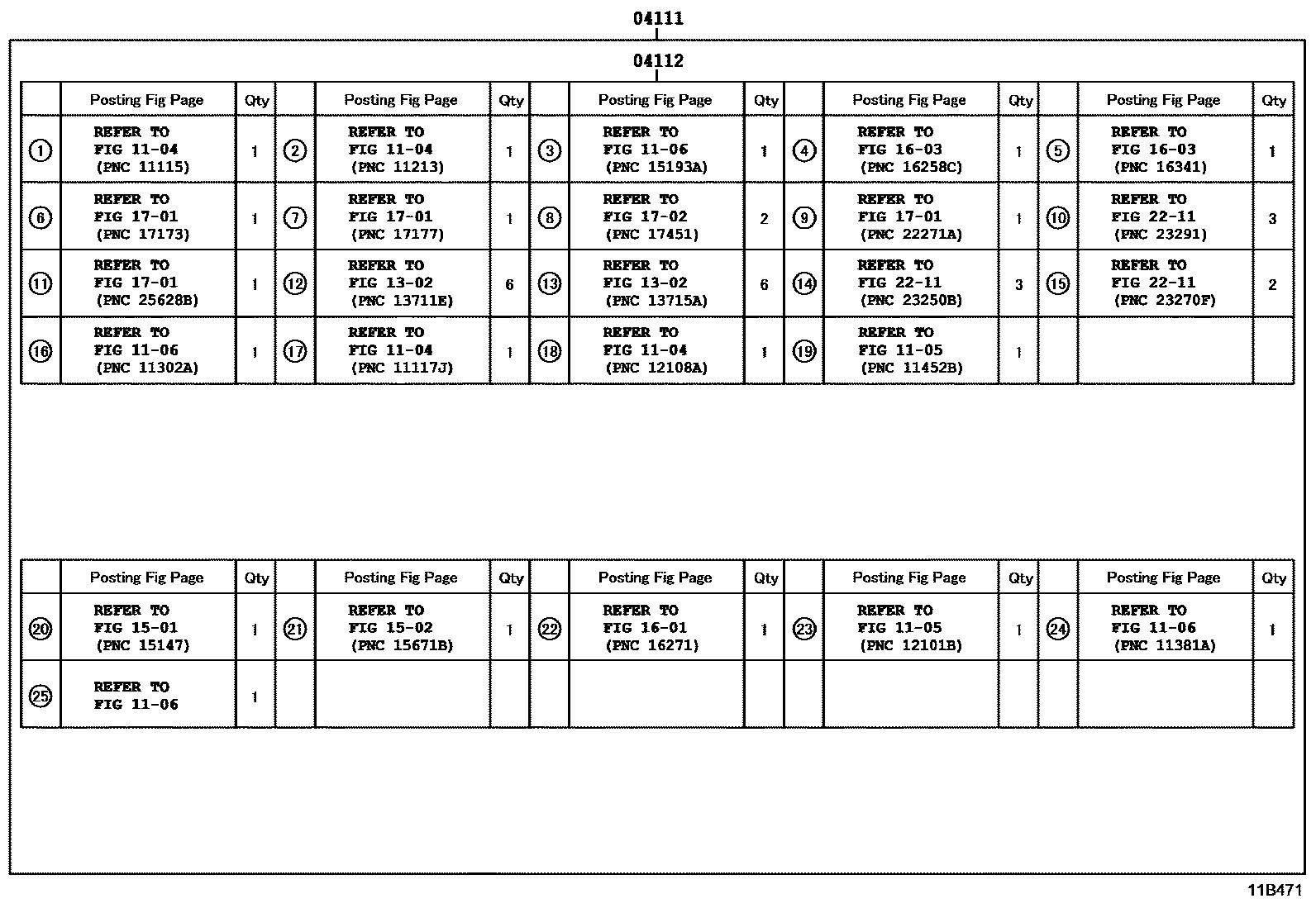

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B471
Engine Overhaul Gasket Kit — 11B471 (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0J090 · 04111-0J091 · 04111-0N040 · 04111-0Q020 · 04111-0Q021 · 04111-0Q040 · 04111-0Q042 · 04111-0Q043 · 04111-33140 · 04111-33190 · 04111-40071 · 04111-40072 · 04111-40073 · 04111-47041 · 04111-47051 · 04111-47053 · 04111-47054 · 04111-47061 · 04111-47062 · 04111-47063 · 04111-47064 · 04111-47071 · 04111-47072 · 04111-47073
04112Engine valve grinding pad assembly04112-0J090 · 04112-0J091 · 04112-0N040 · 04112-0Q020 · 04112-0Q021 · 04112-0Q040 · 04112-0Q041 · 04112-0Q042 · 04112-33130 · 04112-33180 · 04112-40031 · 04112-40032 · 04112-40033 · 04112-47031 · 04112-47032 · 04112-47033 · 04112-47041 · 04112-47043 · 04112-47044
