Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

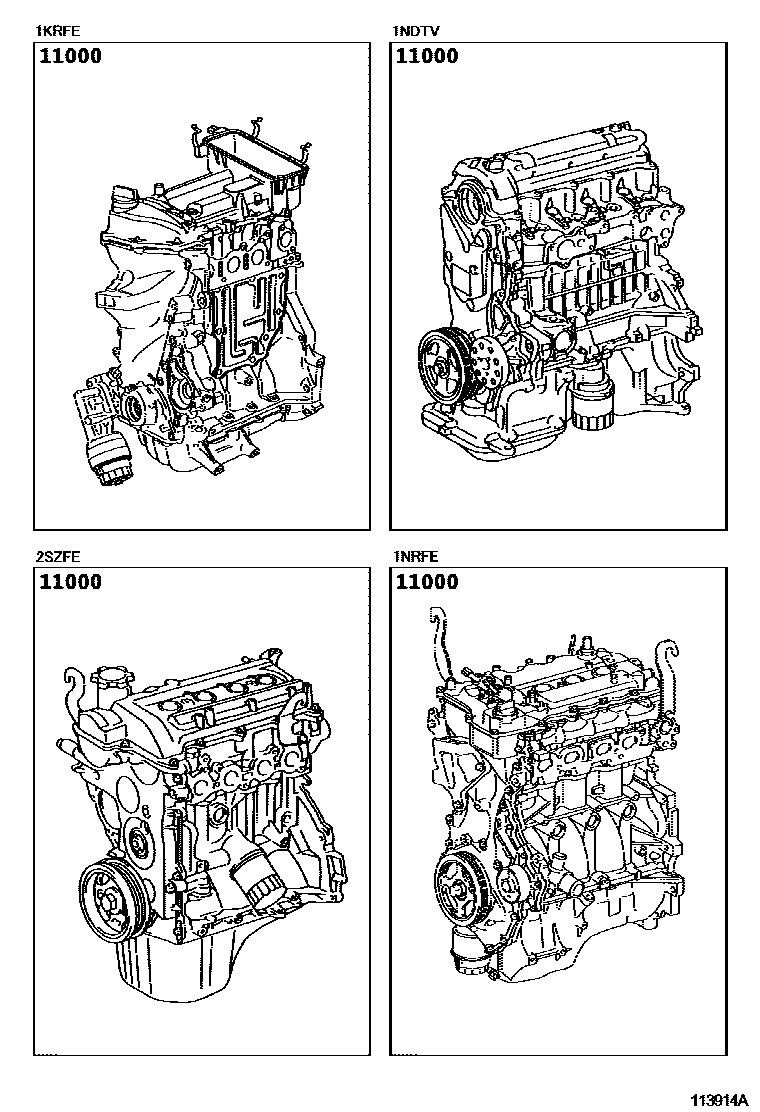

Toyota YARIS Partial Engine Assembly EPC diagram — 113914A
Partial Engine Assembly — 113914A (200511 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0J060 · 19000-0J061 · 19000-0N020 · 19000-0N021 · 19000-0N031 · 19000-0N040 · 19000-0Q021 · 19000-0Q030 · 19000-33250 · 19000-33251 · 19000-33280 · 19000-33281 · 19000-33300 · 19000-33301 · 19000-33302 · 19000-33330 · 19000-33331 · 19000-40160 · 19000-40161 · 19000-40210 · 19000-47080 · 19000-47081 · 19000-47090 · 19000-47091
