Toyota YARIS antenna — Figure 8604

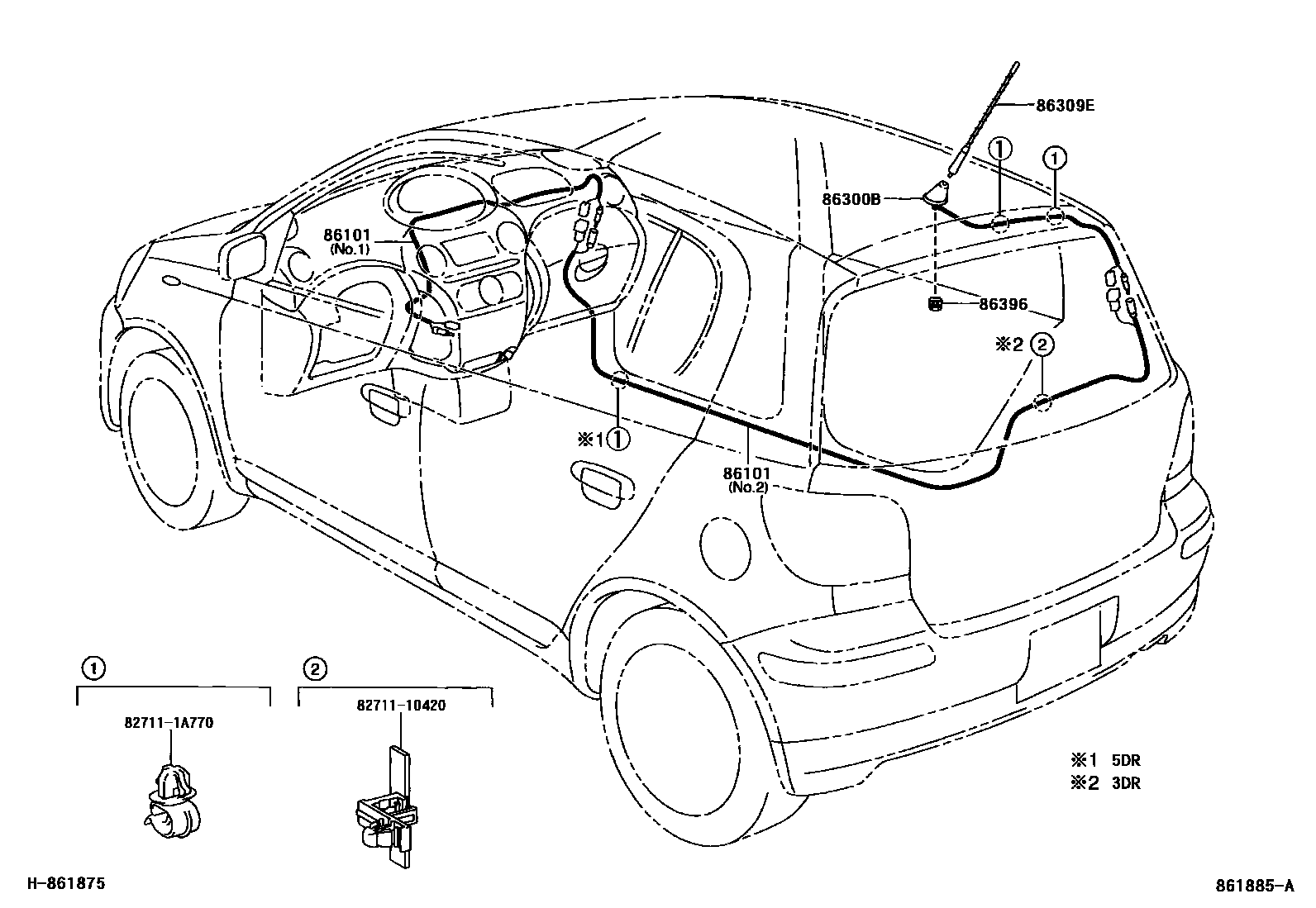

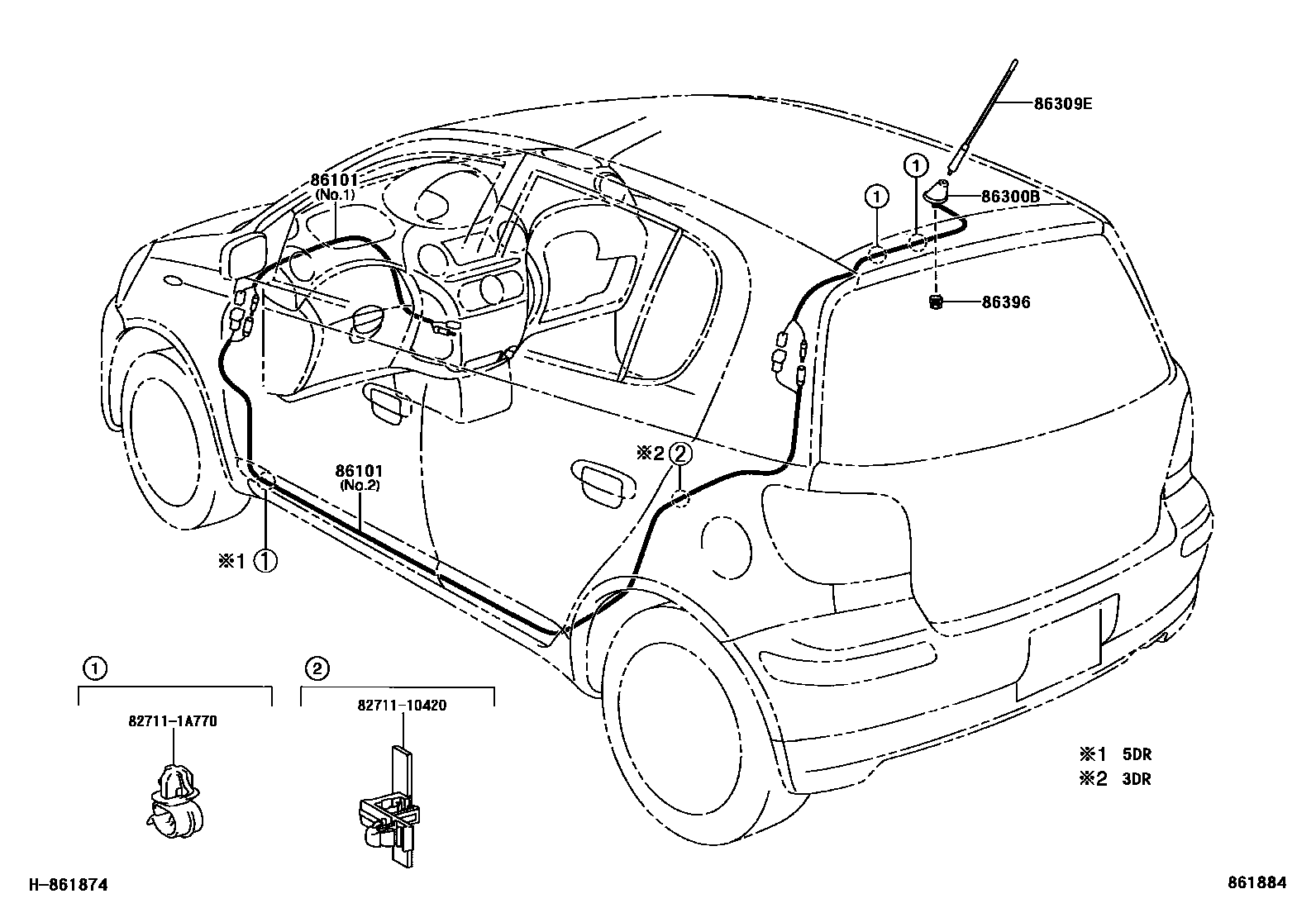

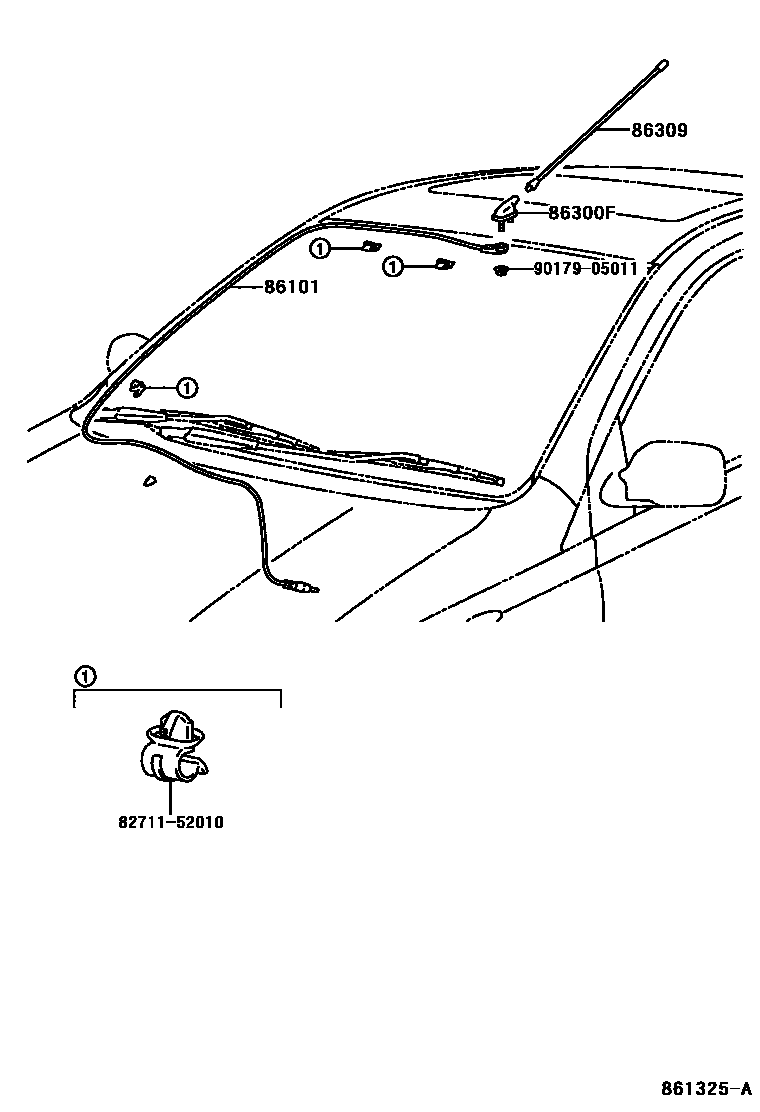

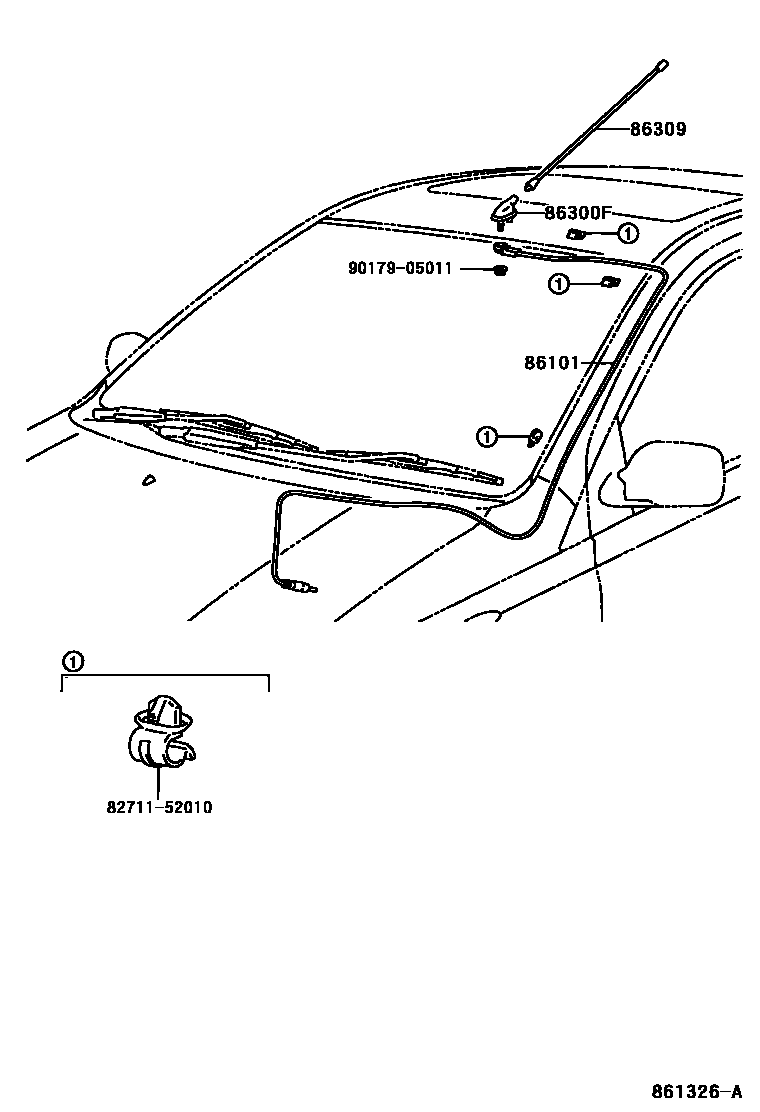

Toyota YARIS EPC diagram 8604, antenna, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0D010 · 86101-0D020 · 86101-0D120 · 86101-0D130 · 86101-0D140 |
| 86300B | Amplifier antenna assembly | 86300-0D070 · 86300-0D071 · 86300-52220 |
| 86300F | Antenna fixing assembly (wire/antenna mast separation type) | 86300-0D010 |
| 86309 | Cylindrical antenna sub-assembly | 86309-0D010 |
| 86309E | Roof antenna sub-assembly | 86309-02040 · 86309-52040 |
| 86396 | Antenna nut | 86396-02020 · 86396-20040 |
