Toyota YARIS 挡风玻璃清洗器 — Figure 8503

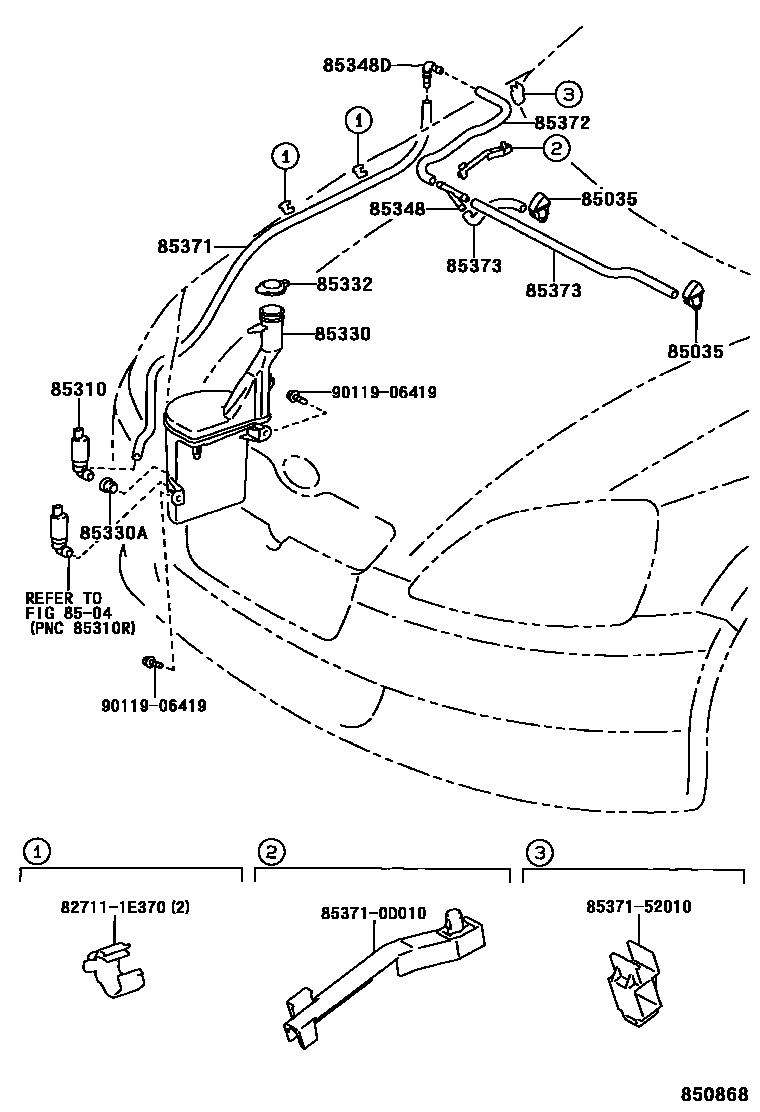

Toyota YARIS EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0D010 · 85381-0D011 · 85381-0D020 · 85381-0D021 |
| 85310 | Windshield washer motor and pump assembly | 85330-05030 · 85330-05031 |
| 85330 | Windshield washer fluid tank assembly | 85315-0D010 |
| 85330A | Windshield washer fluid tank bushing | 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-0D010 |
| 85348 | Windshield washer hose connector No. 1 | 85378-05030 |
| 85348D | No. 1 windshield washer elbow joint | 85375-0D010 |
