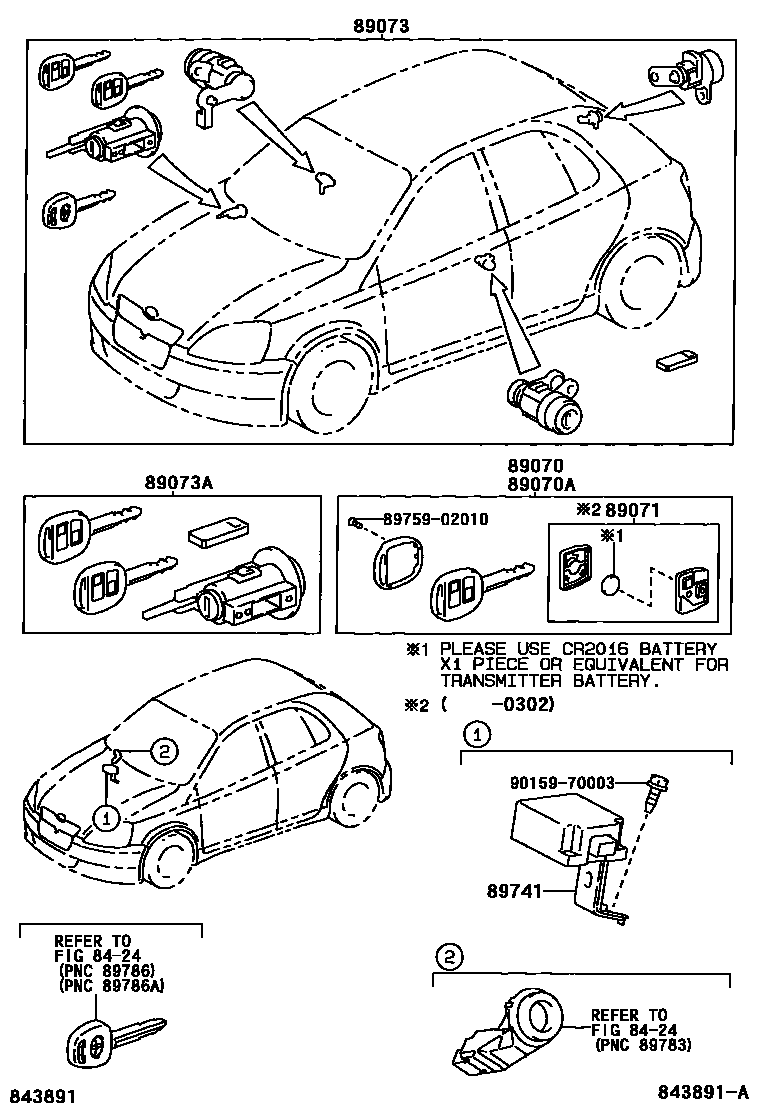

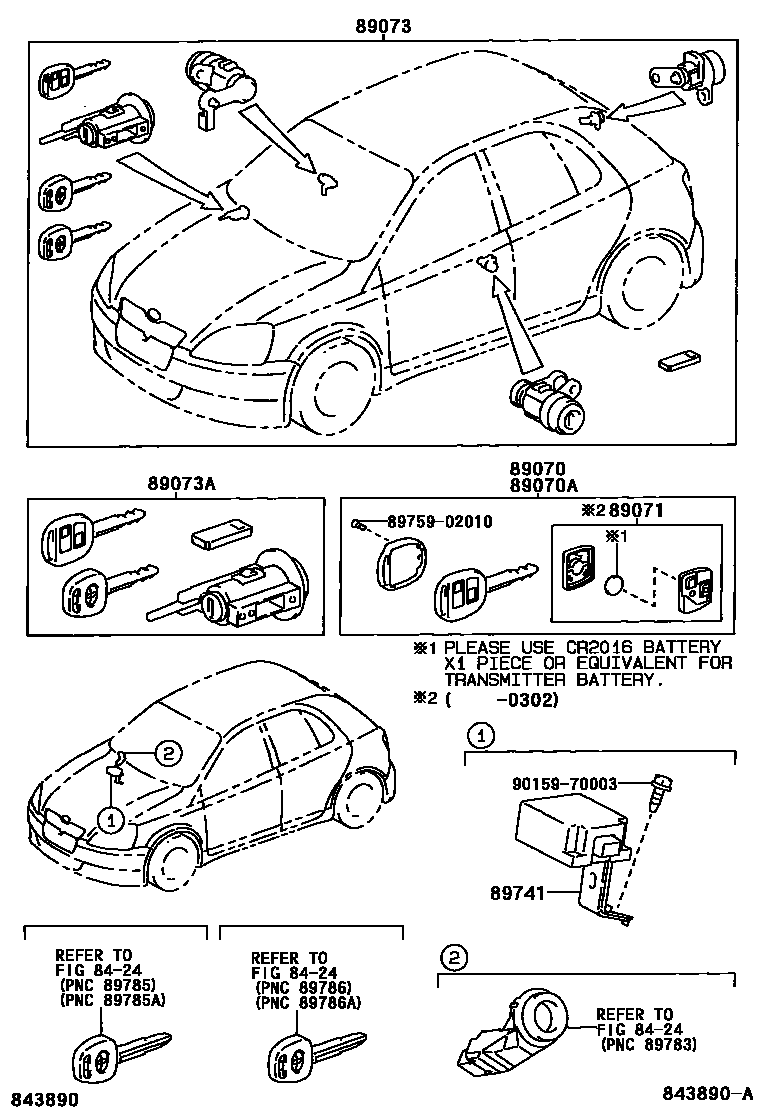

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-0D020 · 89070-0D050 |
| 89070A | Remote control key (internal tooth key) | 89070-0D030 · 89070-0D060 |
| 89071 | Remote key sub-assembly module assembly | 89071-0D010 · 89071-0D020 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 89073-0D030 · 89073-0D040 · 89073-0D070 · 89073-0D080 |
| 89073A | Ignition lock cylinder assembly with transmitter housing (internal toothed key) | 89073-0D010 · 89073-0D020 · 89073-0D050 · 89073-0D060 |
| 89741 | door control receiver | 89741-0D010 · 89741-0D020 |
