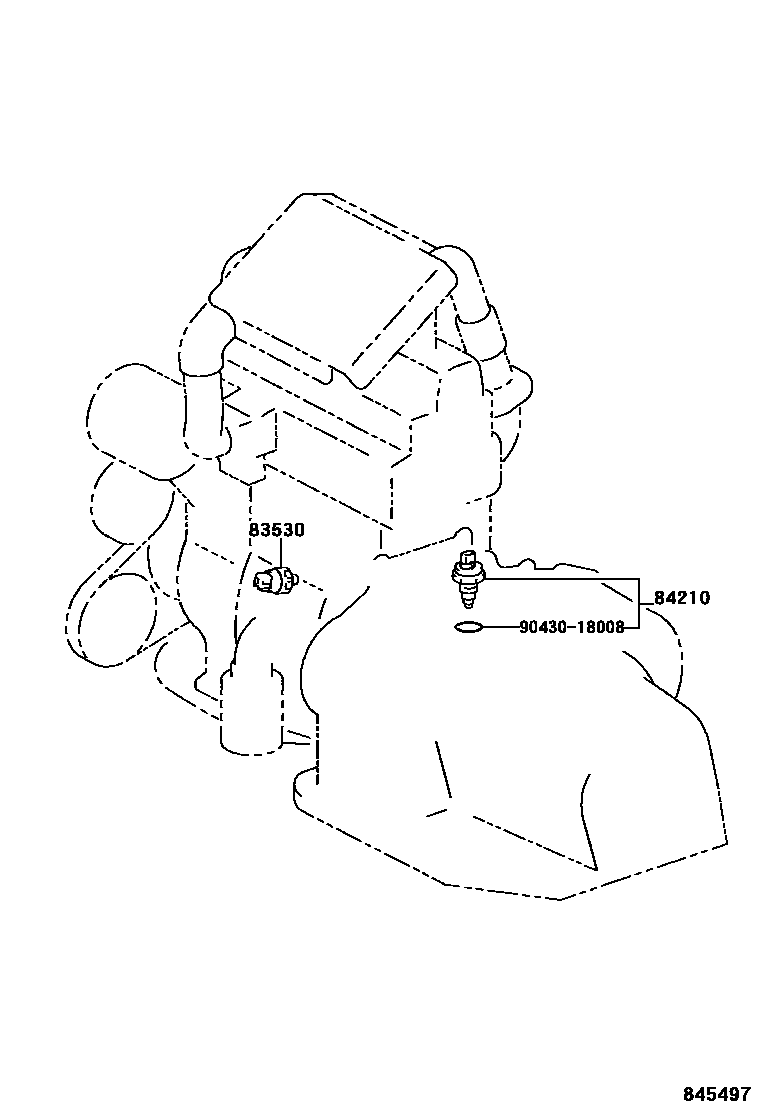

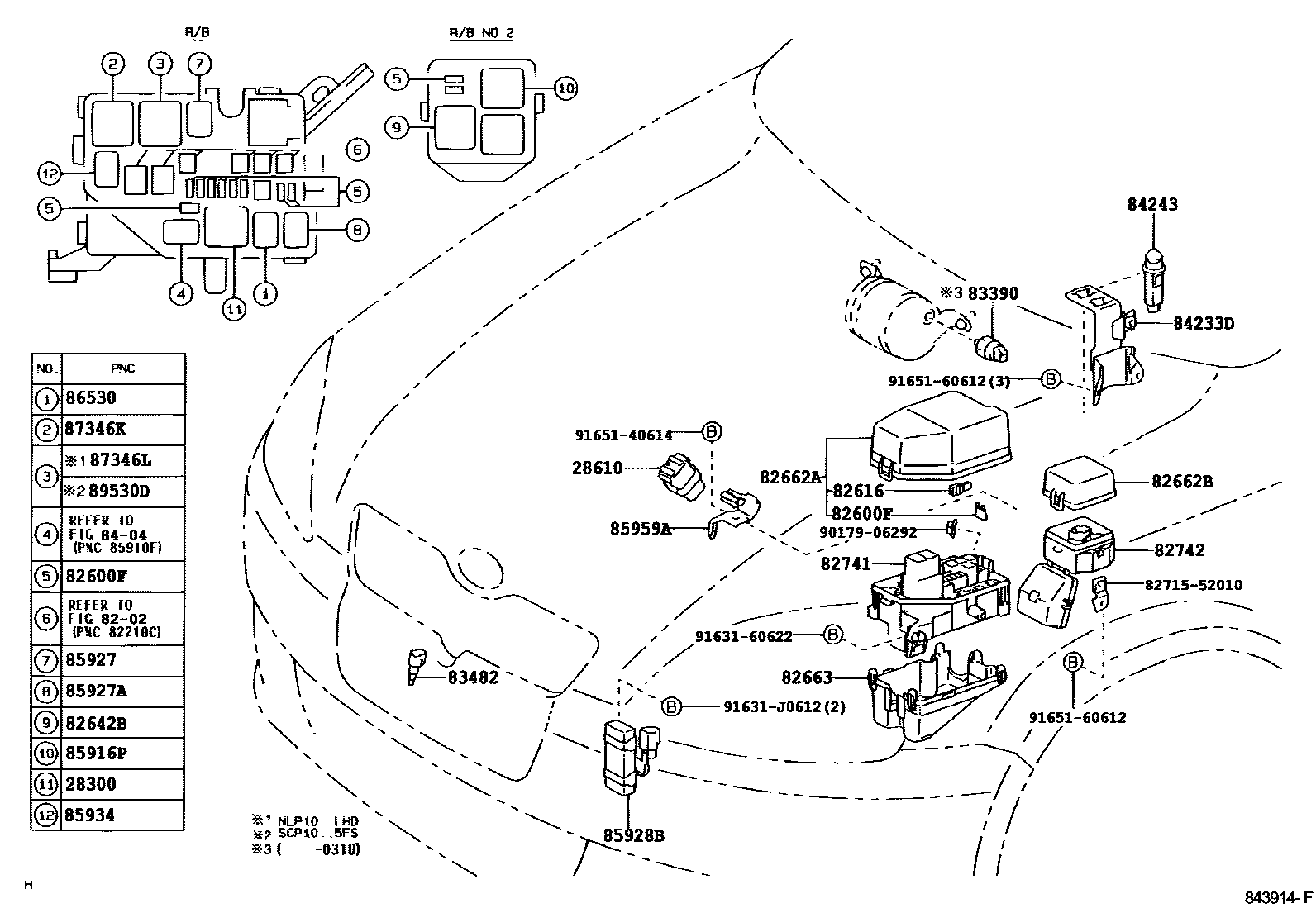

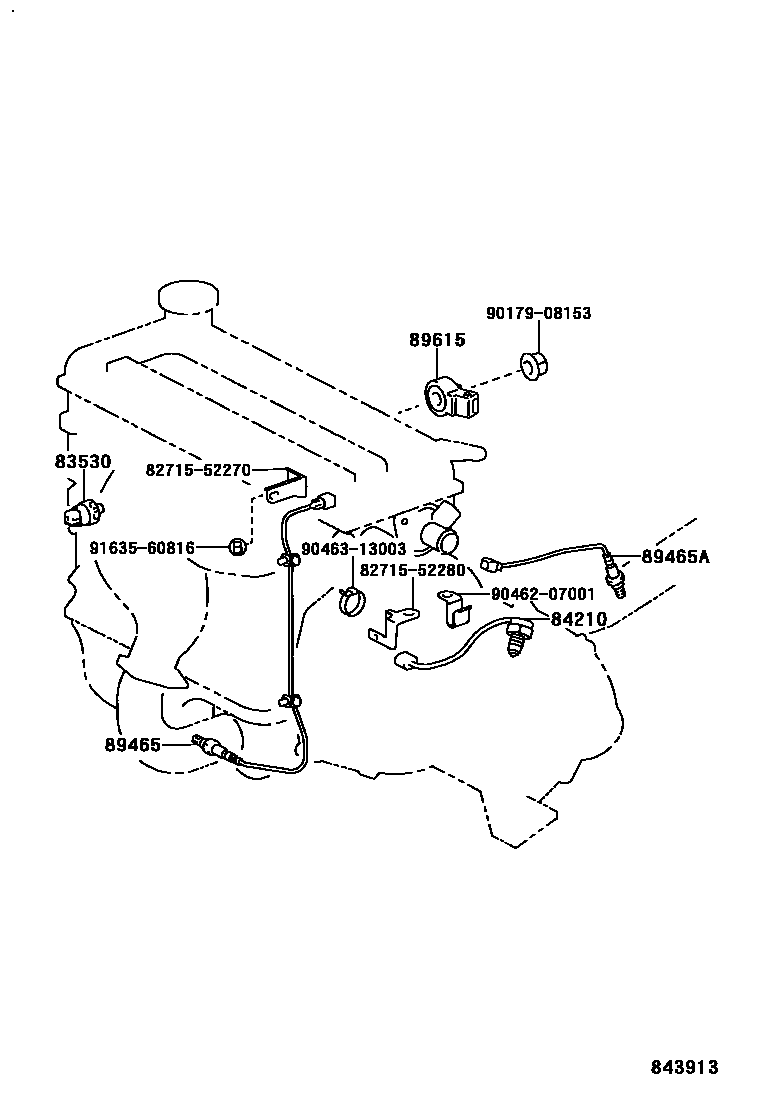

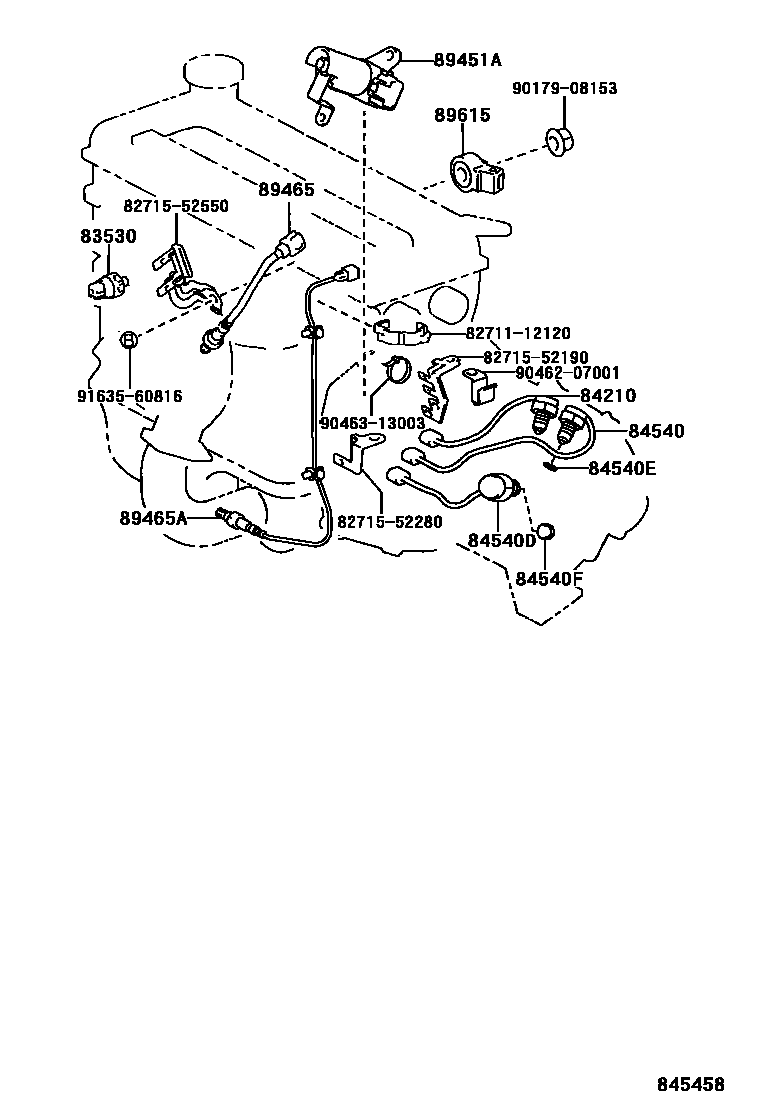

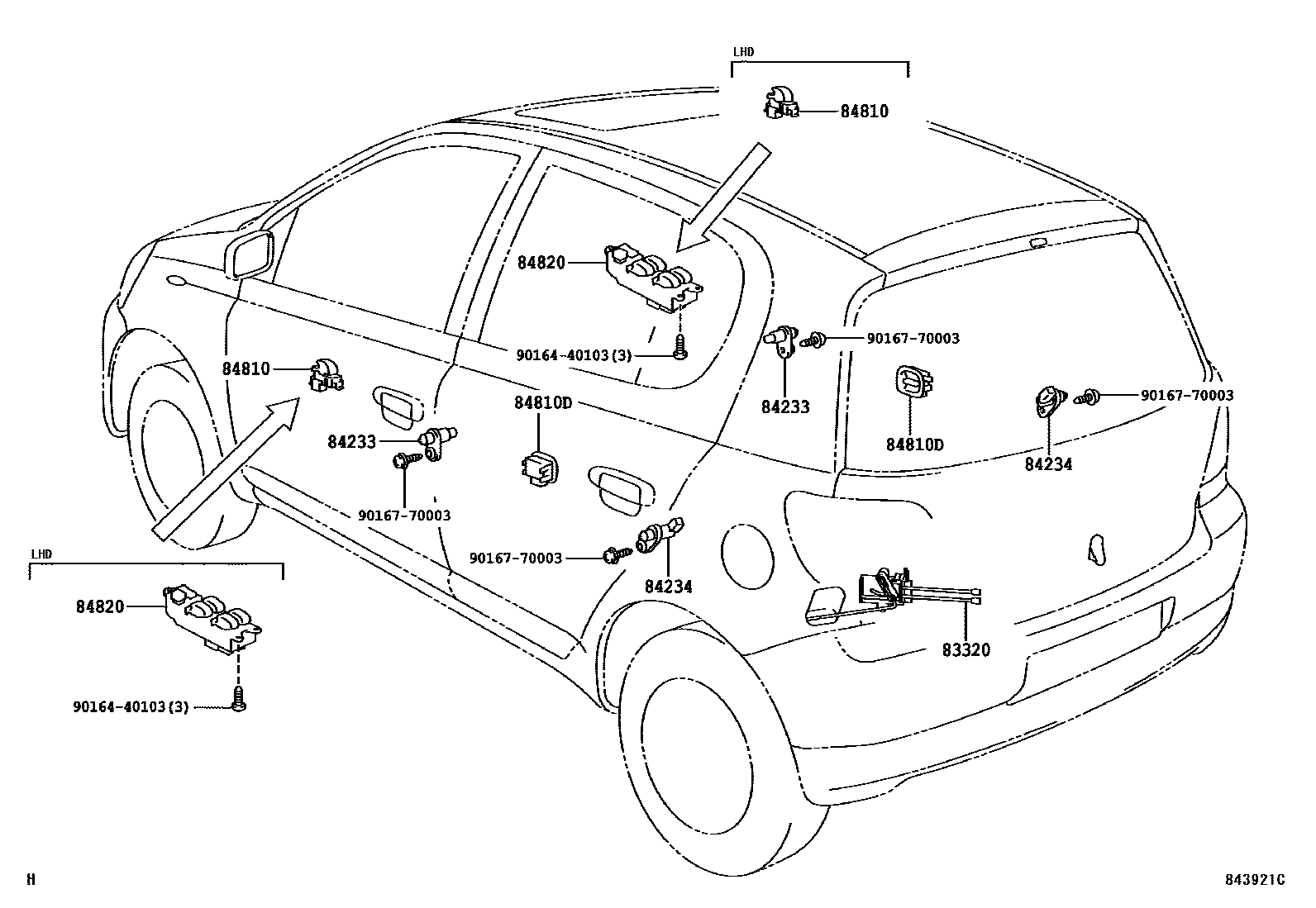

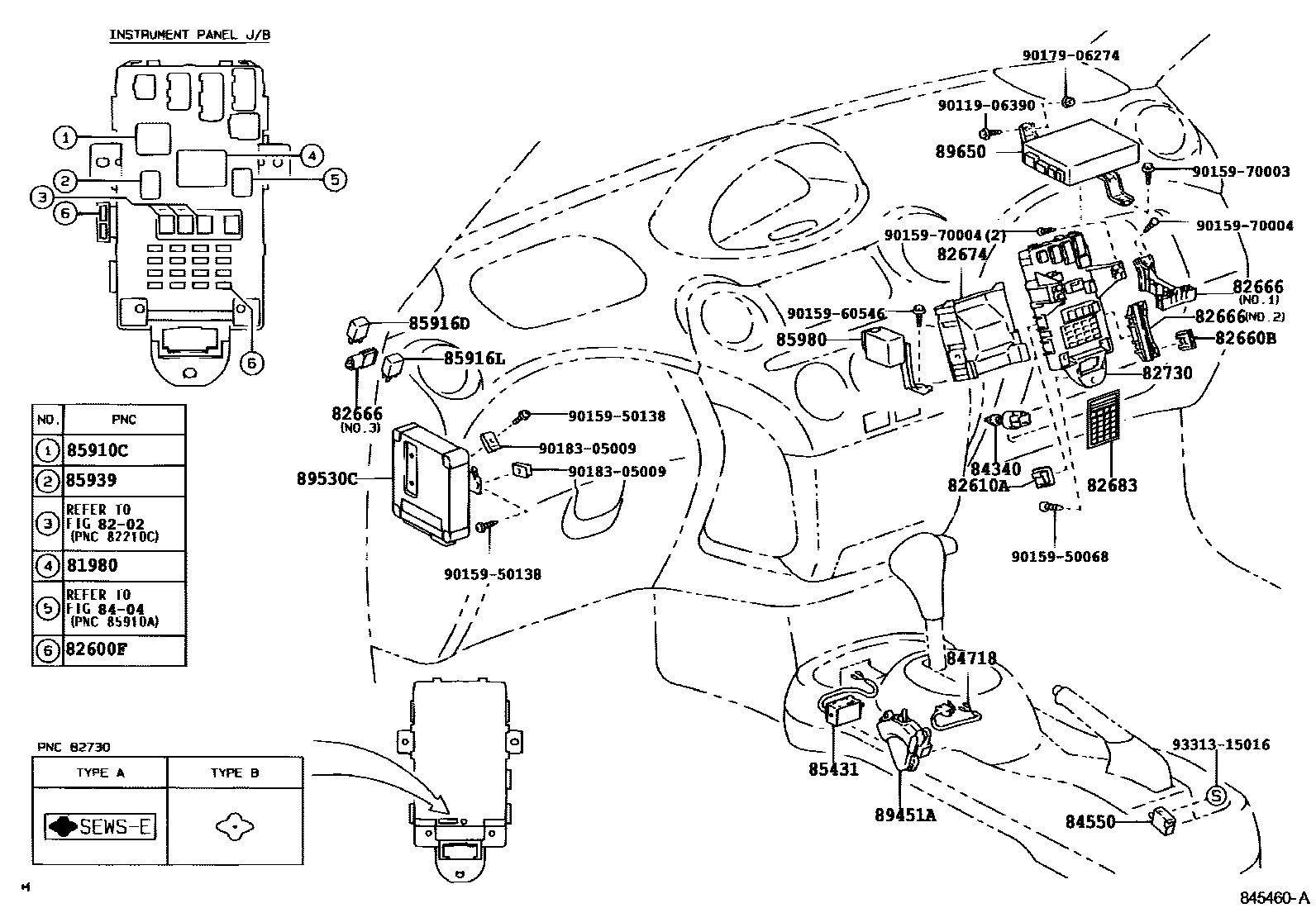

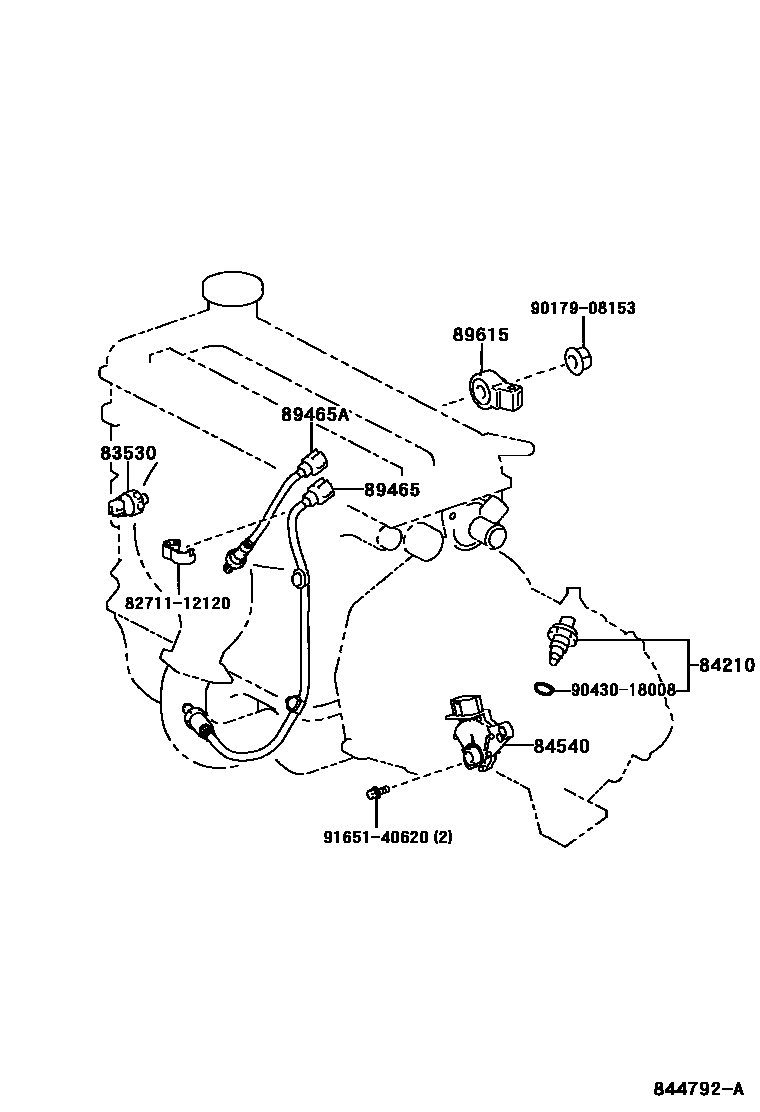

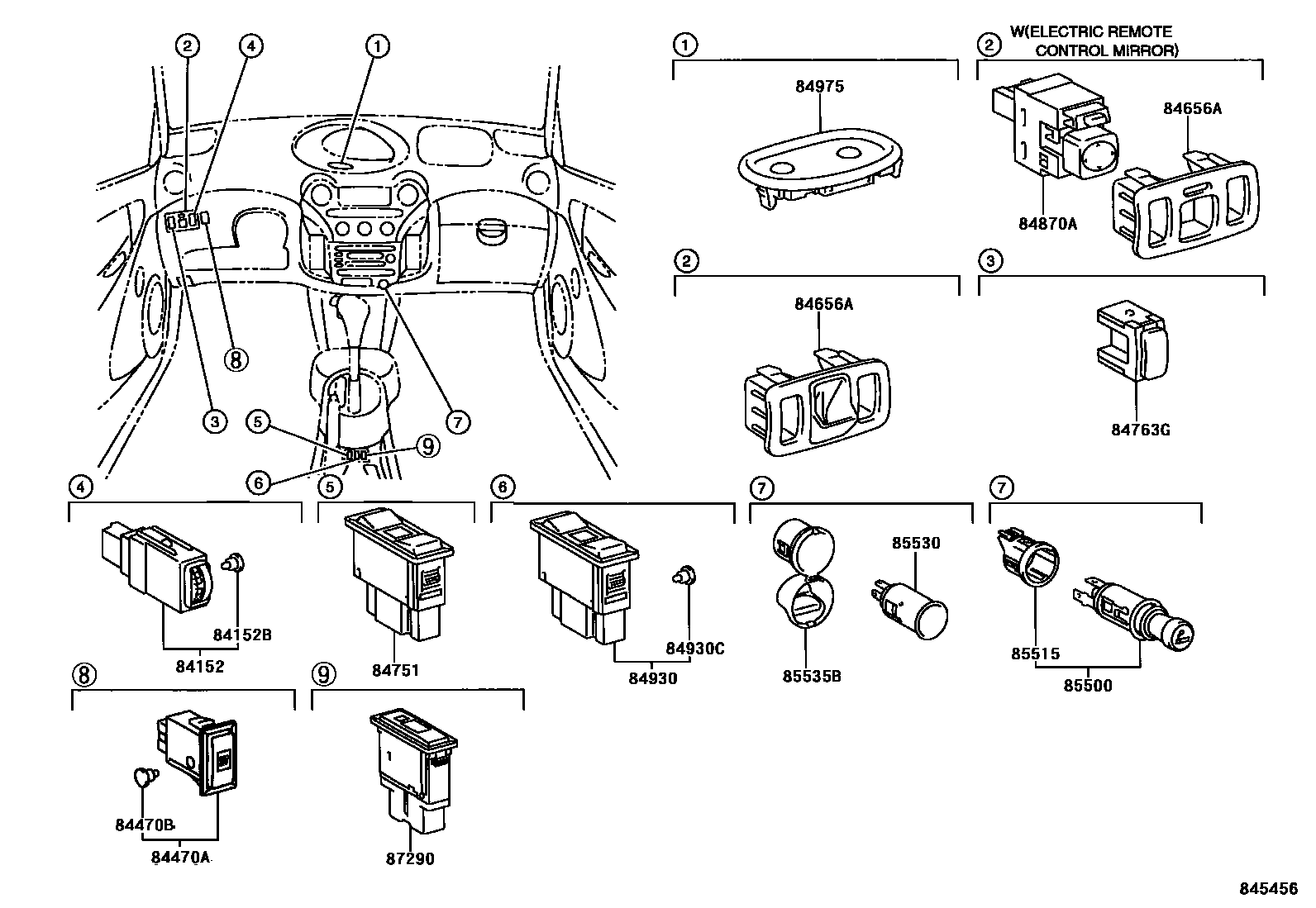

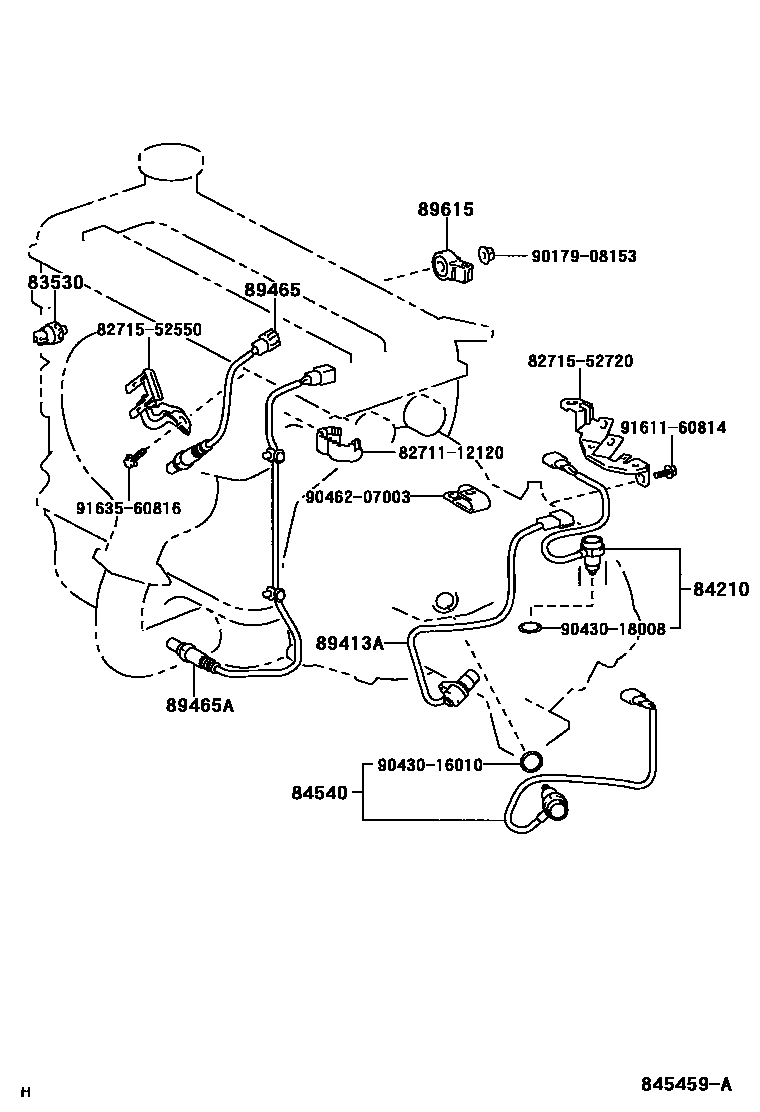

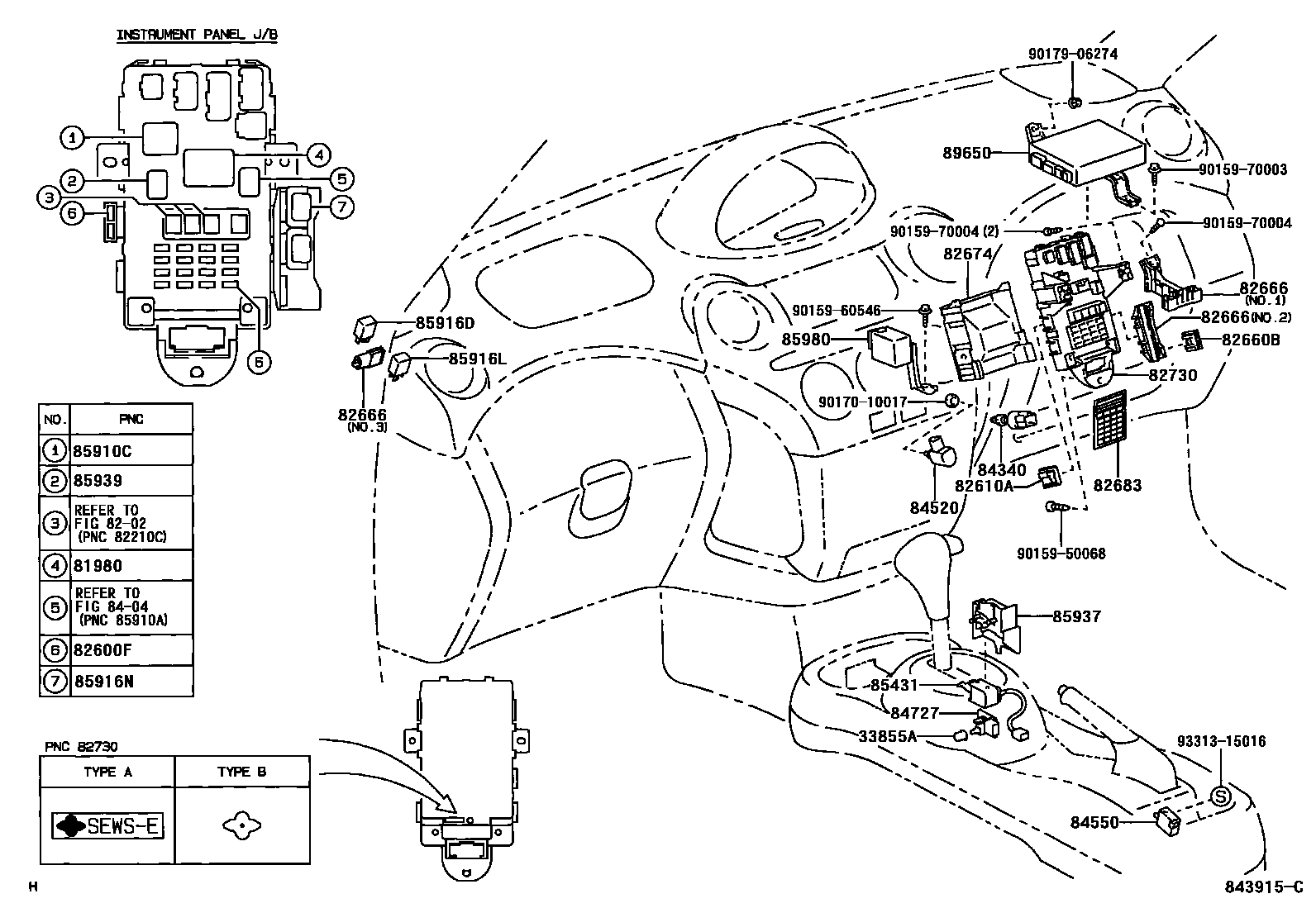

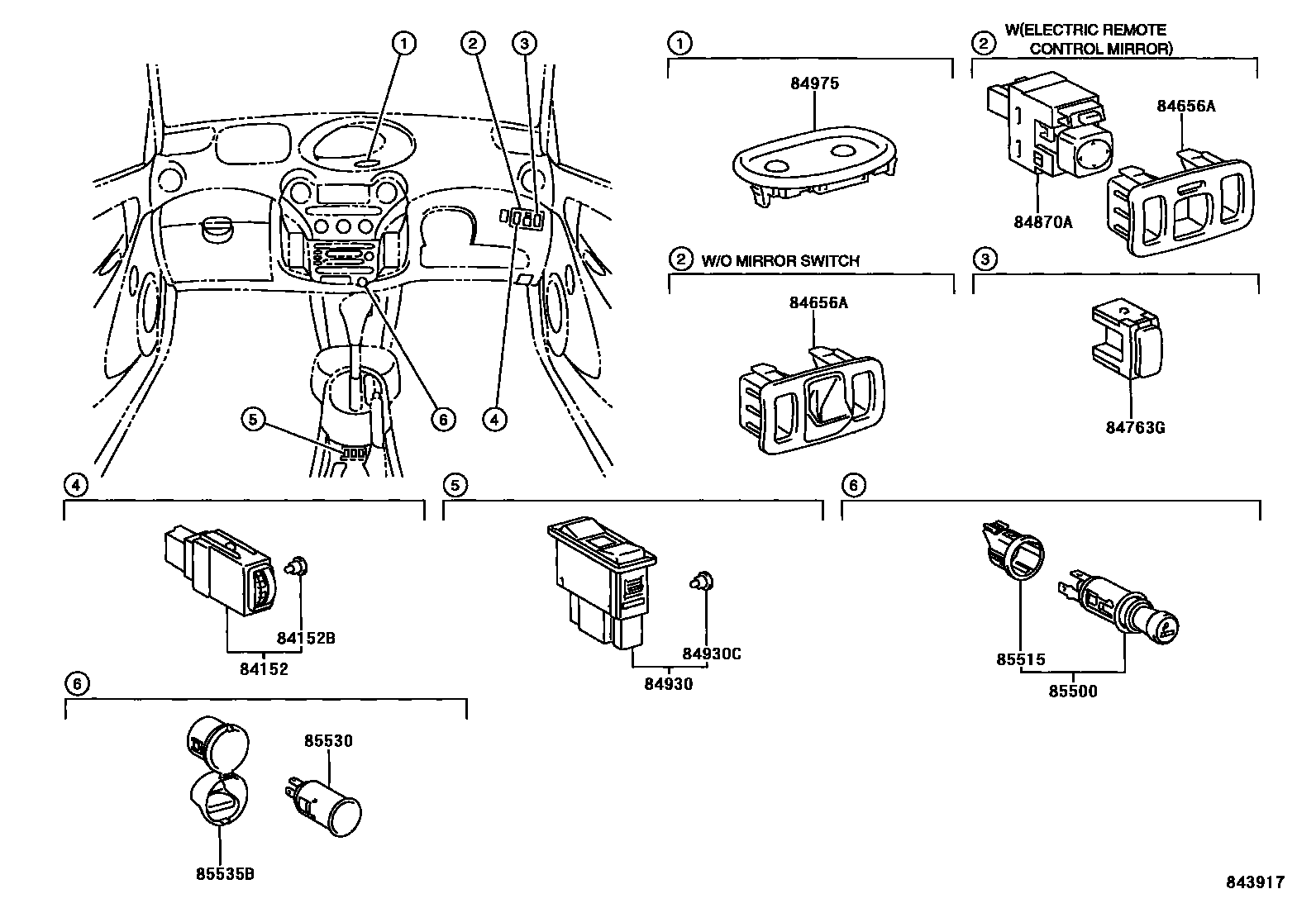

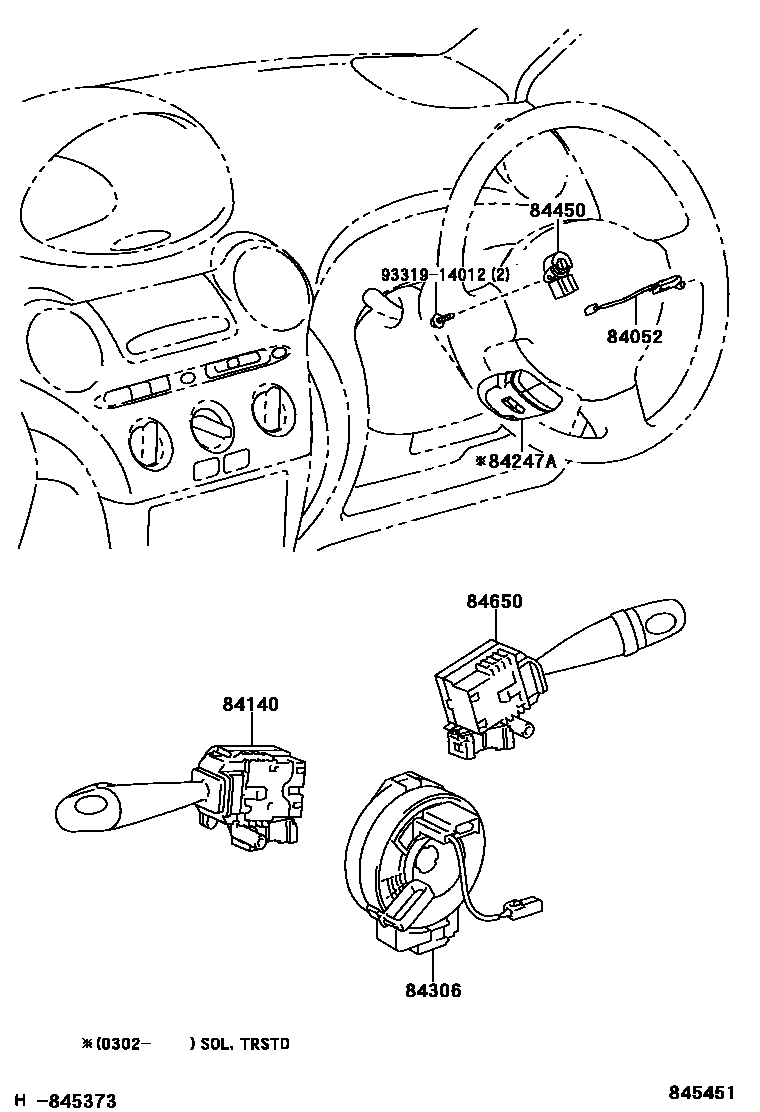

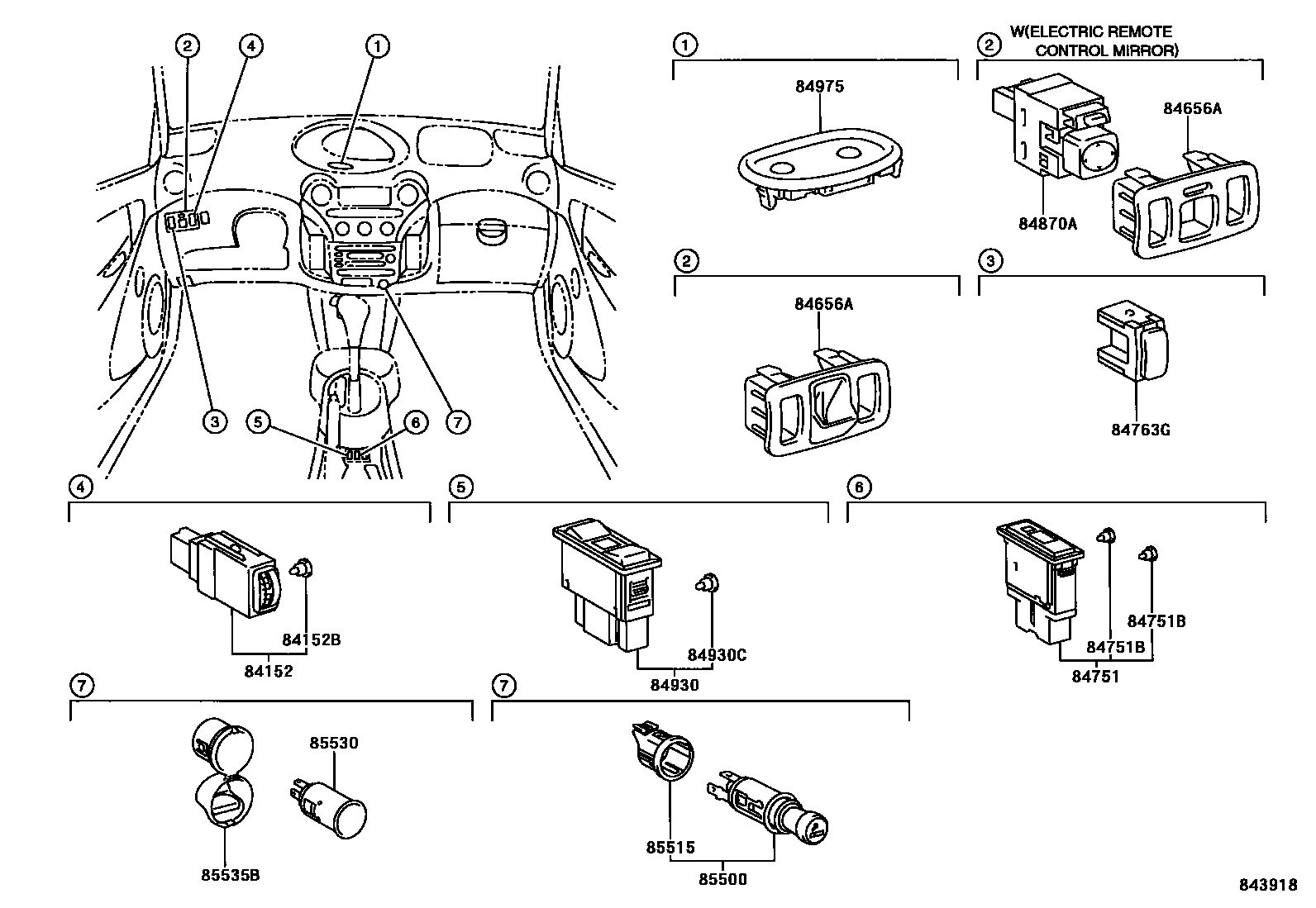

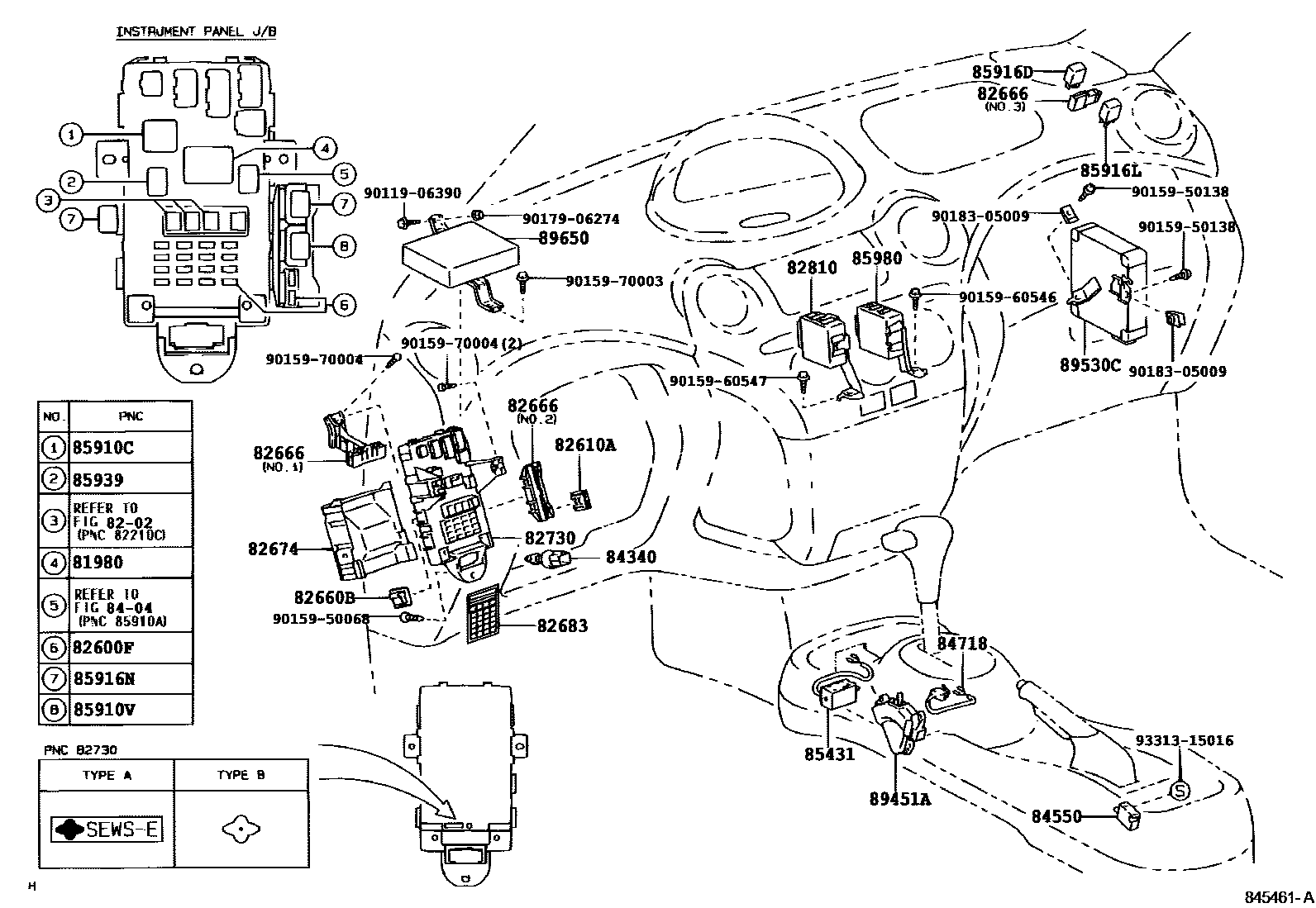

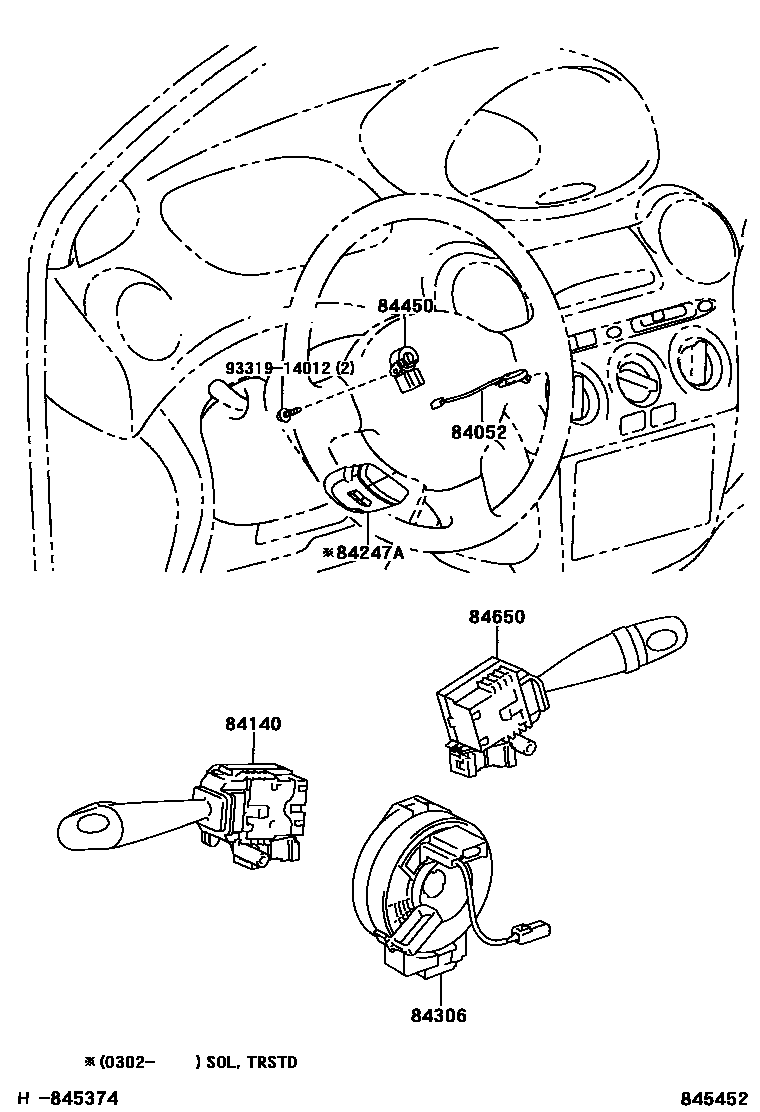

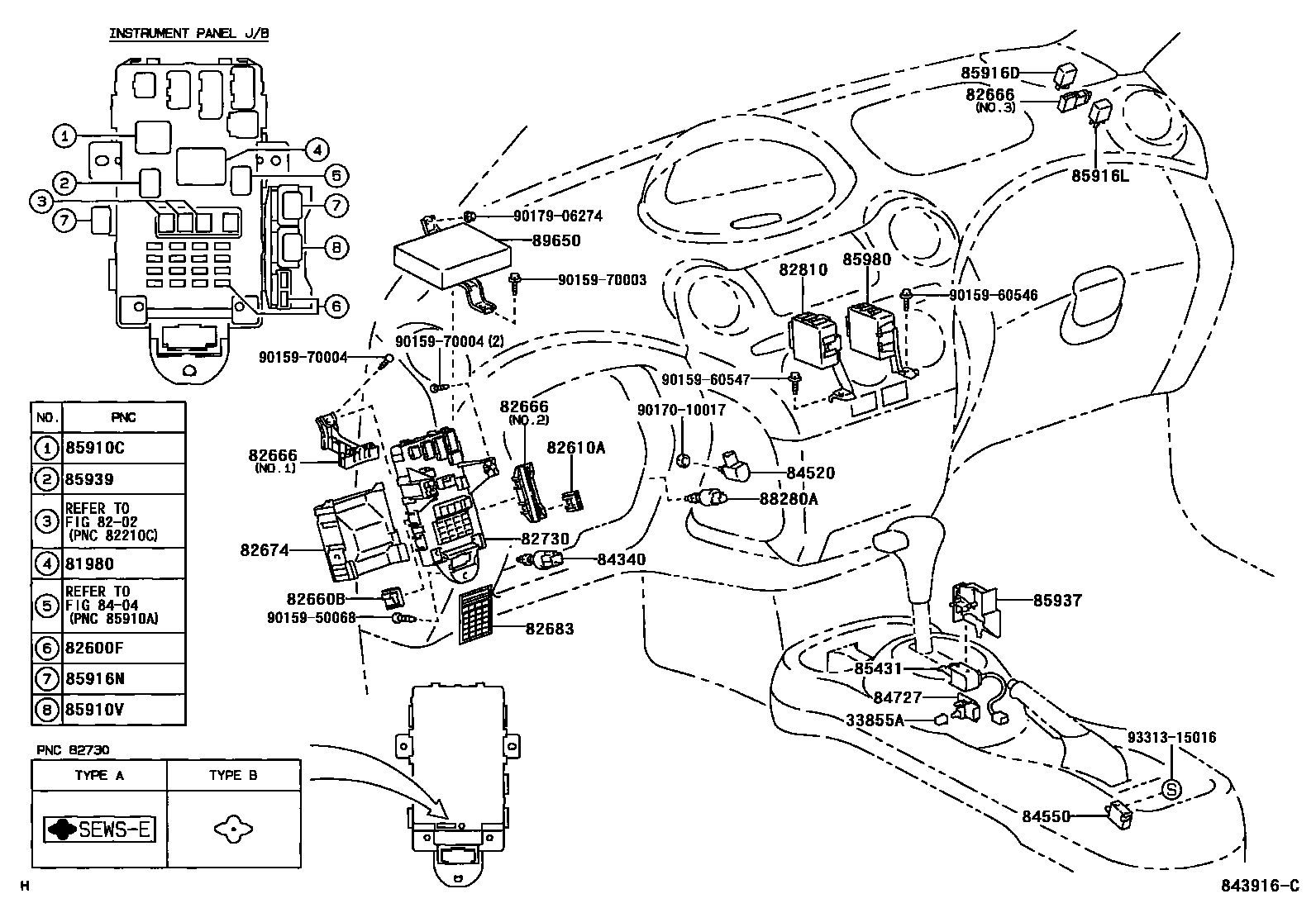

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 17 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 33855A | Shift lock unit cover | 33855-52010 |
| 81980 | Turn signal flasher relay assembly | 81980-05040 · 81980-50030 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82033 |
| 82610A | Fuse box assembly | 82610-20080 |
| 82616 | fuse puller | 82616-20010 |
| 82642B | No. 1 daytime running light relay | 90987-04006 · 90987-04010 |
| 82660B | Relay assembly | 82660-20340 |
| 82662A | No. 1 relay box upper cover | 82662-0D010 · 82662-0D020 · 82662-0D030 · 82662-0D040 |
| 82662B | No. 2 relay box upper cover | 82662-52050 · 82662-52051 |
| 82663 | Relay box lower cover | 82663-0D010 |
| 82666 | Connector holder | 82666-0D010 · 82666-0D030 · 82666-20270 |
| 82674 | Junction box lower cover | 82674-0D010 |
| 82683 | Fuse box warning nameplate | 82683-0D010 · 82683-0D070 |
| 82730 | Instrument panel junction box assembly | 82730-0D040 · 82730-0D050 · 82732-0D010 · 82732-0D020 · 82732-52060 · 82732-52070 |
| 82741 | Engine room relay box | 82741-0D010 · 82741-0D020 |
| 82742 | Engine room No. 2 relay box | 82742-52010 |
| 82810 | Driving light relay assembly | 82810-0D010 · 82810-52020 |
| 83320 | Fuel gauge sensor assembly | 83320-0D010 |
| 83390 | Vacuum warning switch assembly | 83390-30100 |
| 83482 | Outside car ambient temperature sensor | 83482-02010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-05020 |
| 84140 | Headlight dimmer switch assembly | 84140-0D010 · 84140-0D070 |
| 84152 | Headlight beam height adjustment switch | 84152-0D010 · 84152-0D020 · 84152-0D021 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90011-11015 · 90011-11047 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-60030 |
| 84233 | Door control light switch assembly (for front door) | 84231-0D010 · 84231-60070 |
| 84233D | engine cover switch bracket | 84233-52030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-05020 |
| 84243 | hood switch | 84243-52010 |
| 84306 | Spiral cable sub-assembly | 84306-0D011 · 84306-0D012 · 84306-0D050 |
| 84340 | brake light switch assembly | 84340-20060 · 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-0D010 |
| 84470A | Economic operation cancel switch assembly | 84470-52010 |
| 84470B | Economic operating conditions cancel switch light bulb | 84999-10320 |
| 84520 | Clutch start switch assembly | 84520-42010 · 84522-52010 |
| 84540 | Neutral start switch assembly | 84540-52010 · 84540-52020 · 84540-52060 |
| 84540D | Neutral start switch assembly | 84540-52030 |
| 84540E | Neutral start switch gasket | 90430-16010 |
| 84540F | Neutral start switch gasket | 90430-16010 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650 | Windshield wiper switch assembly | 84652-0D010 |
| 84718 | Transmission shift master switch | 84718-52010 |
| 84727 | Shift lock control switch | 84727-52010 |
| 84751 | Seat heater switch | 84751-0D010 · 84751-0D011 · 84751-52010 |
| 84751B | Seat heater switch light bulb | 84999-10310 |
| 84810 | Electric window lift switch assembly | 84810-0D010 · 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-0D040 · 84820-0D050 · 84820-0D060 · 84820-10090 · 84820-10100 · 84820-60090 |
| 84870A | Exterior rearview mirror switch assembly | 84870-02030 |
| 84930 | Door control switch assembly | 84930-0D010 · 84930-0D011 |
| 84930C | Light bulb (for door control switch) | 90011-11017 · 90011-11046 |
| 84975 | trip odometer switch | 84975-0D090 |
| 85431 | Shift lock solenoid valve | 85431-52010 · 85431-52020 |
| 85500 | Cigarette lighter assembly | 85500-09020 |
| 85515 | Cigarette lighter frame bracket | 85515-0D010 |
| 85530 | No. 1 power socket assembly | 85530-0D020 |
| 85535B | No. 1 power outlet cover | 85535-52040 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04006 · 90987-04010 |
| 85910V | seat heater relay | 90080-87013 · 90080-87019 |
| 85916D | fog light relay | 90080-87019 |
| 85916L | Rear fog light relay | 90080-87019 |
| 85916N | Tail light relay | 90080-87013 · 90080-87019 · 90987-02012 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85927 | cooling fan relay | 90080-87013 · 90080-87019 |
| 85927A | Cooling fan relay No. 2 | 90080-87012 |
| 85928B | Cooling fan resistor | 85928-52010 |
| 85934 | Electromagnetic clutch relay | 90987-02022 · 90987-02028 |
| 85937 | Shift lock control protection device | 85937-52010 |
| 85939 | Power window relay | 90080-87013 · 90080-87019 |
| 85959A | Relay mounting parts | 85959-52020 |
| 85980 | Door control relay assembly | 85980-0D010 · 85980-0D020 · 85980-0D030 · 85980-0D040 · 85980-0D050 · 85980-0D060 · 85980-0D070 · 85980-0D080 |
| 86530 | Speaker relay assembly | 90080-87013 · 90080-87019 |
| 87290 | Heater switch assembly | 87290-0D020 · 87290-0D021 |
| 87346K | PTC heater relay | 90987-02016 · 90987-02025 |
| 87346L | PTC heater relay | 90987-02016 · 90987-02025 |
| 88280A | Clutch switch assembly | 88280-14030 |
| 89413A | Transmission speed sensor | 89413-52030 |
| 89451A | shift lever position sensor | 89451-52010 · 89451-52020 · 89451-52030 |
| 89465 | oxygen sensor | 89465-0D010 · 89465-0D030 · 89465-0D050 · 89465-0D080 |
| 89465A | Oxygen sensor No. 2 | 89465-0D020 · 89465-0D040 · 89465-0D060 · 89465-0D070 |
| 89530C | Transmission control ECU assembly | 89530-52090 · 89530-52100 |
| 89530D | automatic clutch relay | 90987-02025 |
| 89615 | knock control sensor | 89615-02020 · 89615-05010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0D010 · 89650-0D011 · 89650-0D020 · 89650-0D021 · 89650-0D030 · 89650-0D040 · 89650-0D050 · 89650-0D060 · 89650-0D070 · 89650-0D080 |
