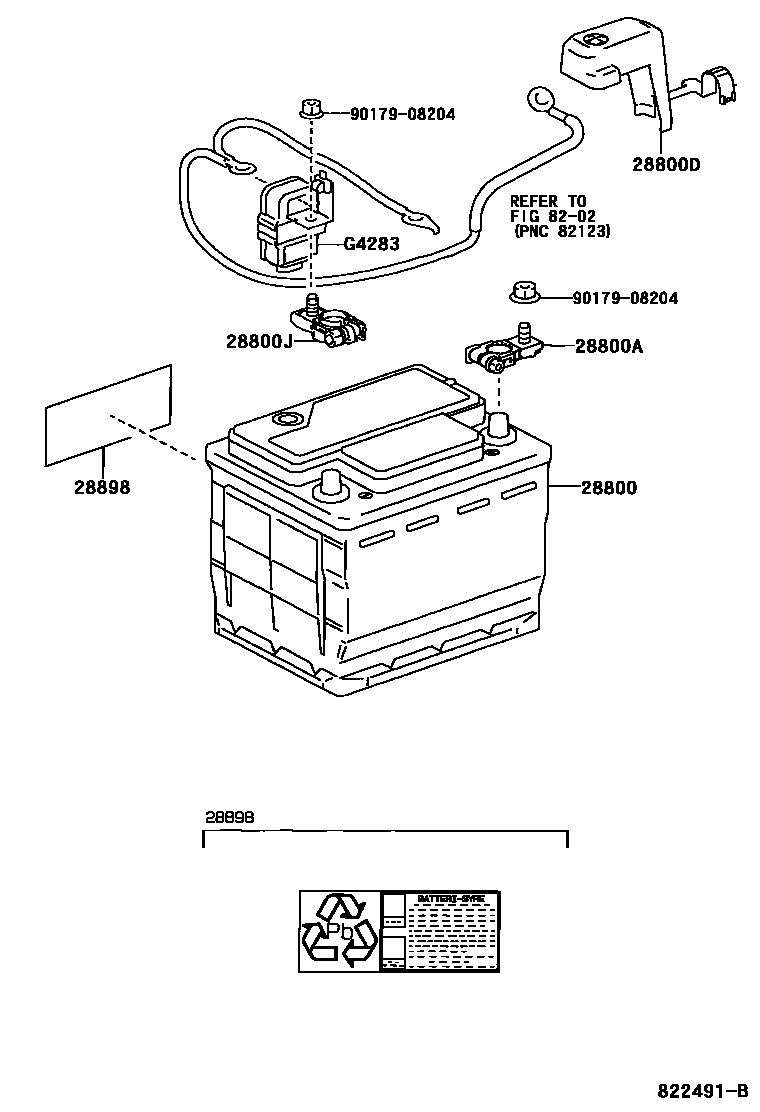

Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0J010 · 28800-0J020 · 28800-0N010 · 28800-0N020 |
| 28800A | battery positive terminal | 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-0D010 · 82821-52060 |
| 28800J | battery negative terminal | 90982-06022 |
| 28898 | battery plates | 28898-0B010 · 28898-46010 |
| G4283 | battery current sensor | G4283-52071 |
