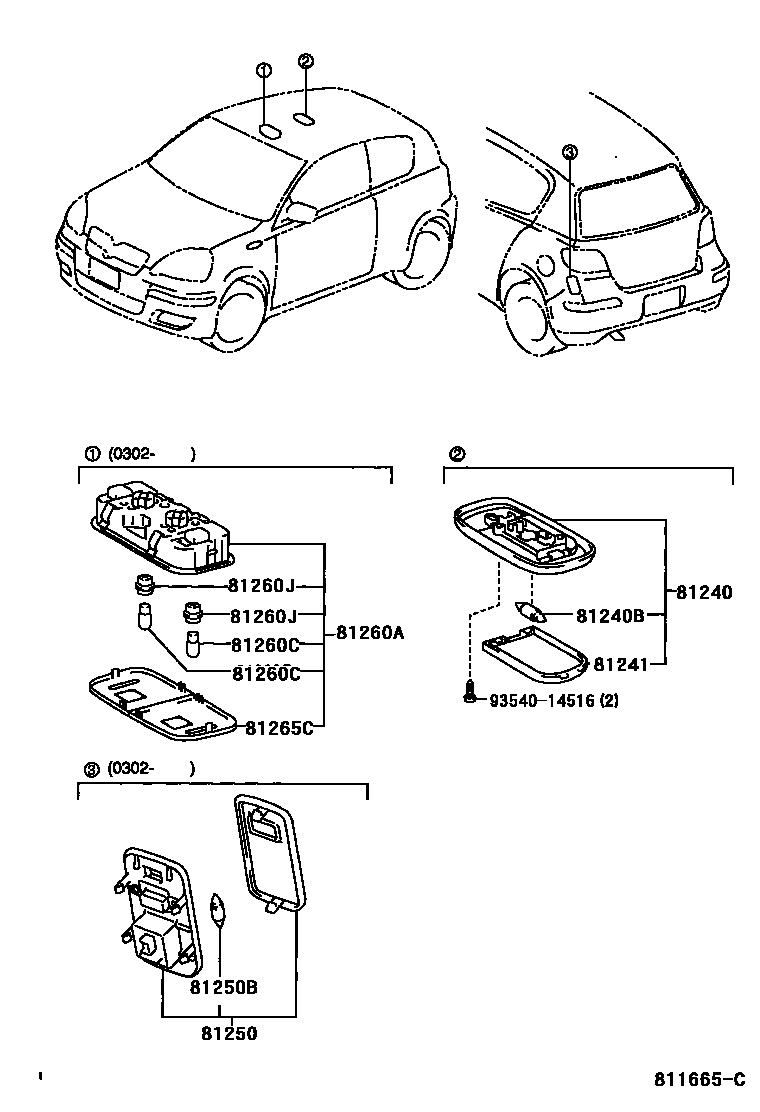

Toyota YARIS 车内灯 — Figure 8121
Toyota YARIS EPC diagram 8121, 车内灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90080-81078 · 90981-14011 · 90981-WE001 |
| 81241 | Interior light cover No. 1 | 81241-05010 · 81241-12020 |
| 81250 | No. 2 interior light assembly | 81330-05020 · 81330-05021 |
| 81250B | Interior light bulb No. 2 | 90080-81049 |
| 81260C | Light bulb (for reading lamp) | 90981-WB002 |
| 81260J | Lamp holder (for reading lamp) | 90069-81055 |
| 81265C | No. 1 reading lamp shade | 81265-0D010 |
