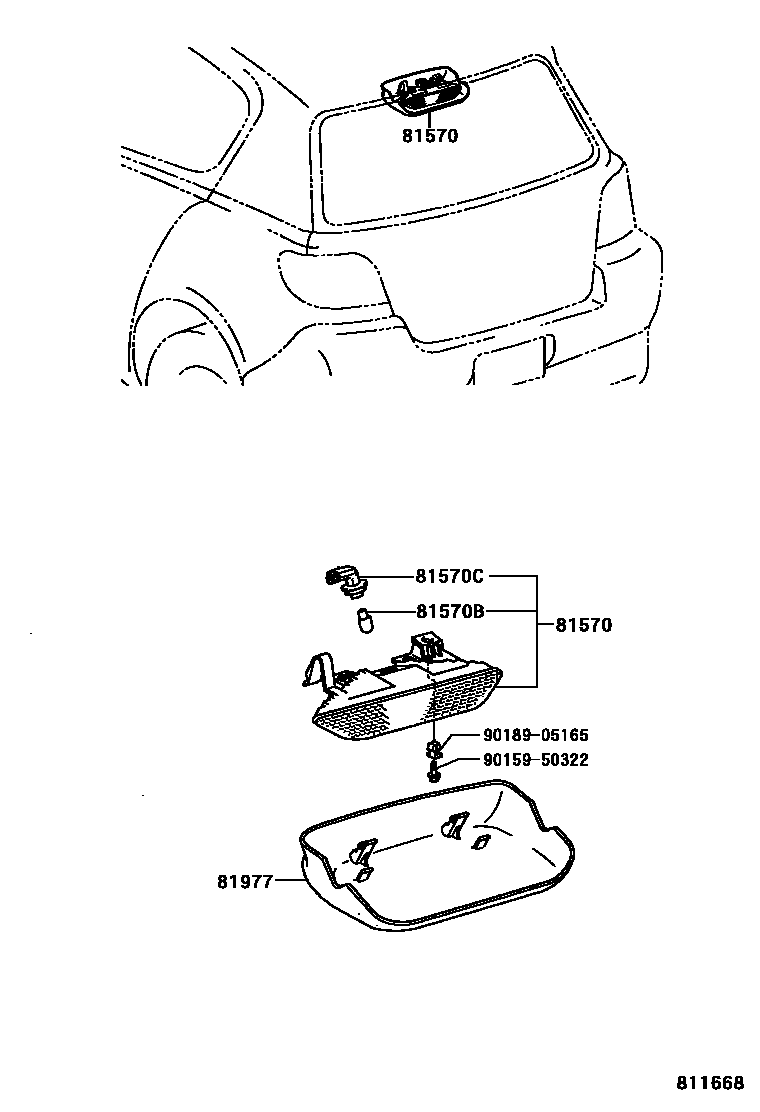

Toyota YARIS 高位刹车灯 — Figure 8117
Toyota YARIS EPC diagram 8117, 高位刹车灯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-0D010 · 81570-0D011 |
| 81570B | Bulb (for center brake light) | 90080-81087 · 90981-WB007 |
| 81570C | Central brake light lamp holder | 90075-60037 |
