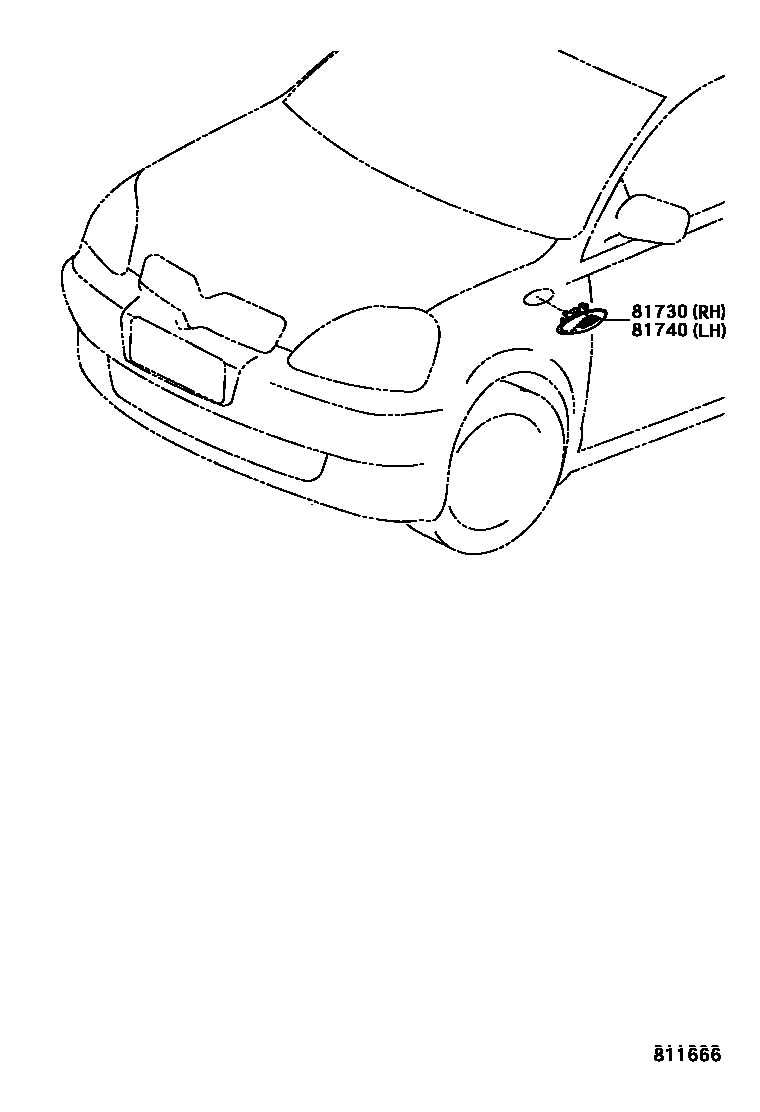

Toyota YARIS Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota YARIS EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-0D010 · 81730-0D011 |
| 81740 | Left side turn signal light assembly | 81740-0D010 · 81740-0D011 |
