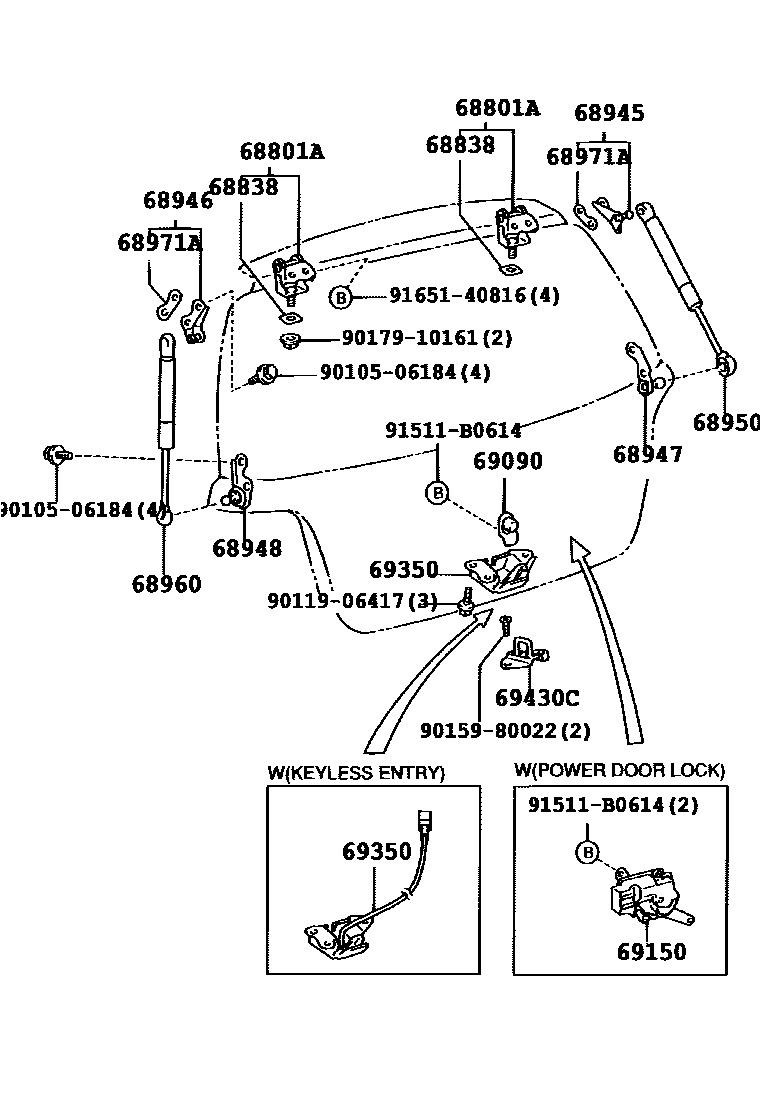

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-0D010 · 68801-52010 |
| 68838 | Back door hinge No. 1 gasket | 68838-0D010 · 68838-0D020 · 68838-10020 |
| 68945 | Back door right damping stay upper bracket | 68945-52010 |
| 68946 | Rear door left damping strut upper bracket | 68946-52010 |
| 68947 | Back door right damping strut lower bracket | 68947-52010 |
| 68948 | Rear door left damping strut lower bracket | 68948-52010 |
| 68950C | Back door right support rod assembly | 68950-09110 |
| 68960 | Back door left support rod assembly | 68950-09120 |
| 68971A | Back door No. 1 support rod seal | 68971-52010 · 68971-52020 |
| 69090 | Rear door outer handle assembly | 69090-0D010 · 69090-0D020 |
| 69150 | Rear door lock actuator assembly | 69150-0D010 · 69150-0D011 |
| 69350 | Rear door lock assembly | 69350-0D010 · 69350-0D030 · 69350-0D031 · 69350-52080 |
| 69430C | Back door lock assembly | 69430-0D010 |
