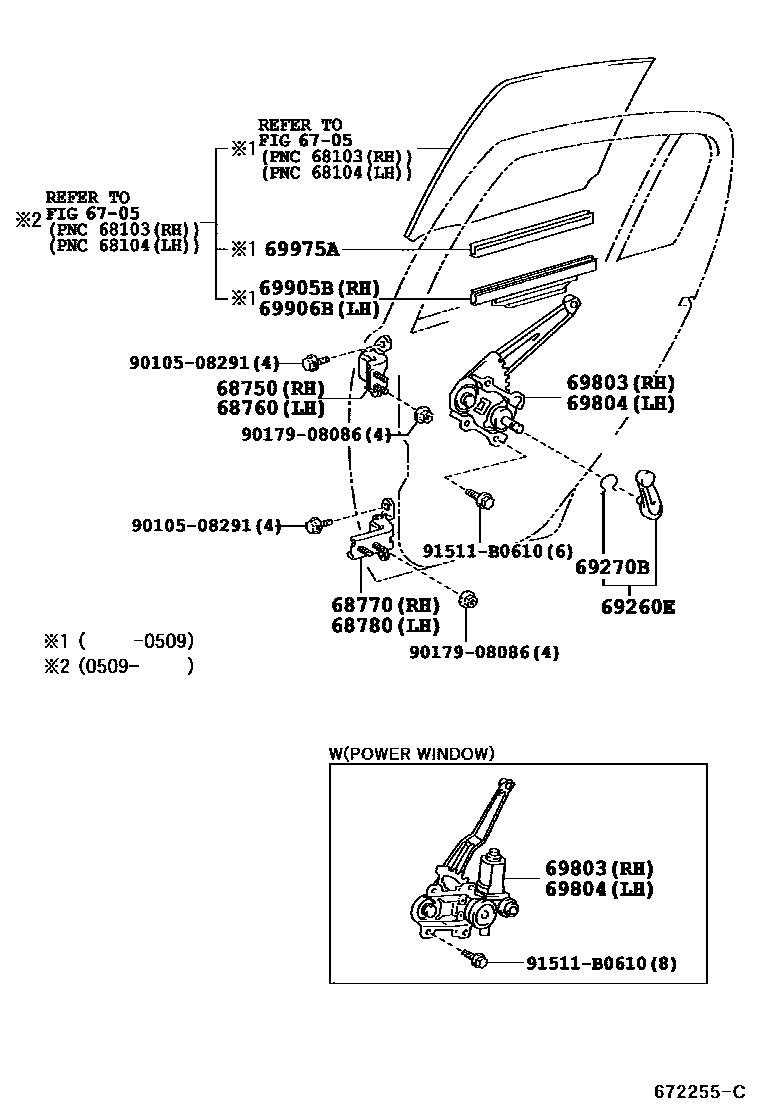

Toyota YARIS 后门车窗升降器和合页 — Figure 6707
Toyota YARIS EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-0D010 |
| 68760 | Left rear door upper hinge assembly | 68760-0D010 |
| 68770 | Right rear door lower hinge assembly | 68770-0D010 |
| 68780 | Left rear door lower hinge assembly | 68780-0D010 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90524-15005 |
| 69803 | Right rear door window lifter sub-assembly | 69830-0D010 · 69830-0D020 |
| 69804 | Left rear door window lifter sub-assembly | 69840-0D010 · 69840-0D020 |
| 69905B | Right rear door glass groove sub-assembly | 69905-0D010 |
| 69906B | Left rear door glass groove sub-assembly | 69906-0D010 |
| 69975A | Rear door glass channel filler | 69975-52010 |
