Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

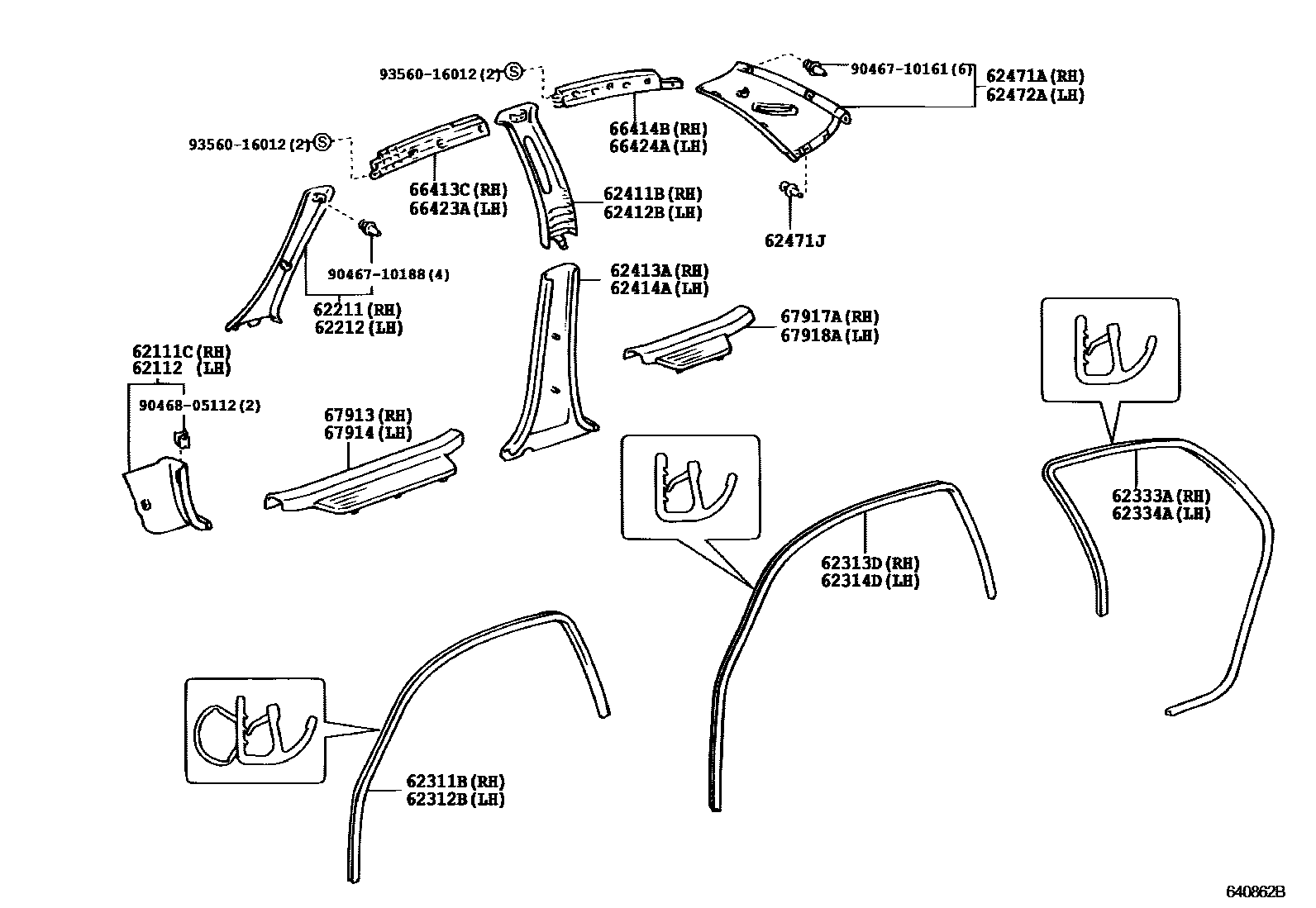

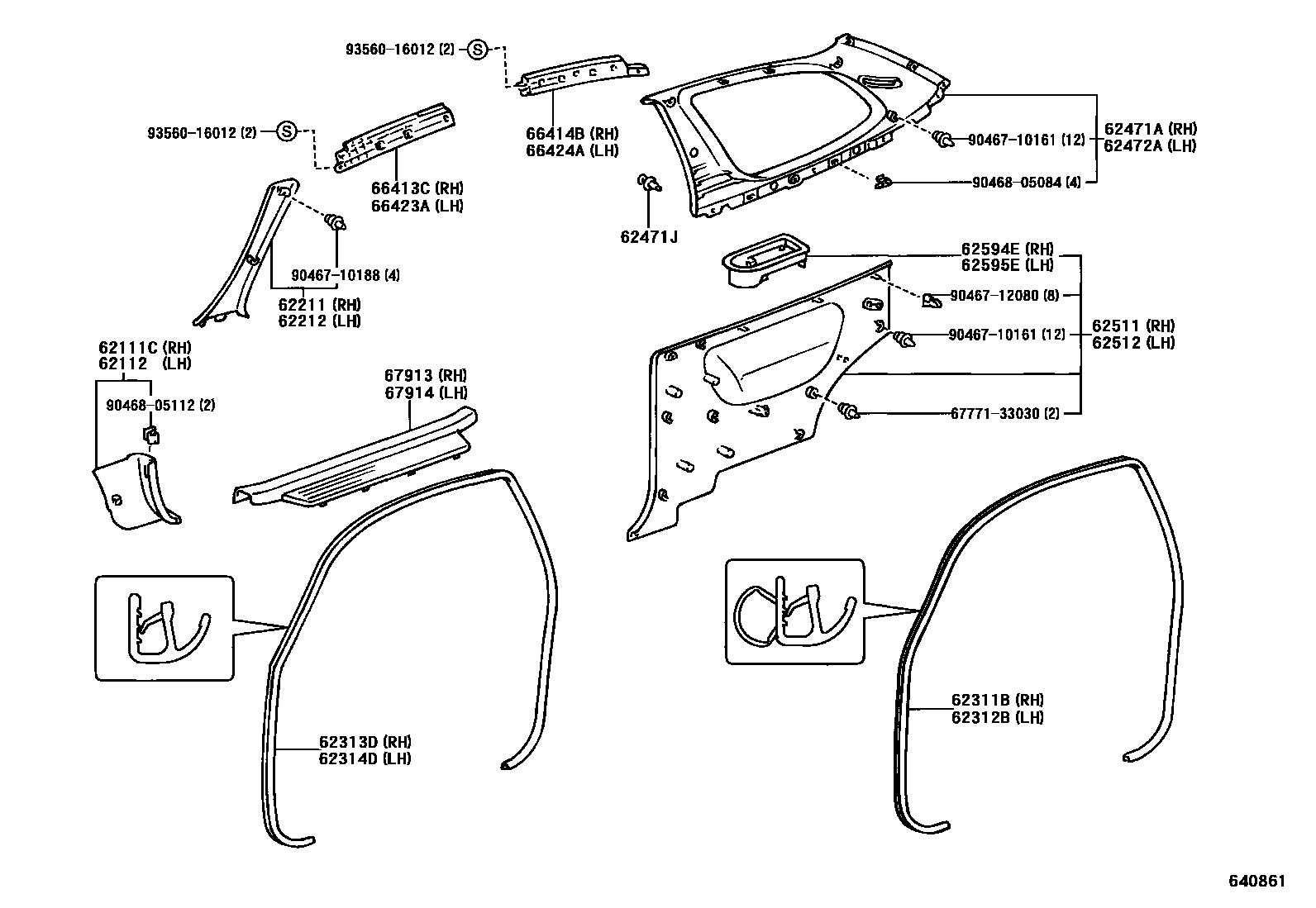

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 66413C | Right front longitudinal member spacer | 66413-0D010 · 66413-0D011 · 66413-0D020 · 66413-0D021 |
| 66414B | Right rear longitudinal member spacer | 66414-0D010 · 66414-0D020 |
| 66423A | Left front longitudinal member spacer | 66423-0D010 · 66423-0D011 · 66423-0D020 · 66423-0D021 |
| 66424A | Left rear longitudinal member spacer | 66424-0D010 · 66424-0D020 |
