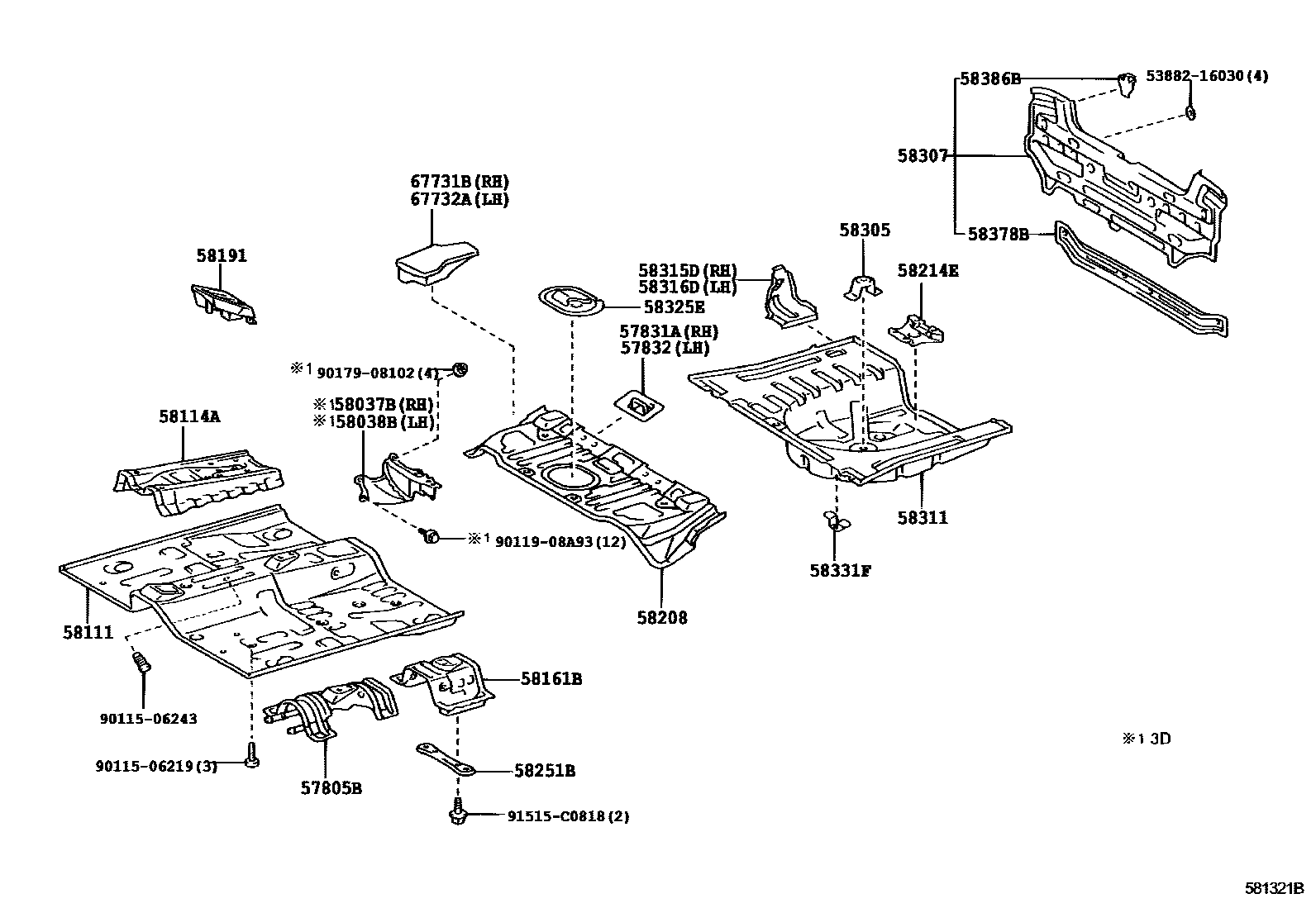

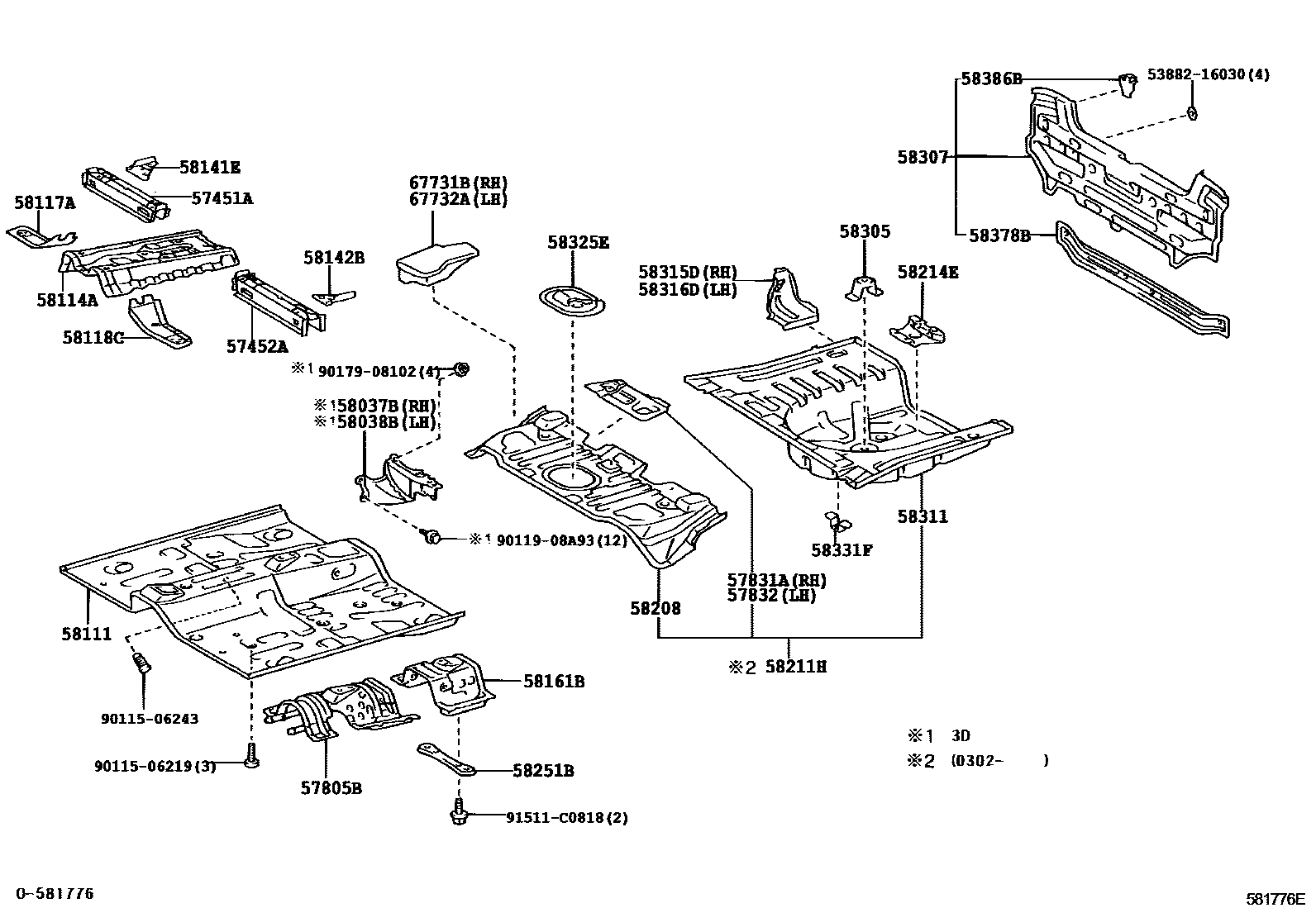

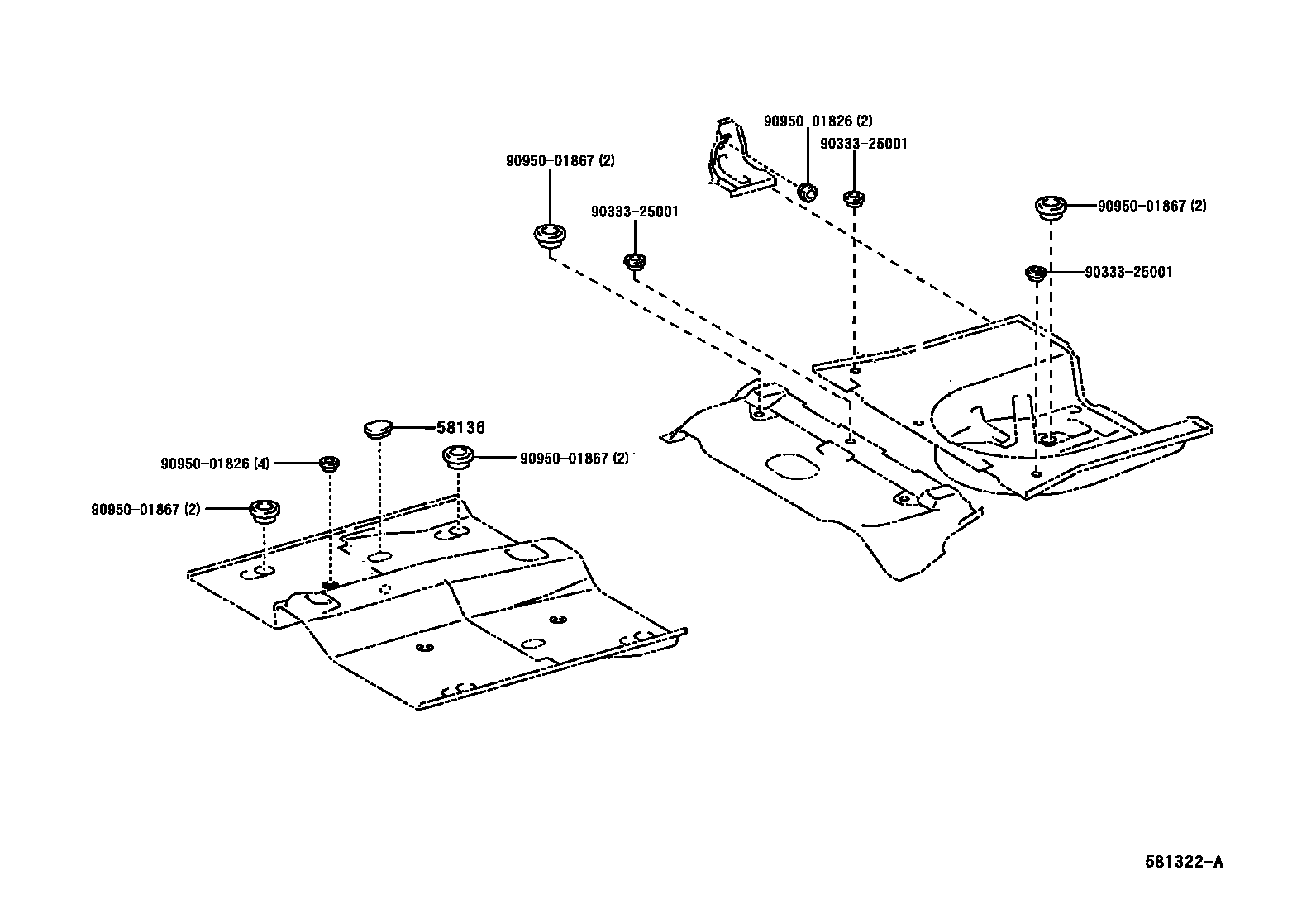

Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801
Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57451A | Front floor right cross member | 57508-0D010 |
| 57452A | Front floor beam No. 2 | 57509-0D010 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-0D010 · 57805-0D012 · 57805-0D042 |
| 57831A | No. 1 rear seat support No. 1 front reinforcement | 57803-0D010 · 57803-52011 |
| 57832 | Rear No. 1 seat support No. 2 front reinforcement | 57804-0D010 · 57804-52021 |
| 58037B | Right center pillar to floor reinforcement | 58037-0D010 |
| 58038B | Left center pillar to floor reinforcement | 58038-0D010 |
| 58111 | front floor pan | 58111-0D900 · 58111-0D903 |
| 58114A | front floor reinforcement | 58114-0D010 |
| 58117A | Front floor right reinforcement | 58117-52040 |
| 58118C | Front floor left reinforcement | 58118-52030 |
| 58136 | Front floor hole cover | 58136-0D010 |
| 58141E | Right front longitudinal beam to floor panel reinforcement | 58141-52010 |
| 58142B | Left front longitudinal beam to floor panel reinforcement | 58142-52010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-0D010 |
| 58191 | Front floor footrest | 58191-52010 |
| 58208 | central floor base | 58211-0D010 · 58211-0D050 |
| 58211H | central floor base | 58211-0D901 |
| 58214E | jack stand | 58214-52010 |
| 58251B | front floor bracket | 58251-52010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-32010 · 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-0D010 |
| 58311 | rear floor pan | 58311-0D010 · 58311-0D030 |
| 58315D | Rear floor pan right extension | 58315-0D030 · 58315-52010 |
| 58316D | Rear floor pan left extension | 58316-0D030 · 58316-52010 |
| 58325E | Rear floor access hole cover | 58325-52010 |
| 58331F | Rear floor insulation pad bracket No. 3 | 58331-10010 |
| 58378B | Body lower back panel reinforcement | 58378-0D010 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-52010 |
| 67731B | No. 1 side decorative spacer | 67731-0D010 |
| 67732A | No. 2 side decorative spacer | 67732-0D010 |
