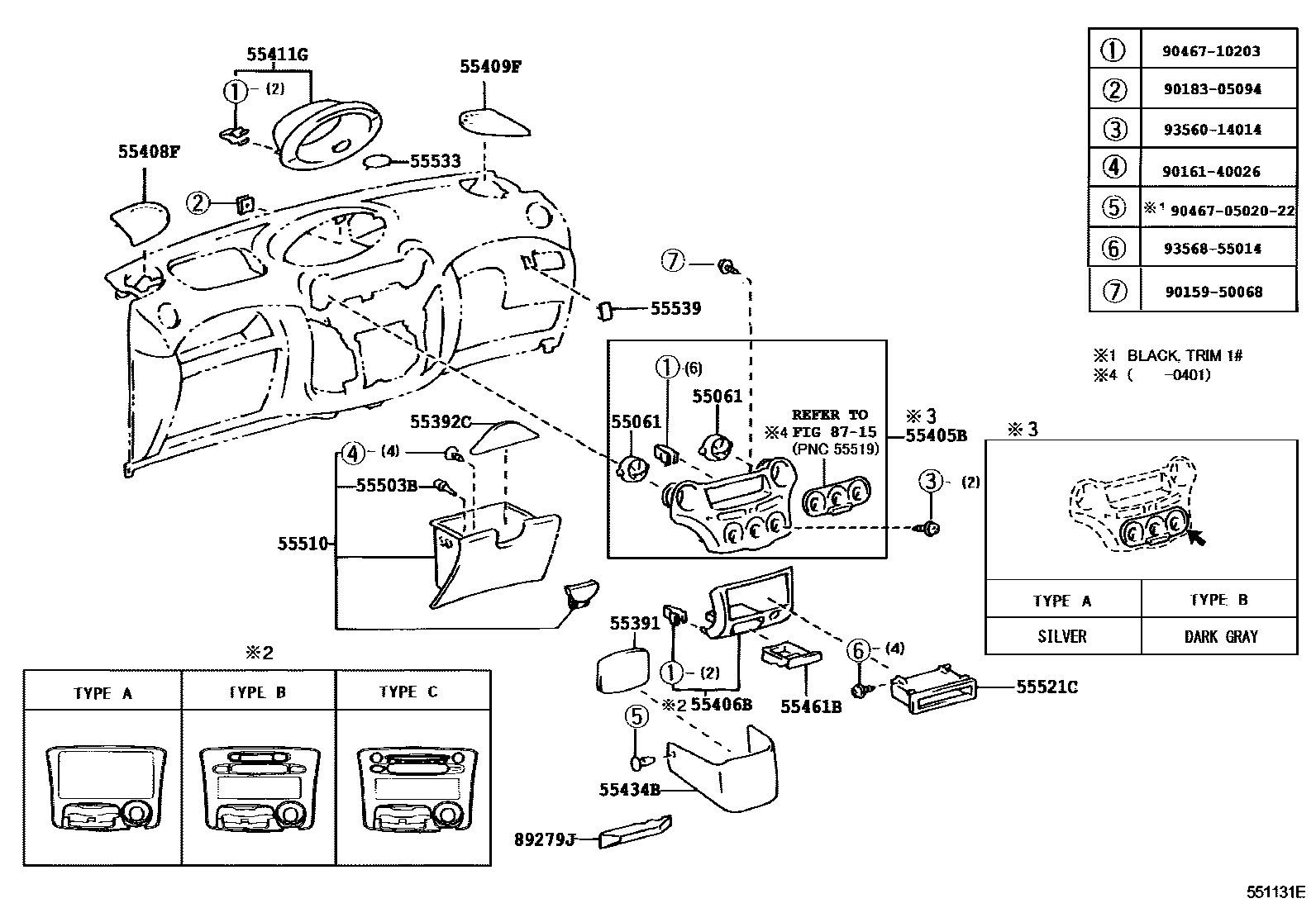

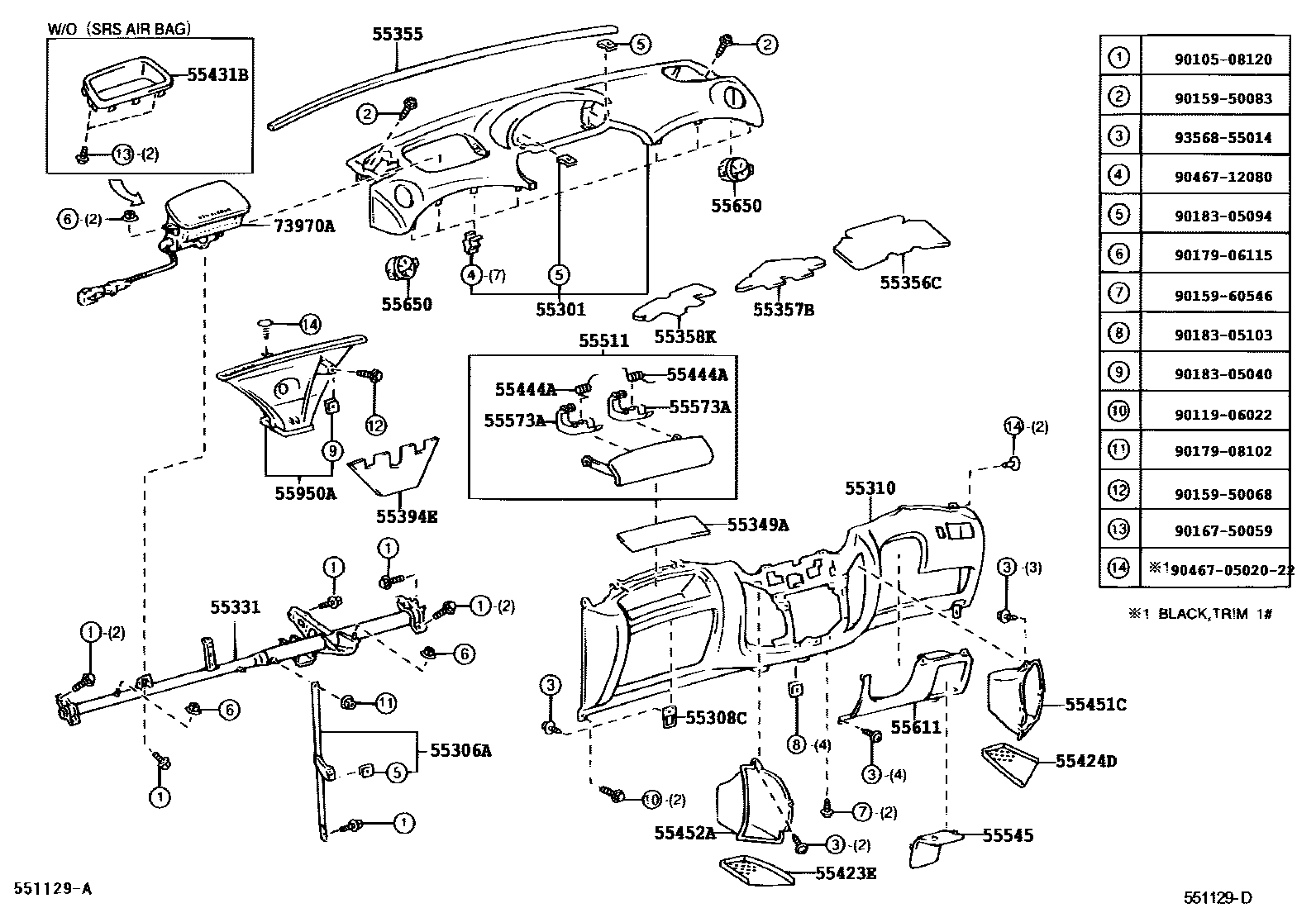

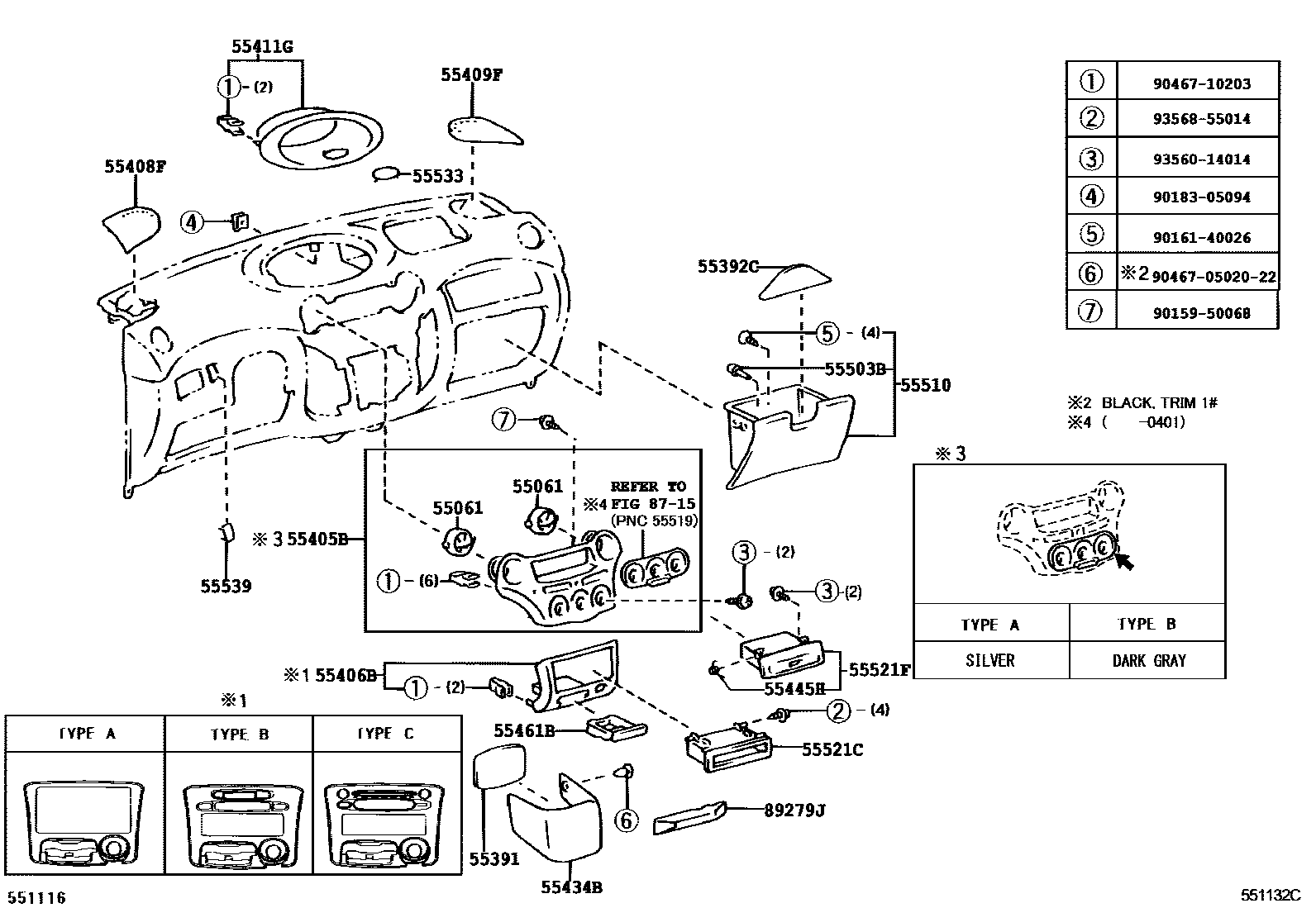

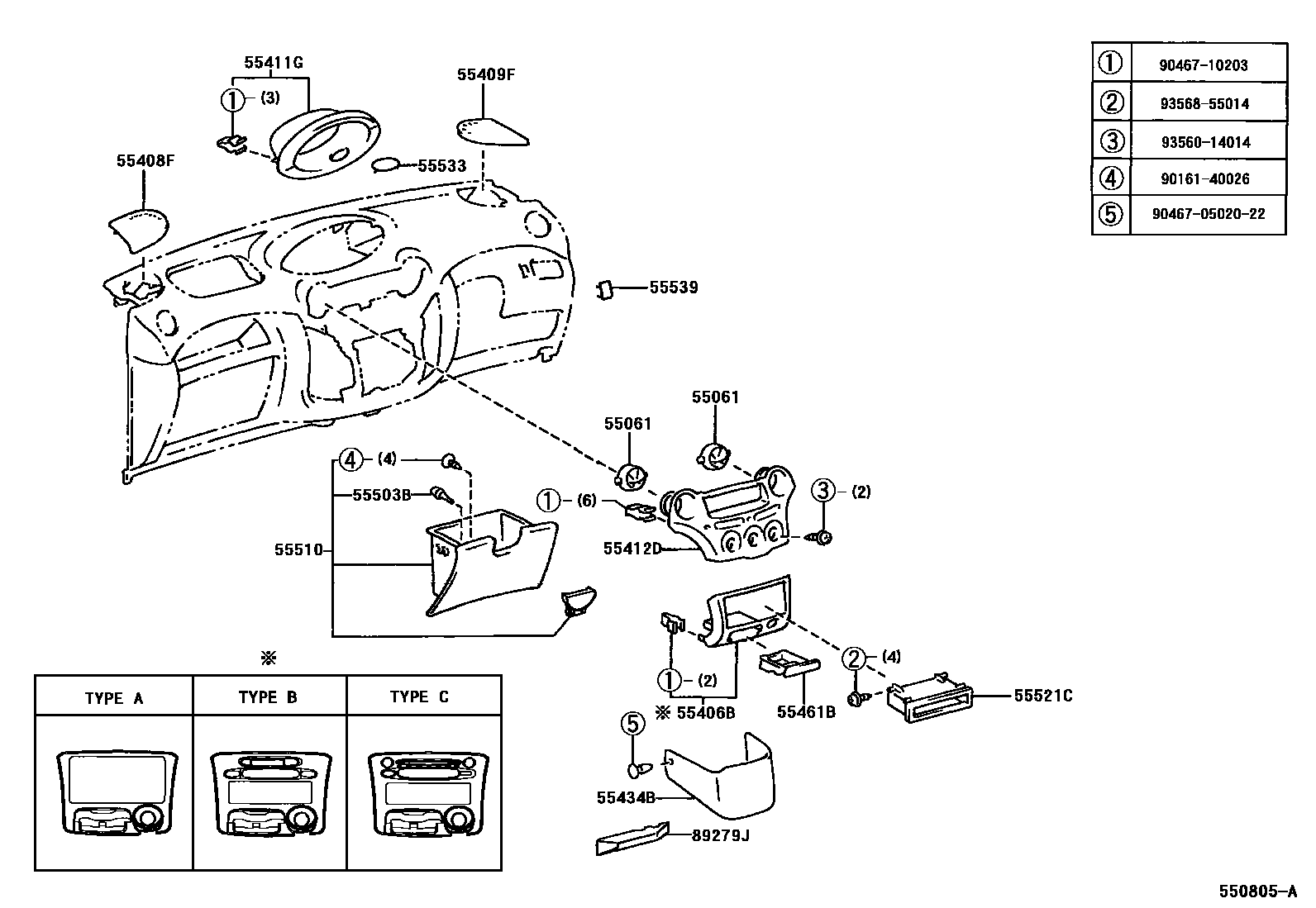

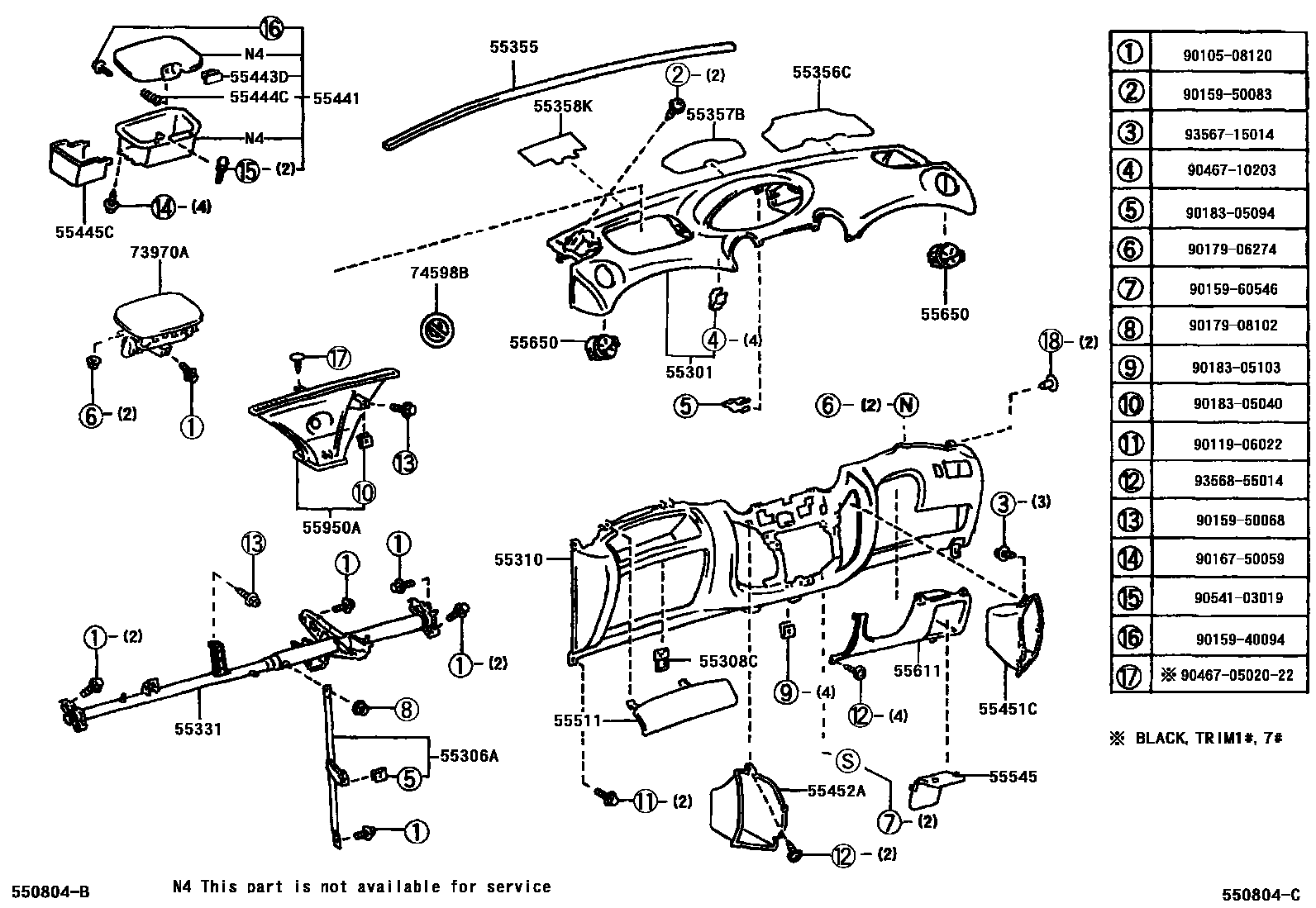

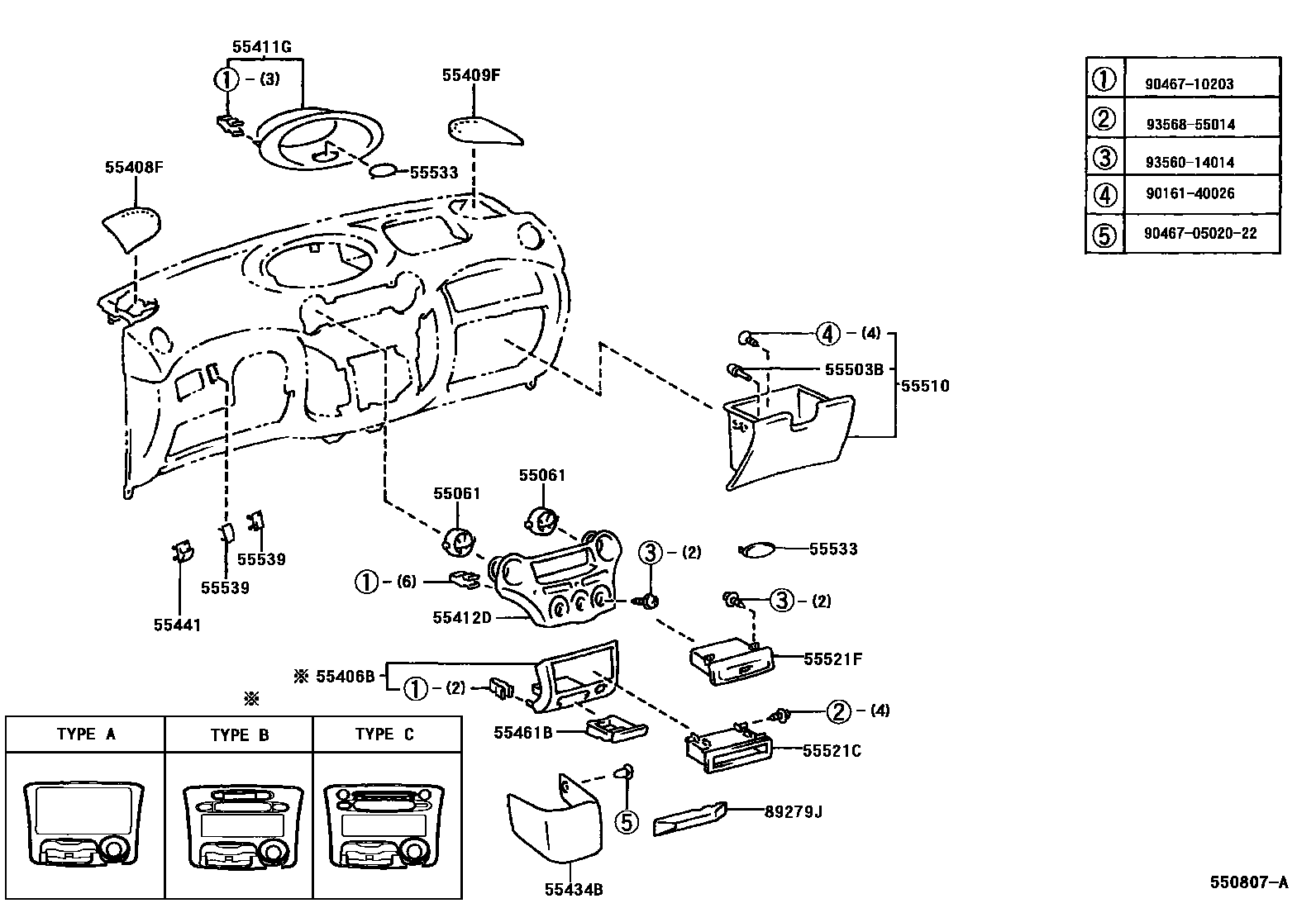

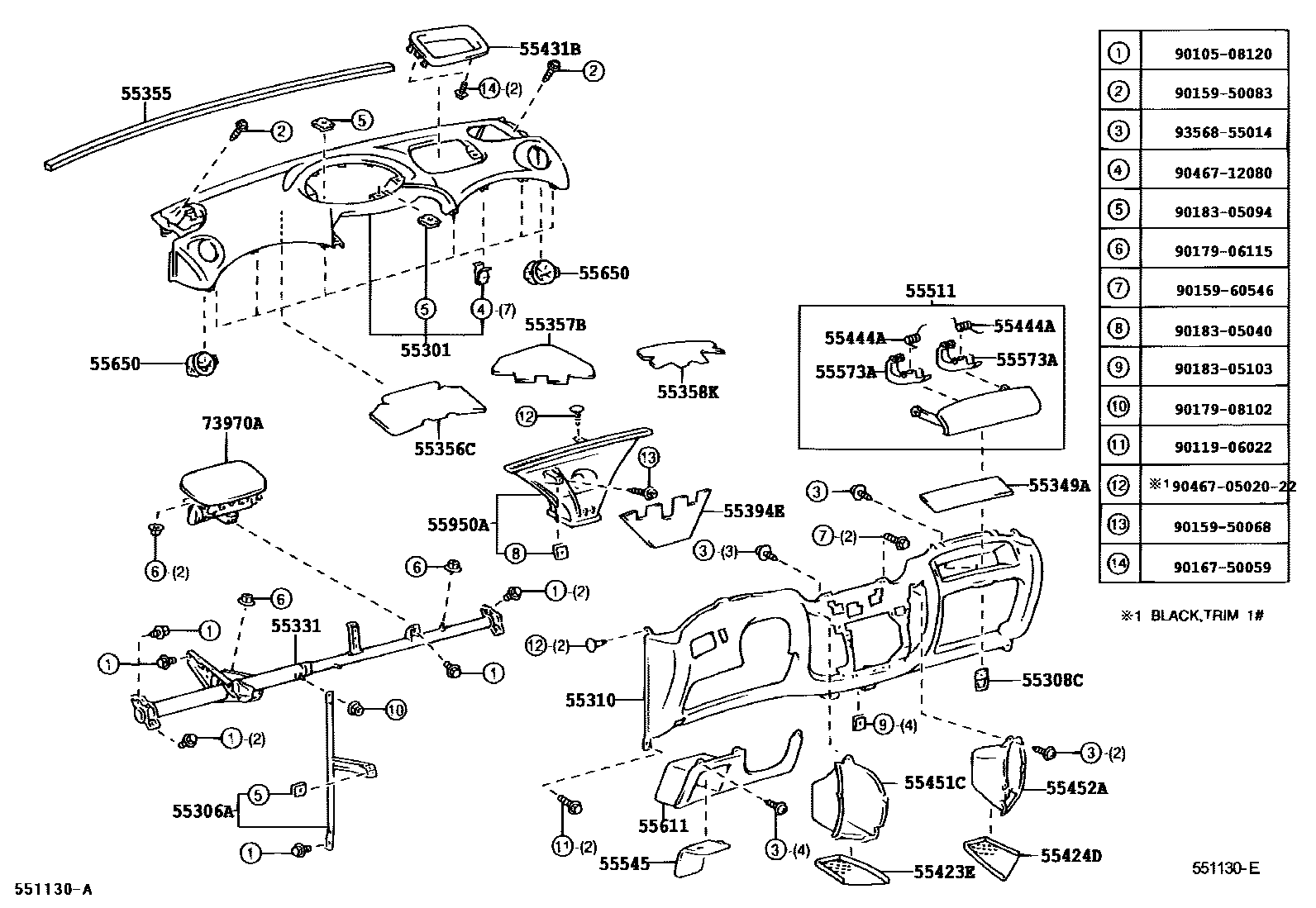

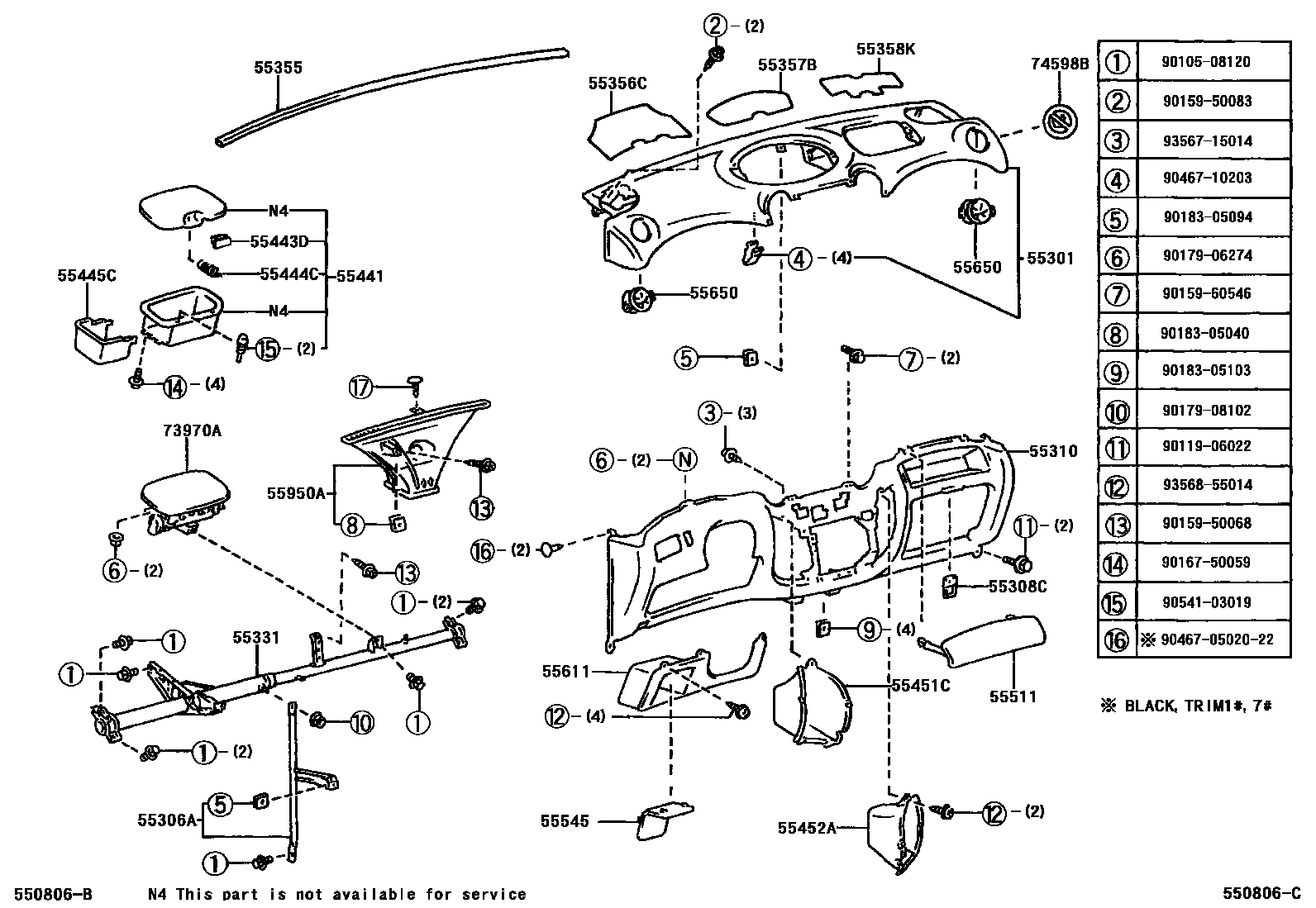

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 8 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D010 · 55306-0D020 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-52010 · 55308-52080 |
| 55331 | Dashboard reinforcement | 55330-0D010 · 55330-0D020 · 55330-0D030 · 55330-0D040 · 55330-0D150 · 55330-0D210 |
| 55349A | Dashboard cushion | 55349-0D010 · 55349-0D020 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0D030 · 55355-52012 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0D010 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0D010 · 55357-0D020 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0D010 |
| 55391 | Dashboard No. 1 lower cushion | 55391-0D010 |
| 55392C | Dashboard No. 2 lower cushion | 55392-0D010 |
| 55394E | Dashboard No. 4 lower cushion | 55979-0D010 |
| 55423E | Center instrument cluster No. 1 cushion | 55423-0D010 |
| 55424D | Center instrument cluster No. 2 cushion | 55424-0D010 |
| 55444A | Dashboard storage box spring | 55444-0D110 |
| 55444C | Dashboard storage box spring | 55444-0D010 · 55444-52080 |
| 55445H | Stereo system hole cover spring | 55445-52050 |
| 55503B | Cushion pad (for glove box) | 90541-05080 |
| 55521C | stereo system hole cover | 55521-0D010 |
| 55950A | Defroster nozzle assembly | 55950-0D010 · 55950-0D020 |
| 74598B | Passenger air bag warning label | 74598-0D020 · 74598-20010 |
| 89279J | cover | 89279-0D010 · 89279-0D020 · 89279-0D090 · 89279-0D100 |
