Toyota YARIS 发动机盖和前翼子板 — Figure 5302

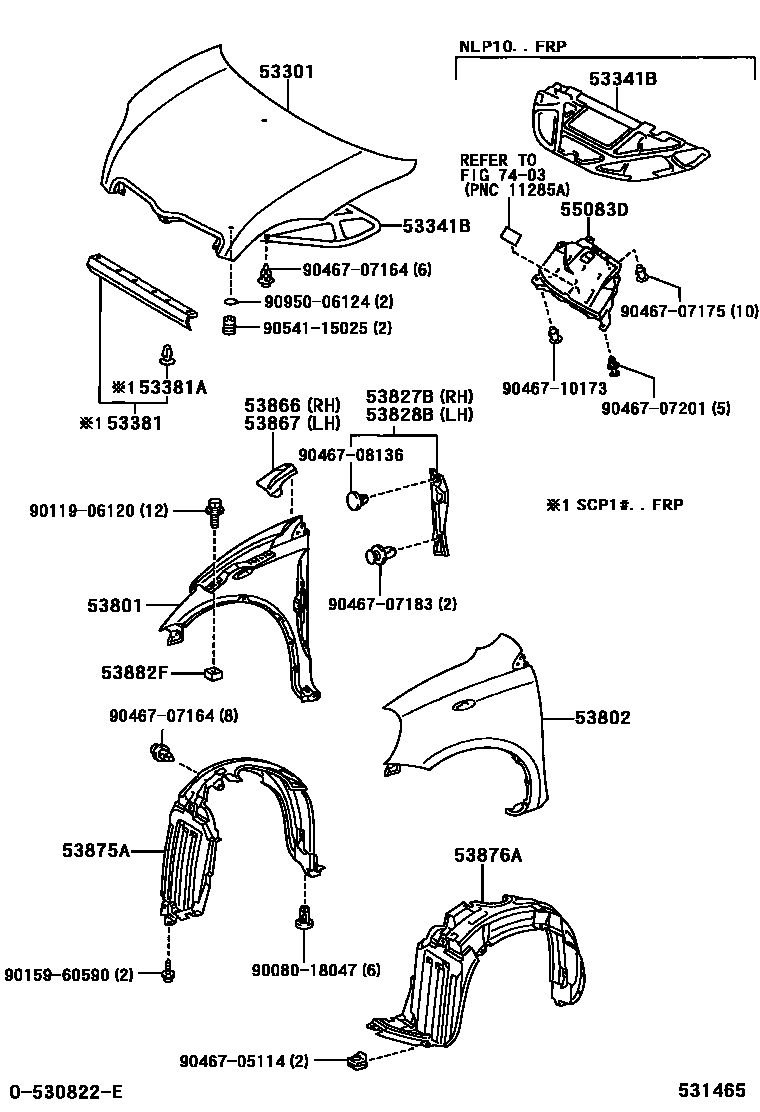

Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0D010 · 53301-0D050 |
| 53341B | engine cover gasket | 53341-0D010 · 53341-0D020 |
| 53381 | Engine cover to radiator bracket seal | 53381-0D010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-0D010 |
| 53802 | Left front fender sub-assembly | 53812-0D010 |
| 53827B | Front fender side panel protectors | 53827-0D010 |
| 53828B | Left front fender side panel protector | 53828-0D010 |
| 53866 | Right front fender to cowl side seal | 53866-52010 |
| 53867 | Left front fender to cowl side seal | 53867-52010 |
| 53875A | Right front fender lining | 53875-0D010 |
| 53876A | Left front fender lining | 53876-0D010 |
| 53882F | front fender seal | 53882-16030 |
| 55083D | Front ventilation duct sub-assembly | 55083-0D010 · 55083-0D011 |
