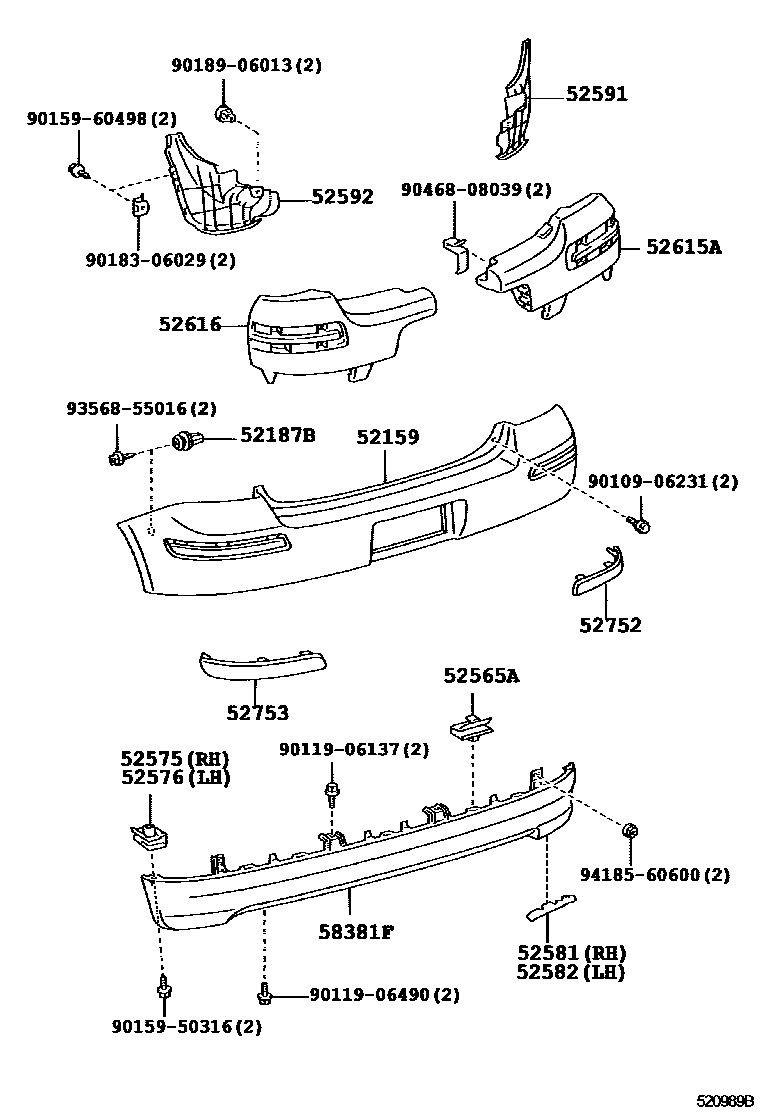

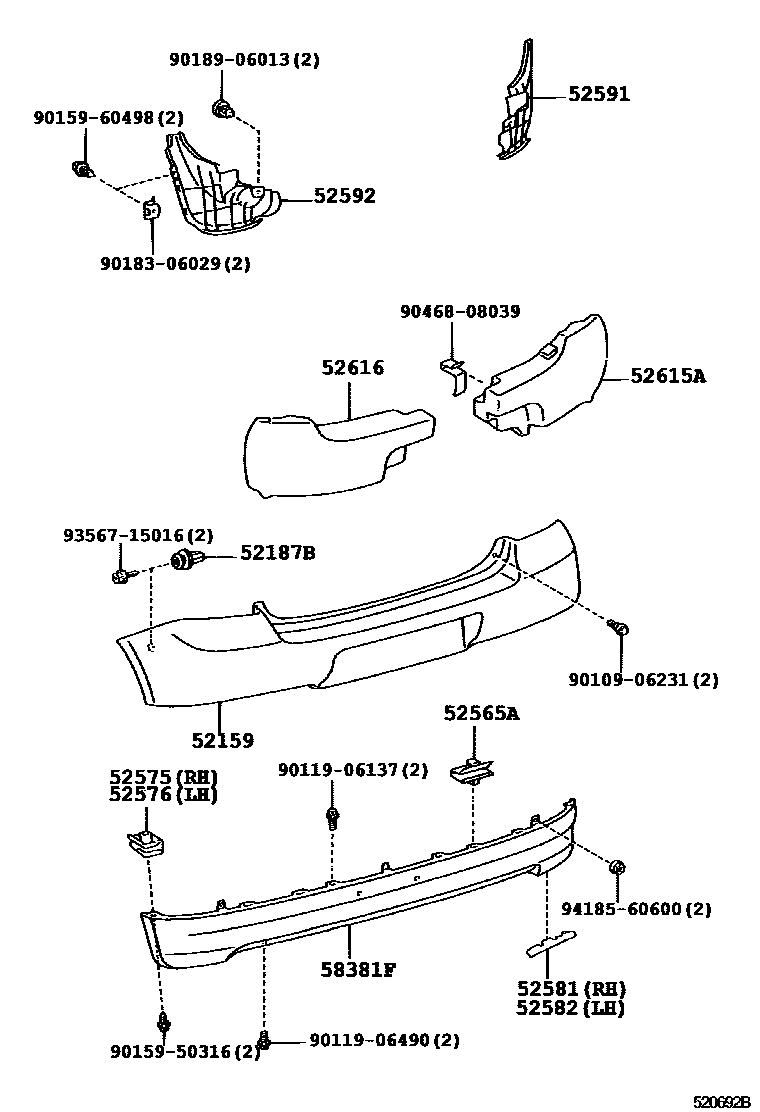

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0D010 · 52159-0D100 |
| 52187B | Rear bumper positioning guide rod | 52187-0D010 |
| 52565A | Rear bumper lower fixing bracket | 52565-52010 |
| 52575 | Rear bumper right side fixing bracket | 52575-0D010 |
| 52576 | Rear bumper left side fixing bracket | 52576-0D010 |
| 52581 | Rear bumper right side protector | 52581-0D010 · 52581-0D020 · 52581-52020 |
| 52582 | Rear bumper left protector | 52582-0D010 · 52582-0D020 · 52582-52010 |
| 52591 | Rear bumper right seal | 52591-0D060 · 52591-52010 |
| 52592 | Rear bumper left seal | 52592-0D060 · 52592-52010 |
| 52615A | Rear bumper right energy absorber | 52615-0D010 · 52615-0D020 |
| 52616 | Rear bumper left energy absorber | 52616-0D010 · 52616-0D020 |
| 52752 | Rear bumper right side protective strip | 52752-0D010 |
| 52753 | Rear bumper left protective strip | 52753-0D010 |
| 58381F | tailgate | 58381-0D010 · 58381-0D020 |
