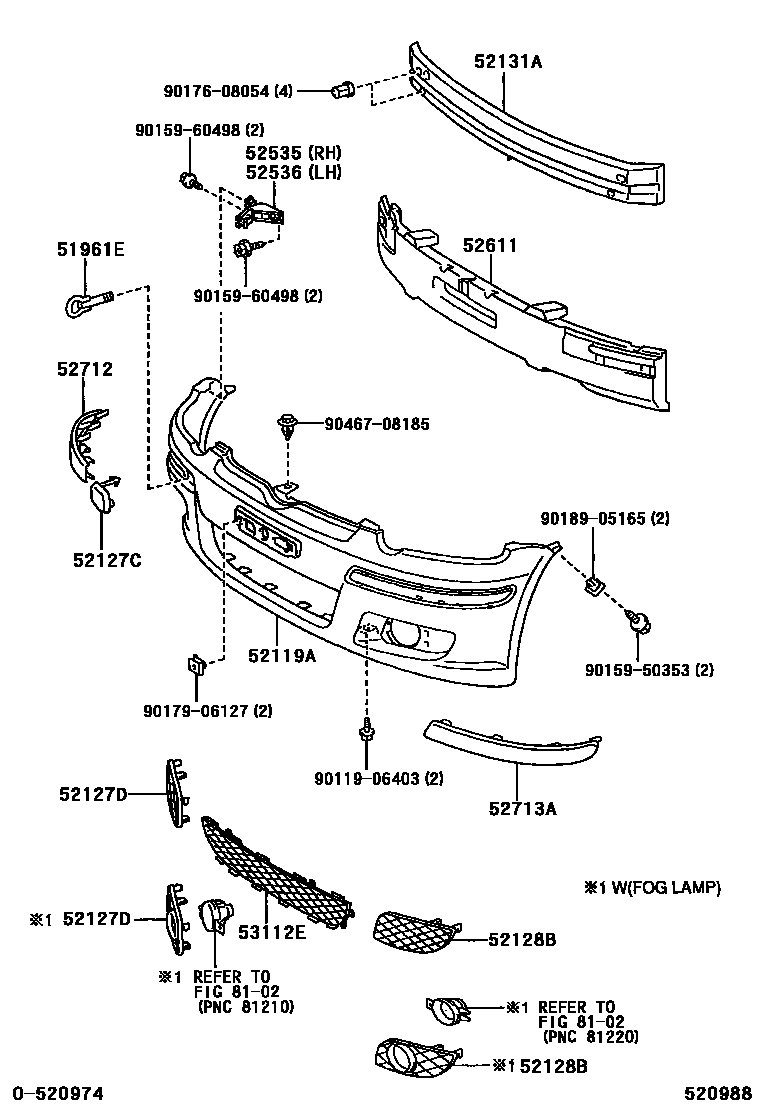

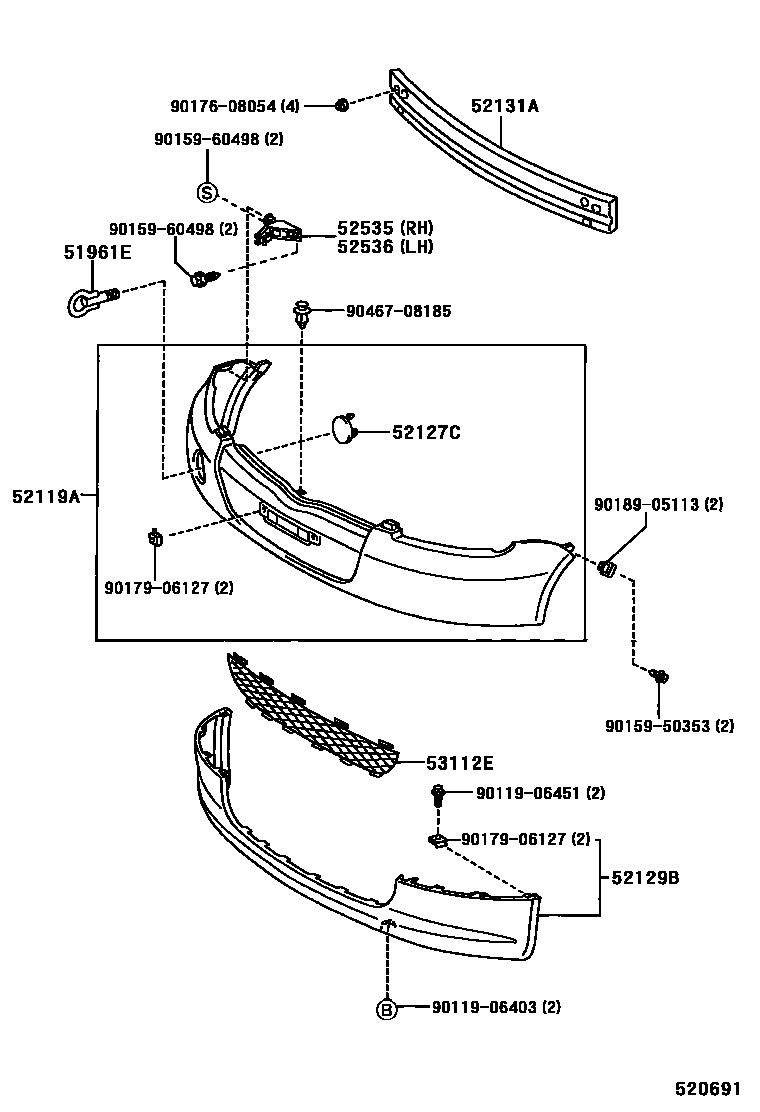

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51961E | front hook | 51960-0D010 · 51960-0D050 |
| 52119A | front bumper cover | 52119-0D090 · 52119-0D900 · 52119-0D901 |
| 52127C | Front bumper hole cover | 52127-52011 · 52721-0D010 |
| 52127D | Front bumper right hole cover | 52127-0D050 · 52127-0D060 |
| 52128B | Front bumper left hole cover | 52128-0D010 · 52128-0D020 |
| 52129B | Front bumper lower cover | 52129-0D900 |
| 52131A | Front bumper reinforcement | 52021-0D010 · 52131-52070 |
| 52535 | Front bumper right side fixing bracket | 52535-0D010 |
| 52536 | Front bumper left fixed bracket | 52536-0D010 |
| 52611 | front bumper energy absorber | 52611-0D010 |
| 52712 | Front bumper right side protective strip | 52712-0D010 |
| 52713A | Front bumper left protective strip | 52713-0D010 |
| 53112E | No. 1 radiator lower grille | 53112-0D010 · 53112-0D020 · 53112-52120 |
