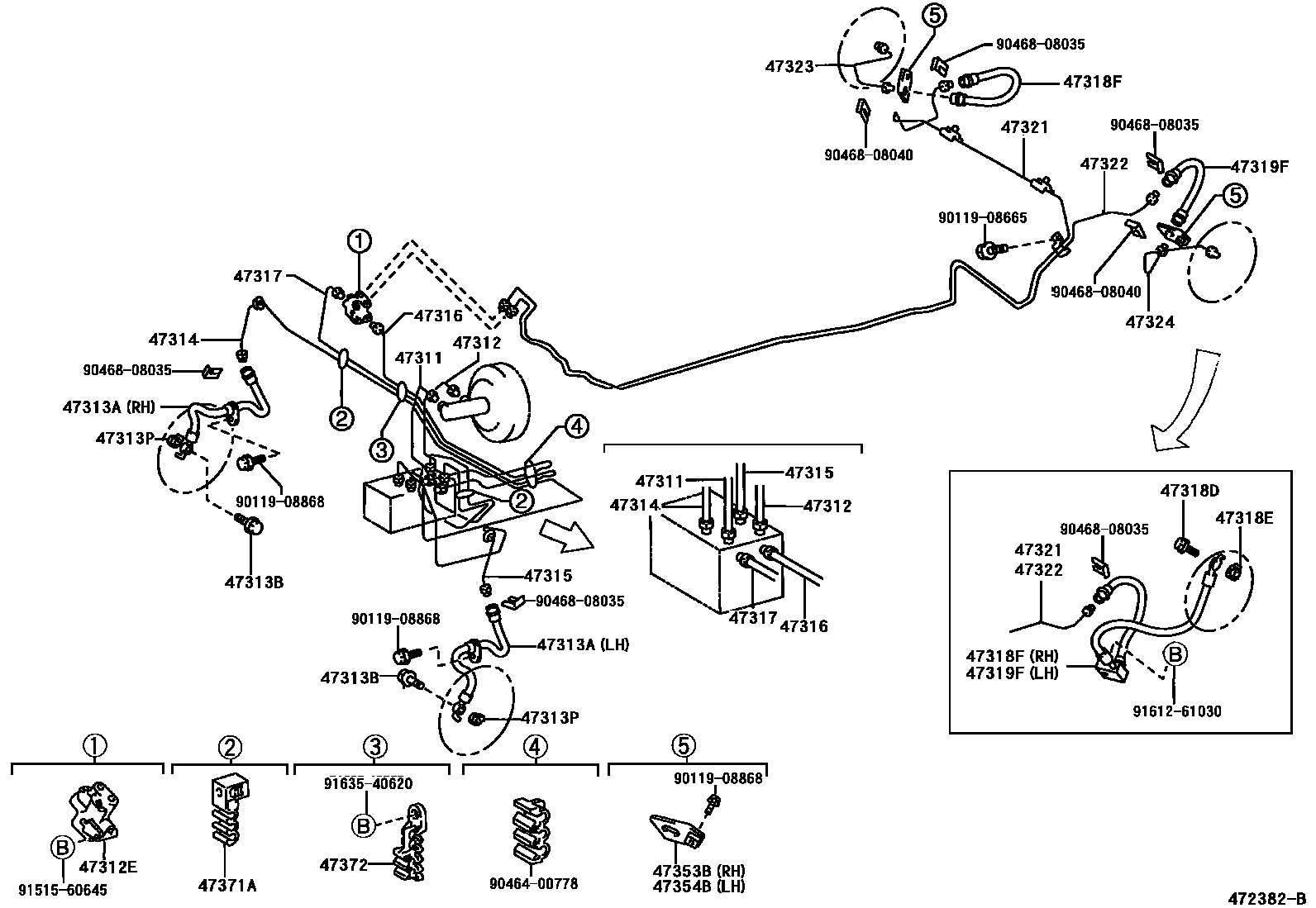

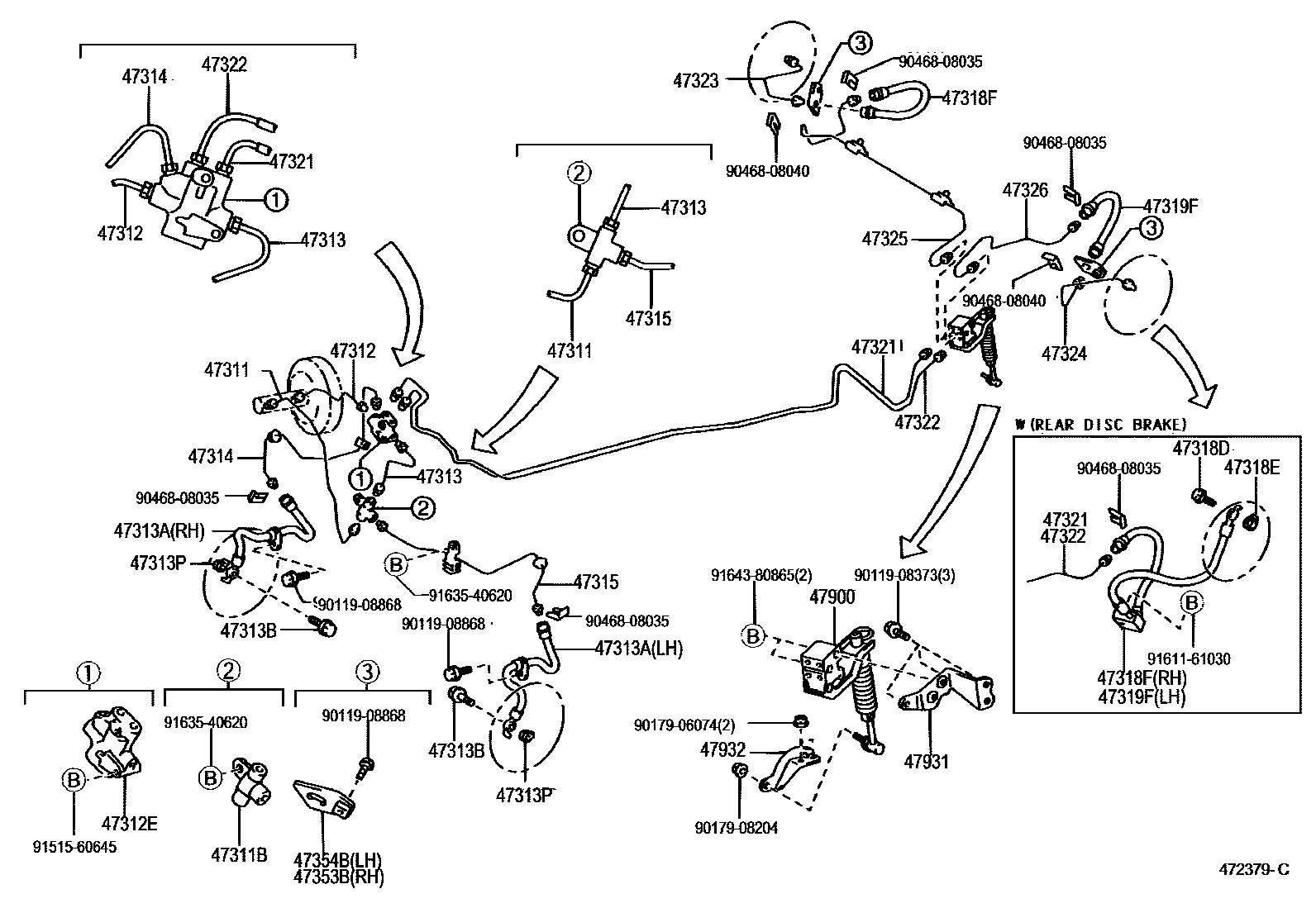

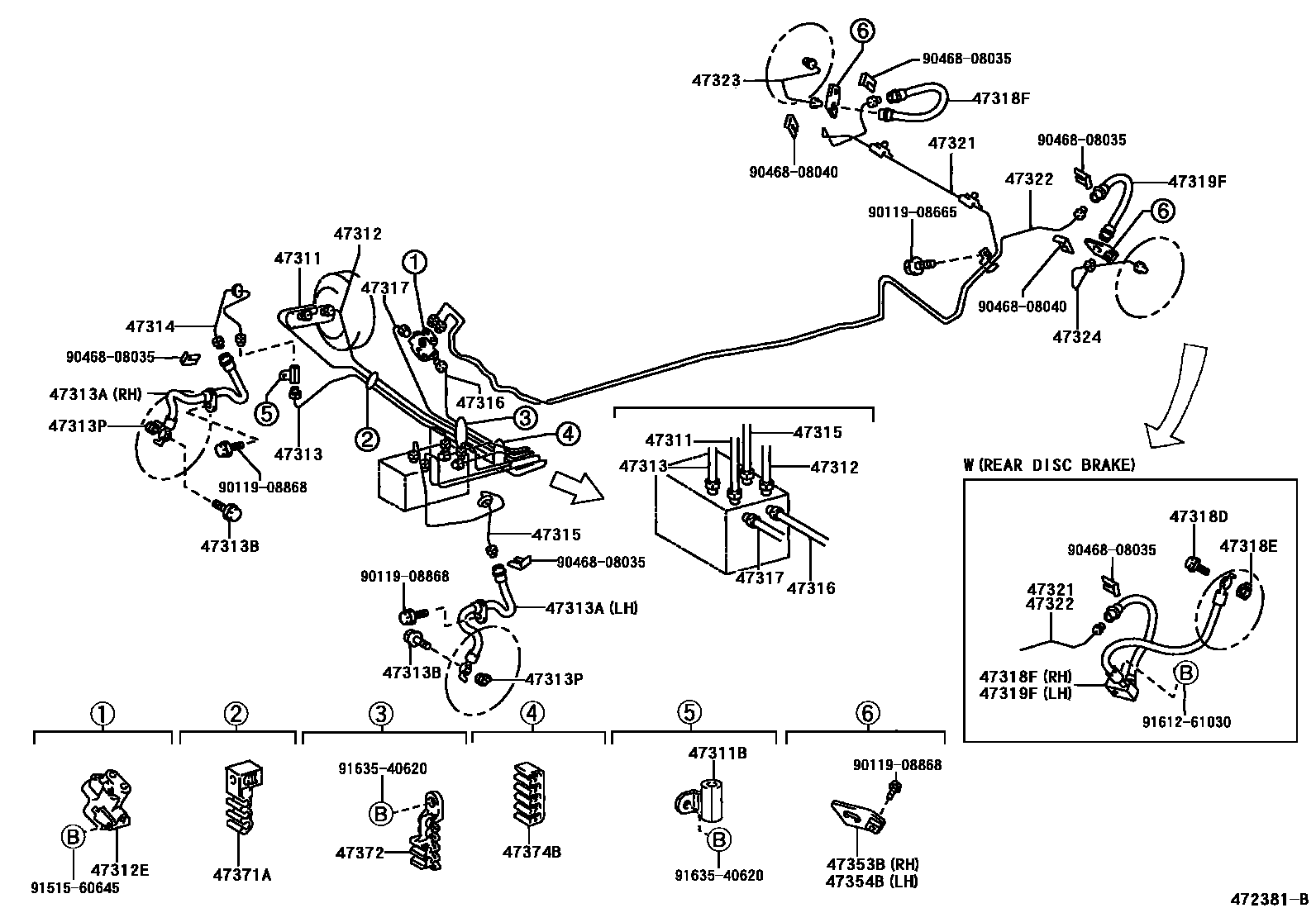

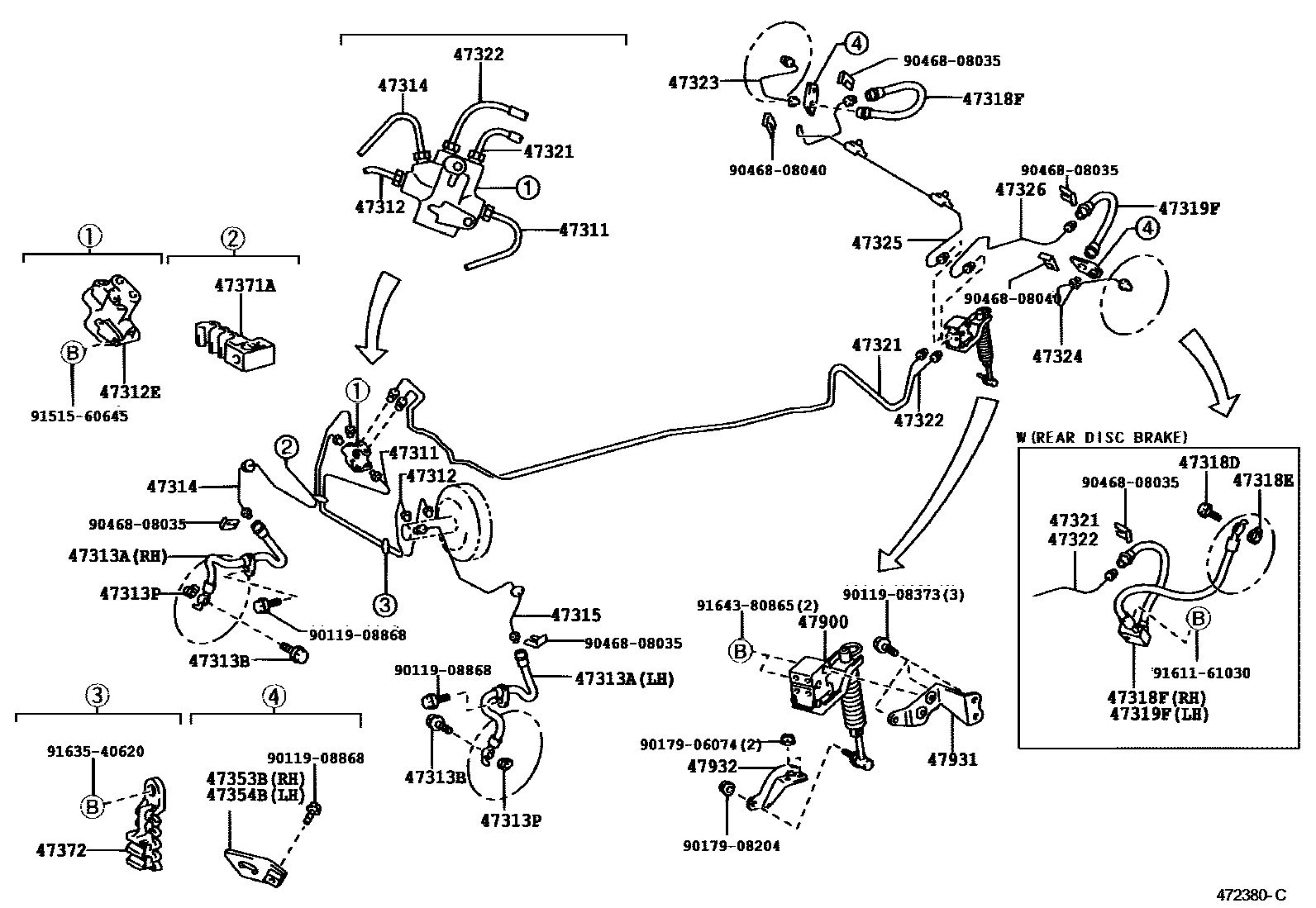

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

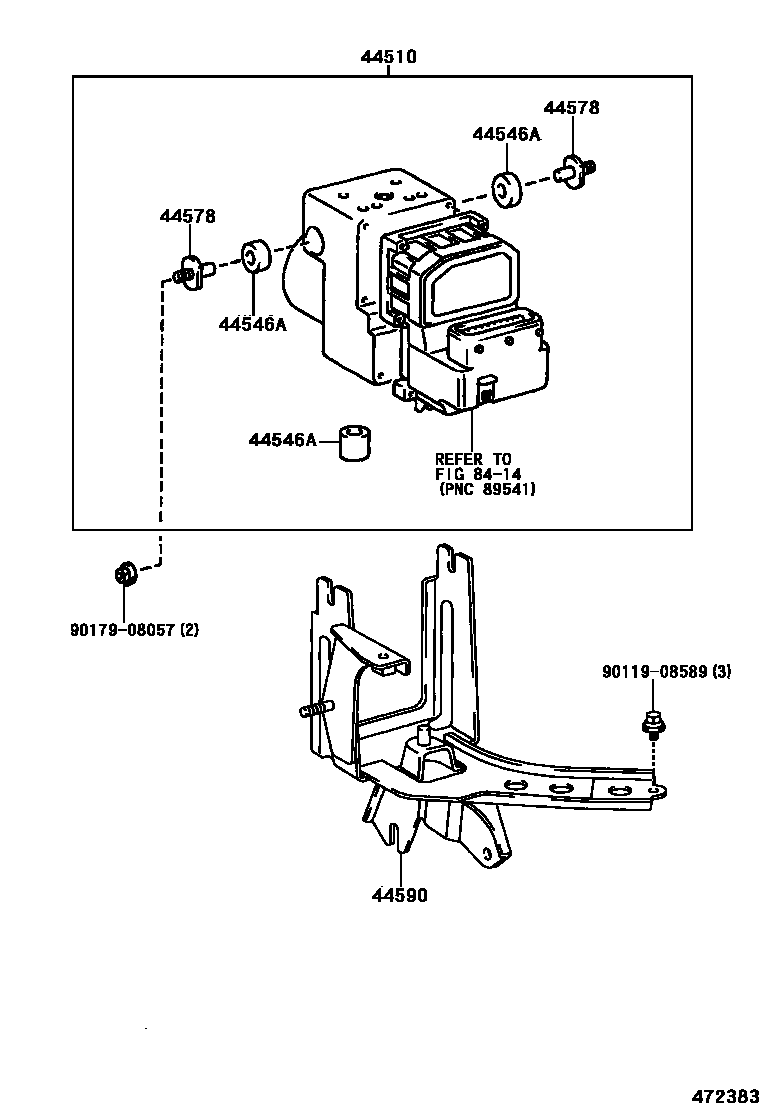

| 44510 | brake actuator assembly | 44050-0D010 · 44050-0D011 · 44050-0D012 |
| 44546A | Brake actuator bolt cushion | 44546-05020 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-52040 |
| 47311 | No. 1 front brake pipe | 47311-0D010 · 47311-0D021 · 47311-0D030 · 47311-0D041 · 47311-0D110 · 47311-0D120 · 47311-0D140 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10713 · 90413-10786 |
| 47312 | No. 2 front brake pipe | 47312-0D010 · 47312-0D020 · 47312-0D031 · 47312-0D110 · 47312-52111 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90413-10294 · 90904-12082 |
| 47313 | No. 3 front brake pipe | 47313-0D011 · 47313-0D050 · 47313-52051 |
| 47313A | No. 1 front flexible hose | 90080-94203 · 90080-94204 · 90947-02A45 · 90947-02A46 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-0D011 · 47314-0D020 · 47314-0D031 · 47314-0D100 · 47314-0D120 · 47314-52051 |
| 47315 | No. 5 front brake pipe | 47315-0D010 · 47315-0D021 · 47315-0D031 |
| 47316 | No. 6 front brake pipe | 47316-0D011 · 47316-0D020 · 47316-0D060 |
| 47317 | No. 7 front brake pipe | 47317-0D011 · 47317-0D020 · 47317-0D060 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90080-94205 · 90947-02A47 · 90947-02C81 |
| 47319F | Left rear flexible hose | 90080-94205 · 90947-02A47 · 90947-02C82 |
| 47321 | No. 1 rear brake pipe | 47321-0D012 · 47321-0D021 · 47321-0D110 |
| 47322 | No. 2 rear brake pipe | 47322-0D012 · 47322-0D021 · 47322-0D030 |
| 47323 | No. 3 rear brake pipe | 47323-0D060 · 47323-52042 · 47323-52050 |
| 47324 | No. 4 rear brake pipe | 47324-0D050 · 47324-52042 · 47324-52050 |
| 47325 | No. 5 rear brake pipe | 47325-0D012 |
| 47326 | No. 6 rear brake pipe | 47326-0D012 |
| 47353B | No. 3 Flexible Hose Bracket | 47353-52010 |
| 47354B | No. 4 Flexible Hose Bracket | 47354-52010 |
| 47371A | No. 1 brake pipe clamp | 47371-52010 |
| 47372 | No. 2 brake pipe clamp | 47372-52010 |
| 47374B | No. 4 brake pipe clamp | 90949-01A18 |
| 47900 | Load sensing valve assembly with spring | 47900-0D010 · 47900-0D020 |
| 47931 | Load sensing valve bracket | 47931-52020 |
| 47932 | No. 2 load sensing valve bracket | 47932-52020 |
