Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705

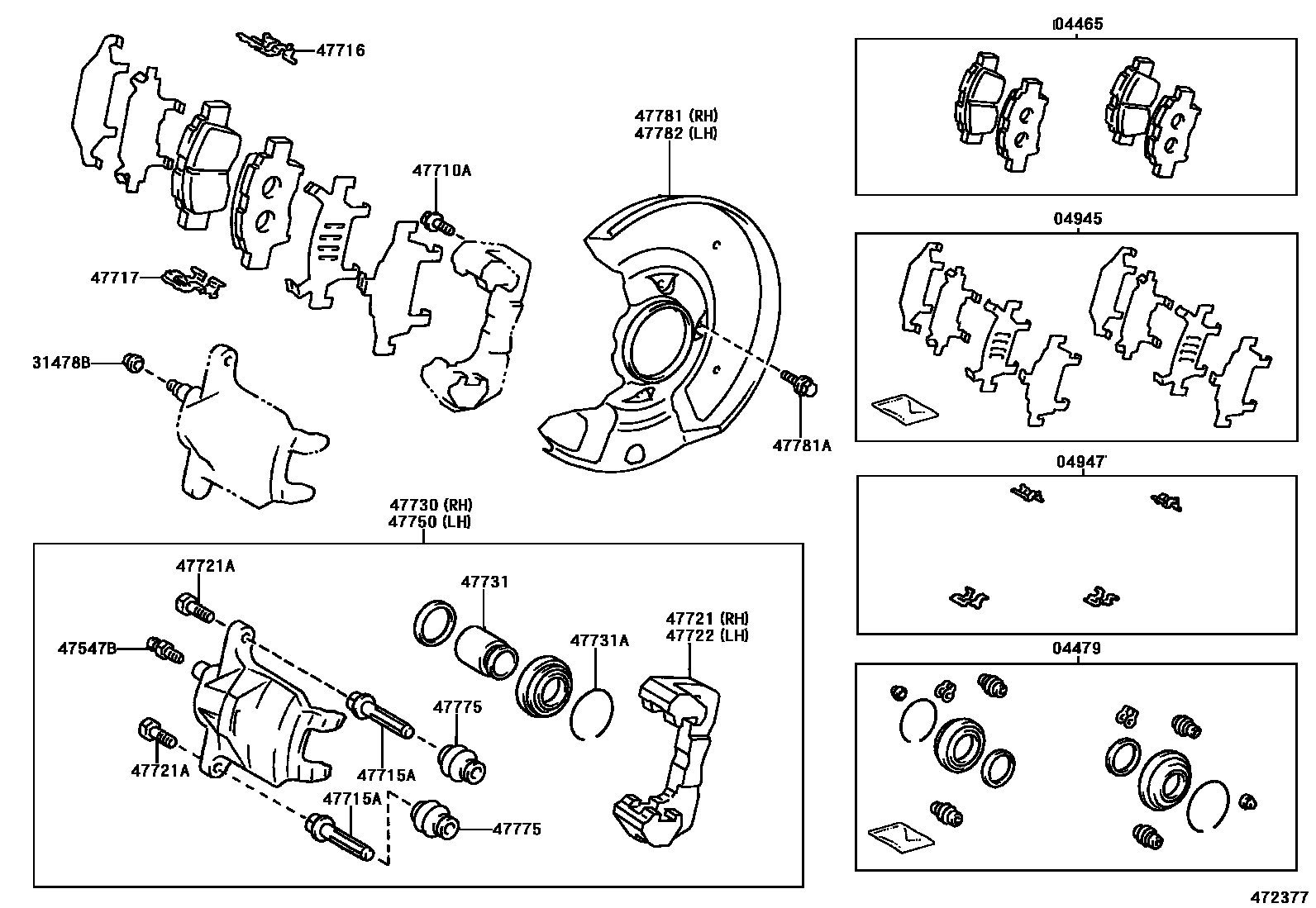

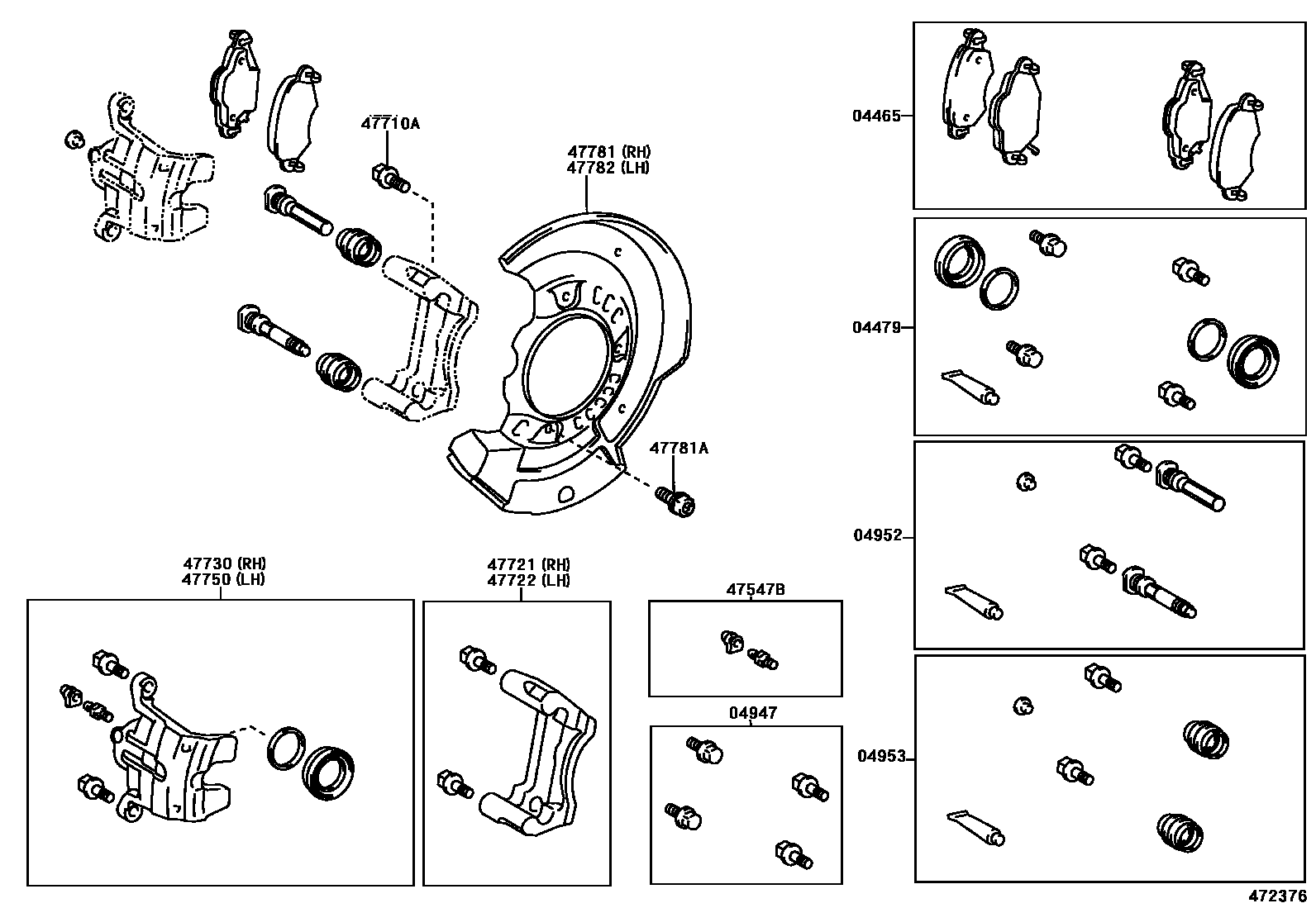

Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-0D040 · 04465-17100 · 04465-17140 |
| 04479 | Front disc brake cylinder assembly | 04479-0D010 · 04479-52020 |
| 04945 | Front silencer gasket assembly | 04945-20210 |
| 04947 | Front disc brake mounting kit | 04947-0D010 · 04947-52010 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-0D010 |
| 04953 | Front disc brake cylinder sliding pin dust boot assembly | 04953-0D010 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-09010 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12314 |
| 47715A | Front disc brake cylinder sliding pin | 47715-52010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-52020 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-52020 |
| 47721 | Right front disc brake cylinder retainer | 47721-09040 · 47721-52020 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47722-09010 · 47722-52020 |
| 47730 | Right front disc brake cylinder assembly | 47730-09020 · 47730-52020 |
| 47731 | Front disc brake piston | 47731-52010 |
| 47731A | retaining ring (for front disc brake piston) | 90522-64003 |
| 47750 | Left disc brake cylinder assembly | 47750-09020 · 47750-52020 |
| 47775 | Bushing boot (for front disc brake) | 47775-52010 |
| 47781 | Right front disc brake dust cover | 47781-0D010 · 47781-52020 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-0D010 · 47782-52020 |
