Toyota YARIS Brake Pedal & Bracket — Figure 4701

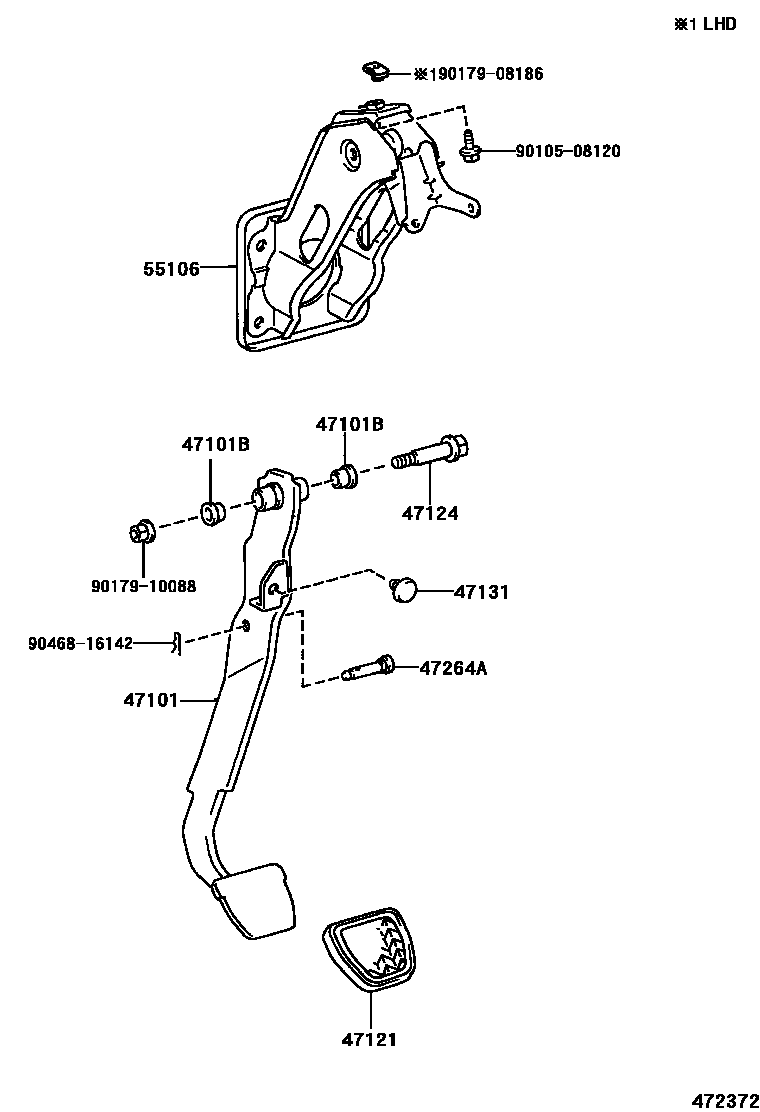

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-0D010 · 47101-0D020 · 47101-52010 · 47101-52020 · 47101-52190 · 47101-52200 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-52010 · 47121-52010 |
| 47124 | brake pedal shaft | 90109-10167 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 90249-08295 · 90249-08297 |
| 55106 | Brake pedal bracket sub-assembly | 55106-0D010 · 55106-52012 · 55106-52150 |
