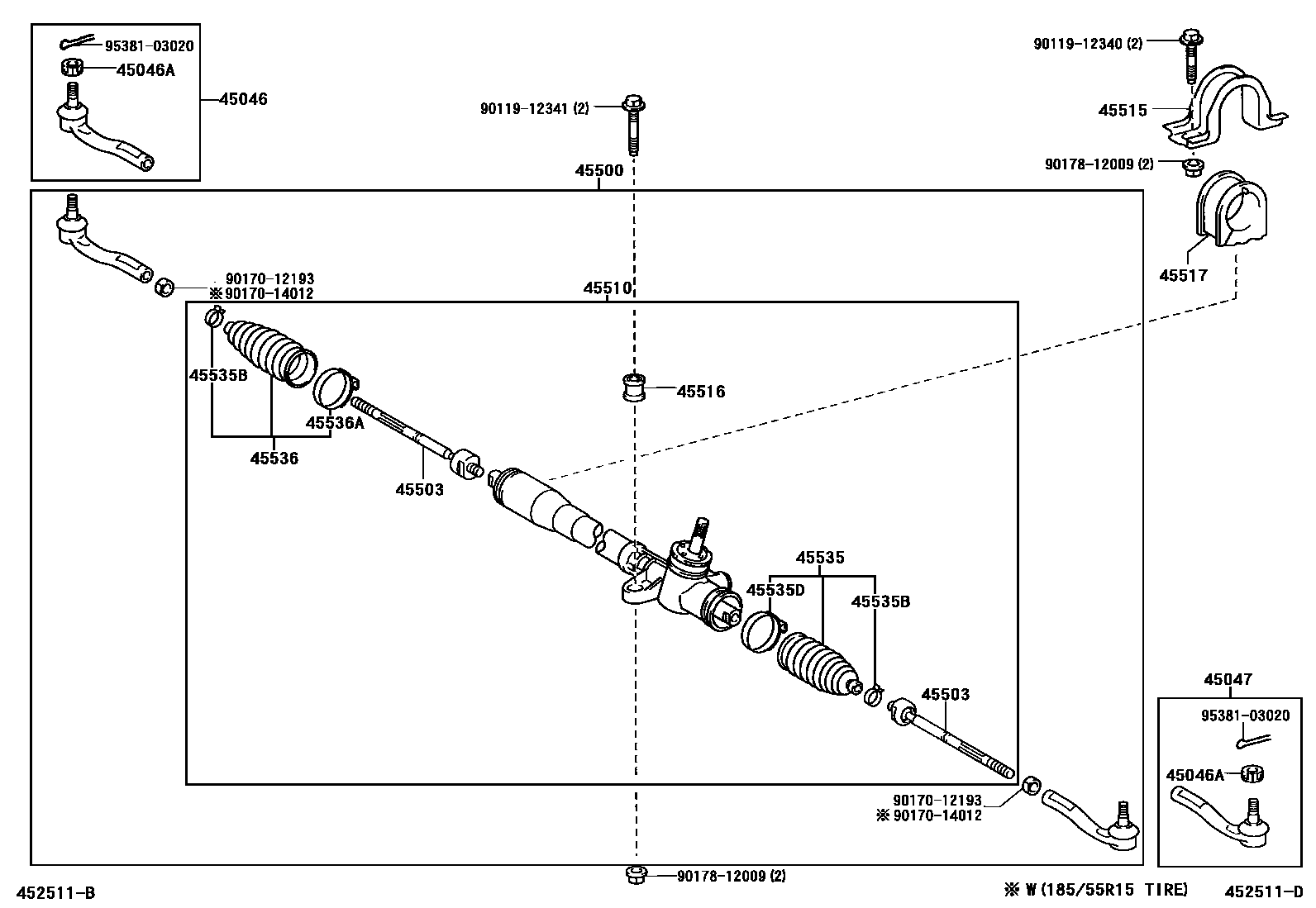

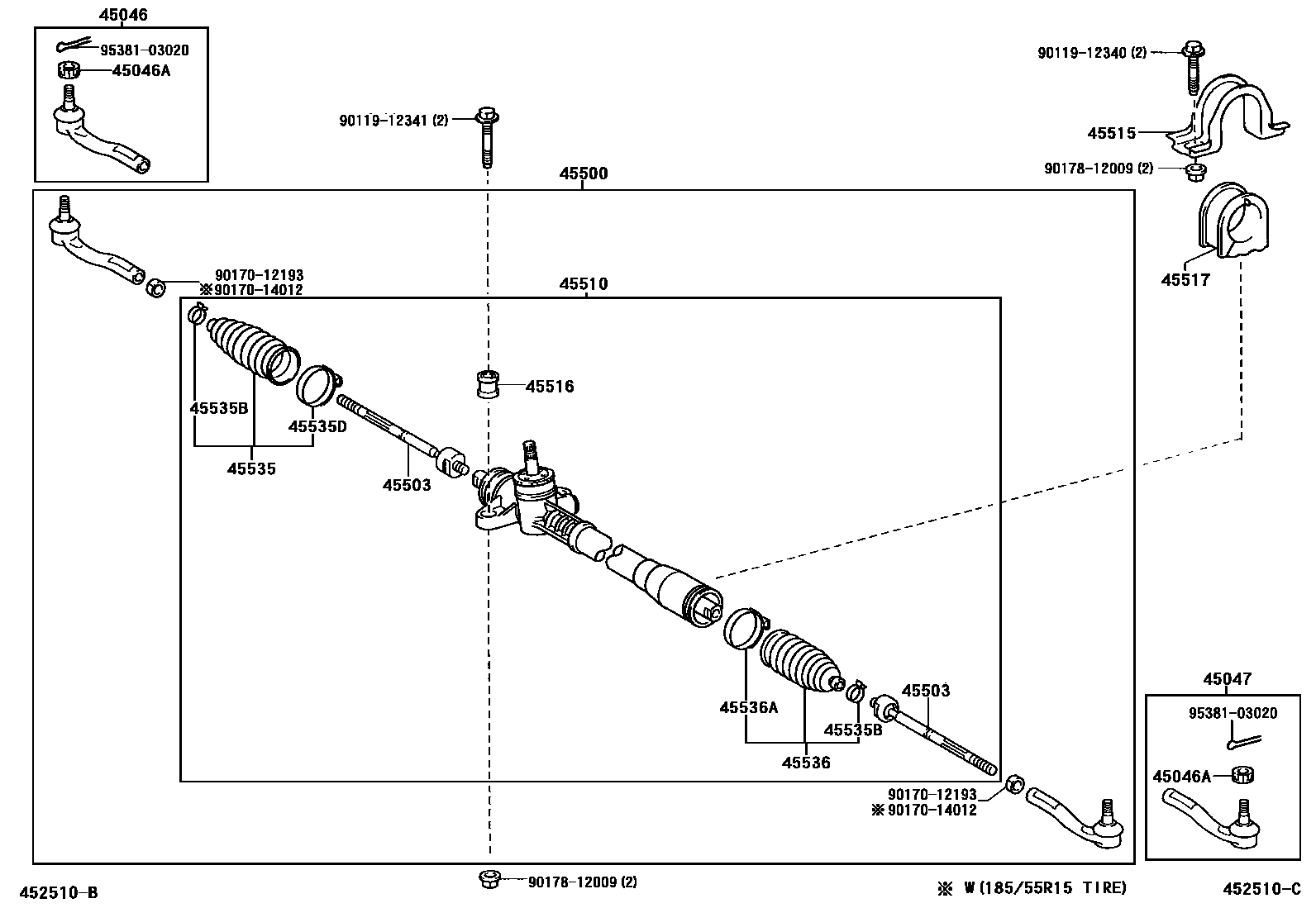

Toyota YARIS 前转向齿轮和连杆 — Figure 4505
Toyota YARIS EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09470 · 45046-59026 · 45046-59045 · 45046-59065 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-59065 · 45047-09210 · 45047-59026 · 45047-59035 |
| 45500 | steering tie rod assembly | 45500-0D010 · 45500-0D020 · 45500-0D030 · 45500-0D040 |
| 45503 | Steering rack end sub-assembly | 45503-0D030 · 45503-52030 · 45503-59045 |
| 45510 | Steering gear assembly | 45510-0D010 · 45510-0D011 · 45510-0D020 · 45510-0D021 · 45510-0D030 · 45510-0D031 · 45510-0D040 · 45510-0D041 · 45510-0D060 · 45510-0D070 |
| 45515 | No. 2 steering rack housing bracket | 45515-52010 |
| 45516 | No. 1 steering rack housing seal | 45516-0D010 · 45516-0D040 |
| 45517 | No. 2 steering rack housing seal | 45517-0D010 · 45517-0D020 |
| 45535 | No. 1 steering rack dust cover | 45535-09010 · 45535-09070 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D010 · 45537-0D020 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0D010 |
| 45536 | No. 2 steering rack dust cover | 45535-09010 · 45535-09070 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0D010 |
