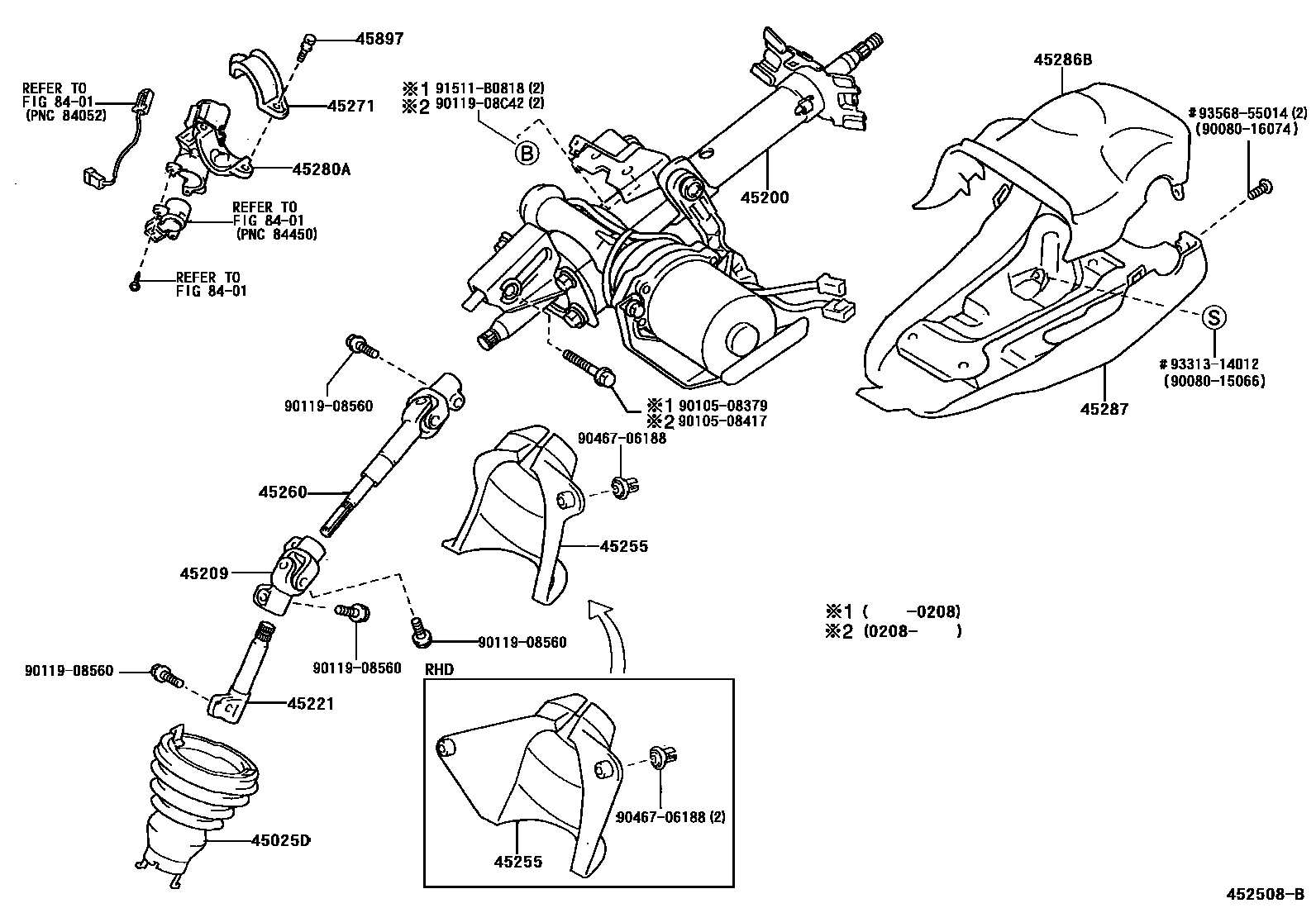

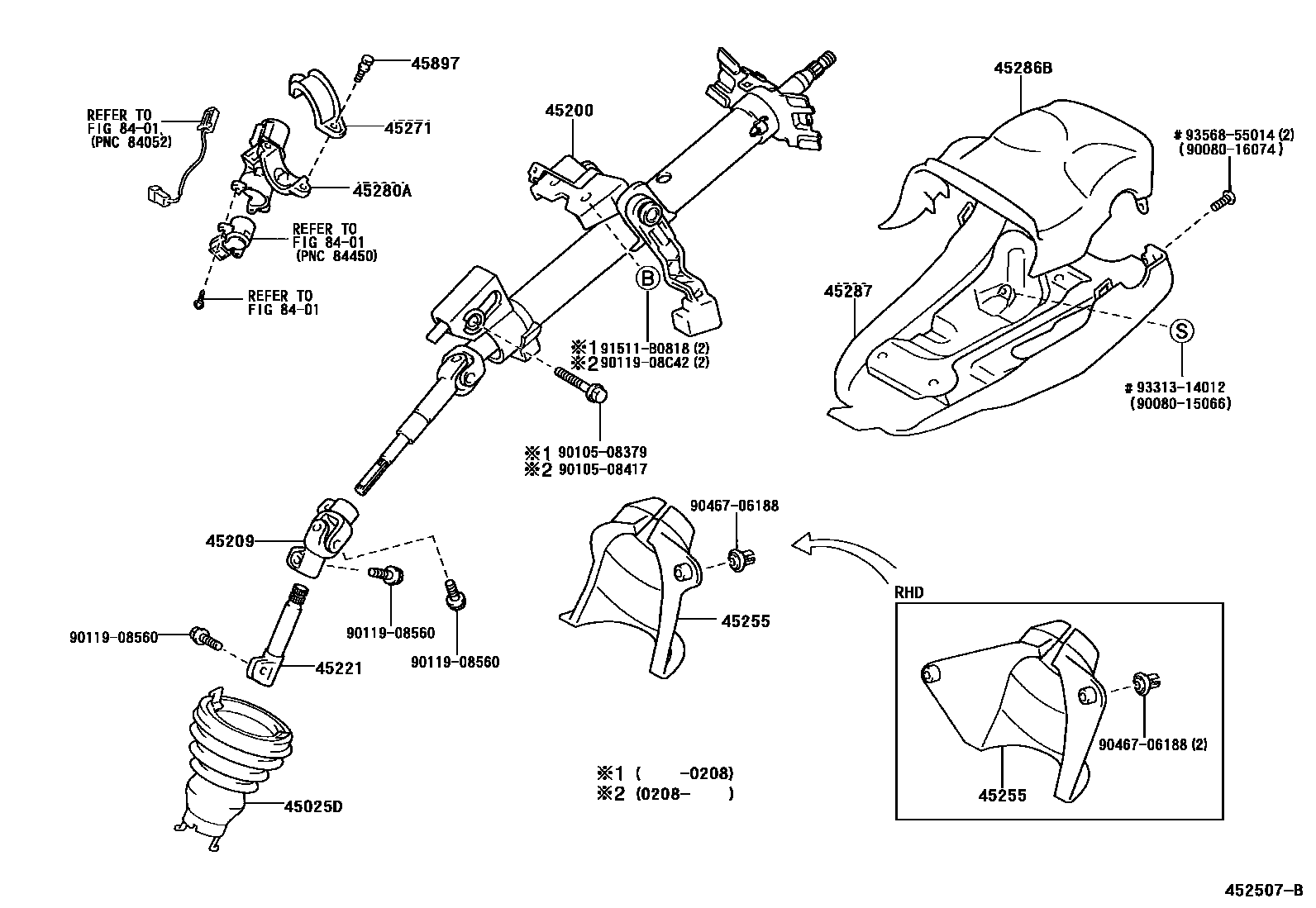

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-52020 · 45025-52040 |
| 45200 | Steering column assembly | 45200-0D010 · 45200-0D020 · 45200-0D060 · 45200-0D061 · 45200-0D062 · 45200-0D070 · 45200-0D071 · 45200-0D072 |
| 45209 | Steering slip fork sub-assembly | 45209-0D010 |
| 45221 | steering intermediate shaft | 45297-0D010 |
| 45255 | Steering column hole cover | 45255-52010 · 45255-52020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-0D030 · 45260-0D040 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45280A | Steering column upper bracket assembly | 45280-0D010 · 45280-0D020 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
