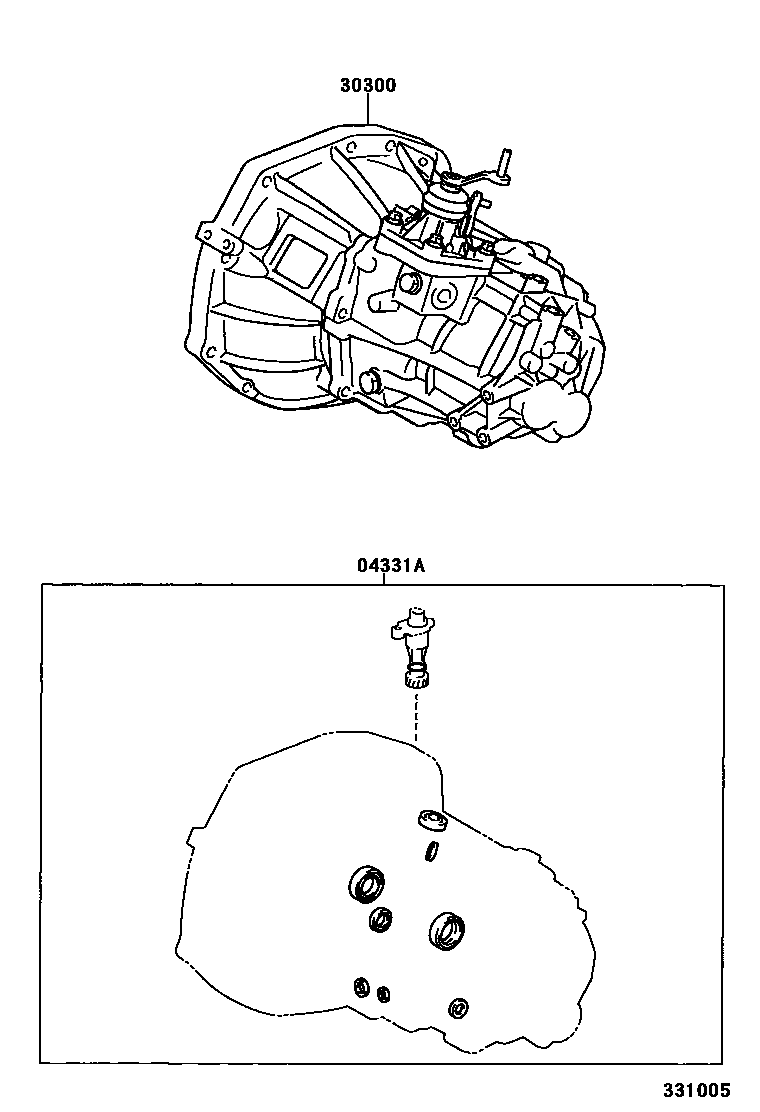

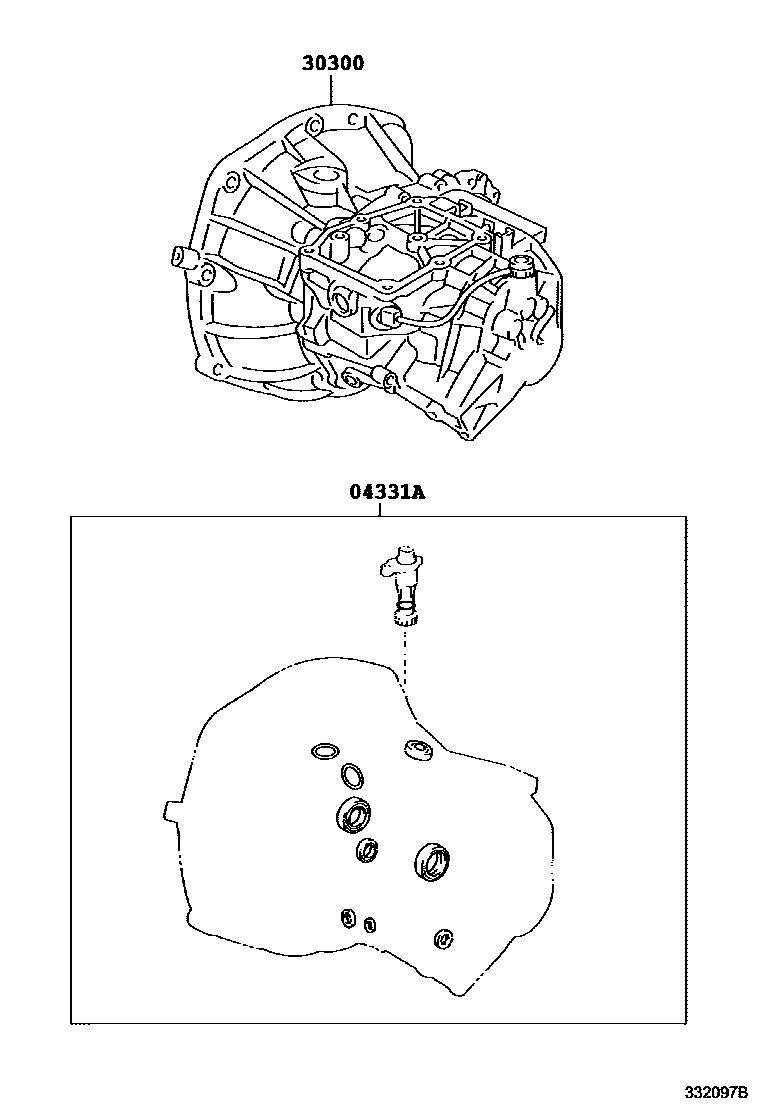

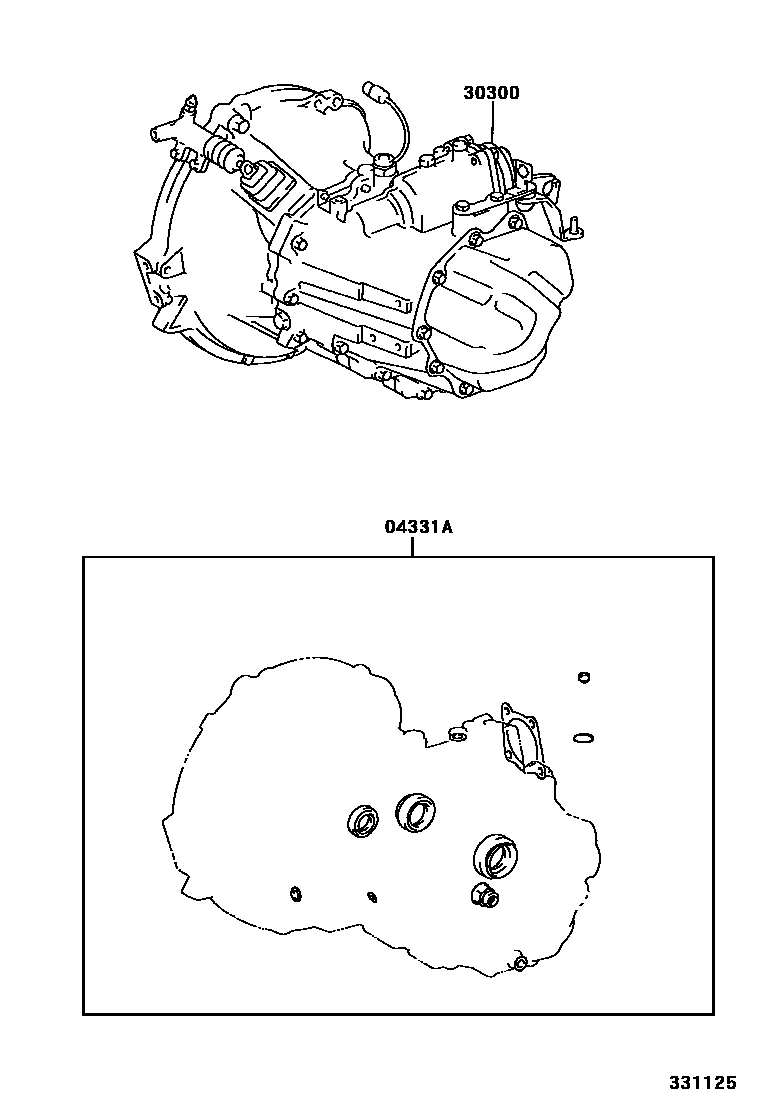

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-0D010 · 04331-0D020 · 04331-0D060 · 04331-52010 · 04331-52020 · 04331-52040 · 04331-52070 · 04331-52290 · 04331-52300 |
| 30300 | Manual transmission axle assembly | 30300-0D020 · 30300-0D030 · 30300-0D040 · 30300-52190 · 30300-52191 · 30300-52310 · 30300-52320 · 30340-52010 |
