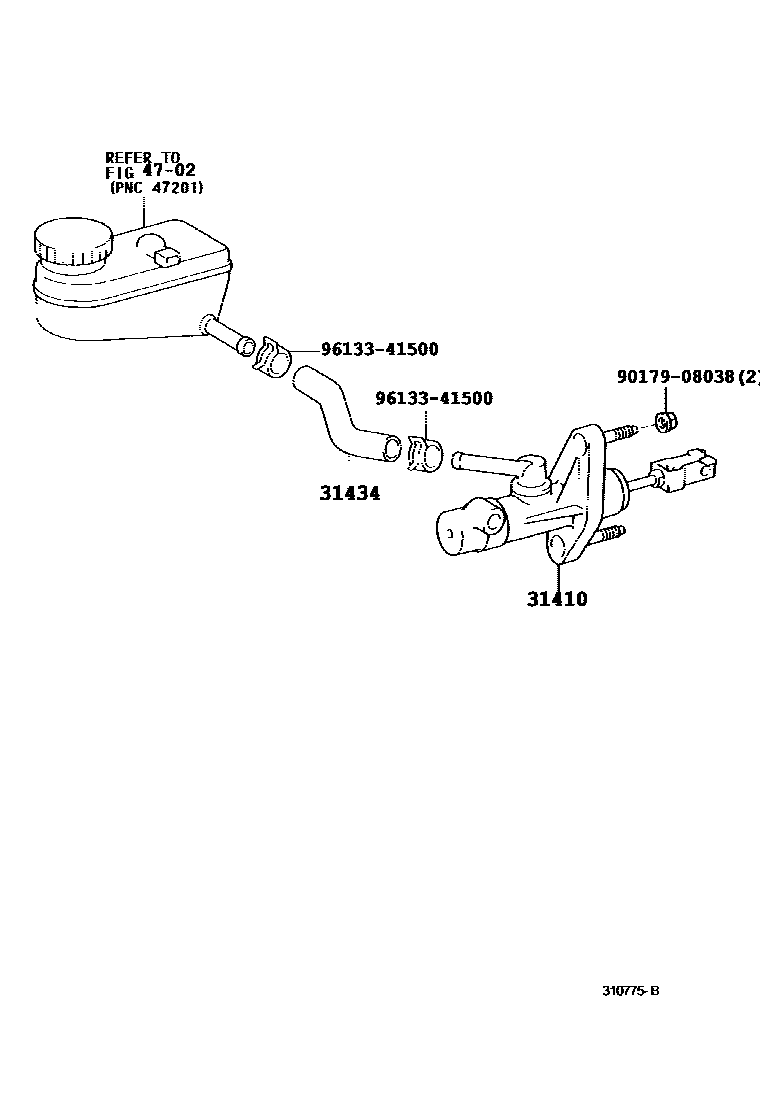

Toyota YARIS 离合器总泵 — Figure 3103
Toyota YARIS EPC diagram 3103, 离合器总泵, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-0D010 · 31420-0D030 · 31420-0D040 · 31420-0D050 · 31420-0D060 |
| 31434 | Clutch reservoir connecting pipe | 31434-52050 · 31434-52060 |
