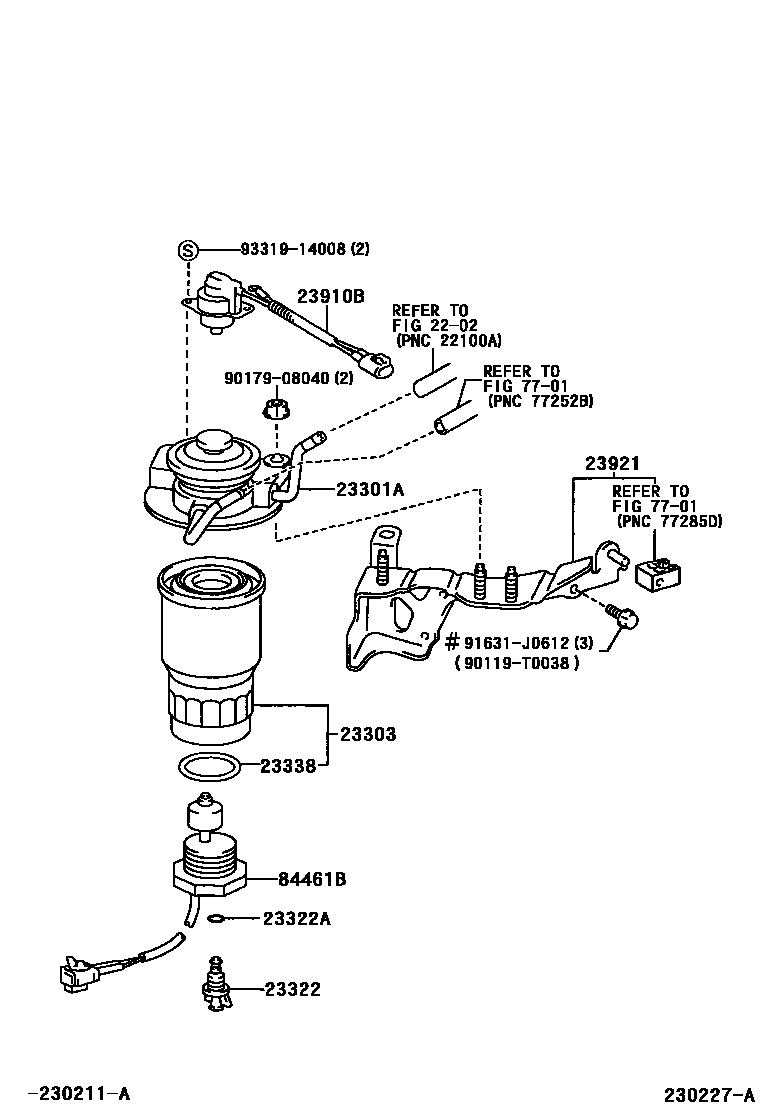

Toyota YARIS fuel filter — Figure 2302
Toyota YARIS EPC diagram 2302, fuel filter, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23301A | Fuel filter cover assembly | 23380-33020 |
| 23303 | Fuel filter element sub-assembly | 23390-33010 |
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23910B | Fuel heater assembly | 23910-54100 |
| 23921 | Fuel filter support | 23904-33010 |
| 84461B | Liquid level warning switch | 84461-28040 |
